2009-2024 RAM 1500 B8 5100 Series Suspension Shock Absorber (Adjustable)0-2.75" Front (24-317887)
Purchase to earn 232 Dirty Dollars Learn More
Description
Description
Fits
| Year | Make | Model |
| 2009-2010 | Dodge | RAM 1500 4WD |
| 2011-2018 | RAM | 1500 4WD |
| 2019-2024 | RAM | 1500 Classic 4WD |

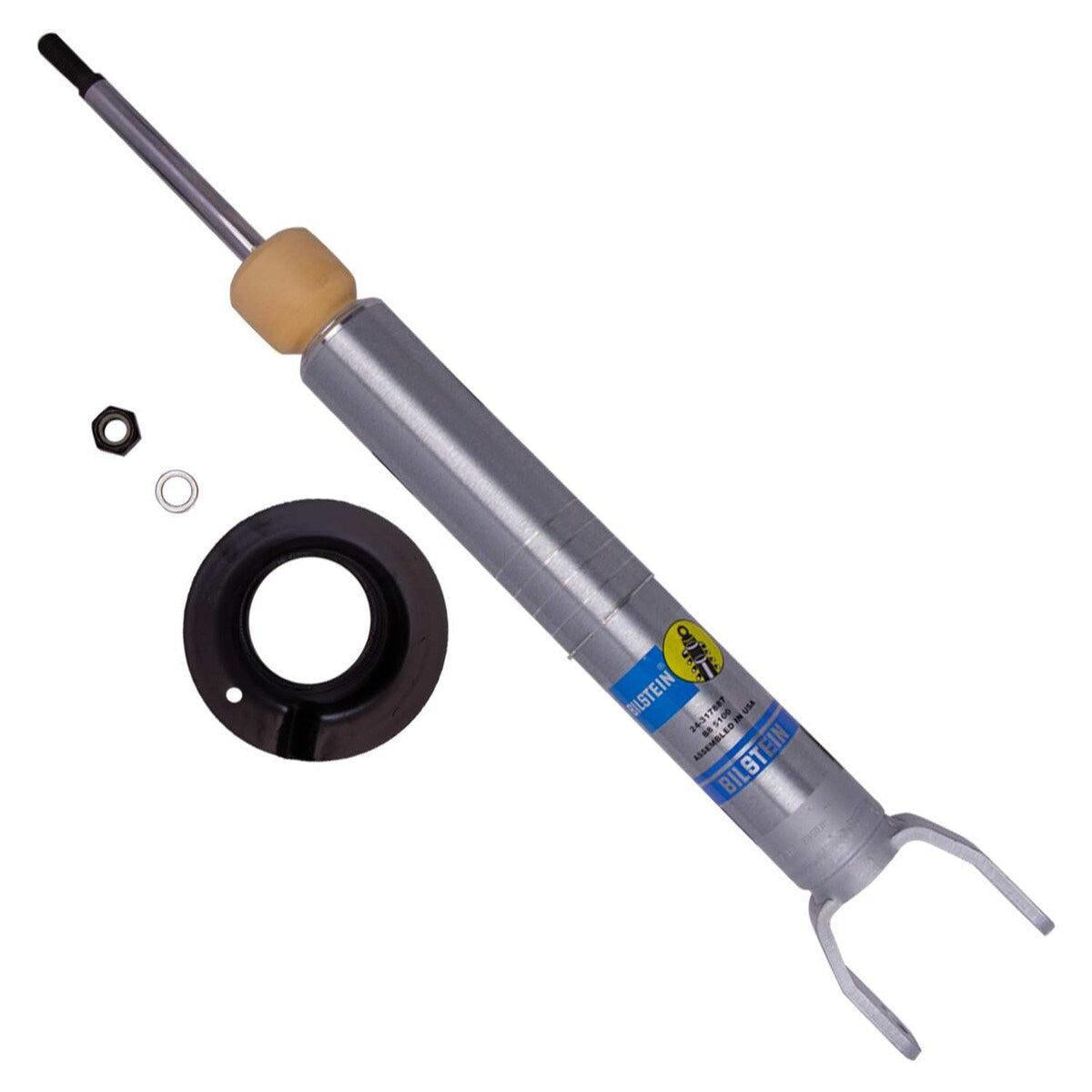

The B8 5100 shock absorbers fit trucks and SUVs with front OE coilover-style suspensions. Adjustable spring seats offer 0 to 2.75" of front lift with a front OE coilover style suspension. The 46mm monotube design features a digressive piston and self-adjusting valve setting for better wheel travel and handling. These shocks provide an effective way to level and improve vehicle performance.
Part Number: 24-317887
Features
Features
- Fits trucks and SUVs with front coilover suspensions
- Adjustable lift: 0–2.75″ with OE springs
- 46mm monotube design for better handling
- Self-adjusting valves for consistent performance
- Levels vehicle and improves ride quality
Additional Info
Additional Info
Adjustable Damping: Non-Adjustable
Body Design: Snap Ring Grooved Body (Coilover)
Body Diameter (ID): 46mm
Boot Included: No
Collapsed Length (IN): 15.12
Collapsed Length (MM): 384
Extended Length (IN): 21.46
Extended Length (MM): 545.2
Finish: Zinc Plated
Internal Design: Monotube
Lower Mount Type: Clevis
PartType: Shocks / Struts
Reservoir: No
Segment: Light Truck
Series: B8 5100 (Ride Height Adjustable)
Spring Max Travel (IN): 6.34

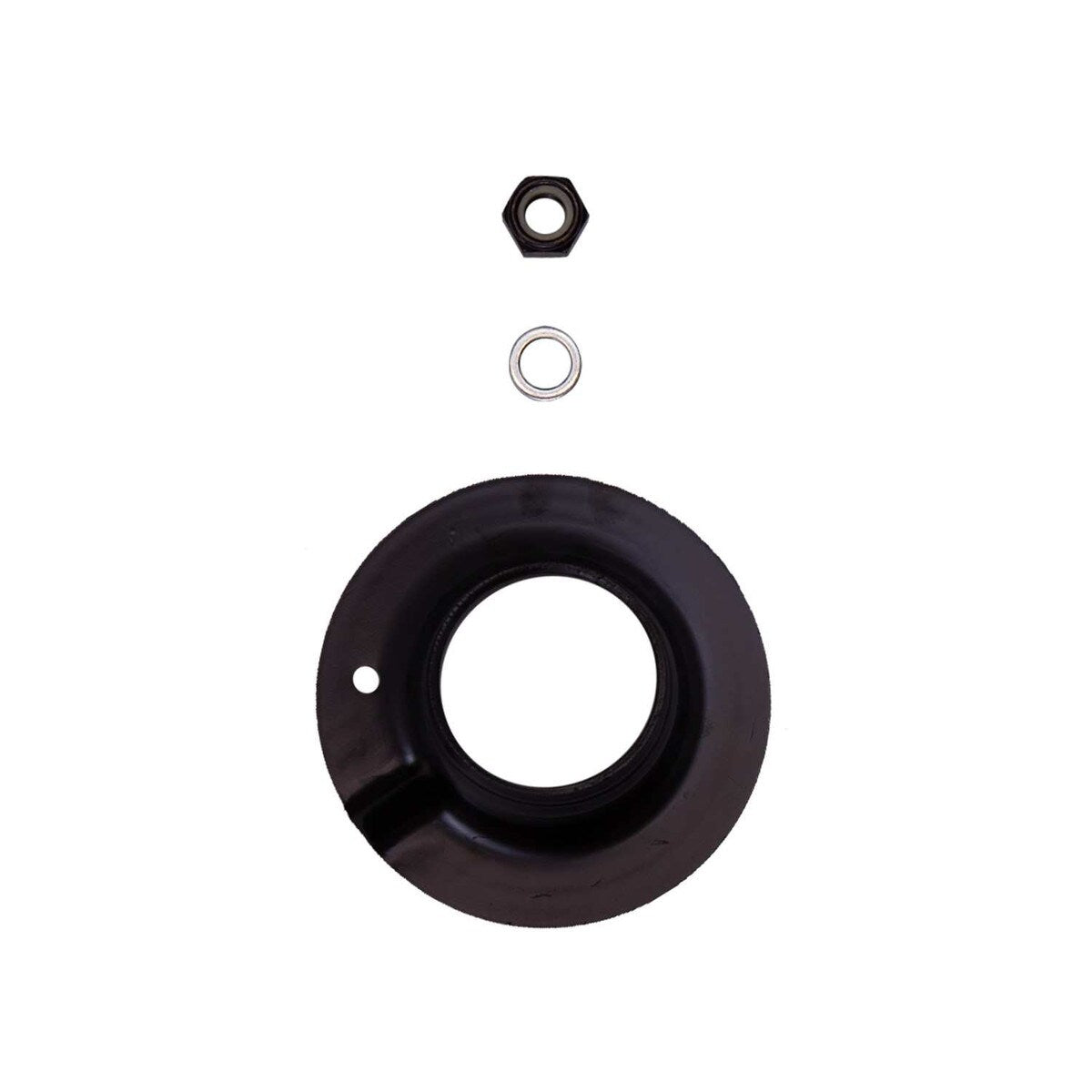

Spring Seat Included: Yes
Title: Bilstein Shock Absorbers
Upper Mount Type: Stem
Additional Fitment
Additional Fitment
| Year | Make | Model | Submodel | Drive Type Name | Fitment Notes |
|---|---|---|---|---|---|
| 2009 | Dodge | Ram 1500 | ST / Sport / SLT / Laramie / TRX4 | 4WD | Provides 0-2.8" Front Lift |
| 2010 | Dodge | Ram 1500 | SLT / ST / Laramie / TRX4 / Sport | 4WD / | Provides 0-2.8" Front Lift |
| 2011 | Ram | 1500 | Sport / Outdoorsman / SLT / Big Horn / Laramie / Laramie Longhorn / Tradesman / ST | 4WD | Provides 0-2.8" Front Lift |
| 2012 | Ram | 1500 | Laramie Longhorn / Big Horn / Outdoorsman / Laramie / ST / SLT / Tradesman / Express / Sport | 4WD | Provides 0-2.8" Front Lift |
| 2013 | Ram | 1500 | SLT / Express / Sport / Outdoorsman / Laramie Longhorn / Big Horn / Laramie / Tradesman | 4WD | Provides 0-2.8" Front Lift; Without Air Suspension |
| 2014 | Ram | 1500 | Express / Laramie / Sport / Laramie Longhorn / Laramie Limited / Big Horn / Tradesman / Outdoorsman / Lone Star / SLT | 4WD | Provides 0-2.8" Front Lift; Without Air Suspension |
| 2015 | Ram | 1500 | Express / Big Horn / Laramie / Tradesman / Lone Star / Outdoorsman / Laramie Longhorn / SLT / Sport | 4WD | Provides 0-2.8" Front Lift; Without Air Suspension |
| 2016 | Ram | 1500 | Laramie Longhorn / Lone Star / Tradesman / Express / Outdoorsman / SLT / Sport / Big Horn / Laramie | 4WD / | Provides 0-2.8" Front Lift; Without Air Suspension |
| 2017 | Ram | 1500 | Laramie Longhorn / Laramie / Express / Lone Star / SLT / Tradesman / Big Horn / Sport | 4WD | Provides 0-2.8" Front Lift; Without Air Suspension |
| 2018 | Ram | 1500 | Sport / Laramie / Lone Star / SLT / Express / Big Horn / Tradesman / Laramie Longhorn | 4WD | Provides 0-2.8" Front Lift; Without Air Suspension |
| 2019 | Ram | 1500 Classic | Big Horn / Lone Star / Warlock / Laramie / Express / Tradesman / SLT | 4WD | Provides 0-2.8" Front Lift; Without Air Suspension |
| 2020 | Ram | 1500 Classic | Express / Warlock / SLT / Tradesman | 4WD | Provides 0-2.8" Front Lift; Without Air Suspension |
| 2021 | Ram | 1500 Classic | Warlock / Express / Tradesman / SLT | 4WD | Provides 0-2.8" Front Lift; Without Air Suspension |
| 2022 | Ram | 1500 Classic | Warlock / SLT / Tradesman / Express | 4WD | Provides 0-2.8" Front Lift; Without Air Suspension |
| 2023 | Ram | 1500 Classic | Tradesman / Express / Warlock / SLT | 4WD | Provides 0-2.8" Front Lift |
| 2024 | Ram | 1500 Classic | Tradesman / Warlock | 4WD | Provides 0-2.8" Front Lift |
Warranty
Warranty
- Limited 90 Day Warranty
