1985-2026 Duramax CV Axle Flange Bolt Set (AXGMCV6)

The Axiom Supply CV axle flange bolt set secures your CV axle to the differential flange under extreme load and constant drivetrain stress. These are torque-to-spec fasteners (58 lb-ft) and should always be replaced during a CV axle service. Reusing stretched, fatigued, or corroded factory bolts is a gamble on clamping force and torque retention. A zinc-plated finish fights corrosion in mud, snow, and road salt.

• Grade 10.9 Strength Rating: Designed to handle high torque and constant rotational stress.
• Zinc-Plated Finish: Provides corrosion resistance and long-term durability.
• Factory-Length Design: Ensures proper engagement and fitment with OEM CV axle flanges.
• High Torque Capability: Engineered for 58 lb-ft installation torque.

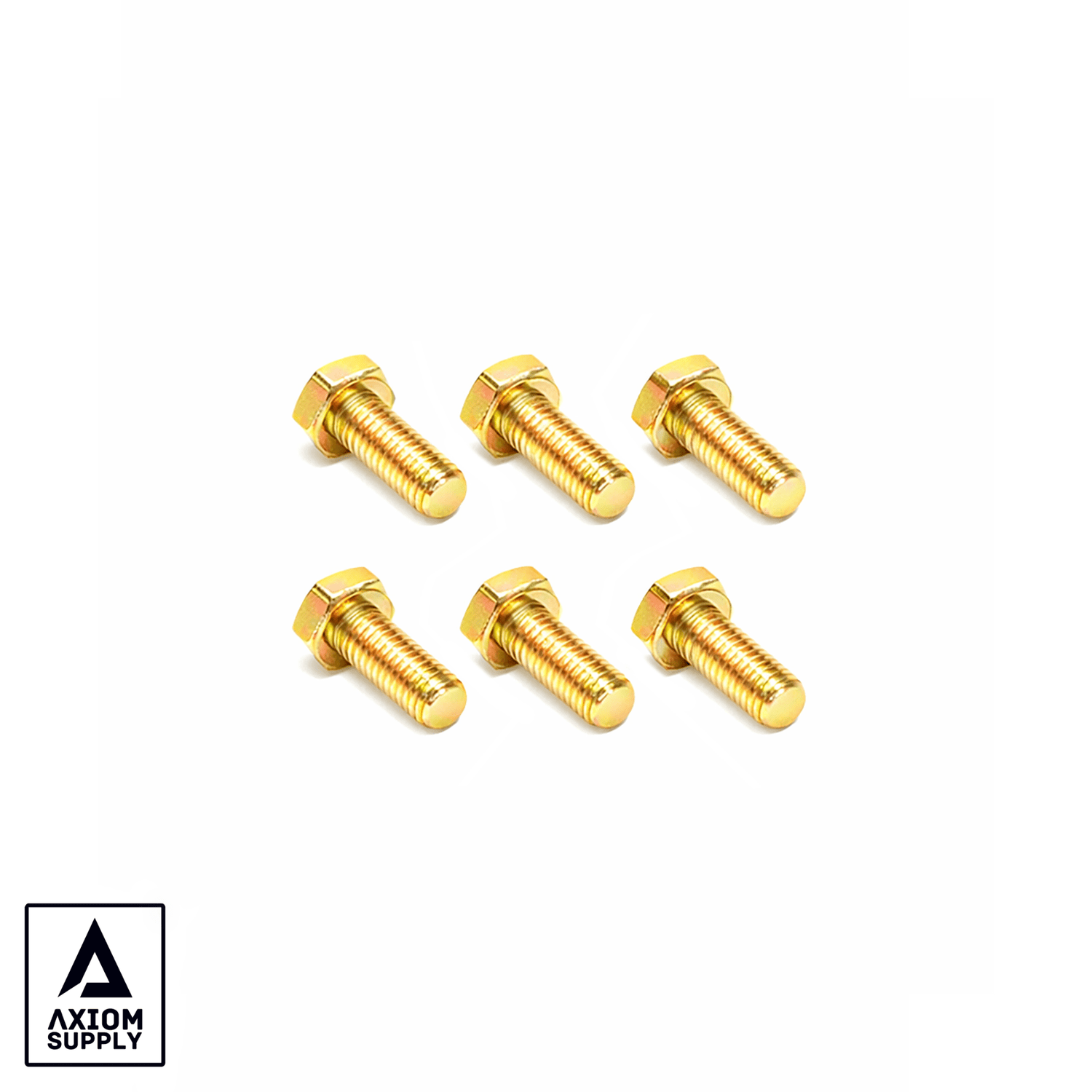

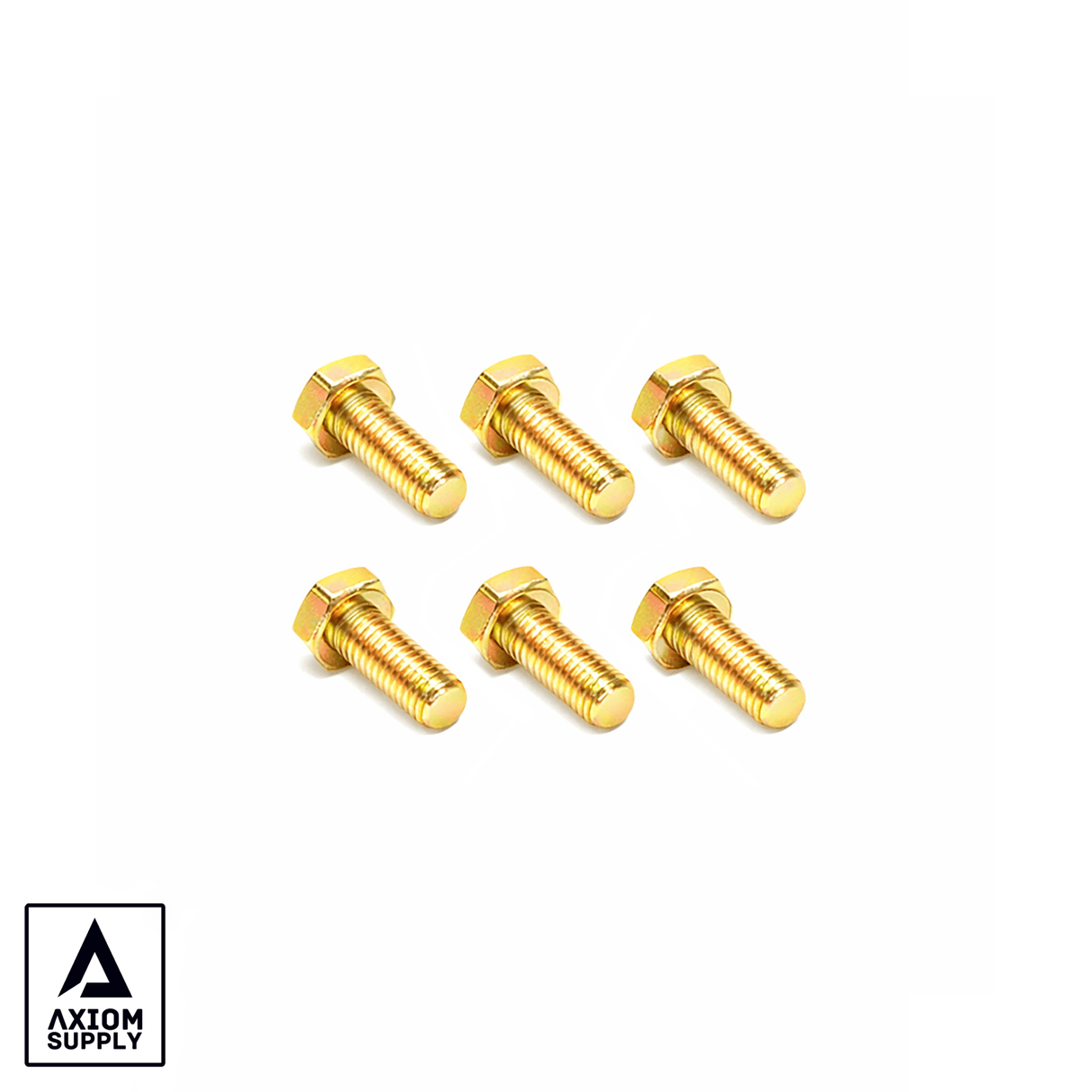

(6) Grade 10.9 flange bolts (one axle side)

• Torque specification: 58 lb-ft; thread locker recommended
• Always replace CV flange bolts during service; do not reuse factory hardware
• Not compatible with CV spacer kits
• If running a lift kit with tight flange clearance, factory hardware may be required

Axiom No-Nonsense Lifetime Warranty: Axiom steering and suspension components are warrantied for life to the original purchaser against any manufacturer defects, premature wear, or breakage. Race it, jump it, off-road it, lift it. If you can break it, we will replace it. Axiom products must be purchased from an authorized dealer.
