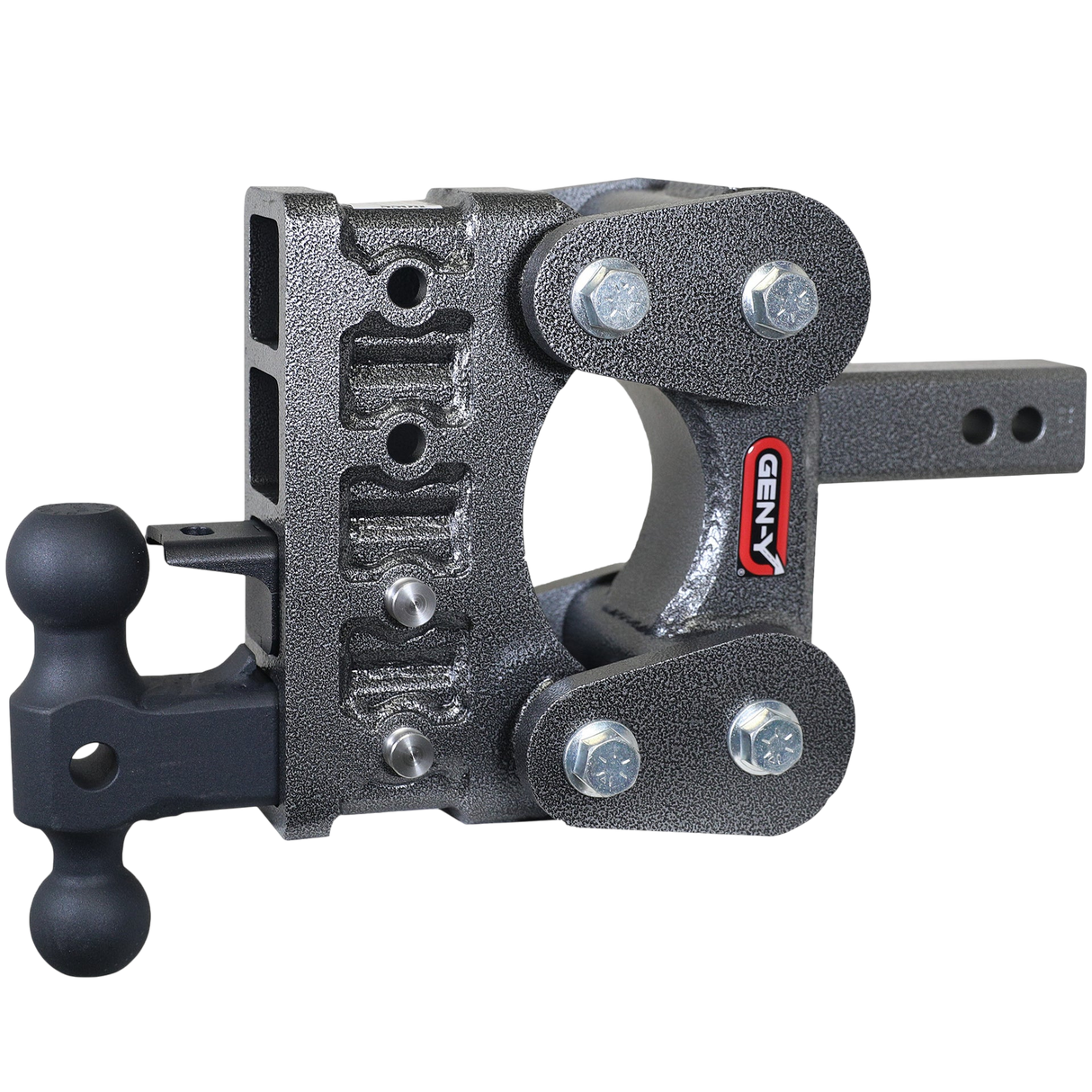

Gen-Y | The Boss Torsion-Flex 16k Drop Hitch | 5" Drop | 2" Shank | Dual Ball Mount & Pintle Lock (GH-1224)

Fits: Universal w/ 2" Shank

Towing Capacity: 16,000LB

Tongue Weight: 1,700LB

Drop/Raise: 5"

Dual Ball: 2″ and 2 5/16″

Optimal Vertical Load: 1,000-1,700lb

What Size Drop Hitch Do I Need? | Drop Hitch Stabilizer Bars

The Gen-Y BOSS Torsion-Flex hitch is a heavy-duty powerhouse designed for diesel enthusiasts who require a 16,000 lb towing capacity and a superior towing experience. This rugged steel system features a 5" drop and four adjustable positions paired with a Dual-Ball Mount and Pintle Lock for maximum job site versatility. By utilizing integrated torsion arms to absorb 90% of road shock, this hitch protects your drivetrain and cargo while providing the smoothest ride on the market for 2" receivers.

Smoothest Ride Achieved at 1,000 – 1,700 lbs. Tongue Weight

Part Number: GH-1224

• Dual-Ball Mount and Pintle Lock
• 4 Adjustable Positions
• 2” Shank (Receiver)
• 5" Drop/Raise
• 16,000 lb Towing Capacity
• 1,700 lb Tongue Weight
• Most Versatile on the Market
• 2″ Slot Openings on Hitch
• Fabricated with Heavy-Duty Steel
• Finish: Zinc Primer and Epoxy Powder Coated
• Built-In Suspension for 90% Smoother Ride

• Simply adjust your ball mount to the desired height by pulling a pin and moving the ball mount to the desired position. This ensures your trailers are being towed level, this is particularly important when towing trailers with torsion axels.
• It is important to be within the optimal Tongue/Pin weight specified for each model number!
• Tow capacity is limited by lowest rated component. Average break-in period for hitch = 500 miles.
• If you are towing with a pintle ring trailer, use 2 5/16″ ball, NOT  2″ ball when towing.

With Rubber Torsion Hitches only 10% of the trailer inertia transfers compared to 100% using a hard connection hitch giving you the ultimate control.

Bumps, potholes, expansion joints, curves, hills, and other drivers can be a hazard, the Gen-Y Torsion Hitch helps keeps you under control when confronted with these conditions.

When you run a torsion style hitch, the tow vehicle and trailer track independently giving you greater control and added safety by reducing sway and trailer bounce.

Also, their hitch will help increase braking control as all the weight is evenly distributed between your truck and your load. This will increase your positive contact when braking and maneuvering.

Parts Only

• 5 Year Warranty on Rubber Components, Limited Lifetime Warranty on Rest of Components.
