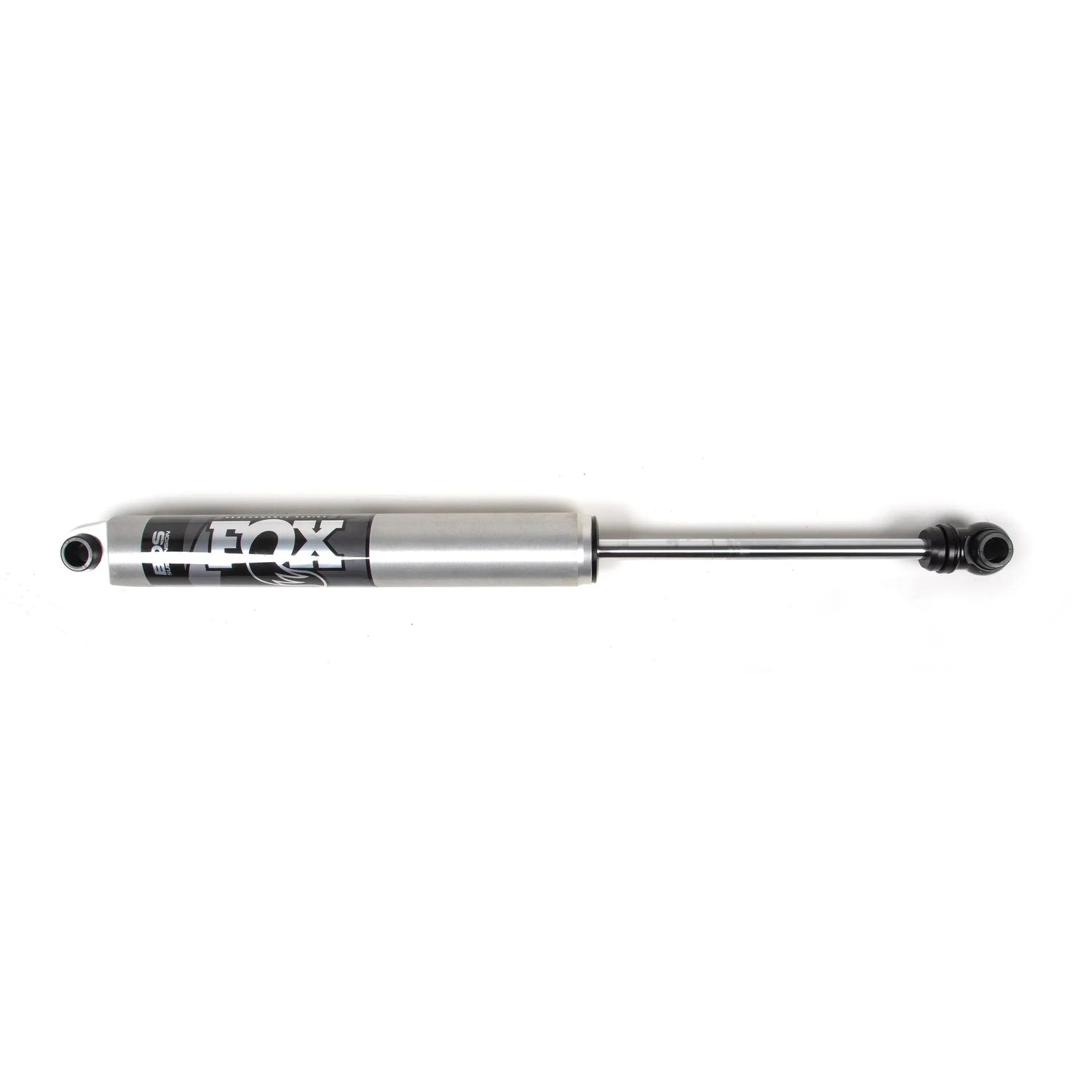

2020-2023 Duramax Fox 2.0 5"-6.5" Rear Shock (982-24-767)

Fits

Upgrade the on-road comfort and off-road control of your 2020-2024 Chevy Silverado or GMC Sierra 2500 HD/3500 HD to FOX Performance Series 2.0 IFP (internal floating piston) rear shocks. Designed to fit a BDS 5 to 6.5-inch lift suspension kit. The mono-tube design's internal reservoir separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving.

FOX and BDS joined forces to custom valve each application to work perfectly with each BDS Suspension system. Based on FOX race products but re-designed to turn your BDS-equipped truck into an off-road machine providing a predictable ride - capable of handling the roughest conditions with fade-free performance.

• 2-inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
• 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Internal IFP mono-tube reservoir design

• Type : Shocks
• Lower Mount Type : Eyelet
• Upper Mount Type : EB1
• Gas Charged : true
• Adjustable : false
• Adjustable Dampening : No Adjustable Dampening
• Compressed Length : 18.9500 INCH
• Travel Length : 12.0700 INCH
• Extended Length : 31.0200 INCH
• Shaft Diameter : 5_8
