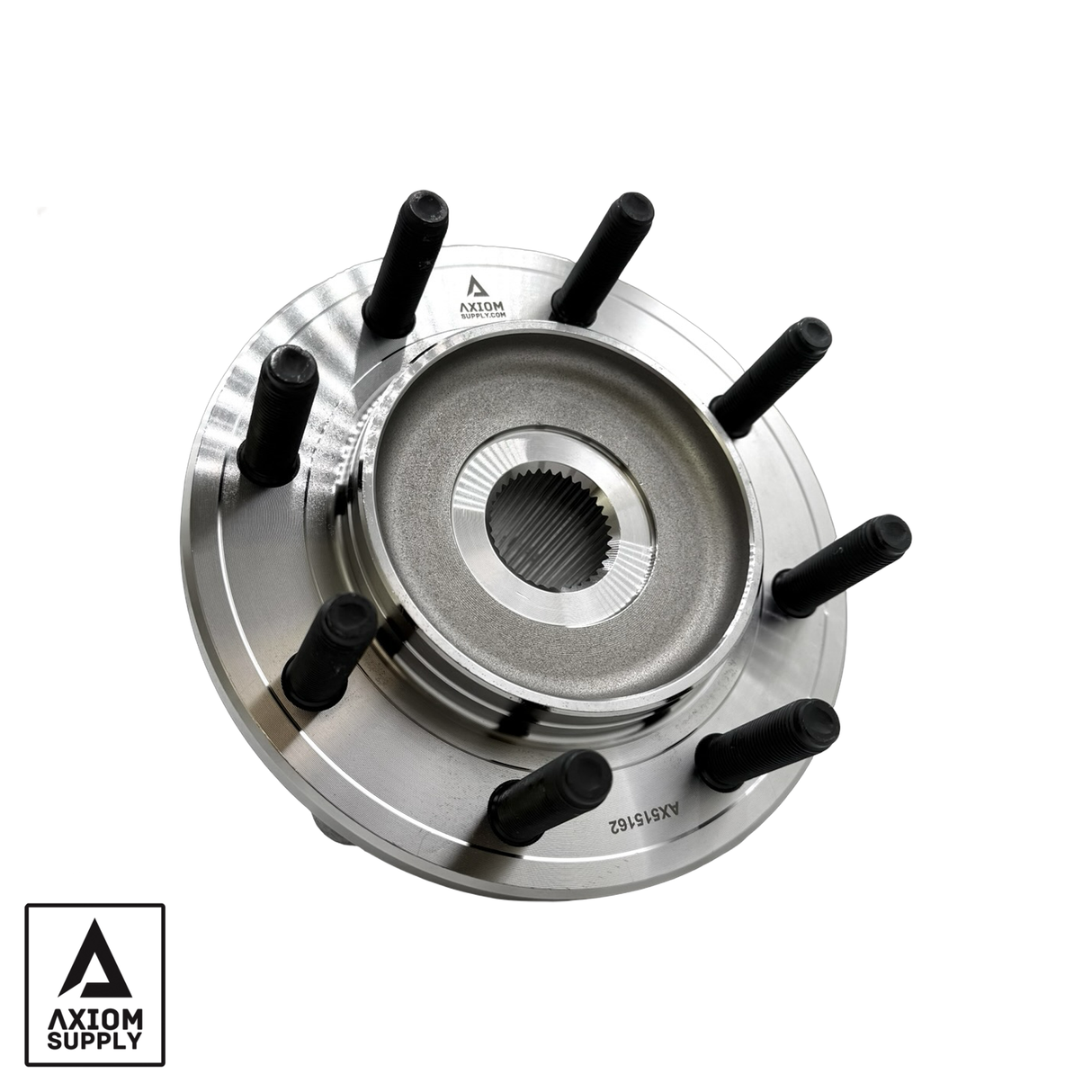

2013-2018 Cummins Wheel Bearing Assembly (AX515162)

Fits:

A bad wheel bearing kills steering feel, eats tires, and eventually leaves you on the shoulder. The Axiom assembly is a full bolt-in fix with precision tapered rollers, Grade 10.9 studs, and a tougher ABS sensor — built to outlast factory under tow loads, big tires, and lifted suspension.

Part Number: AX515162

• Precision Tapered Roller Bearings – Pre-greased for maintenance-free service.
• Grade 10.9 Studs – Cold-formed and zinc-plated.
• Heavy-Duty ABS Sensor – Reliable signal in heat, mud, and moisture.
• Versatile Spindle Design – Rolled inner spindle works with 2WD and 4WD.
• Configuration – 8 × M14-1.50 lug studs.

• Axle Nut: 280 lb·ft
• Spindle Bolts: 150 lb·ft
• Main Caliper Bolts: 250 lb·ft
• Lug Nut: 130 lb·ft
• Box Dimensions: 11" × 11" × 7"
• Weight: 26 lb

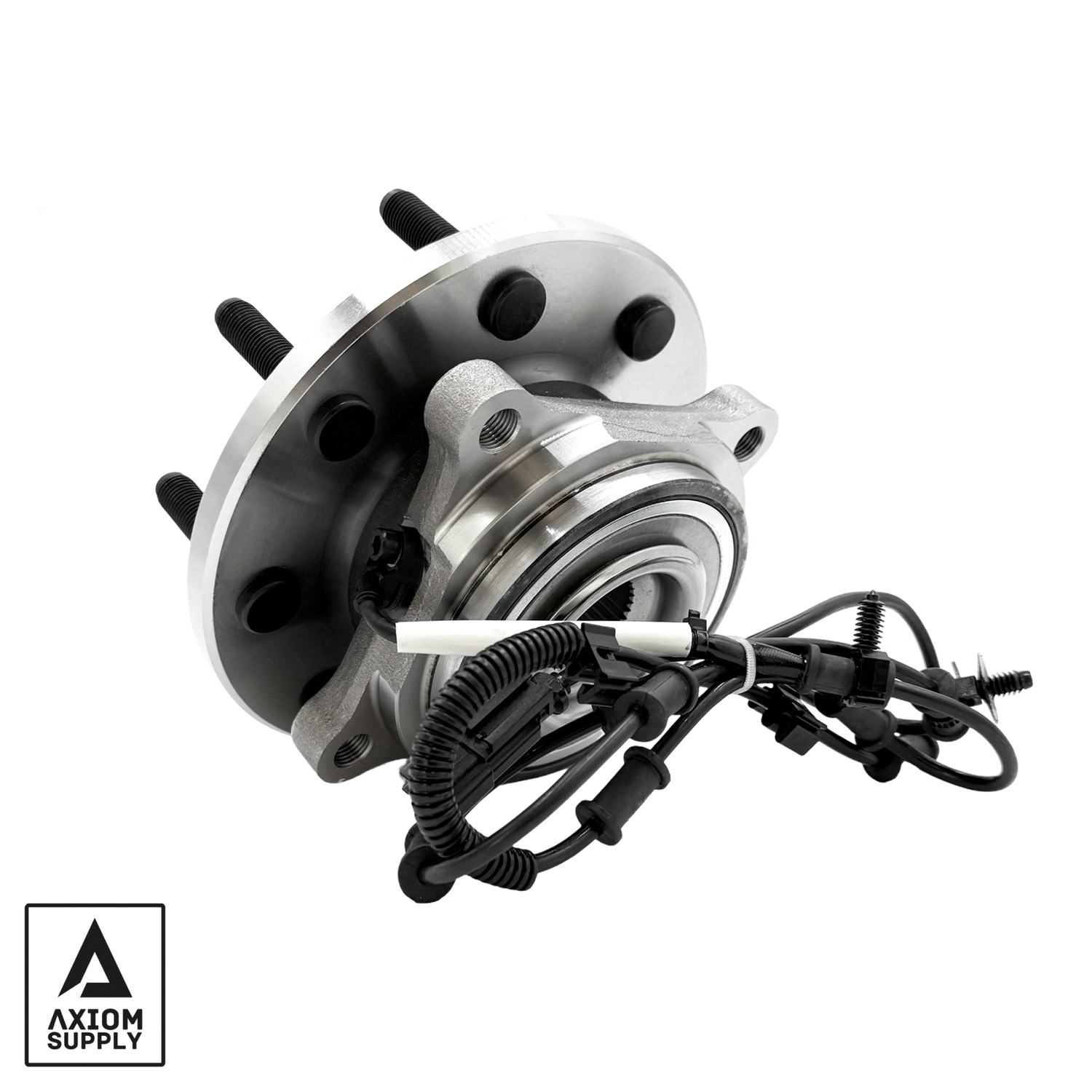

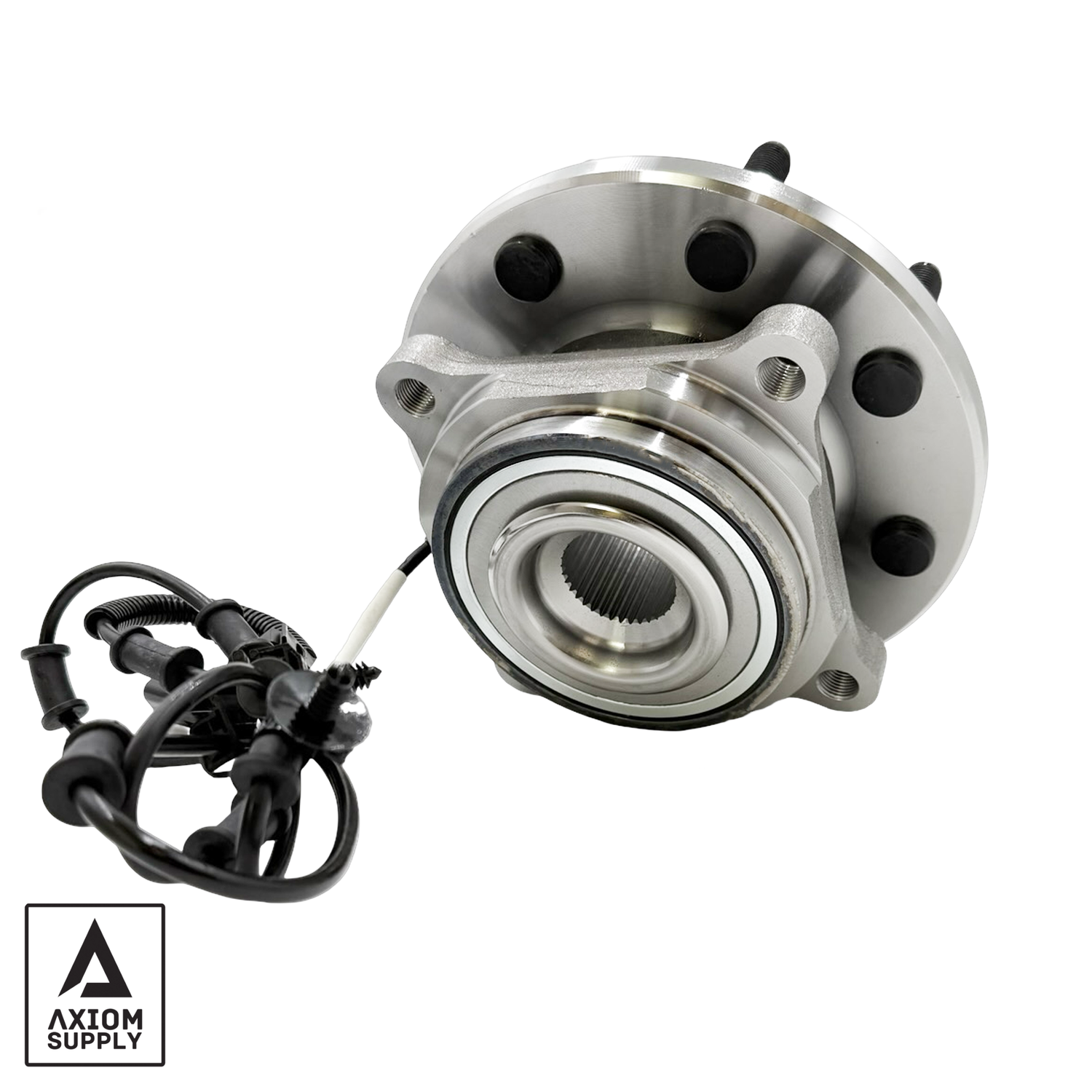

• (1) Wheel Bearing & Hub Assembly with integrated ABS wire

Timken HA590628, Doc's DH515162, Autopart International 1411-556395, BCA WE61904, Carquest 94-556395, FAG US 103159 / 103160, GMB 720-3210, GSP 126162, Mevotech MB25321 / G25321, Moog Hub Assemblies 515162, NAPA PBR930553, SKF BR930553, Axiom AX515162

Our suspension and steering components are warrantied for life to the original purchaser against any manufacturer defects, premature wear, or breakage.
