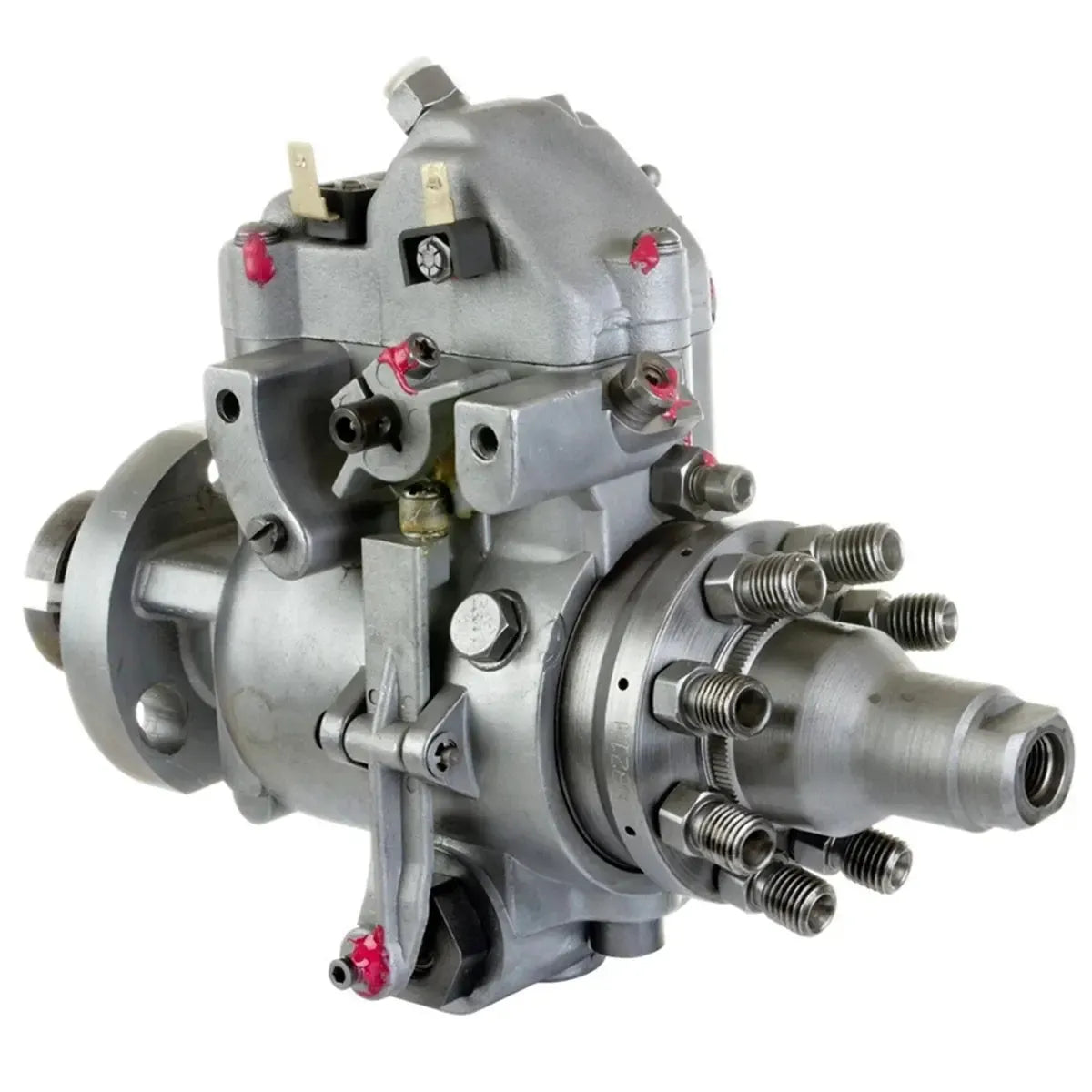

1993-1994 Ford Stanadyne DB2 Mechanical Injection Pump Automatic 190hp (DB2831-5069)

Stanadyne DB2 mechanical injection pump (DB2831-5069) for 1993-1994 Ford F-Series trucks and E-Series vans running the 7.3L IDI Turbo (IDIT) diesel with an automatic transmission. Calibrated to the OE 190 HP power rating — the top-of-the-line factory pump for the early turbo IDI trucks.

The 7.3L IDIT (turbocharged IDI) is the bridge between the naturally-aspirated 7.3L IDI and the mid-1994 7.3L Powerstroke. This DB2 calibration is unique to the auto-trans IDIT trucks. Each unit ships flow-tested on a Stanadyne stand against OE spec. Bolts to the factory front cover, uses OE hard lines and shutoff solenoid.

• Stanadyne DB2 Rotary Distributor Pump
• Calibrated to OE 190 HP Spec — Turbo IDI Auto-Trans
• Direct Bolt-On Replacement
• Mechanical Injection — No ECM or Electronics
• For 7.3L IDIT Auto-Trans F-Series and E-Series Vans
• Part Number: DB2831-5069

• For the turbocharged 7.3L IDI (IDIT) only — naturally-aspirated 7.3L IDI trucks use a different DB2 pump.
• Do not confuse with the 7.3L Powerstroke (DI HEUI) that started mid-1994 — Powerstroke uses HEUI injection, not mechanical pumps. This pump is IDI-platform only.
• This is a repair and return item, you must send us your core to send to to Industrial Injection for rebuild.
