2023-2026 Powerstroke 3" Charge Tube Set w/ Throttle Valve Replacement (PFP23XXKTR)

Most Pusher products are a special order and can take 4-5 weeks for delivery. If you need it sooner, contact us for our stock levels!

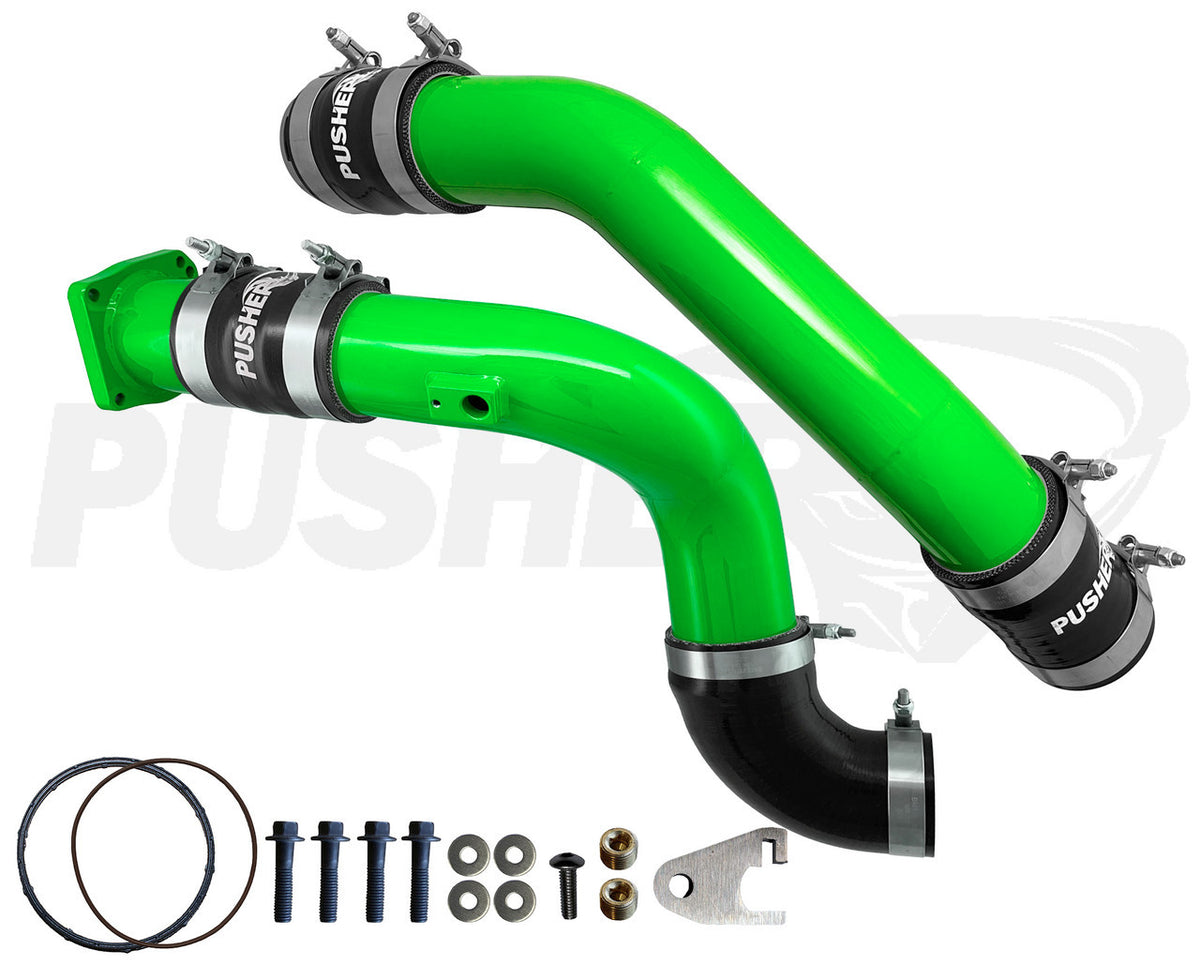

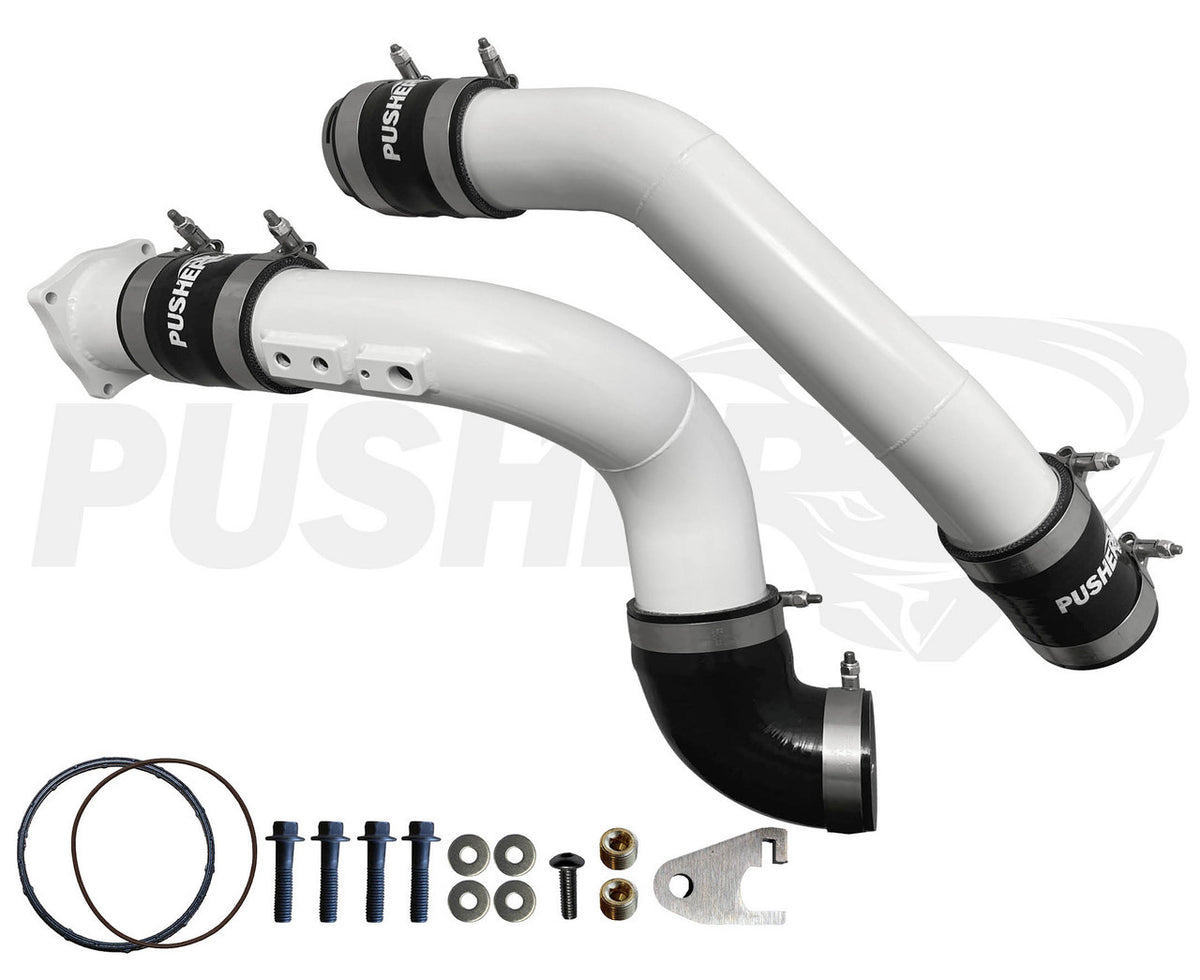

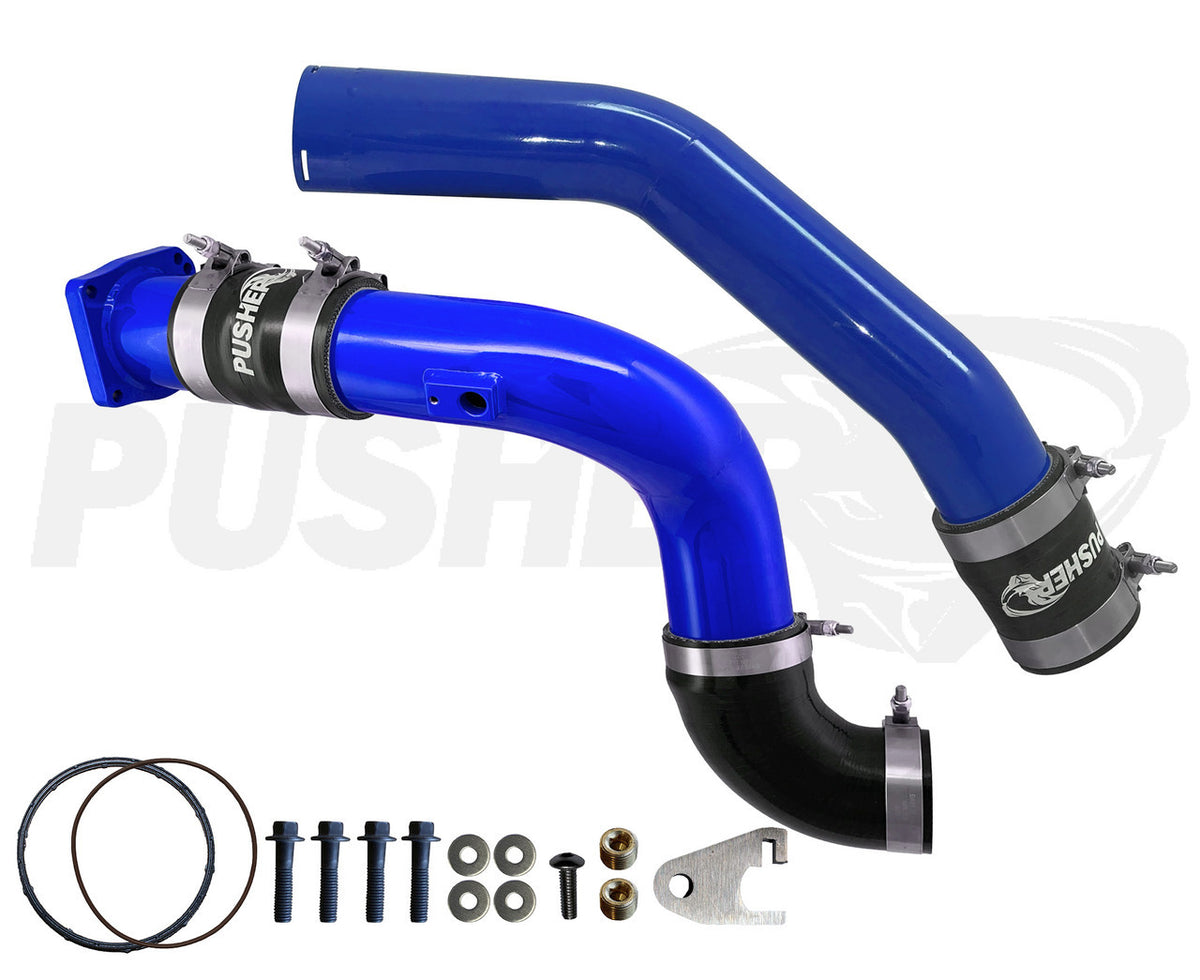

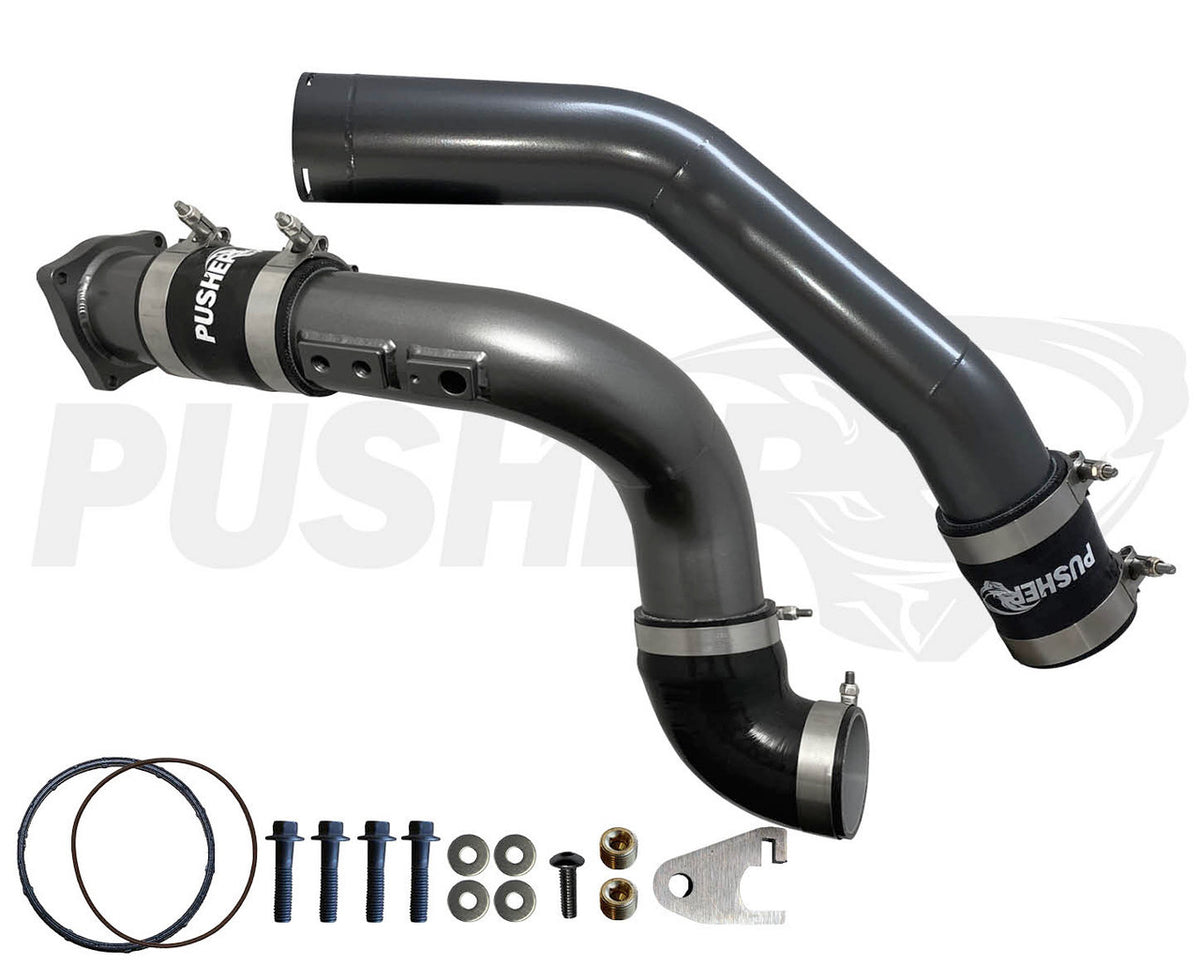

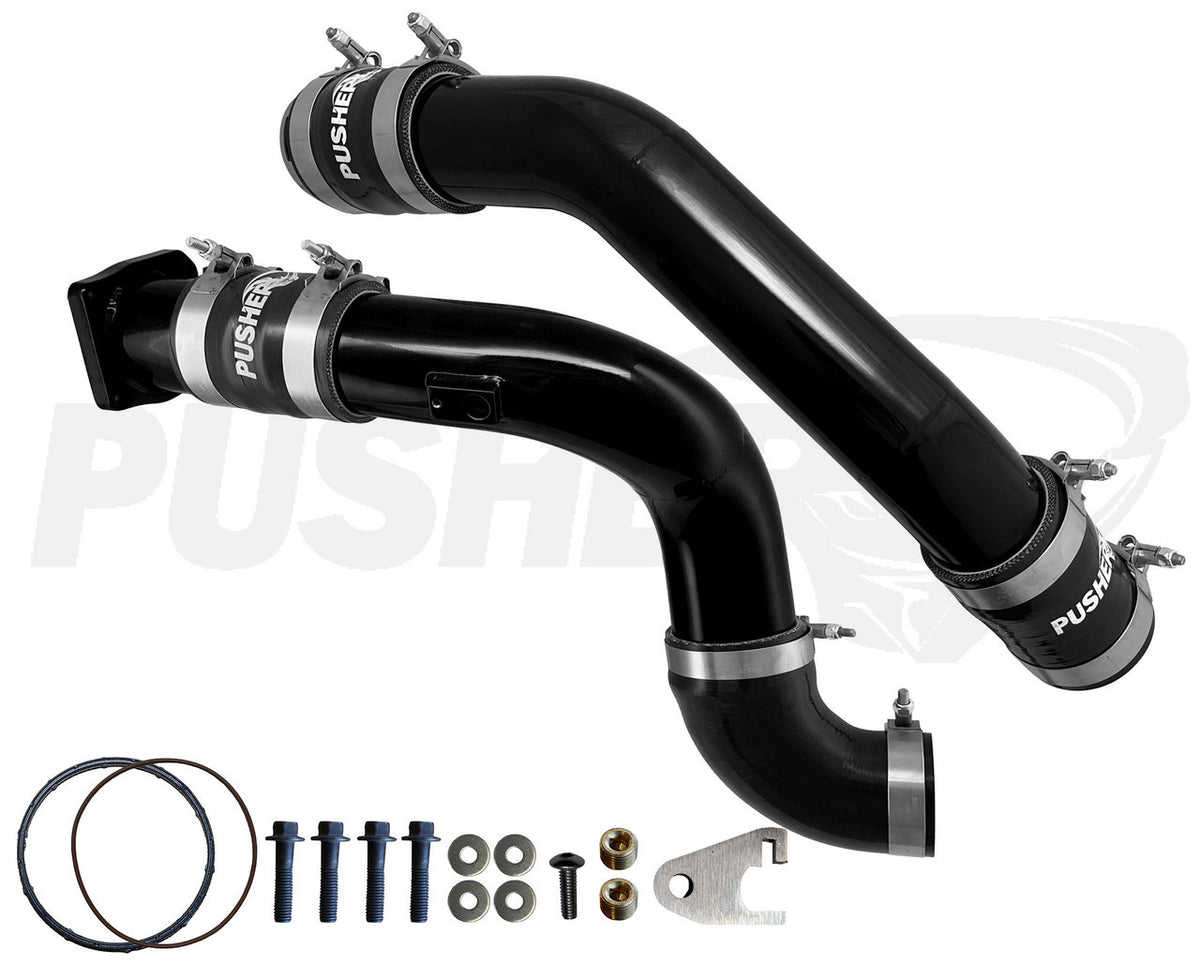

The Pusher PFP23XXKTR 3" Hot & Cold Side Charge Tube Set w/ Throttle Valve Replacement replaces the restrictive, failure prone plastic factory charge tubes and the OEM throttle valve on the 2023 and newer 6.7L Powerstroke. Both tubes are fully TIG welded 3" mandrel bent steel with a machined IAT sensor port and two auxiliary 1/8" NPT ports, engineered for optimum routing and the best possible fitment. A colour matched throttle valve replacement, sealed with an OEM Ford O-ring, takes the place of the factory throttle valve.

This system has been proven to hold the boost levels a compound turbo setup puts out, and was tested for over two years with Pusher's North American dealer network. Buying the set saves you money over purchasing the hot side and cold side separately.

Part Number: PFP23XXKTR

• Replaces the restrictive, failure prone plastic factory cold and hot side charge tubes
• Fully TIG welded 3" mandrel bent steel tubing with machined IAT sensor port and two auxiliary 1/8" NPT ports
• Colour matched throttle valve replacement utilizing an OEM Ford O-ring seal
• Engineered for optimum routing and best fitment
• Proven to hold compound turbo system boost levels
• Tested for over two years with Pusher's North American dealer network

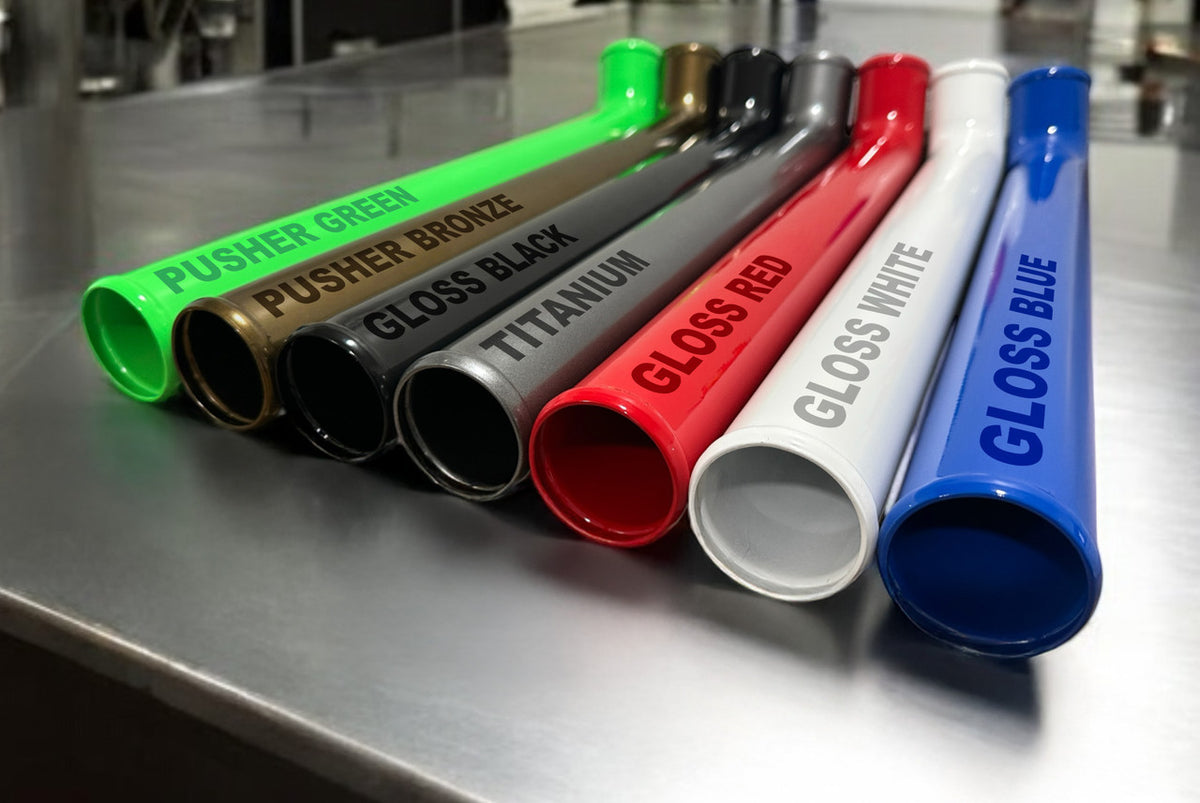

• Offered in a natural finish or seven durable powder coat colours
• Made in the USA

Includes:

• Pusher 3" cold side charge tube
• Pusher 3" throttle valve replacement
• Pusher HD 3" hot side charge tube
• Three 5-ply silicone couplers
• Six stainless t-bolt clamps
• Intake manifold O-ring and compressor outlet X-ring
• IAT sensor bracket and all required hardware

• This product is NOT emissions compliant and is intended for off-road use only. It will not work on stock emissions-equipped vehicles
• Verify that your tune allows removal of the throttle valve before purchasing
• For an emissions compliant option, see the Pusher 3" Charge Tube Set w/ Throttle Valve Adapter
• Select Standard Output or High Output to match your truck. The two are not interchangeable

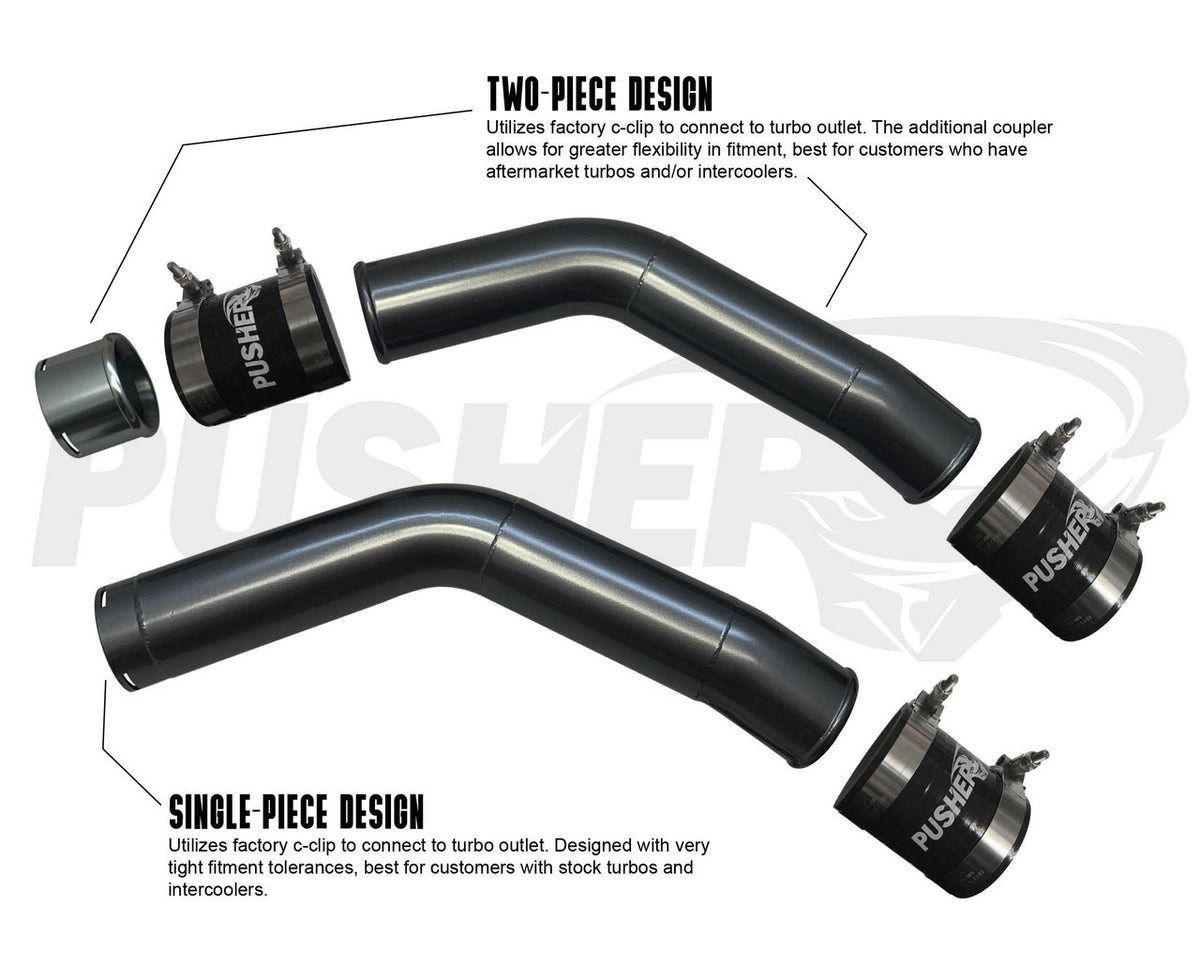

• The single piece hot pipe fits the factory intercooler and aftermarket intercoolers that keep the factory inlet and outlet layout. Choose the two piece hot pipe for intercoolers with different inlet or outlet locations or sizes
• Does not fit 2023 and newer Standard Output cab and chassis models
• Not compatible with PPE intercoolers
• Natural finish tubes are uncoated and must be powder coated or painted before installation
• Optional 1/8" NPT sensor ports are available from Pusher on request. Contact us before ordering
