2023-2026 Powerstroke 3" Charge Tube Set w/ Throttle Valve Adapter (PFP23XXKTA)

Fits

Most Pusher products are a special order and can take 4-5 weeks for delivery. If you need it sooner, contact us for our stock levels!

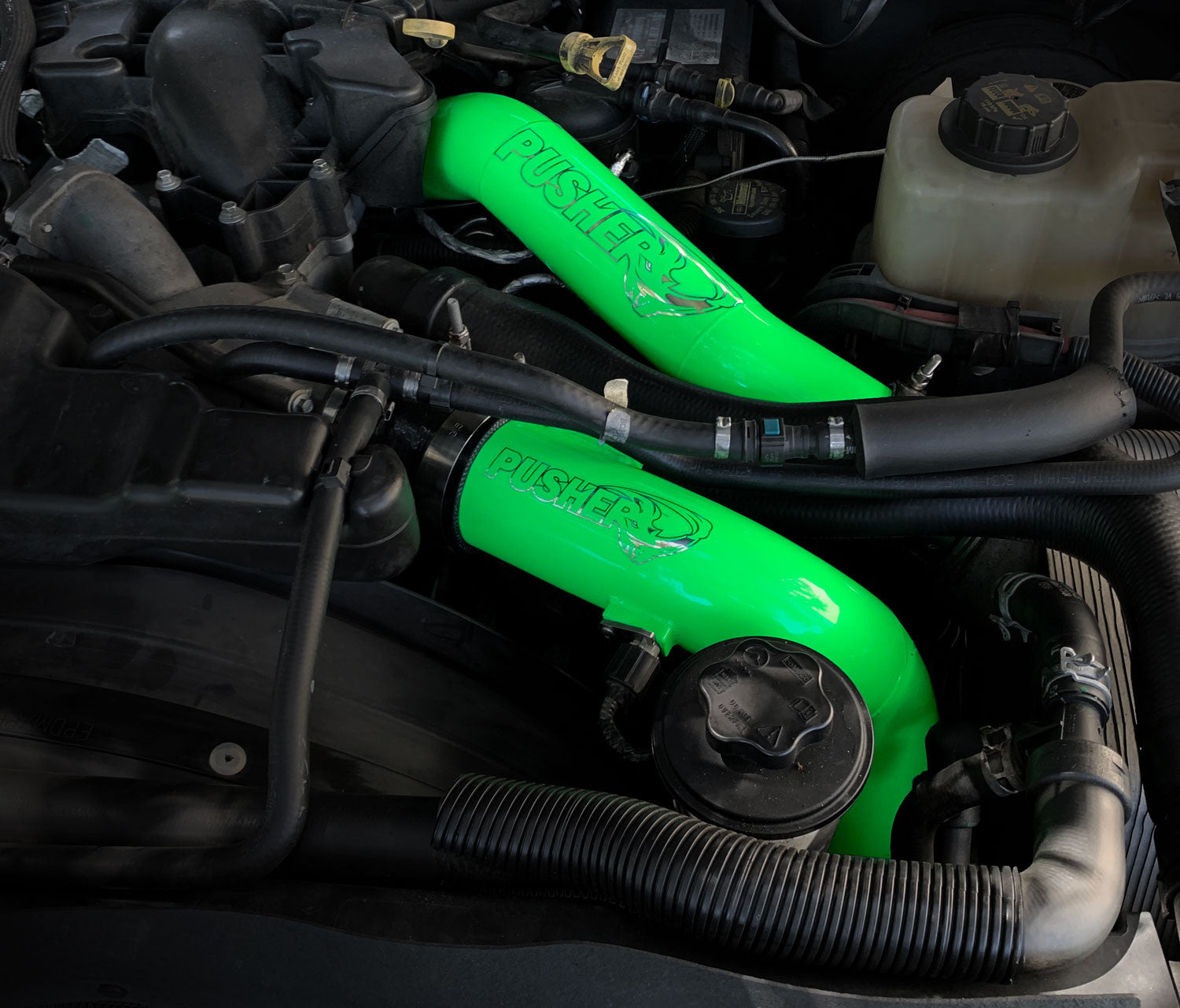

The Pusher PFP23XXKTA 3" Hot & Cold Side Charge Tube Set w/ Throttle Valve Adapter replaces the restrictive, failure prone plastic factory charge tubes on the 2023 and newer 6.7L Powerstroke. Both tubes are fully TIG welded 3" mandrel bent steel with a machined IAT sensor port and two auxiliary 1/8" NPT ports, engineered for optimum routing and the best possible fitment. The kit also includes a fully machined 6061-T6 throttle valve adapter anodized in Pusher's signature titanium finish for superior corrosion control.

This system has been proven to hold the boost levels a compound turbo setup puts out, and was tested for over two years with Pusher's North American dealer network to make sure these are the best charge tubes available. Buying the set saves you money over purchasing the hot side and cold side separately.

Part Number: PFP23XXKTA

• Replaces the restrictive, failure prone plastic factory cold and hot side charge tubes
• Fully TIG welded 3" mandrel bent steel tubing with machined IAT sensor port and two auxiliary 1/8" NPT ports
• Fully machined 6061-T6 throttle valve adapter, anodized in Pusher's signature titanium finish for superior corrosion control
• Engineered for optimum routing and best fitment
• Proven to hold compound turbo system boost levels
• Tested for over two years with Pusher's North American dealer network

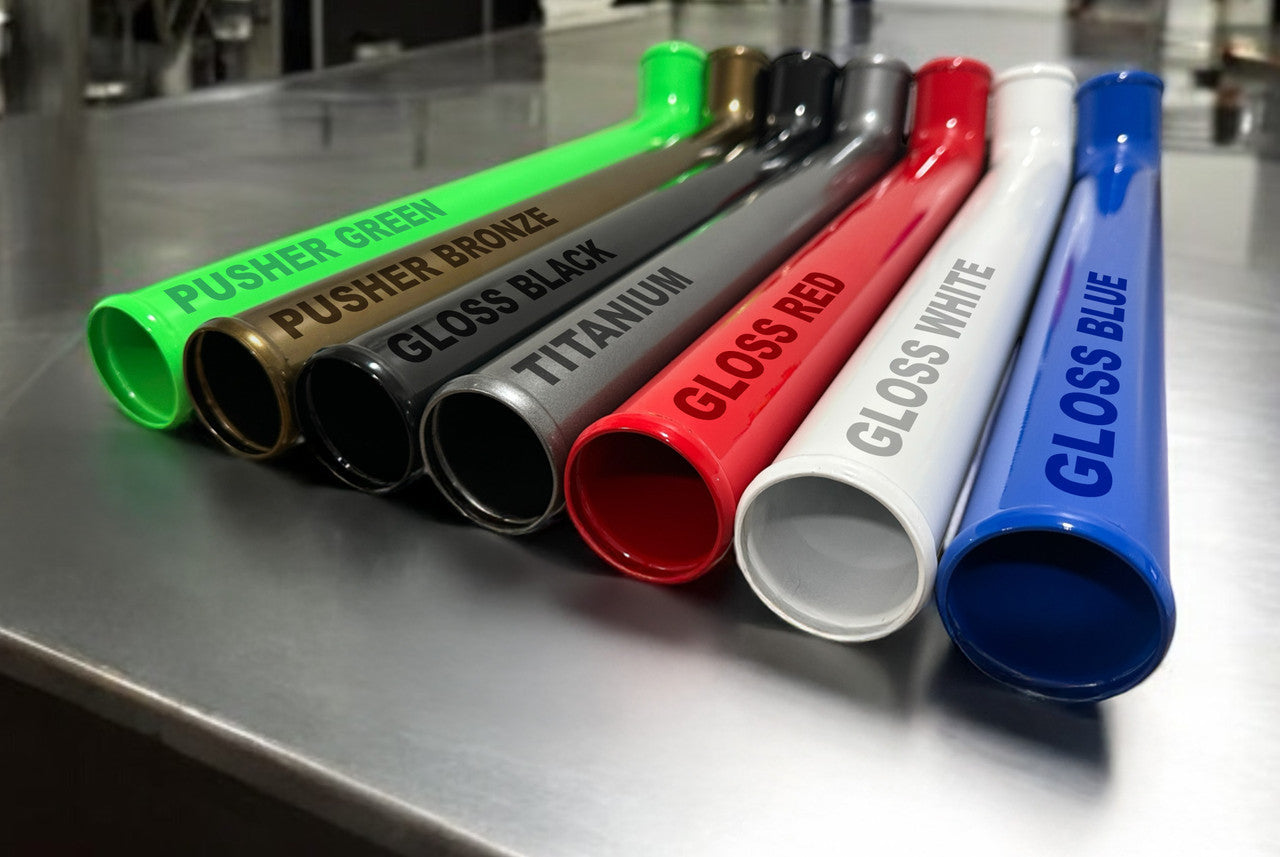

• Offered in a natural finish or seven durable powder coat colours
• Made in the USA

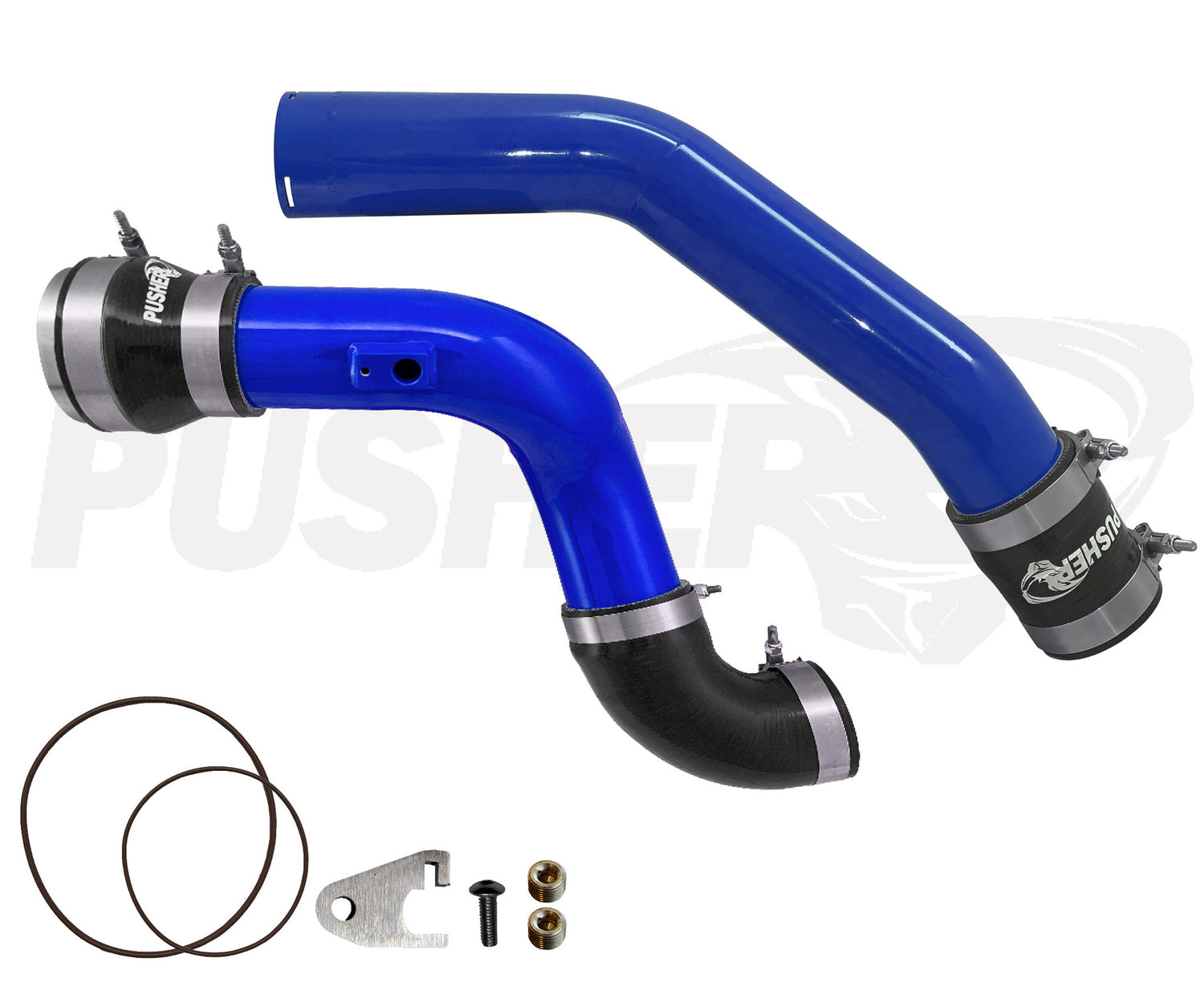

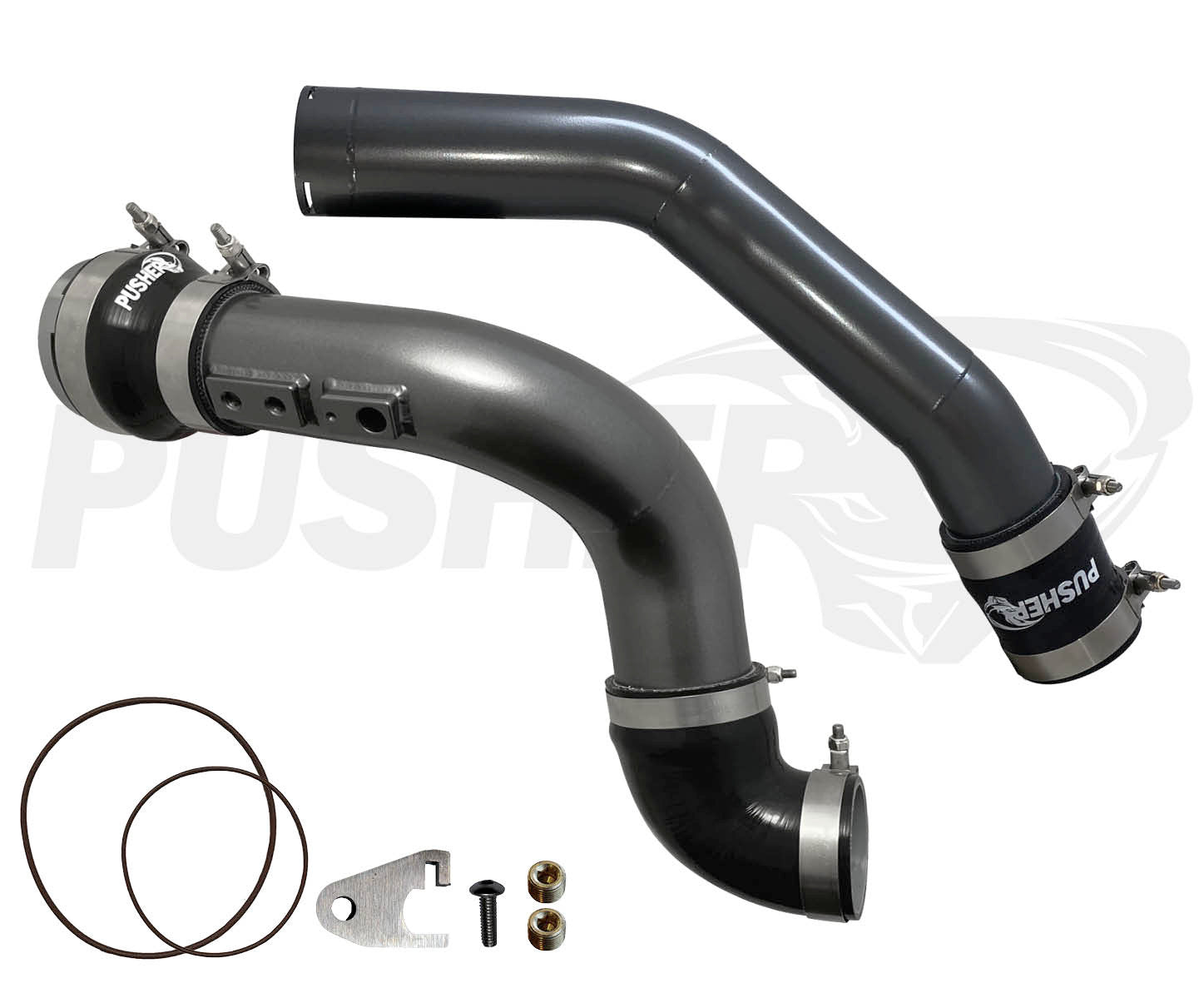

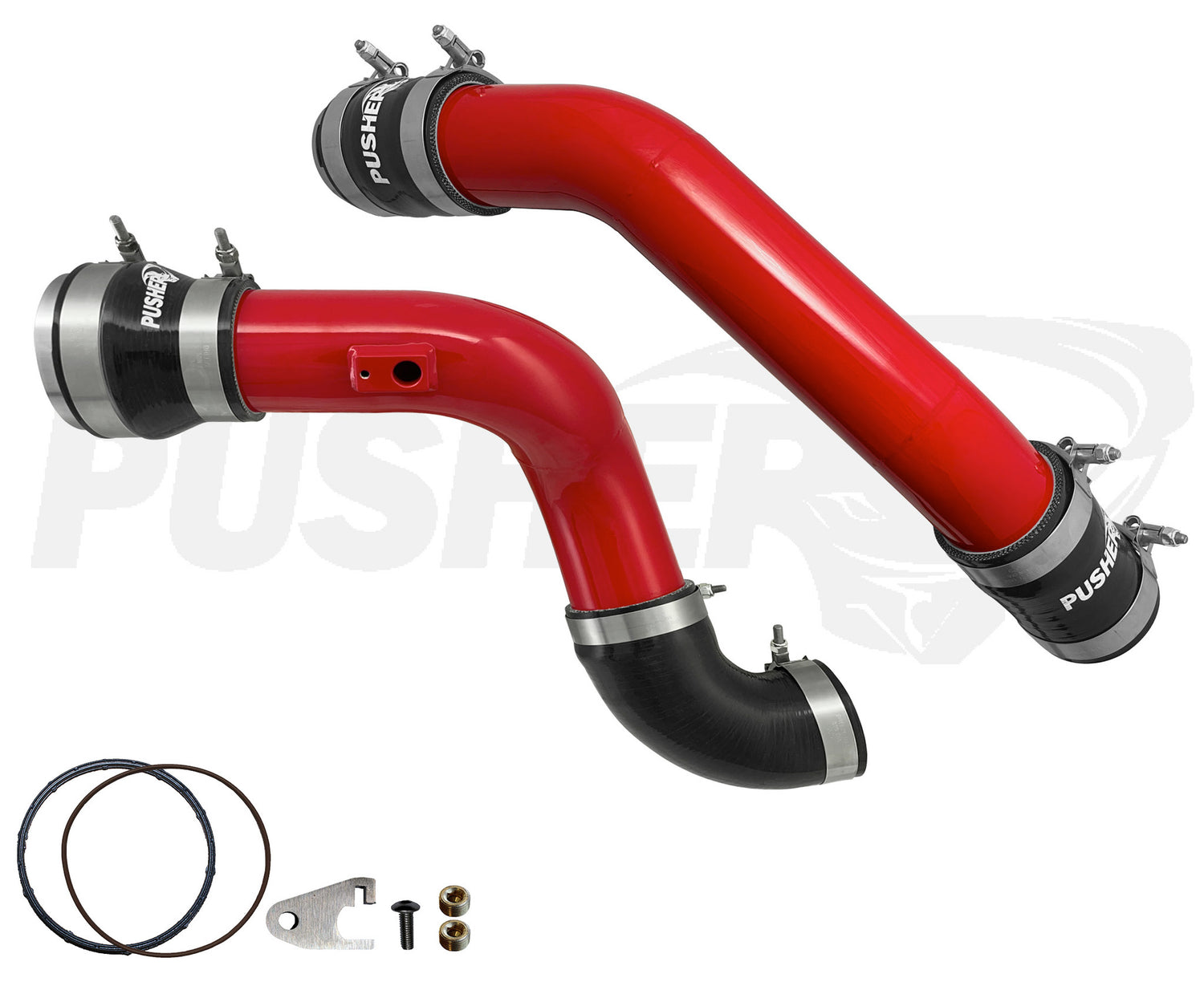

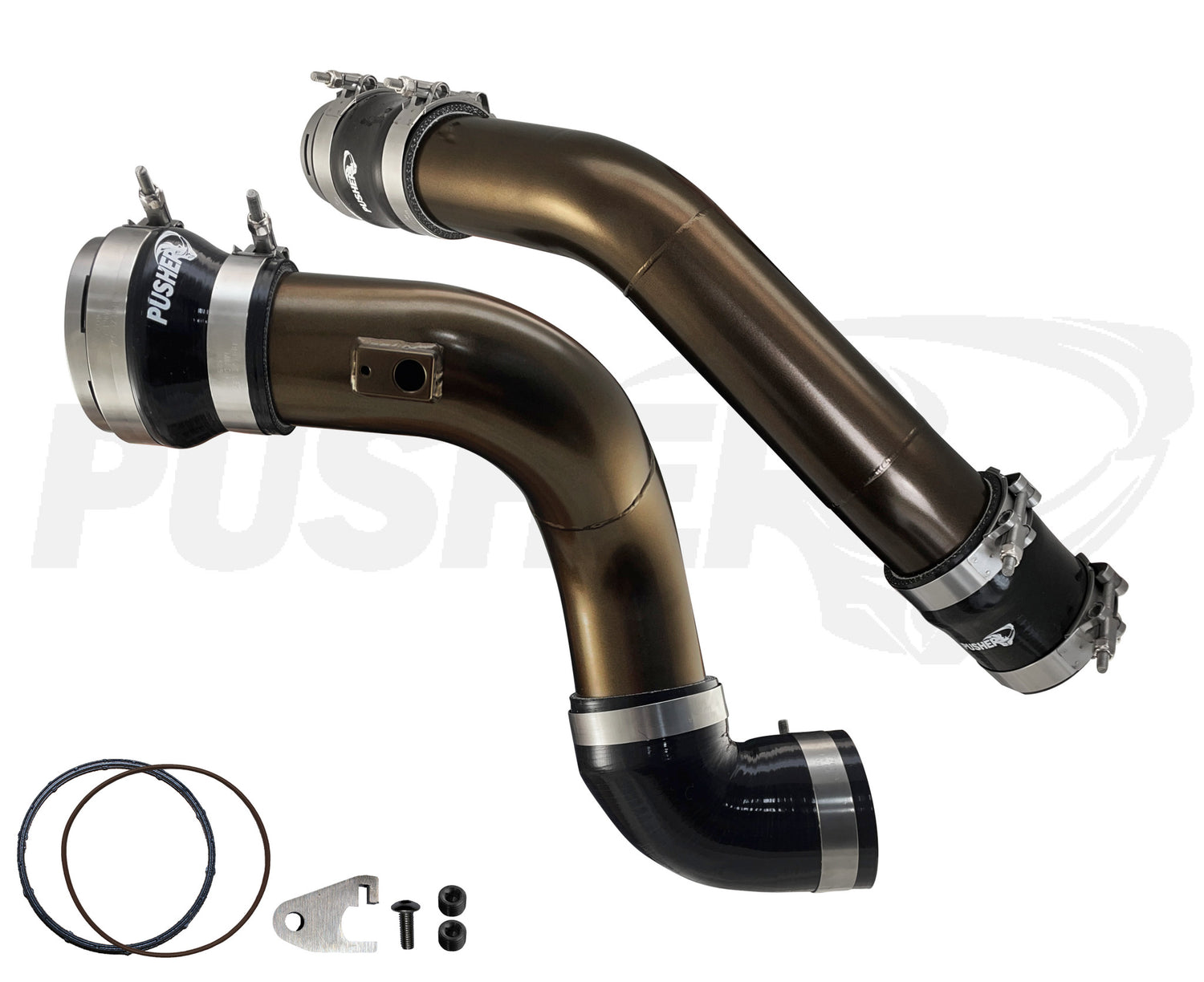

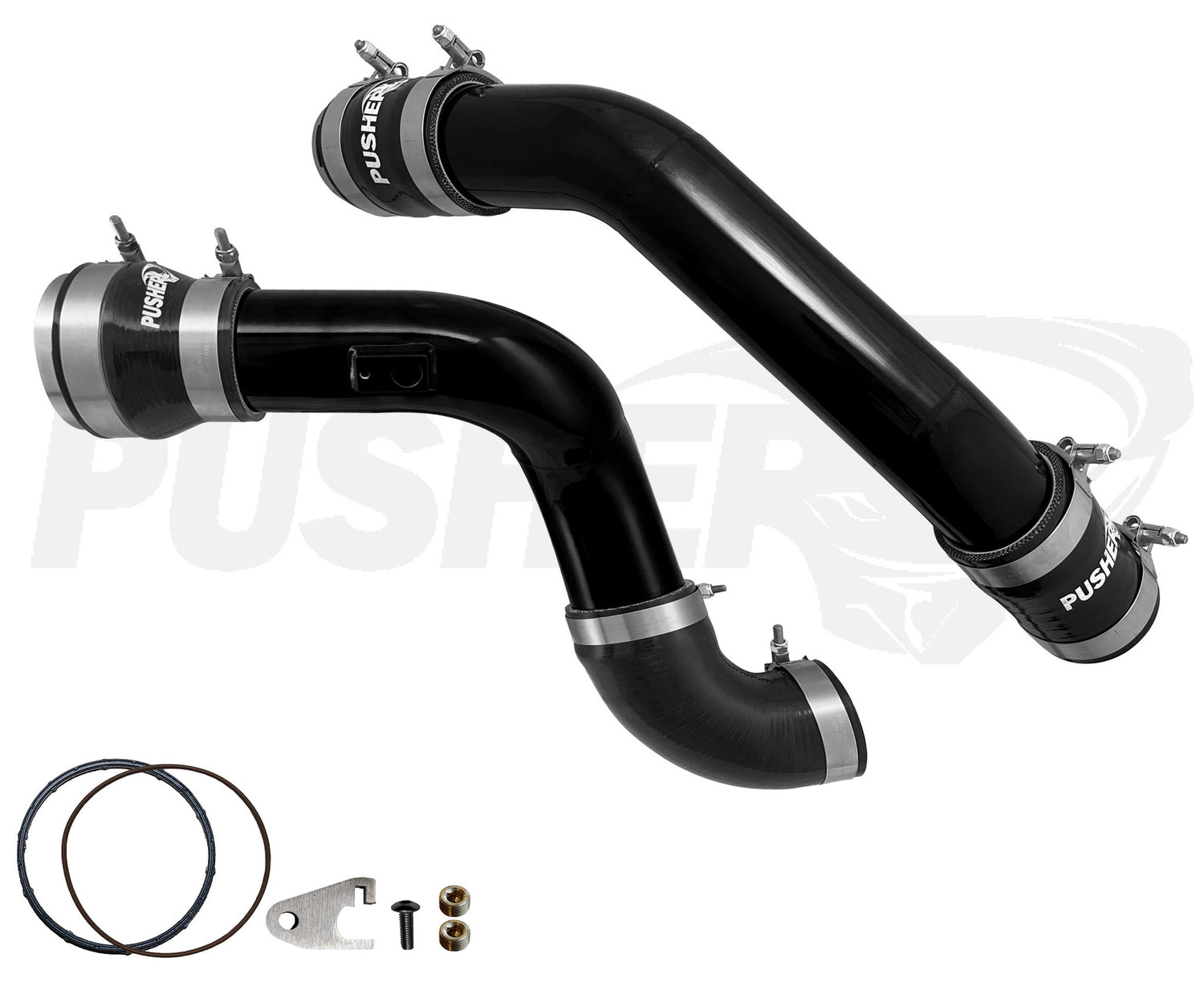

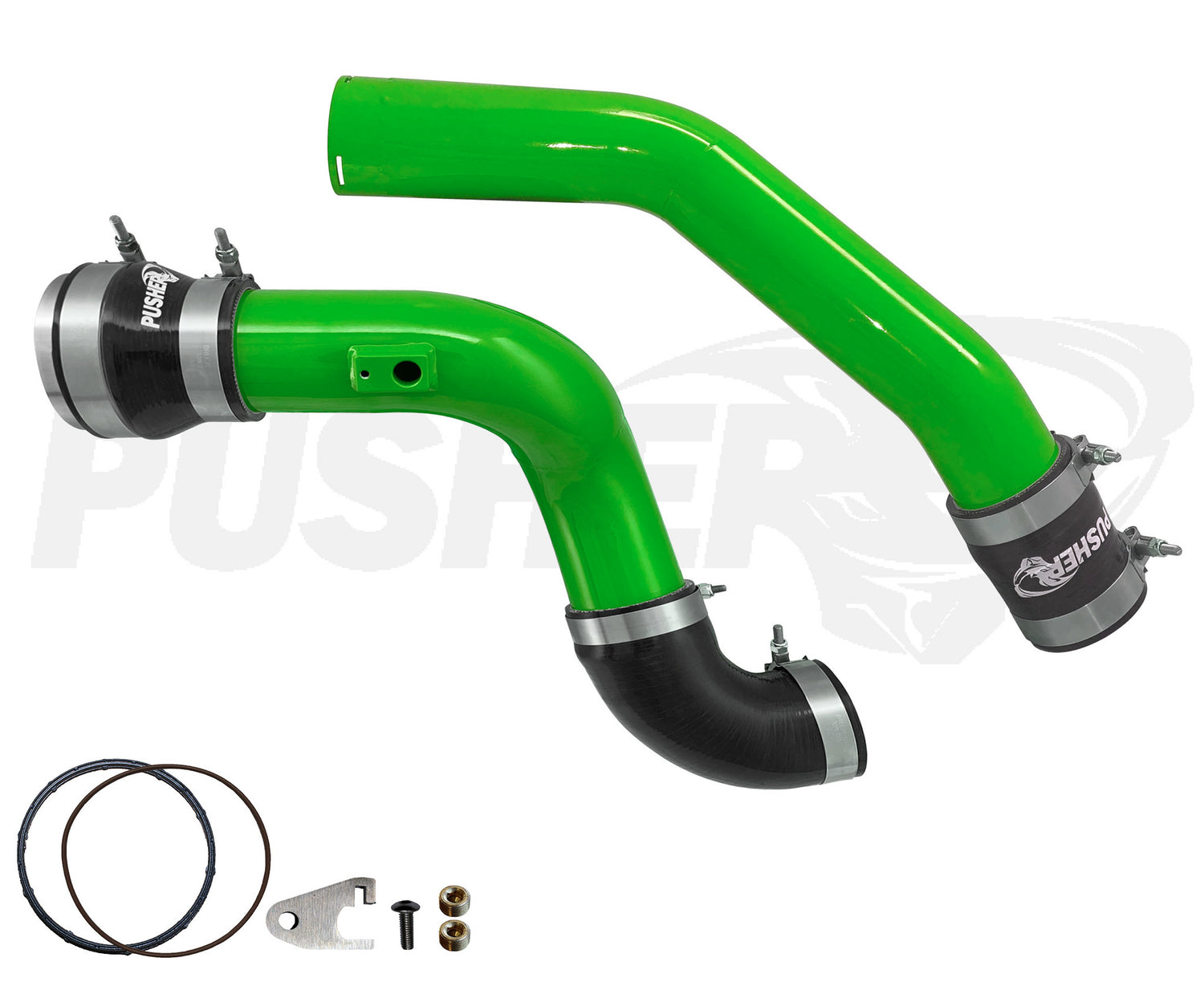

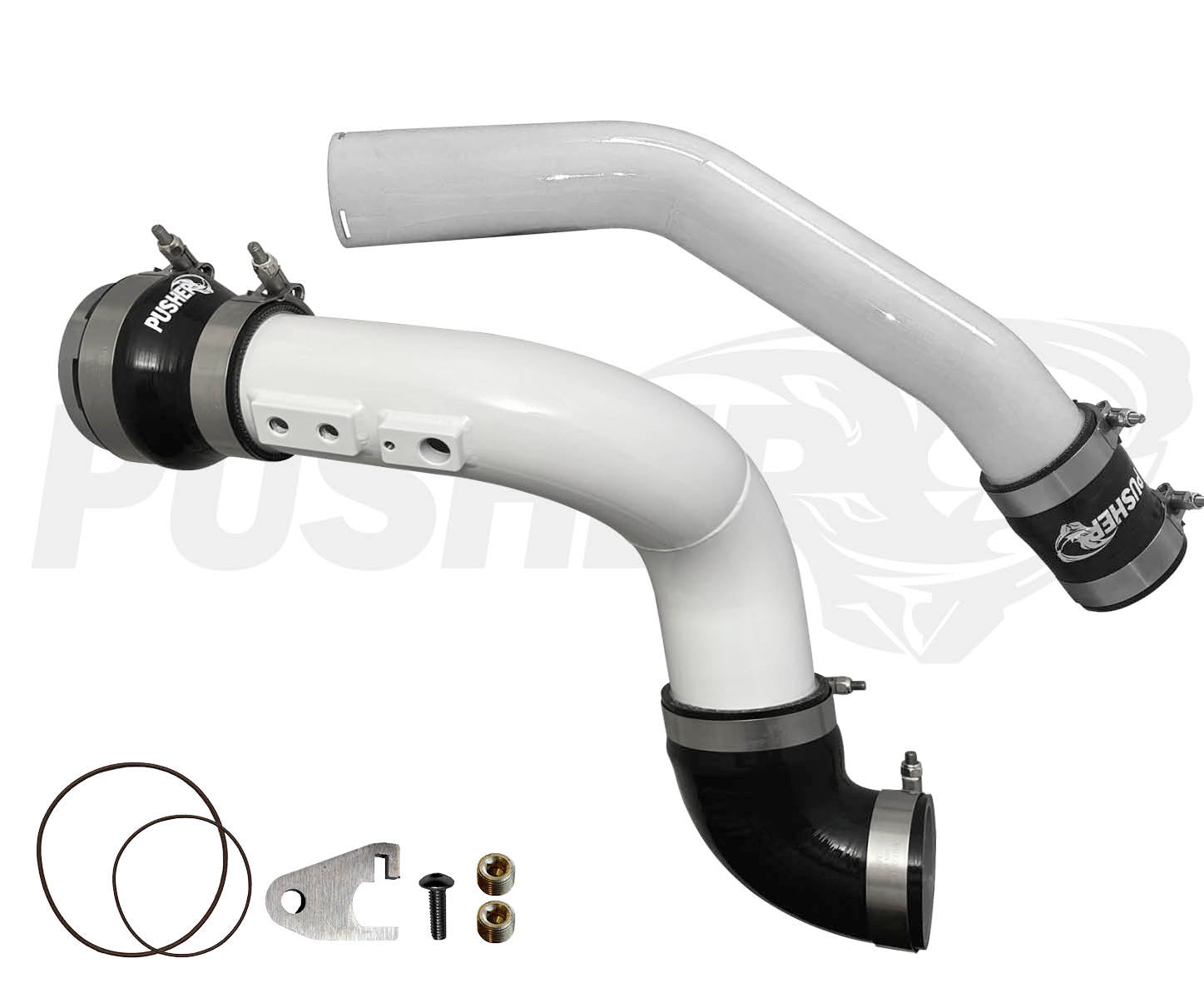

Includes:

• Pusher HD 3" cold side charge tube
• Pusher HD 3" hot side charge tube assembly
• Fully machined 6061-T6 throttle valve adapter
• All new HD silicone connections
• Full stainless t-bolt clamps
• Sensor bracket, O-ring and all required hardware

• Select Standard Output or High Output to match your truck. The two are not interchangeable

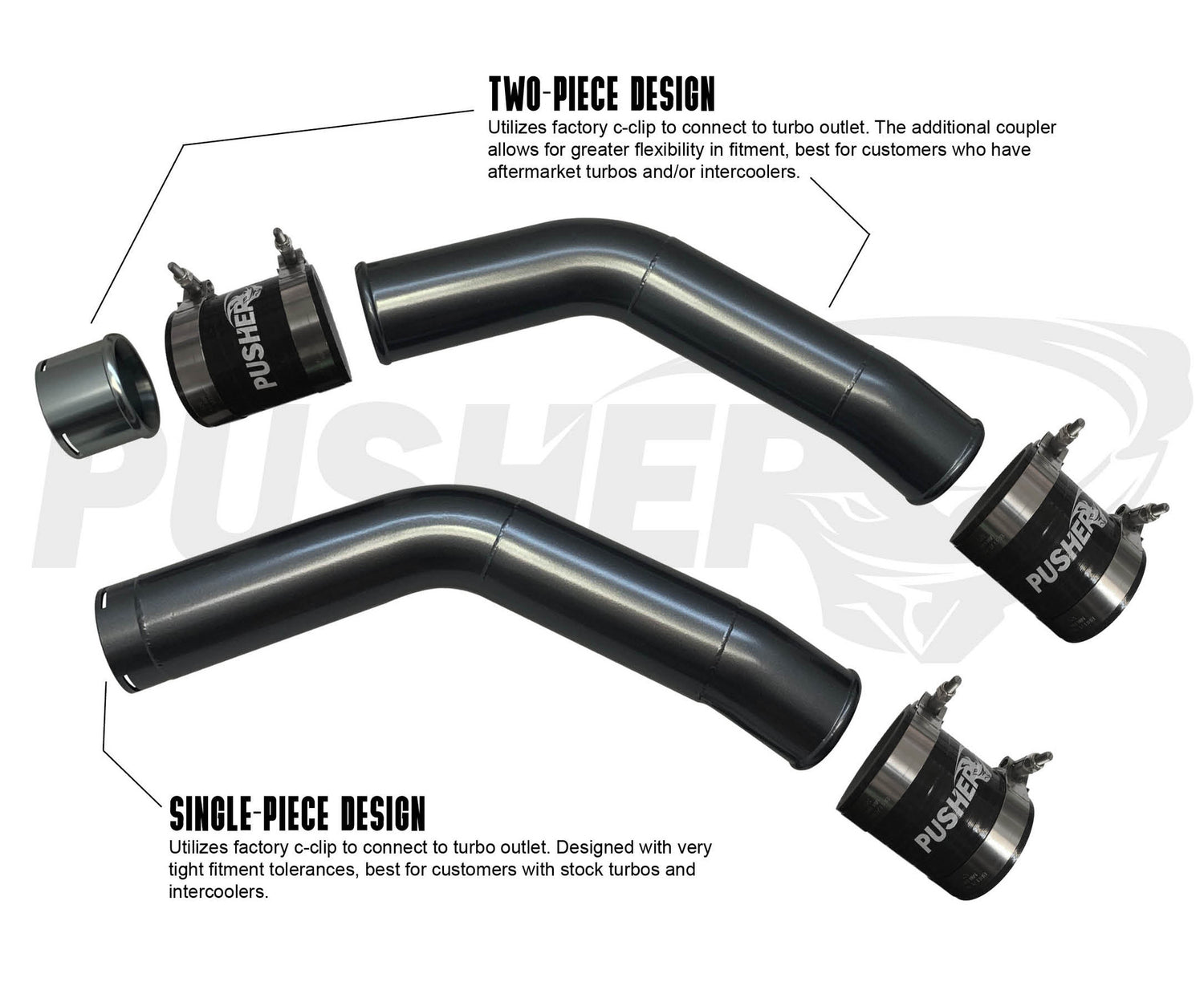

• The single piece hot pipe is built around the factory turbo and intercooler. Choose the two piece hot pipe if you are running an aftermarket turbo and/or intercooler, as the extra coupler allows more flexibility in fitment
• Does not fit 2023 and newer Standard Output cab and chassis models
• Not compatible with PPE intercoolers
• Natural finish tubes are uncoated and must be powder coated or painted before installation
• Optional 1/8" NPT sensor ports are available from Pusher on request. Contact us before ordering
