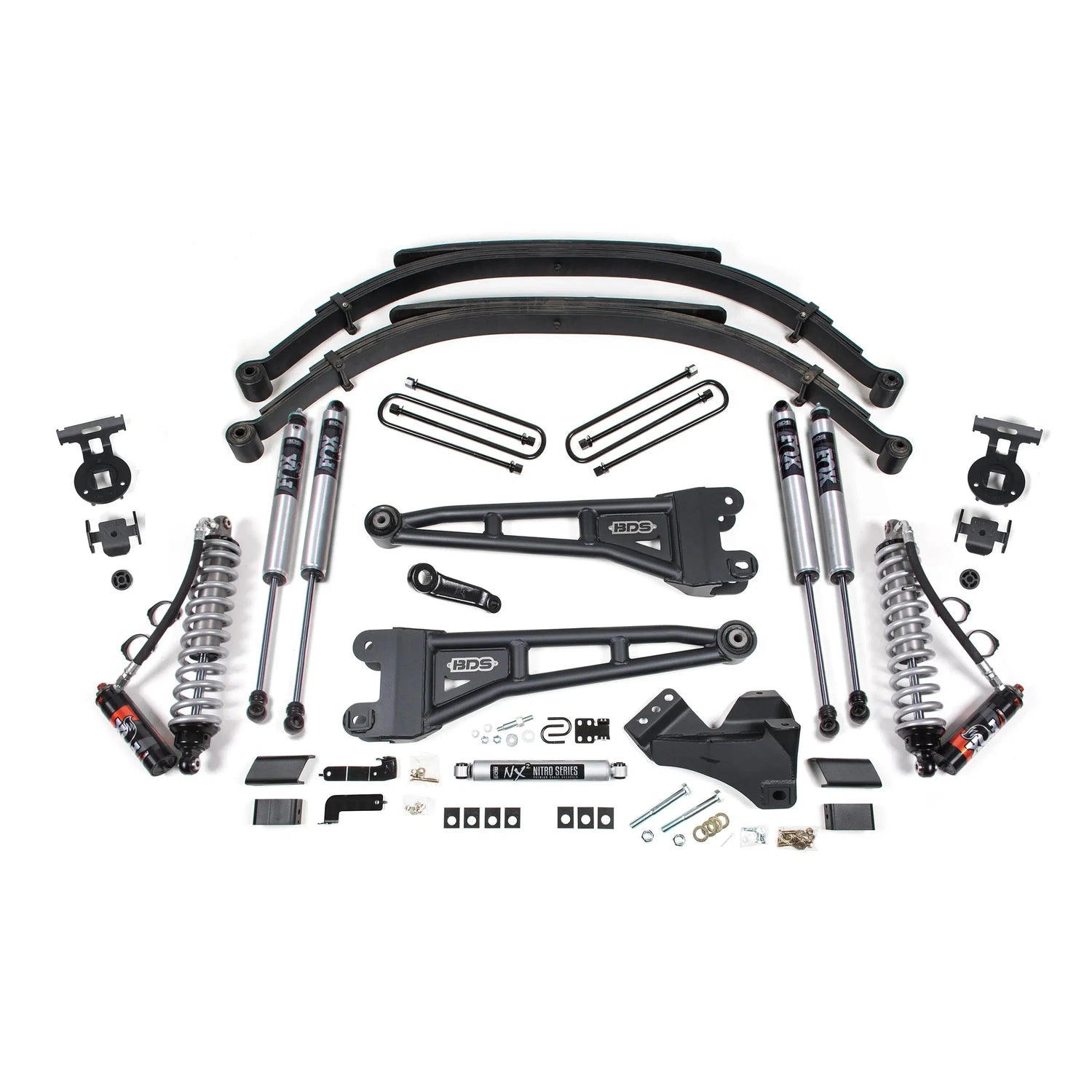

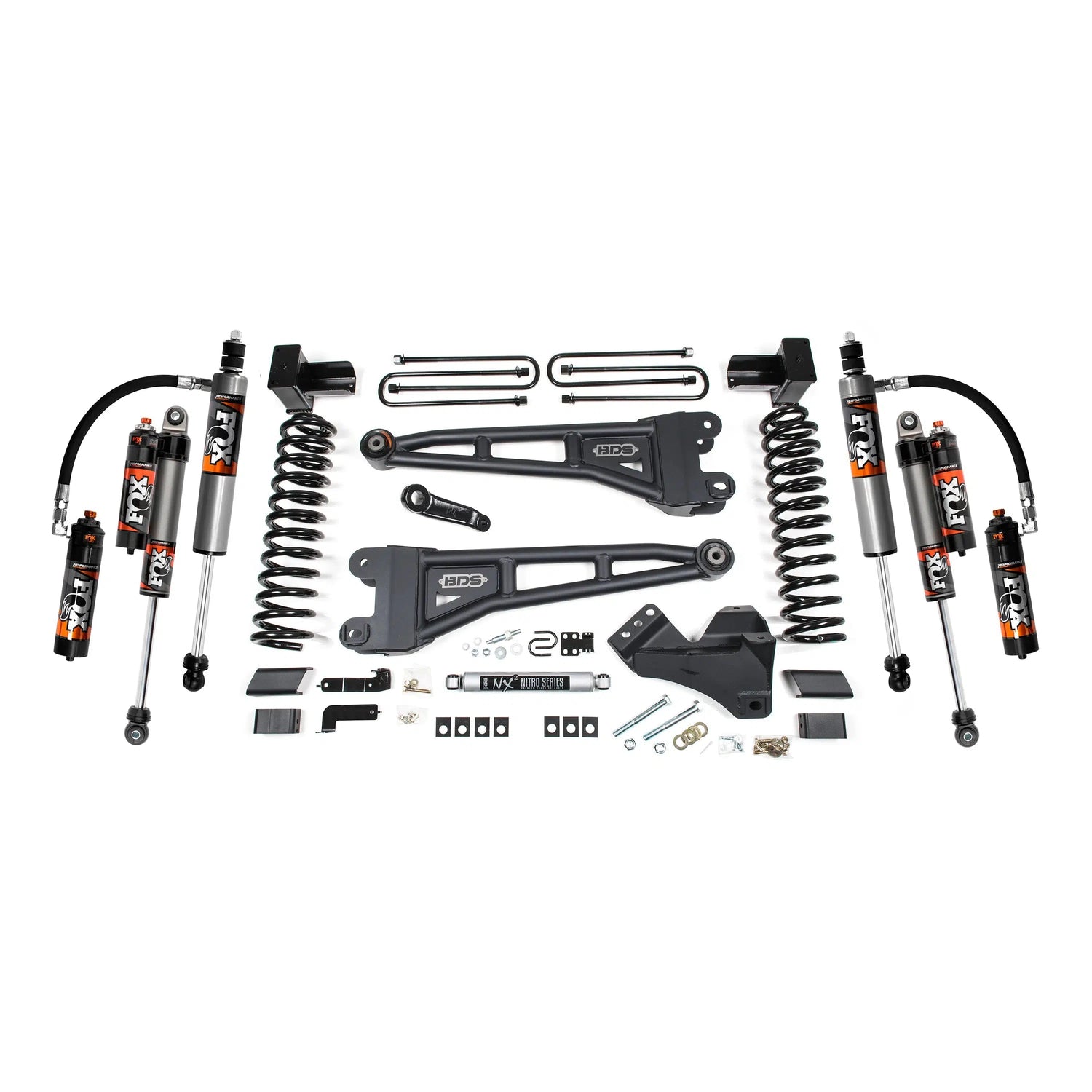

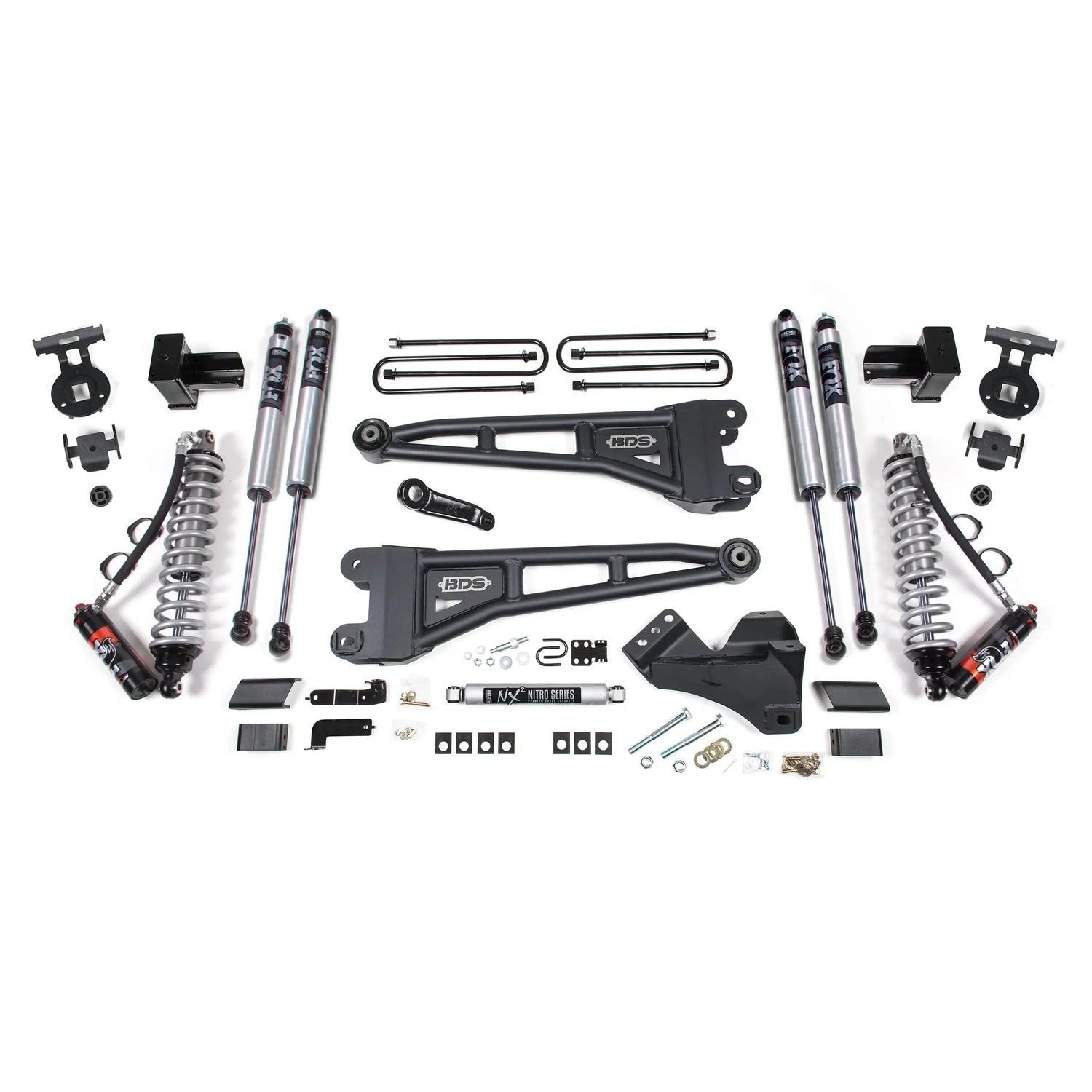

2023-2024 Powerstroke 5" Radius Arm Lift Kit (BDS2206FPE)

BDS Part Number: BDS2203FPE
$8,232.85 CAD

Shocks
Rear Lift

Purchase to earn 8232 Dirty Dollars Learn More

Description

Fits

Year Make Model
2023-2024 Ford F-Series 6.7L Powerstroke



Click here to Customize this Kit

Crank your Powerstrokes suspension and handling up to 11 with the BDS 5" Radius Arm lift kit, this kit has everything you need to safely and properly lift your truck effectively improving your stance and off-road capabilities without compromising ride quality. And with Fox 2.5 Elite Series coilovers; your truck can handle any abuse you throw at it, on, or off-road.

Part Number: BDS2206FPE

Features

  • FOX 2.5 Coil-Over mounts in factory coil bucket location
  • Adds additional secondary FOX 2.0 shock for max performance
  • Eibach coil springs ride smooth through the roughest terrain
  • HD tubular steel radius arms that correct caster while maximizing ground clearance
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Fabricated steel blocks provide level stance from front to rear
  • FOX shocks are fully serviceable and resistant to corrosion and harsh environments

Tire Fitment:

  • 37 x 12.5 with 17 x 9 and 5 in. Backspace
  • 37 x 12.5 with 18 x 9 and 5 in. Backspace
  • 37 x 12.5 with 20 x 9 and 5 in. Backspace

Additional Info

Rear Lift Option

Block Kit

  • Included in the base system.
  • Made of fabricated steel for high strength.
  • Designed to provide correct pinion angles.

Leaf Springs

  • Eliminates any need for a lift block.
  • Reduces axle wrap and creates a more controlled and stable feel.
  • Multi-leaf progressive design for a smooth ride.
  • Maintains factory payload weight ratings.

Notes

  • Vehicles with radius arm mounted ride height sensors will require BDS123303.
  • Ford recommends the replacement of the pitman arm nut after each time it has been removed.
  • Use a small pitman arm puller to remove the drag link joint and steering stabilizer taper.
  • If your truck is equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required: BDS123402.
  • Due to the taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models.
  • Larger tires on stock wheel are not recommended due to interference with brake line, radius arm and sway bar. Use recommended specs listed in wheel and tire fitment section.
  • Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups.
  • Installation requires a torque wrench capable of 406 ft-lbs.
  • Trucks without top mounted overload springs will require (4) UBT4028.
  • Vehicles with leaf spring ride height sensors must select the rear block option.
