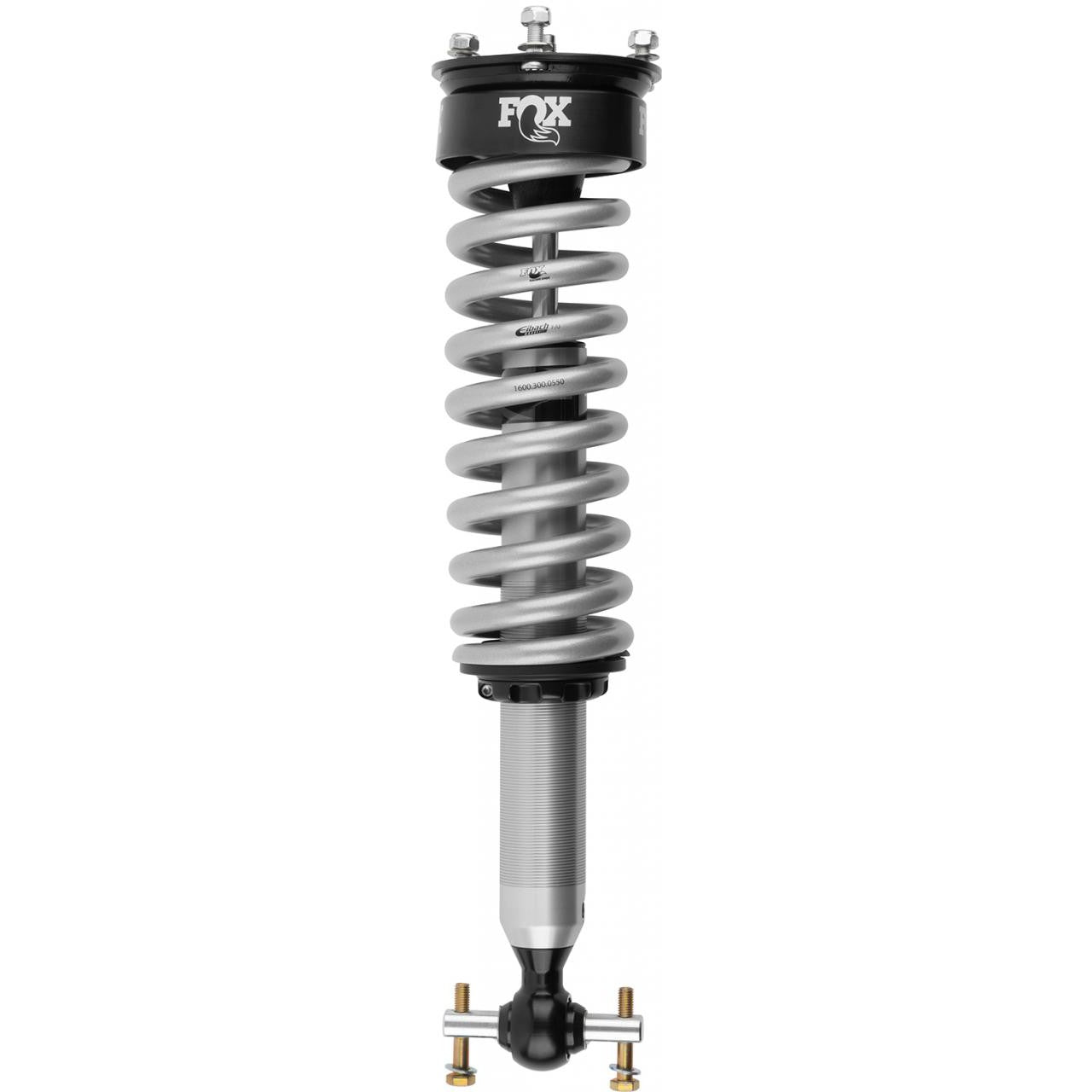

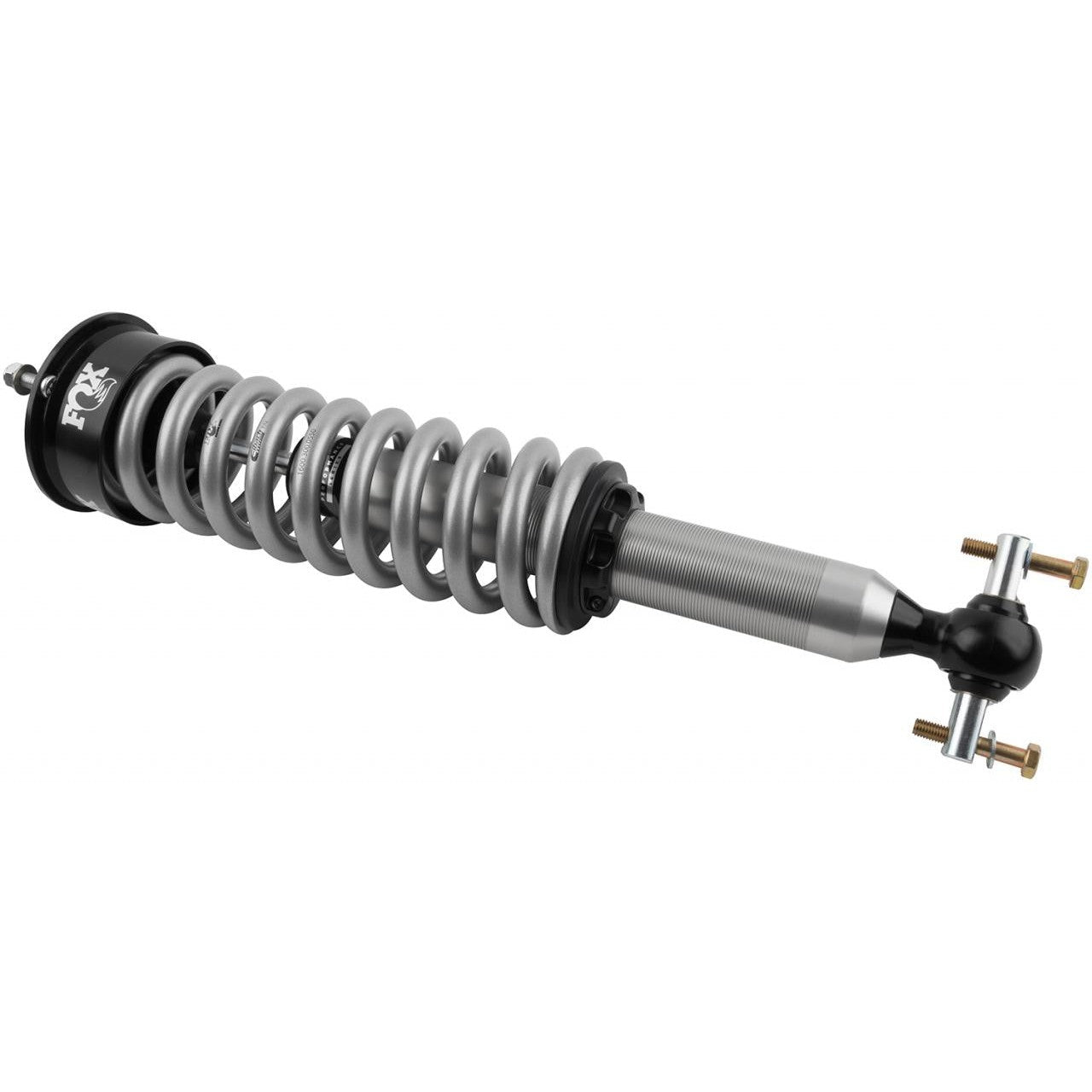

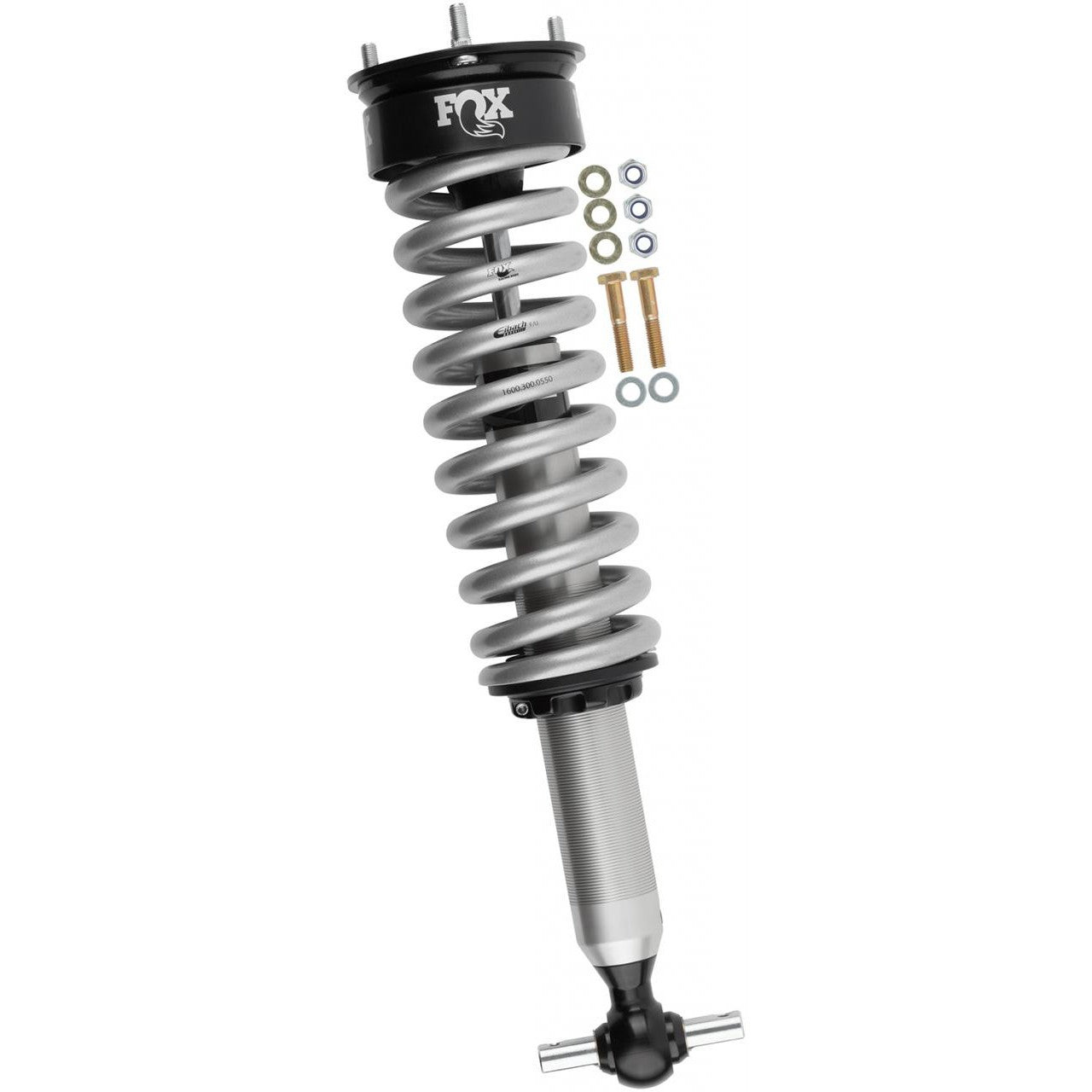

2022-2024 Duramax Fox Shocks 2.0 Performance Series Coil-Over IFP Front 0-2" Shock (985-02-134)

FOX Part Number: 985-02-134
$880.04 CAD

Purchase to earn 880 Dirty Dollars Learn More

This product ships for free to most Canadian locations! Learn more

Description

Fits

Year Make Model
2022-2024 Chevrolet/GMC Silverado/Sierra 1500

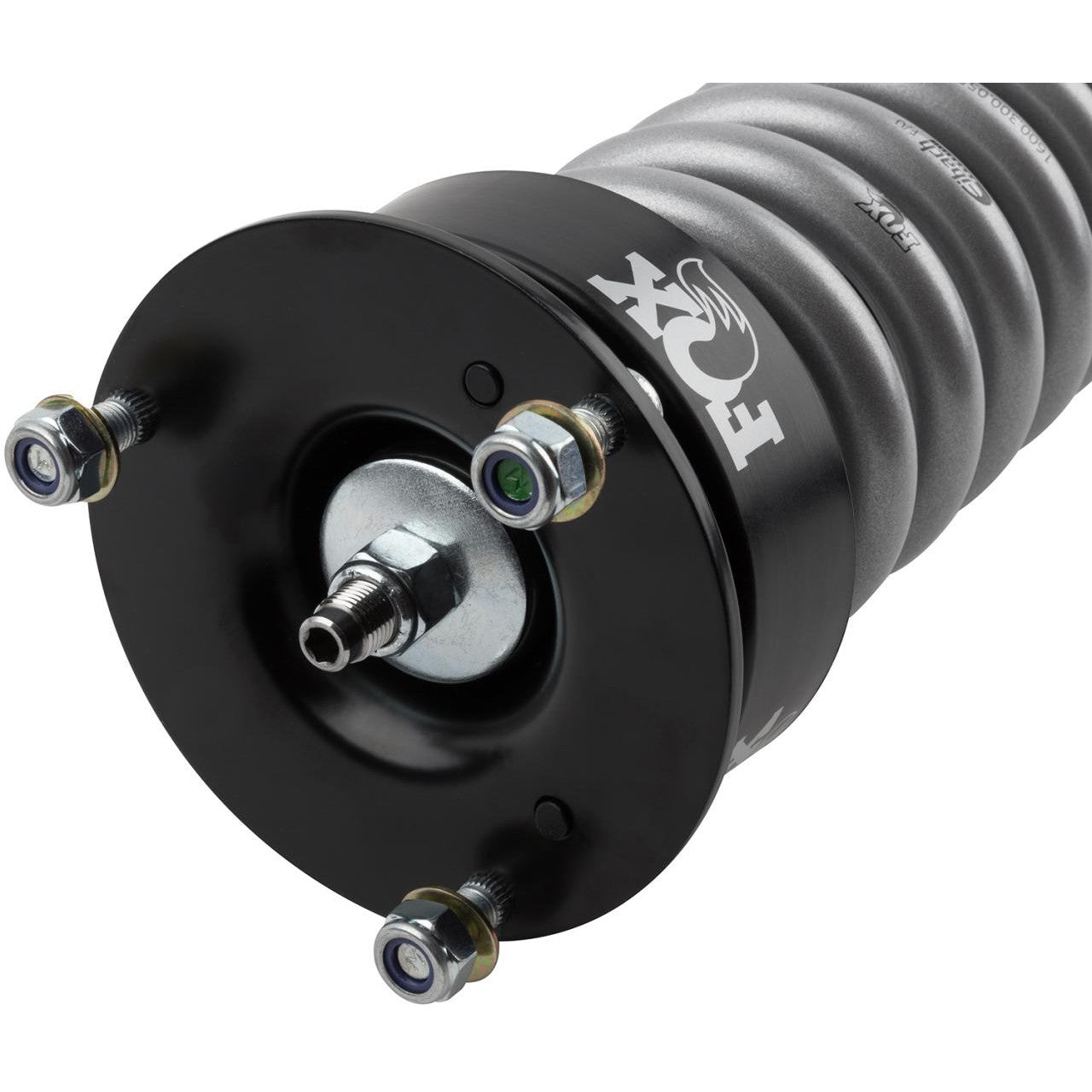

Fox Performance's bolt-on Performance Series Coil-over IFP shock boasts cutting-edge technology and a host of features that make it stand out. Its precision-engineered, metal impact extruded aluminum body enhances cooling capacity and resists rust. The vehicle-specific upper mount is equipped with a composite bushing to minimize noise and vibration.

The locking spring preload rings allow for effortless ride height and preload adjustments, maintaining a high-quality racing coil chosen for its optimal spring rate. Fox Performance's Performance Series Coil-Over IFP shocks install easily without modifications and are designed to level trucks from front to rear. They are suitable for both stock and lifted trucks that reuse the original shock mounts.

The internal reservoir, featuring an Internal Floating Piston (IFP) mono-tube design, keeps the shock oil separate from the high-pressure, nitrogen-charged gas chamber. This design prevents oil aeration, ensuring peak performance from the factory-tuned, precision valving. The Performance Series 2.0 Coil-over IFP is easy to install and delivers a smooth on-road ride and reliable off-road handling, even under the most challenging conditions.

Part Number: 985-02-134

Specifications

Body 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
Body Plating Clear-anodized for a durable finish
Reservoir Internal IFP mono-tube reservoir design
Components Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft 5/8" hard chrome plated heat-treated alloy steel
Piston Race-developed high-flow piston design
Valving Application specific valving to maximize performance
Seals Redundant sealing pack system main seal, wiper seal, scraper seal
Bearing Large diameter, heavy-duty spherical
Adjustments Ride height preload ring
Extended 20.990
Compressed 16.400
Travel 4.590
Top Mount OEM

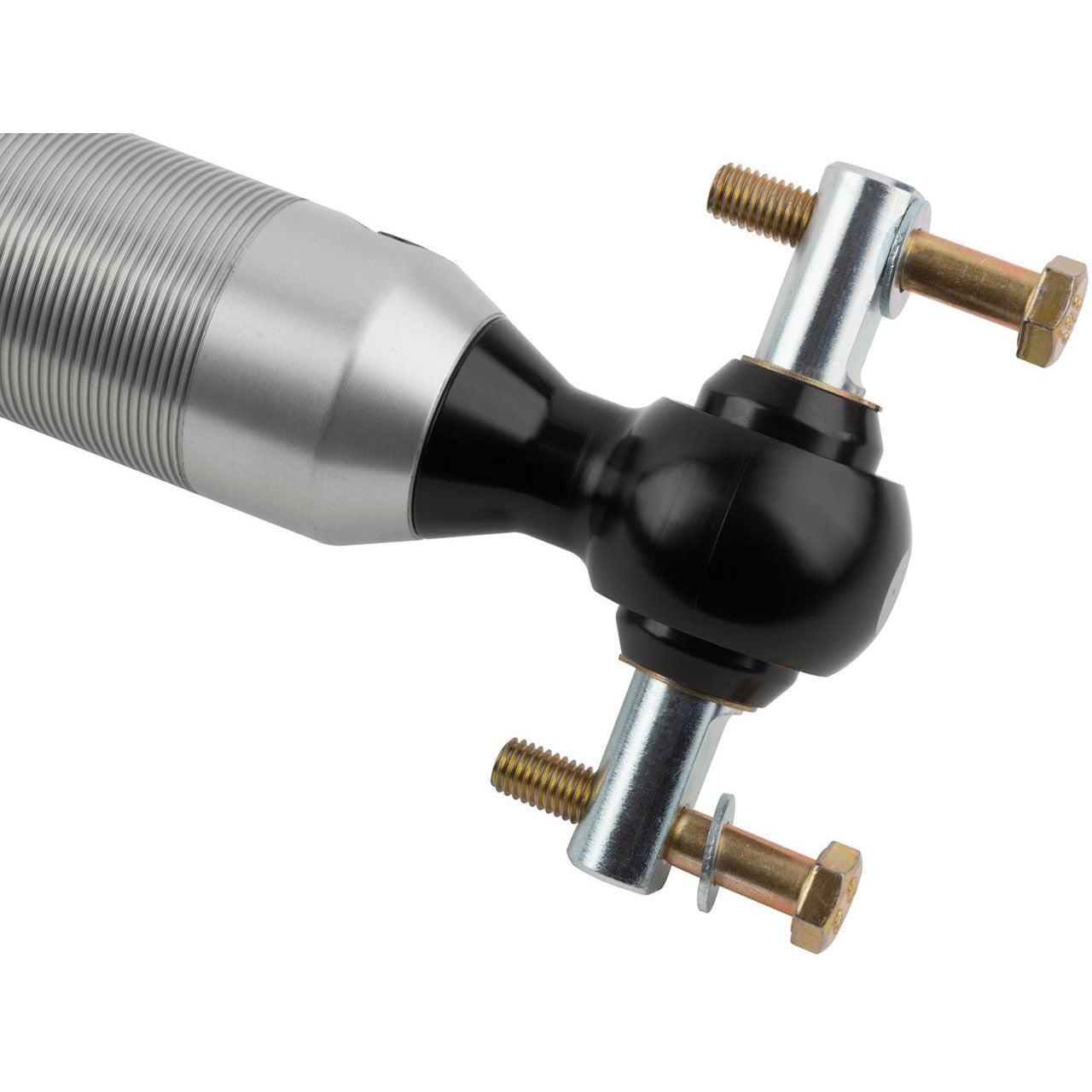

Bottom Mount Bar Pin
Fitment notes Trail Boss Models Fit 0" Lift Only
MSRP $549.95
