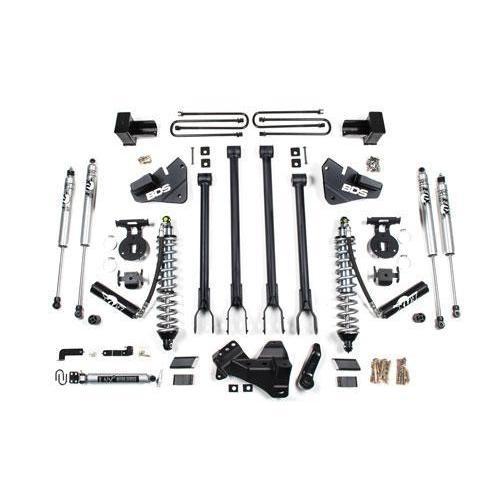

2020-2021 Powerstroke DRW F350 4" 4-Link Coilover Lift Kit - Non DSC (BDS1565F)

BDS

Part Number: BDS1565F

Sale price$6,138.42 CAD

Quantity:
This item may have additional freight costs. Learn more
Product images may differ from exact product.
Description

Click here to customize this Kit

Fits

Year Make Model
2020-2021 Ford F350 Super Duty DRW w/ 6.7L Powerstroke



Take your new Super Duty to the next level with the tried & true BDS 4-link conversion system. A big upgrade from the factory stamped steel radius arms, these high-strength 4-link conversions offer improved handling, stability, strength, & caster control during wheel travel. In the rear of these 4" systems BDS offers multiple lift options for both the OE 2-leaf main spring pack & OE 3-leaf main spring pack equipped trucks. The first option is a 5" replacement block & U-bolt kit for the 3-leaf trucks. With FOX 2.0 Series shocks to compliment the front setup for all-around impressive performance.

Part Number: BDS1565F

Features
  • FOX 2.5 factory Series Remote Reservoir Coil-Overs
  • FOX 2.0 IFP performance gas shocks
  • Trackbar, Brake line, & Sway Bar relocation brackets
  • Traditional frame-mounted design with brackets
  • Relocates lines for proper slack
  • 1/4" steel 4-link brackets
  • Replacement Single Steering Stabilizer
  • Includes mounting kit, a required component since the drag link is now flipped causing the factory stabilizer mount taper to face the wrong direction
  • Bump stop extensions to limit suspension compression
  • Relocates the bump stop position at the frame
  • Full Replacement HD Radius Arms
  • Forged drop Pitman arm
  • 2" OD DOM control arms
  • 5" Rear block
  • E-coated U-bolts
  • Integrated bump stop wing
  • Allows for clearance of up to 37" tires

Tire & Wheel Combinations:

  • 37 x 12.50 w/ 17 x 9 and 4.5" - 5"
  • 37 x 12.50 w/ 18 x 9 and 4.5" - 5"
  • 37 x 12.50 w/ 20 x 9 and 4.5" - 5"
Notes
  • Diesel Model Only
  • If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
  • 37 x 12.50 tires may require minor trimming.
  • Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
  • If your truck is equipped with a factory rear sway bar add: 123005
Installation
Warranty
  • Supplemental Drivetrain Limited Protection - 5 Year/60,000 Miles on Ford, Nissan, & Toyota vehicles and 5 Year/100,000 Miles on Dodge/Ram, GMC, & Jeep vehicles.
  • Free, no cost protection for BDS customers
  • Could save thousands of dollars on possible repairs
  • An easy online registration process
  • Available for most late-model vehicles
