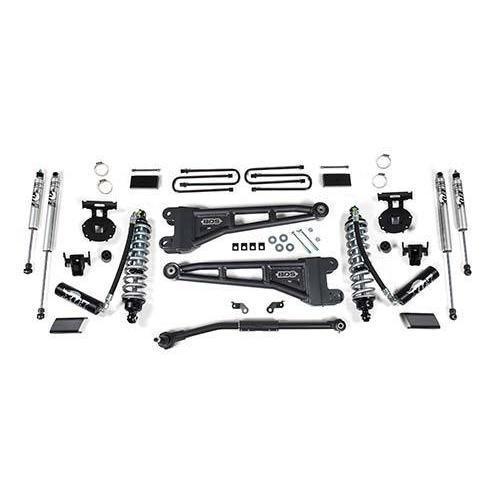

2020-2022 Powerstroke 2.5" Radius Arm Coilover Lift Kit - Fox (BDS1549F)

BDS

Part Number: BDS1549F

Sale price$5,596.56 CAD

Quantity:
This item may have additional freight costs. Learn more
Product images may differ from exact product.
Description

Click here to customize this Kit

Fits

Year Make Model
2020-2022 Ford F250/F350 Super Duty w/ 6.7L Powerstroke



BDS 2.5" radius arm lift systems with FOX 2.0 Series gas shocks for your Ford Super Duty offer improved performance, capability, vastly superior damping capability to soak up the harshest terrains offroad while offering comfort for your daily commute, & quiet operation. Only the best quality materials & relevant parts go into BDS Kits; which means less maintenance, less time looking, and less confusion for you. Everything you need to take your new Super Duty to the next level.

Part Number: BDS1549F

Features
  • Preset for 2.5" of Lift
  • 6061-T6 billet aluminum mounts
  • ProRide coil springs for improved performance & ride quality
  • HD Brawny Radius Arms with 1-3/4" OD heavy wall tubing, fully welded with gussets for improved strength & caster correction
  • High strength adjustable track bar to recenter the front axle
  • FOX 2.5 Remote Reservoir coilovers for improved performance & ride quality
  • FOX 2.0 IFP shocks Lifts and levels the vehicle stance
  • 1" bolt-on lift block
  • E-coated u-bolts
  • OE-style greaseable, high-durometer polyurethane bushing
  • HD ball joint
  • Brake line & Sway Bar relocation brackets
  • Pre-Assembled Track Bar with 1-3/8" solid steel stock with gusseted ends & a fine thread center turnbuckle with pinch bolts
  • Allows clearance for up to 35" tires

Tire & Wheel Combinations:

  • 35x12.50 w/ 17x9 & 4.5-5"
  • 35x12.50 w/ 18x9 & 4.5-5"
  • 35x12.50 w/ 20x9 & 4.5-5"
  • (Trimming may be required)
Notes
  • Larger tires on stock wheels are not recommended due to brake line clearance required. Use recommended specifications listed in the tire and wheel fitment section.
  • Track bar mounting hardware requires a torque spec of 405 ft-lbs.
  • Steering on F250/F350 trucks can be stiff from the factory. Replacement radius arms with increased caster typically help this issue. The base 2.5" lift with ball joint cams and/or steering stabilizer options will not fix this problem. We have had success in reducing the torque specification to 85 ft-lbs for the upper ball joint. Use this as a last resort to cure factory steering issues.
  • Due to taller factory ride height, Tremor models will not net full advertised lift height. The final ride height will be the same as standard models.
Installation
Warranty
  • Supplemental Drivetrain Limited Protection - 5 Year/60,000 Miles on Ford, Nissan, & Toyota vehicles and 5 Year/100,000 Miles on Dodge/Ram, GMC, & Jeep vehicles.
  • Free, no cost protection for BDS customers
  • Could save thousands of dollars on possible repairs
  • An easy online registration process
  • Available for most late-model vehicles
