2020-2026 Powerstroke 10R140 Transmission Coolant Thermal Bypass Valve (319080100)

The Ford 6.7L Power Stroke oil-to-water transmission cooler is fed through a solenoid valve that shuts off coolant flow the moment the ignition is switched on, and it stays closed until transmission fluid temperature reaches roughly 210°F. Even wide open, the factory passage is restrictive. The PPE Full-Flow Transmission Coolant Valve removes that restriction and feeds the cooler at all times, lowering transmission temperatures while towing, hauling, off-roading, or cruising the highway. It is machined from billet 6061-T6 aluminum, black anodized, and installs in about 15 minutes.

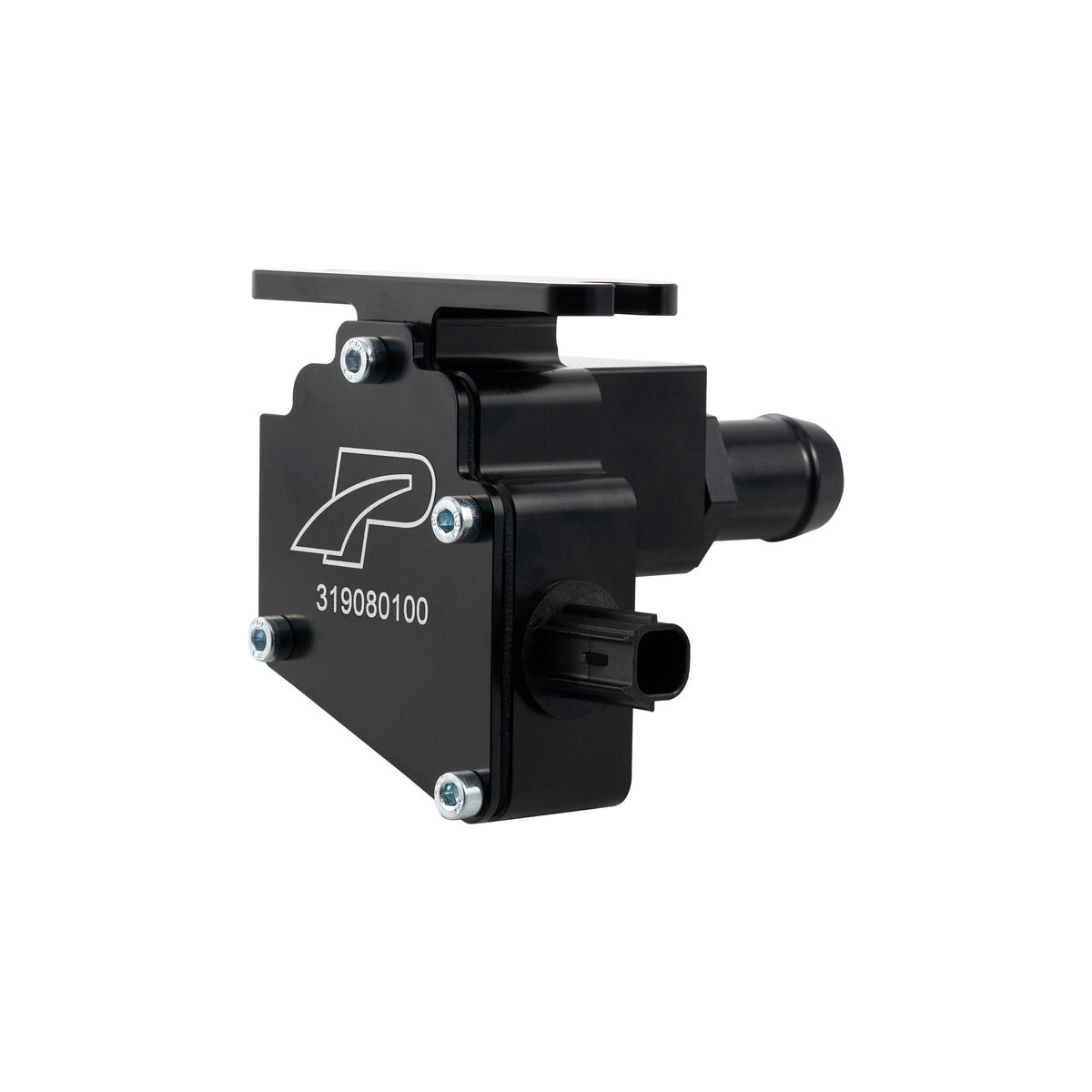

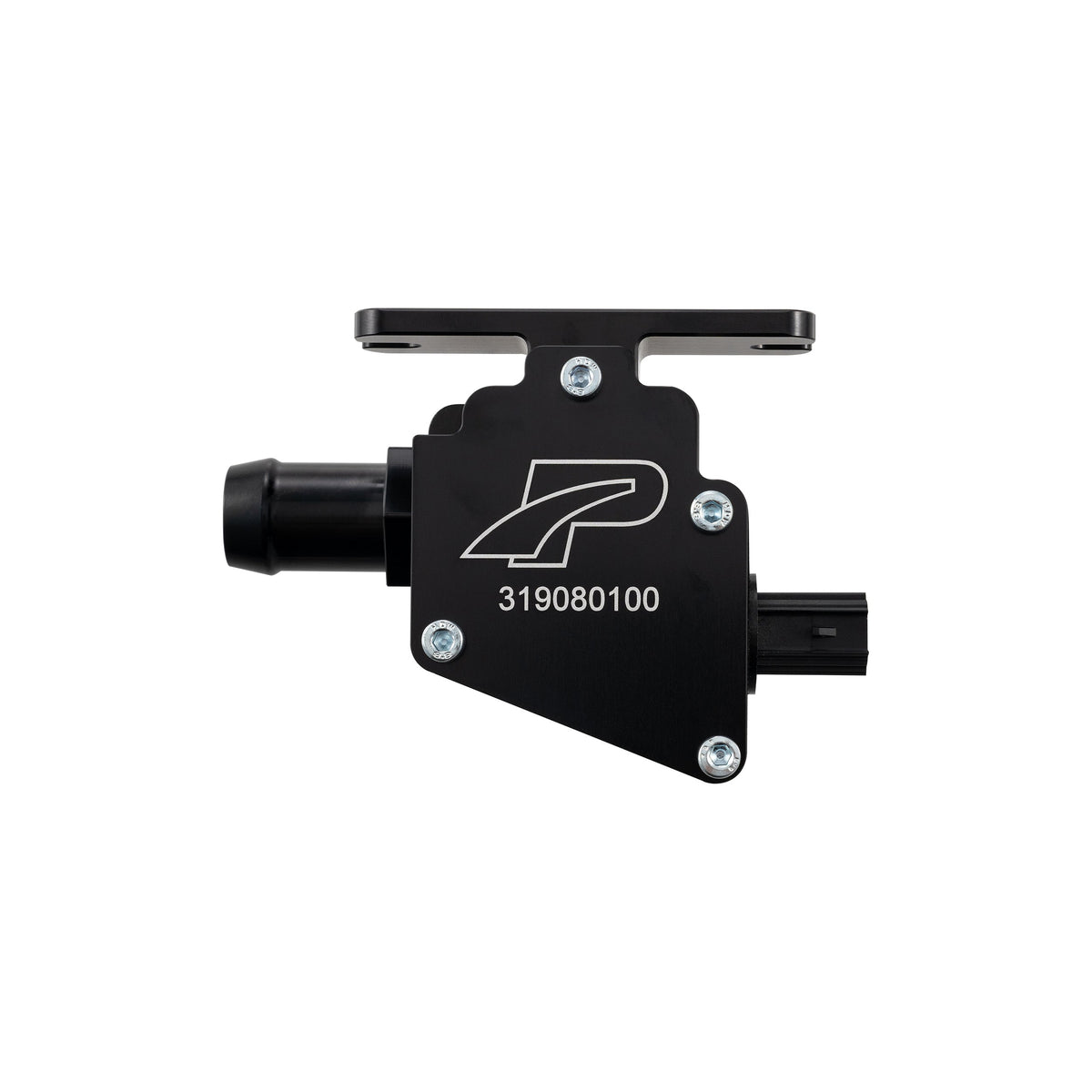

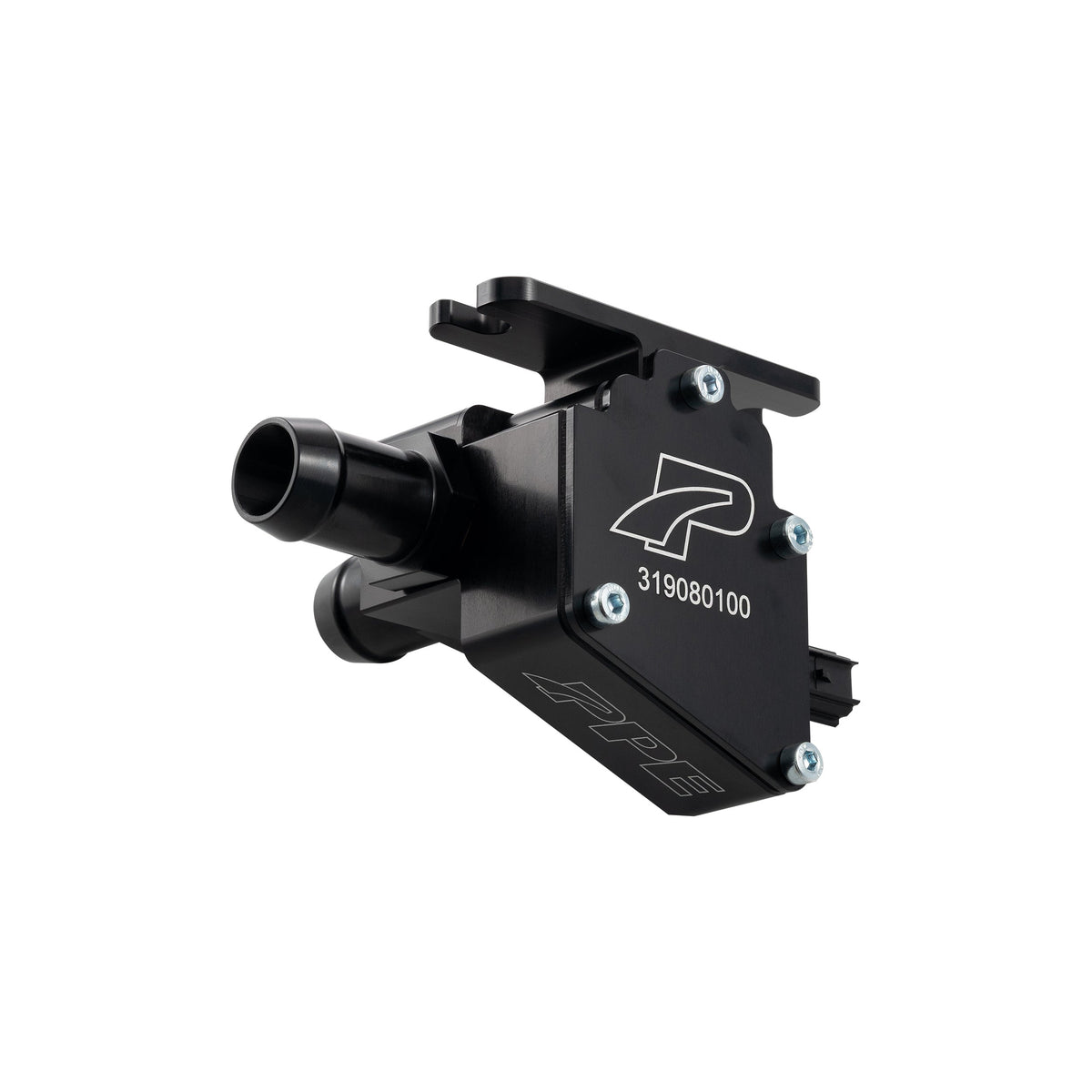

Part Number: 319080100

• Unrestricted coolant flow to the transmission cooler at all times
• Reduces transmission temperatures by up to 35°F
• CNC machined 6061-T6 aluminum
• Black anodized finish for added durability
• Preserves the factory electrical connection with a built-in circuit

• Fits the 6.7L Power Stroke with the 10R140 transmission only. It does not fit 6.2L, 6.8L, or 7.3L gas Super Duty models.

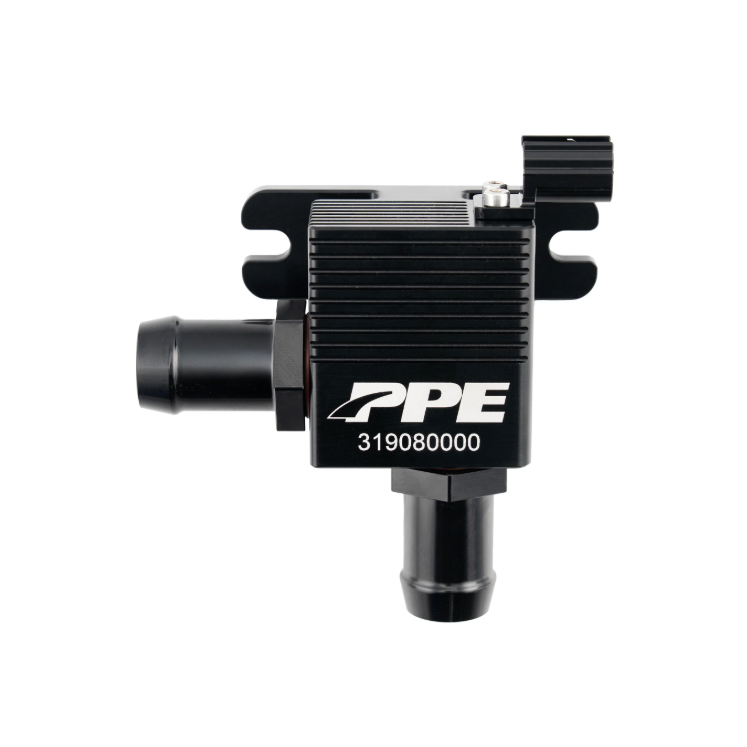

• Replaces PPE 319080000, which has been discontinued by the manufacturer.

Ford LC3Z18495A | LC3Z18495C | LC3Z18495D | PC3Z18495B

Don't see your question? Ask us anything about this product.

• ?

  Will the truck throw engine codes with a non OEM valve?

  No, the PPE thermal bypass valve will not trigger engine codes because it features an integrated circuit that connects directly to your factory wiring harness to fool the ECU.

• ?

  Does this also work for the gas engine trucks?

  No, this bypass valve will not work for gas engine trucks.

• ?

  Will it fit a 2020 f350 super duty 6.7 power stroke with a 10r140

  Yes!

• ?

  Does this replace part YG867

  Yes!
