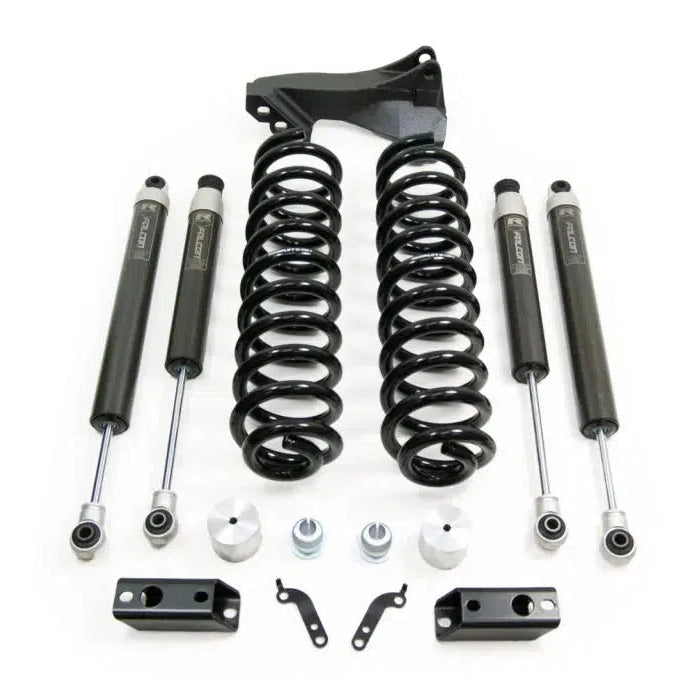

2020-2025 Powerstroke 2.5" Coil Spring Lift Kit w/ Falcon 1.1 Shocks (46-20253)

Fits

Note: Recommend not using the caster eccentrics if your truck only has the single hub

Looking for improved stance, performance, and capability? ReadyLift's 2.5" Coil Spring Lift Kit delivers. Experience a better-than-factory feel with vehicle-specific, performance-tuned Falcon 1.1 shocks and a reinforced track bar bracket evens out load distribution, further strengthening the factory mount, eliminating the risk of failure, and preventing added stress on other suspension components.  Perfect for daily driving, off-road adventures, and towing, all while allowing you to install larger tires and maintain everyday comfort and control.

Part Number: 46-20253

• Falcon 1.1 Monotube series shocks
• Model-specific brake line extension brackets
• Front track bar relocation bracket
• Bump stop extension brackets
• Front sway bar frame mount extension brackets

Wheel & Tire Fitment:

• 35x12.50" for no rub on a 9 or 10 wide +25 to 0 offset wheel
• 37" is possible but may require trimming

• 2023-2024 Tremor versions will gain 1.125 inches over stock ride height

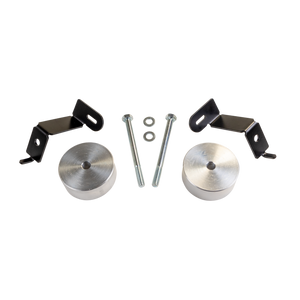

• 2023-2025: Trucks equipped with the "Onboard Scale" option will require the Auto-Leveling Headlight Bracket
• Some 2020-2025 Super Duty trucks will require retaining the use of the factory track bar bracket. If the axle is shifted off-center with our track bar bracket.  Remove the relocation bracket and use the factory bracket

• ReadyLIFT Suspension Inc. and/or Dirty Diesel Customs are NOT responsible for any damage or failure resulting from improper installation.
• Click here for installation instructions
