2020-2024 Gladiator EnduroSport 3" Suspension Lift System (JT30-1X5310-L5)

DynaTrac Part Number: JT30-1X5310-L5
$3,551.04 CAD

Purchase to earn 3551 Dirty Dollars Learn More

Description

Fits

Year Make Model
2020-2024 Jeep Gladiator, JT

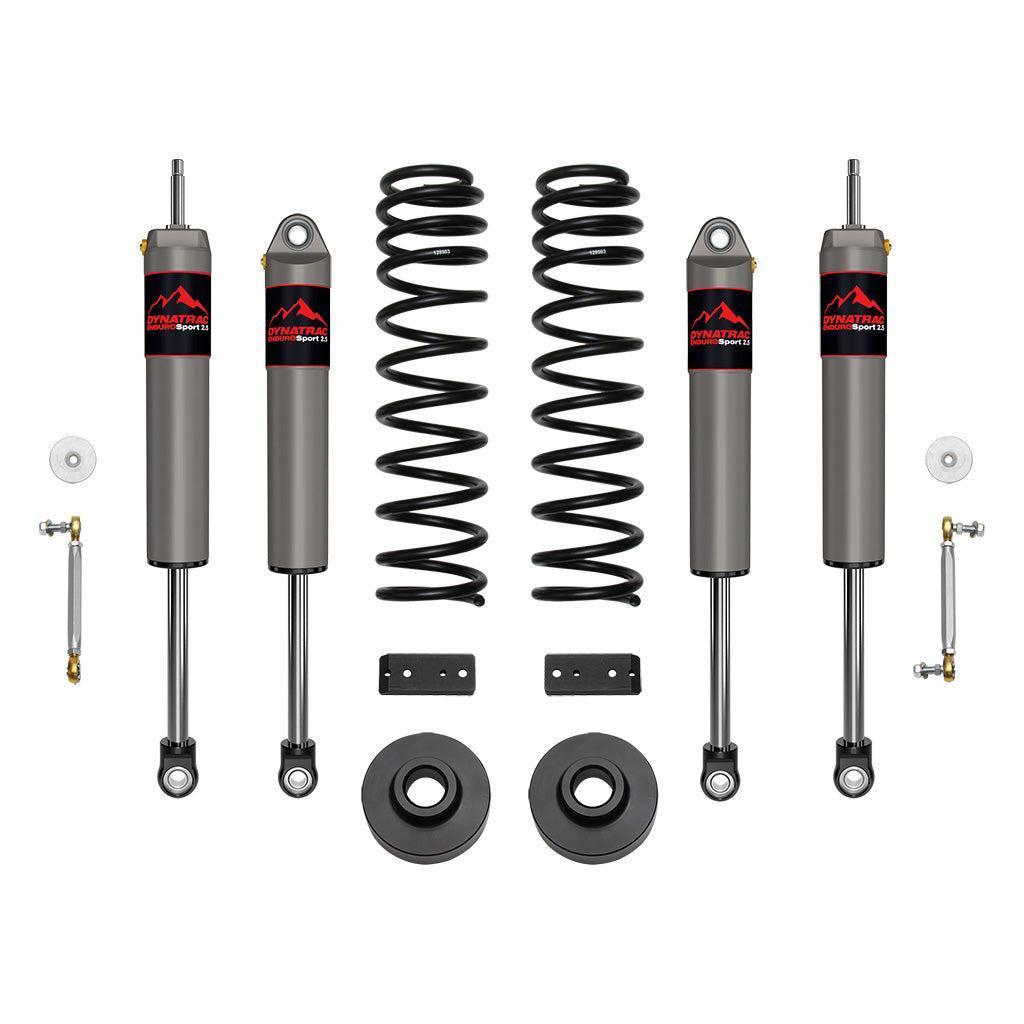

This 3" Suspension Lift System 5 for your 2020-Up Jeep Gladiator JT is the upgrade you didn’t know you needed. Featuring beefed-up 2.5 EnduroSport shocks for better damping and heat control, plus a 3" front lift with dual-rate coil springs and 1.38" rear coil spacers, this kit boosts wheel travel by up to 3" front and 2" rear. Adjustable sway bar links and all the hardware you need make installation a breeze.

Part Number: JT30-1X5310-L5

Features

  • 3" front lift height and 1.38" of rear lift over stock
  • Fits 35" tires (37" with optional extended bump stop spacer kit)
  • 3" front, 2" rear increase in wheel travel
  • Improves on and off-road ride quality over stock
  • Dual-rate front coil springs with lifetime guarantee against sagging/breakage
  • 2.5 EnduroSport shocks with Jeep JT-specific valving offer greater shock damping and performance
  • Adjustable front sway bar links and rear sway bar brackets eliminate sway bar bind
  • 100% bolt-on
  • Easy install
  • Tested under rigorous off-road conditions to validate tune, performance, strength, and durability
  • Bushings Included: No
  • Coil Spring End 1 Type: Closed
  • Coil Spring End 2 Type: Closed
  • Coils Quantity Front: 2
  • Grade Type: Performance
  • Maximum Lift Front: 3
  • Maximum Lift Rear: 1.38
  • Mounting Hardware Included: Yes
  • Shocks Included: Yes
  • Spring Color: Black
  • Spring Material: Steel

Notes

  • Dynatrac's advertised lift heights are based around a typical Jeep JT build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
  • Springs are NOT rated for use with models equipped with EcoDiesel engines.
  • Jeep Gladiator Mojave also requires heim spacer kit, part # DT9611070

Tire Fitment

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: 17x8.5" w/ 4.5” Backspace / -6mm Offset
  • Recommended Aftermarket Tires: 35 x 12.50 (37 x 12.50 with optional extended bump stop spacer kit PN: DT922071)
