2020-2022 Powerstroke DRW 2.5" Radius Arm Lift Kit (BDS1915H)

Fits

Click here to Customize this Kit

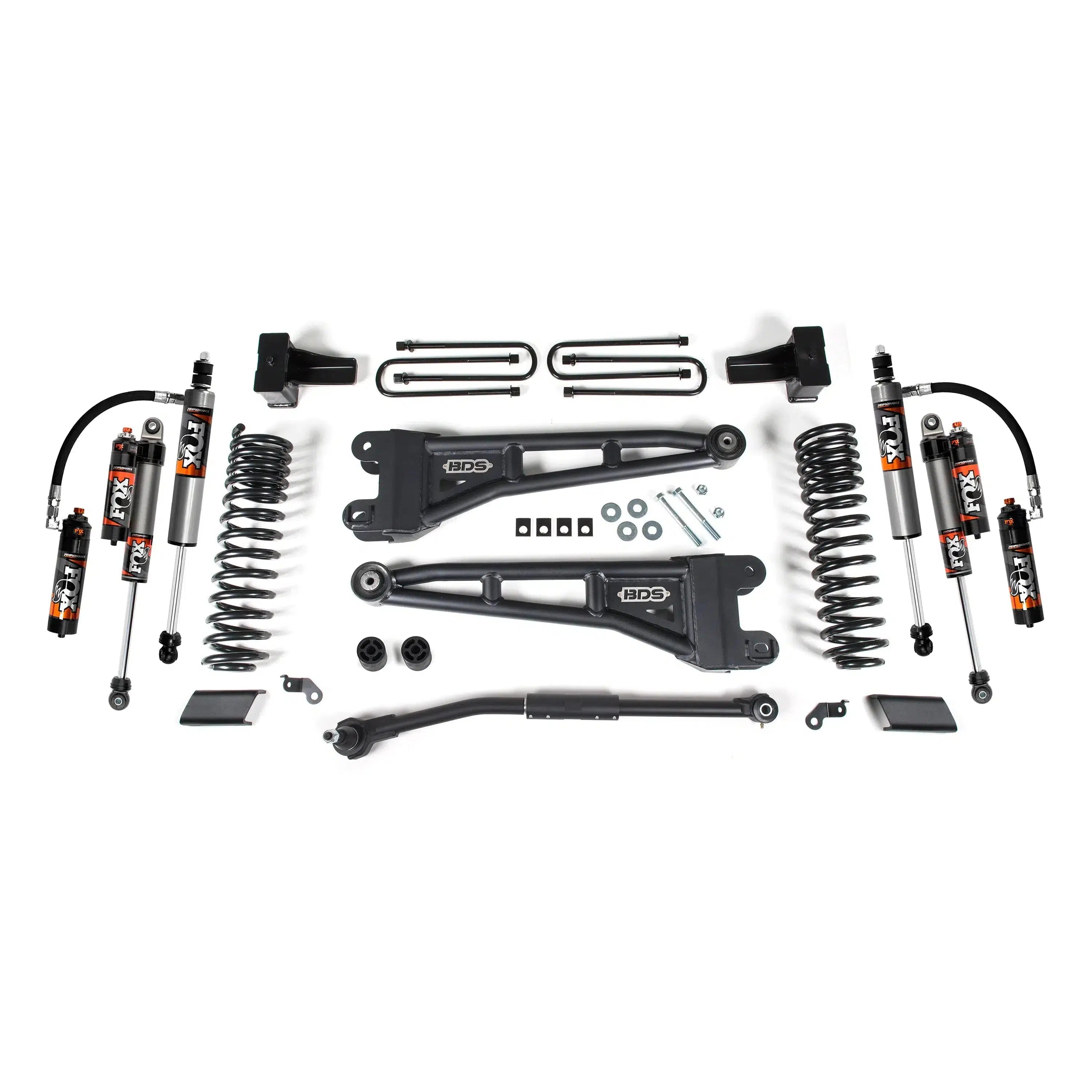

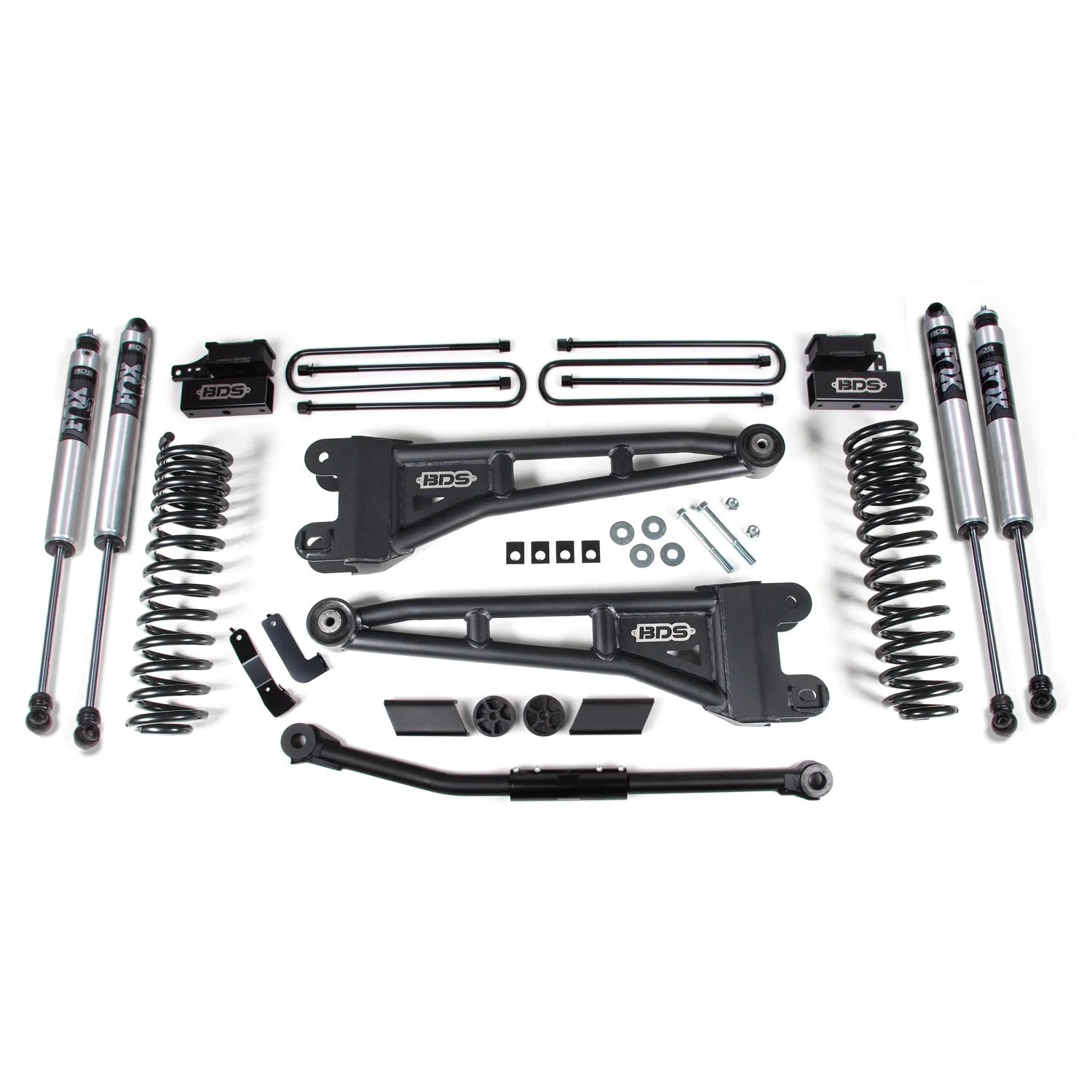

Crank your Powerstrokes suspension and handling up to 11 with the BDS 2.5" Radius Arm lift kit, this kit has everything you need to safely and properly lift your truck effectively improving your stance and off-road capabilities without compromising ride quality. And with Fox 2.5 Elite Series coilovers; your truck can handle any abuse you throw at it, on, or off-road.

Part Number: BDS1915H

• Easy, 100% Bolt-on installation
• Pro-Ride dual rate coil springs ride smooth through any terrain
• HD tubular steel radius arms that correct caster while maximizing ground clearance
• Adjustable solid steel track bar designed to recenter the front axle
• Fabricated steel blocks provide level stance from front to rear

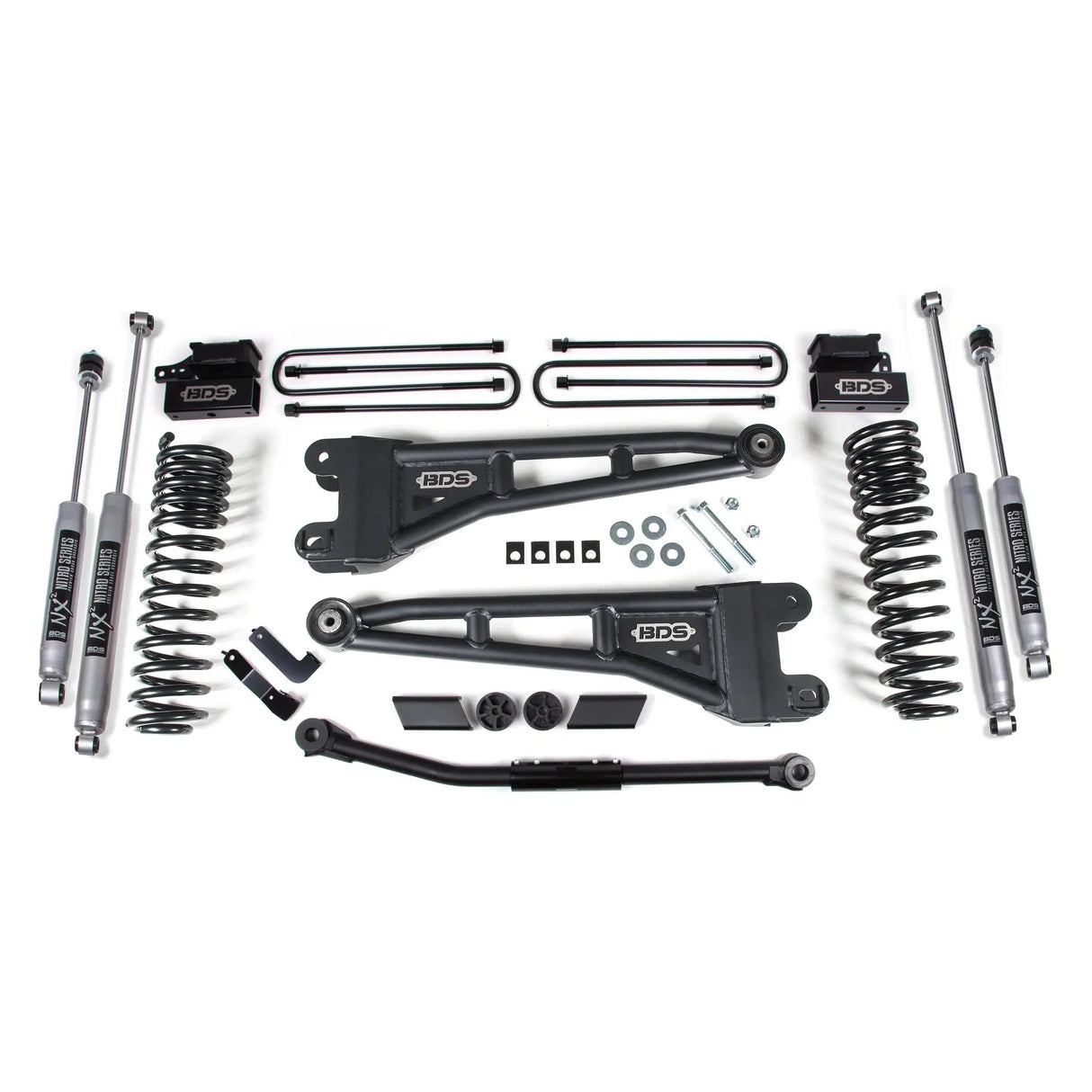

• NX2 Nitro shocks with vehicle-specific valving for better control

Tire Fitment:

• Max Tire Size: 35x12.50

• Front Wheel: 20x8.25, 8.76" BS

• Rear Outer: 20x8.25, -3.33" BS

• Rear Inner: 20x8.25, 9.11" BS

• Designed for use on diesel models, but can be installed on gas model trucks (will achieve an additional 1/2" front ride height).
• Larger tires on stock wheels are not recommended due to brake line clearance required. Use recommended specifications listed in tire and wheel fitment section.
• Installation requires a torque wrench capable of 405 ft-lbs.
