2019-2024 Cummins Standard Output 6" Lift Kit w/ Bilstein Shocks (49-19630)

Fits

Note: Standard Output ONLY

The Cummins can be a tricky truck to lift sometimes, as often times, there are small components that need to be upgraded that a lot of cheaper lift kits dont include, and you only realize this till you're neck deep in suspension parts. What are these parts, and what would happen if you didn't have them installed? ReadyLift's innovative Driveline Indexing System (DIS) with a transfer case clocking ring, OEM output shaft seal, and adjustable transmission cross-member, ensures correct transmission and pinion position so you never get that irritating driveline vibration.

So at the end of it all, you get a killer combination of menacing aesthetics, superior suspension handling, and articulation for one badass ride, on or off-road.

Part Number: 49-19630

• Maintains factory suspension geometry and articulation
• Maintains factory turning radius without rubbing when using the recommended wheel and tire size
• Bump stop extensions prevent over-compression
• CNC-machined 6061-T6 billet DIS re-clocks the transfer case, aligning the front output shaft for improved driveline angles

Wheel & Tire Fitment:

• Maximum fitment: 37x13.50 tire

• 9" wide wheel -18 offset

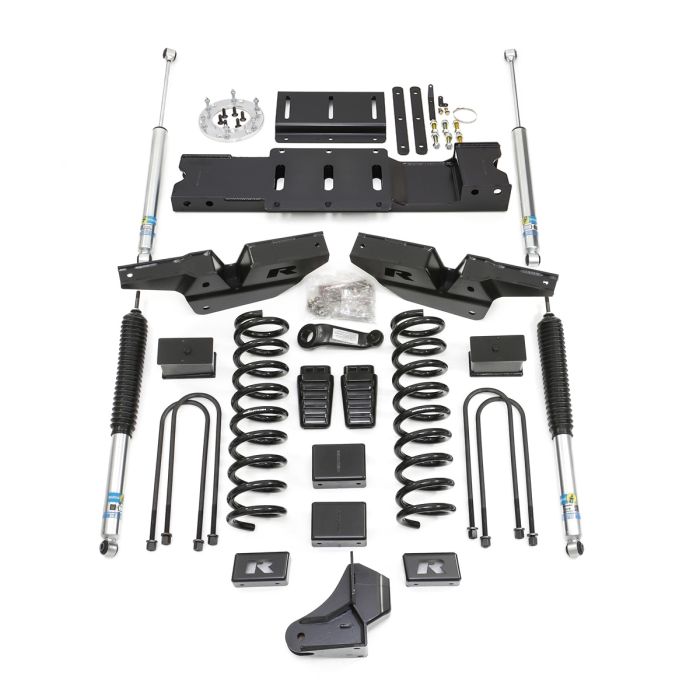

Includes:

• Radius Arm Drop Bracket

• Nut Plate, Radius Arm Drop Bracket

• Driver, Sway Bar Drop Bracket

• Passenger, Sway Bar Drop Bracket

• Brake Line Bracket, Front

• 5" Replacement Front Bump Stop

• Coil Spring, Front

• 4" Fabricated Taper Lift Block

• Front Track Bar Bracket

• Transmission Connector Bracket

• Transmission Crossmember
• Transmission Harness Bracket

• Transmission Mounting Plate

• Transmission Mount Spacer

• 8 Bolt Clocking Ring

• Zinc E-Brake Extension

• Zinc Rear Brakeline Bracket

• Rear Bump Stop Extension

• Transfer Case Spacer

• Pitman Arm, Drop, Replacement

• E-Brake Extension

• Rear Brakeline Bracket

• Bilstein Shock, Front

• Bilstein Shock, Rear

• Hardware Pack

• Extended U-bolts with hardware

• Only available for the 3500 HD Standard Output Motor and the 68RFE Transmission
• Will NOT work on single cab trucks
• Kit will not fit any models with the high output 6.7L diesel motor with Aisin transmission, HEMI Gasoline engine, dually models, Classic models, and any automatic-leveling rear air suspension models.
