2019-2024 Cummins 4.5" Coil Spring Lift Kit (49-19420)

Fits

Note: 2500 models ONLY

The Cummins can be a tricky truck to lift sometimes, as often times, there are small components that need to be upgraded that a lot of cheaper lift kits dont include, and you only realize this till you're neck deep in suspension parts. What are these parts, and what would happen if you didn't have them installed? ReadyLift's innovative Driveline Indexing System (DIS) with a transfer case clocking ring 're-clocks' the transfer case to properly align the front output shaft for improved driveline angles. Specialty track bar and sway bar brackets paired with bump stop extensions prevent over-compression of shocks.

So at the end of it all, you get a killer combination of menacing aesthetics, superior suspension handling, and articulation for one badass ride, on or off-road.

Part Number: 49-19420

• 4.5" front & 3" rear lift
• Maintains factory suspension geometry and articulation
• Maintains factory turning radius without rubbing when using the recommended wheel and tire size
• Bump stop extensions prevent over-compression
• CNC-machined 6061-T6 billet DIS re-clocks the transfer case, aligning the front output shaft for improved driveline angles


Wheel & Tire Fitment:

• Maximum fitment: 37x12.50 tire

• 20'' x 9" wide wheel -18 offset

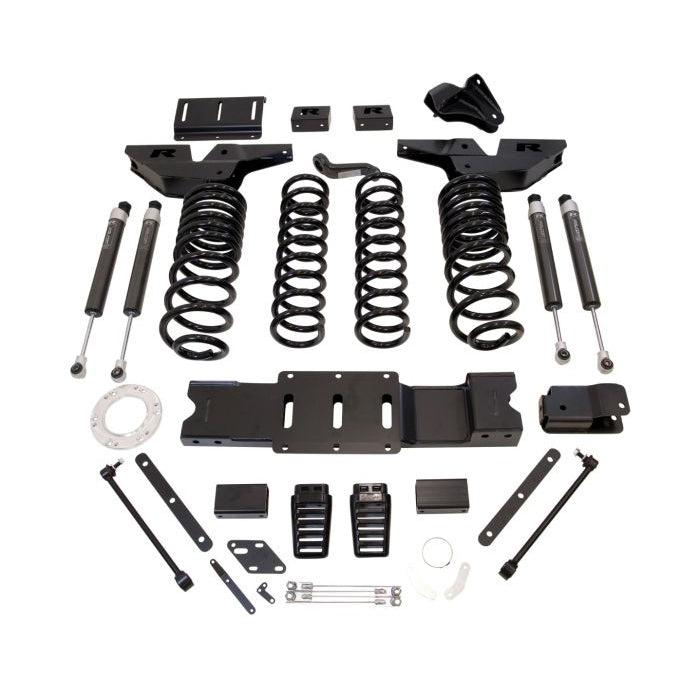

• 4.5" Front Lift Spring

• 3" Rear Lift Spring

• Falcon Shock, Front

• Falcon Shock, Rear

• Radius Arm Drop, Driver

• Radius Arm Drop, Passenger

• Front Track Bar Bracket

• Rear Track Bar Bracket

• Driver, Sway Bar Drop Bracket

• Passenger, Sway Bar Drop Bracket

• 12" Rear Sway Bar Endlink

• Replacement Front Bump Stop

• Rear Bump Stop Extension

• Pitman Arm, Drop, Replacement

• Transmission Connector Bracket

• Transmission Crossmember

• Transmission Harness Bracket

• Transmission Mounting Plate

• Transmission Mount Spacer

• 6 Bolt Clocking Ring

• Front Brakeline Bracket

• Rear Brakeline Bracket

• Pinch Clamp

• Hardware Pack

• Does not work with Factory Air suspension or the Auto Level system (factory helper bags).
• For use on diesel 2500 trucks only
