2019-2022 Mercedes Sprinter 3.0L FlashZilla Stage 2 Tune File

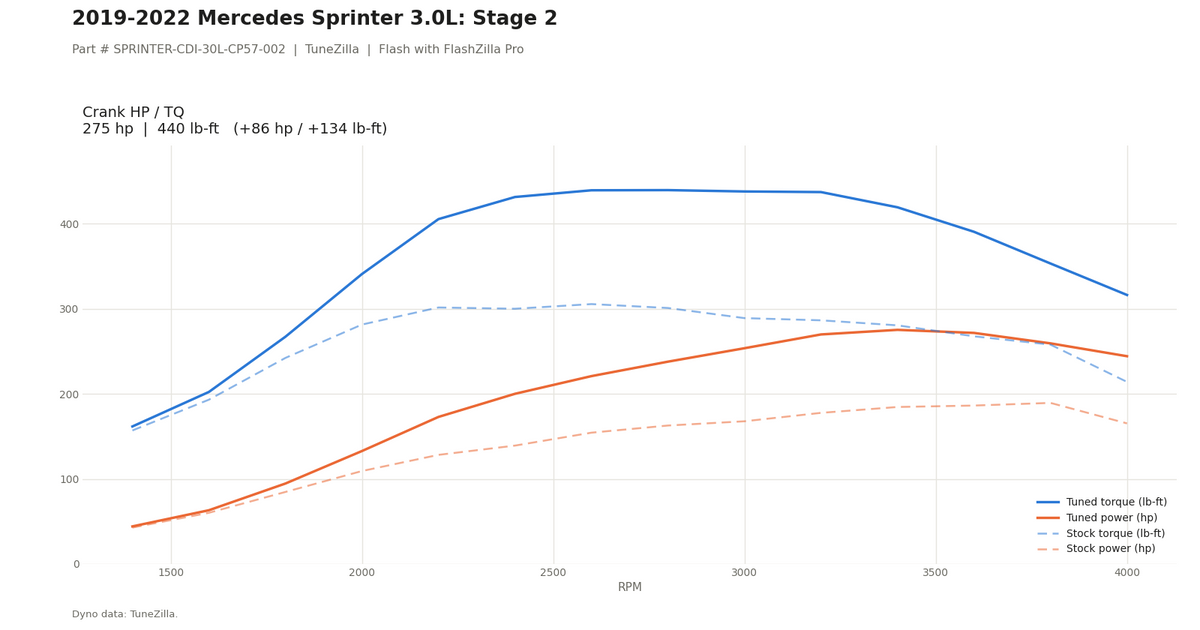

TuneZilla engine (ECU) tuning for the Mercedes Sprinter 3.0L CDI BlueTec CP57, flashed at home through the OBD port with the TuneZilla FlashZilla Pro. Pick your power level above. The dyno graph for this power level is in the photo gallery. Add the FlashZilla Pro below if you do not already own one.

ECU check: the FlashZilla Pro flashes the 2-plug EDC17CP57 ECU only. Vans with the 6-plug MD1 ECU cannot be flashed with the FlashZilla Pro.

Part Number: SPRINTER-CDI-30L-CP57-002

Emissions-Off: not included with this tune. Add it in the options below.

Stock baseline: Not published at the wheel, 189 hp / 305 lb-ft crank (est.)

Crank figures are TuneZilla's published estimates.

• Dynamic EGR (DYN-EGR-EDC17CP57-MB)
• Emissions-Off (DPF, AdBlue, EGR & Swirl Flap) (MERCEDES-CDI-30L-EDC17-MISC-OFF)

Already own a TuneZilla tune and want to add something later? Use the FlashZilla Tune Revision page.

No hardware upgrades are required for the Stage 2 tune. However, tune add-ons to accommodate hardware changes can be purchased.

It is important to note that we do not remove factory readiness monitors or force readiness for any factory installed components. If you are installing aftermarket hardware that is for off-road use only, please double check with your state requirements prior to flashing.

You can download the Stage 1 tune file (included with the purchase of your Stage 2 tune) through InstaTune if you will be towing or carrying heavier loads to help prevent hitting the EGT limiter.

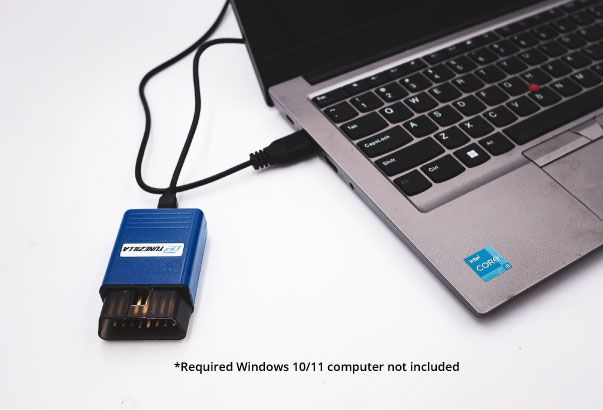

• Flashed at home through the OBD port with the TuneZilla FlashZilla Pro and a Windows 10 or 11 laptop running the TuneZilla Portal App.
• Connect the FlashZilla Pro with a USB-A to USB-C cable. USB-C to USB-C cables are not compatible.
• Your tune is linked to your VIN and syncs to the TuneZilla Portal App, usually right away. Read and save your factory ECU file before flashing.
• Clear all fault codes and warning messages before flashing.
• TuneZilla recommends a battery charger for every flash. Turn the ignition on with the engine off, follow the prompts and do not interrupt the flash.

ECU check: the FlashZilla Pro flashes the 2-plug EDC17CP57 ECU. Vans with the 6-plug MD1 ECU cannot be flashed with the FlashZilla Pro. Confirm your ECU before ordering.

SCR / AdBlue: clear the SCR countdown before flashing (the message can stay on screen after an emissions-off flash). If you run an aftermarket exhaust, clear all dash errors first. Unplug the SCR controller after flashing but before starting the vehicle (TuneZilla confirmed). It is under the driver's seat on Sprinters and in the trunk under the spare tire on most other models. Emissions-off tunes also require unplugging the EGR, swirl flap motor, DPF temperature and pressure sensors, and NOx sensors, or you may get rough, smoky cold starts.

6429021704 6429040500, 6429022003 6429040500, 6429022004 6429030021, 6429022004 6429040500, 6429026304 6429040500, 6429028103 6429040500

Maximize your performance with our Stage 2 ECU Tune for Mercedes-Benz 3.0L Bluetec motor. Redefine what your vehicle is capable of, increasing both horsepower and torque to make the most of your diesel Mercedes Sprinter.

The Stage 2 tune optimizes fueling, boost control, and torque management to deliver smooth yet aggressive power delivery throughout the RPM range. Unleash a new driving experience with improved throttle response, ensuring a dynamic and responsive ride every time you hit the accelerator.

Any Time, Any Place

Flash your Mercedes in the comfort of your own driveway or garage using our TuneZilla Portal App and FlashZilla Pro dongle. Download your tune directly to your laptop and flash your vehicle anywhere.

Tune files can be modified through our InstaTune server so that you can upgrade your tune anytime.

Your Tune, Your Way

Designed to deliver remarkable performance without the need for additional hardware upgrades, this tune provides a seamless and hassle-free installation process. Keep your factory components in place while relishing the enhanced power and mid-range capabilities that come with our meticulously calibrated tune.

For those seeking a more personalized touch, optional tune features are available to accommodate various hardware changes. Whether you've upgraded your exhaust, or other components, our Stage 2 ECU Tune can be tailored to optimize performance based on your specific modifications. Say goodbye to "no start" conditions and hardware failures with our optional tune add-ons.

Take The Lead

Experience the full potential of your 3.0L Sprinter and upgrade today to redefine the road with a blend of power and precision that's unparalleled.
