2019-2020 Cummins CP4 Plug-N-Play Titanium Signature Series Plus 165GPH Lift Pump with Sending Unit (PNPTSPD12165G)

Name: 2019-2020 Cummins CP4 Plug-N-Play Titanium Signature Series Plus 165GPH Lift Pump with Sending Unit (PNPTSPD12165G)
Brand: Fass Fuel Systems
SKU: PNPTSPD12165G
Price: 1614.47 CAD
Availability: InStock

Fass Fuel Systems Part Number: PNPTSPD12165G

$1,614.47 CAD

Now Available for Pre-Order. To begin shipping December 7, 2026. The Plug-N-Play kit pairs a FASS Titanium Signature Series Plus fuel system with an S&B fuel sending unit, so the fuel tank does not need a sump kit. Initial quantities are limited.

This product ships for free to most Canadian locations! Learn more

Fuel Your Build with These Extras

Universal FASS Connect Digital Monitoring System (FC2001K)

Part No. FC2001K

$499.07

Universal FASS High Output Heater Kit (HK1002)

Part No. HK1002

$255.97

Universal Fass Fuel Filter Pack (FP3000)

Part No. FP3000

$154.81

Truck Fitment

Description

Power Rating: 600-900 HP

Flow Rating: 165GPH

Filtration Rating: 2 Micron

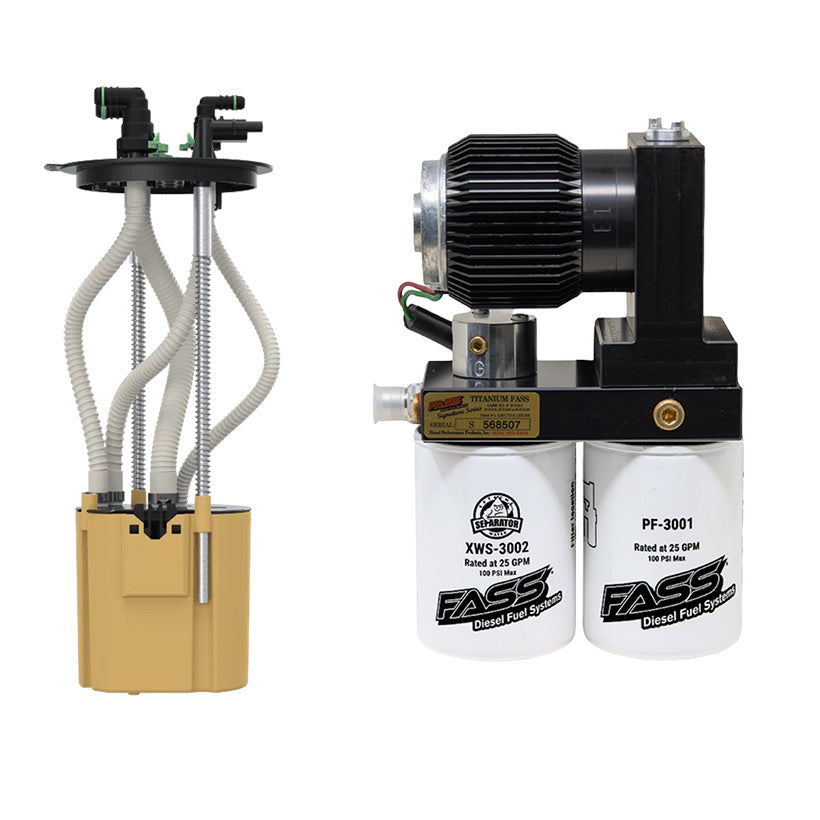

The Plug-N-Play kit pairs a FASS Titanium Signature Series Plus fuel system with an S&B fuel sending unit for the 2019-2020 Ram 2500/3500 6.7L Cummins with the factory CP4 injection pump. The S&B unit replaces the factory sending unit and feeds the FASS system directly, so the fuel tank does not need a sump kit.

The S&B sending unit uses Active Bucket Filling: a venturi jet pump keeps its fuel basket full, even when the tank is close to empty. It connects to the FASS system with OEM-style quick-connect fittings.

The Titanium Signature Series Plus separates air and vapor out of the fuel, removes water with the FASS Extreme Water Separator and filters to 2 microns absolute. Fuel the engine does not use returns to the tank already filtered, so the fuel in the tank keeps getting cleaner.

Includes:

(1) FASS Titanium Signature Series Plus 165GPH Fuel System (TSPD12165G)
(1) S&B Fuel Sending Unit (86-3001)

Part Number: PNPTSPD12165G

Features

Titanium Signature Series Plus fuel system with an S&B fuel sending unit
165 gallons per hour flow rating, measured on diesel at operating pressure
Rated for 600-900 HP
FASS air and vapor separation
Extreme Water Separator removes water from the fuel
2 micron absolute microglass filtration
S&B Active Bucket Filling with a venturi jet pump
OEM-style quick-connect fittings at the sending unit
Performance Radius Cuts for smoother flow through the housing
Black anodized ORB fittings, AN-style fittings and aluminum motor heat sink
Bolt-on steel mounting brackets
Port for the optional FASS electric heater
Limited lifetime warranty when registered with FASS

Notes

Pre-order item: FASS is scheduled to start shipping the Plug-N-Play kits on December 7, 2026. Initial quantities are limited.
For 2019-2020 trucks with the factory CP4 injection pump only. CP3-converted 2019-2020 trucks, and all 2013-2018 and 2021-2024 trucks, need the PNPTSPD07165G.
Installation on a cab and chassis may require modifications.
