2018-2020 F-150 XB Evo LED Headlights

The Morimoto XB Evo headlights are the most advanced headlight upgrade available for the 2018-2020 Ford F-150. Far more than a design refresh, each housing packs two of Morimoto's latest Type 1 Ishida Bi-LED projectors plus a dedicated D-Optic high beam assist, all built to meet the toughest IIHS headlight performance standards.

The XB Evo is DOT (FMVSS108) compliant for on-road use in standard form and loaded with enthusiast features: a logic-controlled Frost-Free lens heating system that keeps the lens clear through winter, configurable white or amber DRL, sequential or fade-off turn signals via plug-and-play selector keys, a multi-stage welcome sequence, and a two-tone piano black and titanium interior. They reuse the OE mounting points and plug in with the included harnesses.

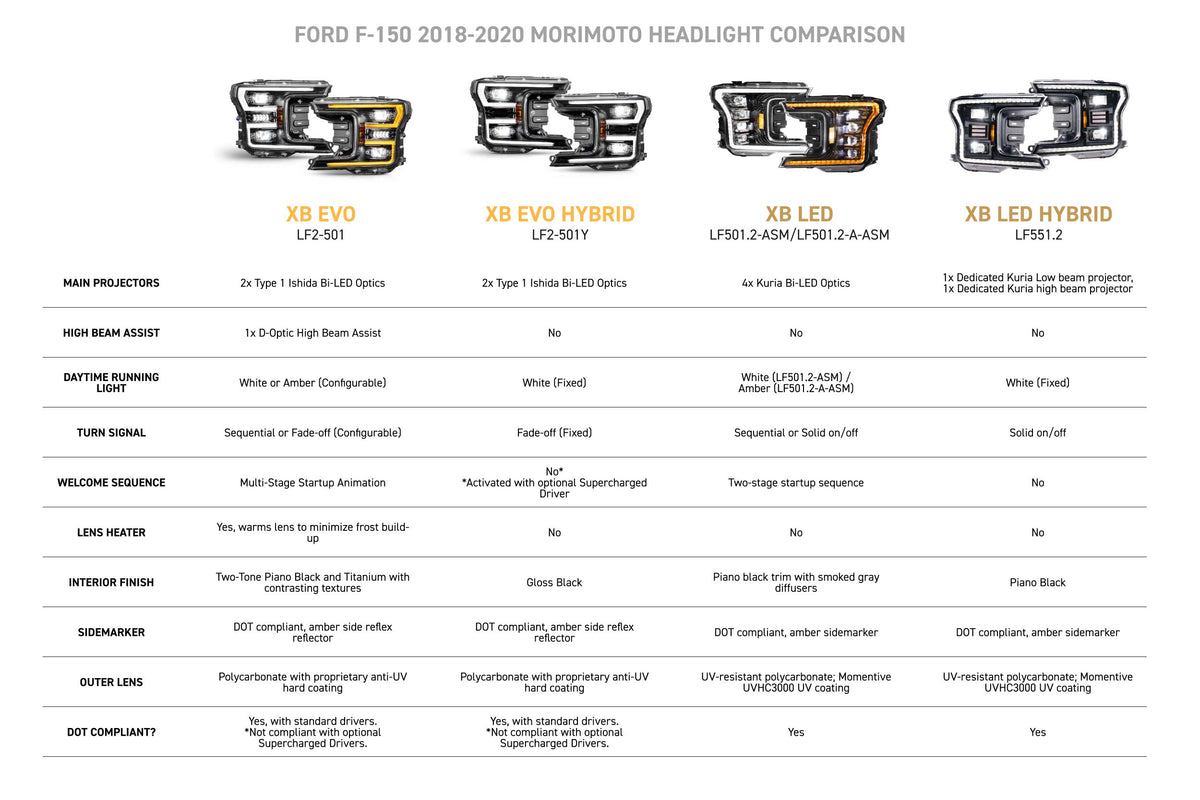

Looking for a lower price point? Check out the XB Evo Hybrid LED Headlights (LF2-501Y). Need maximum output for off-road use? Add the XB Evo Supercharged Drivers (LF2-DRVSC13).

Part Number: LF2-501

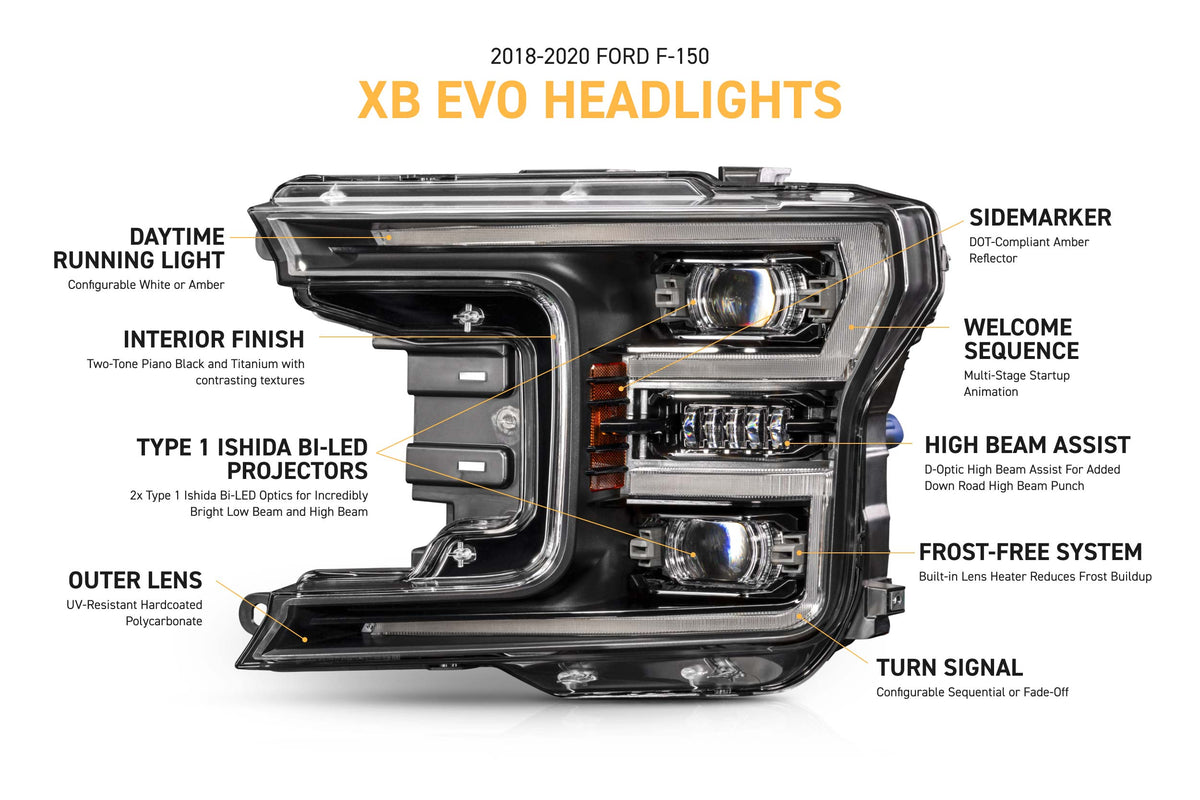

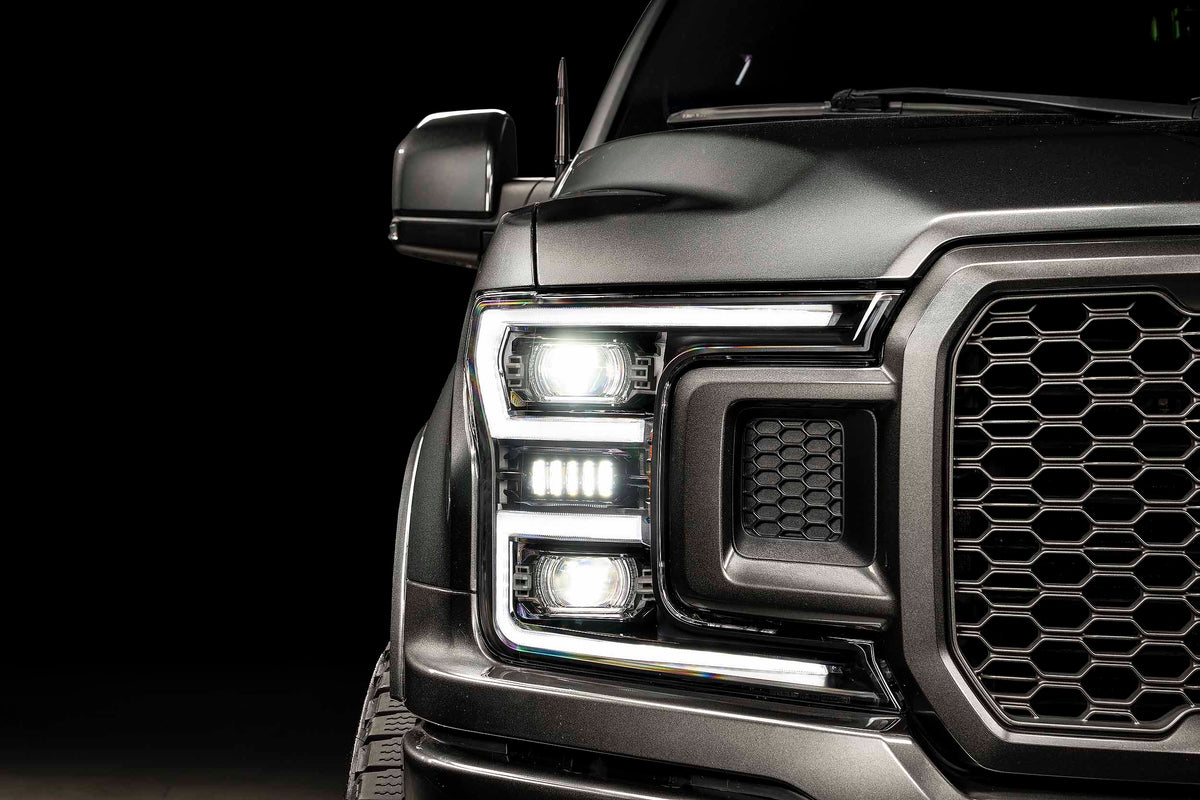

• Triple Projector: Two Type 1 Ishida Optic Bi-LED projectors plus a D-Optic high beam assist in each headlight.

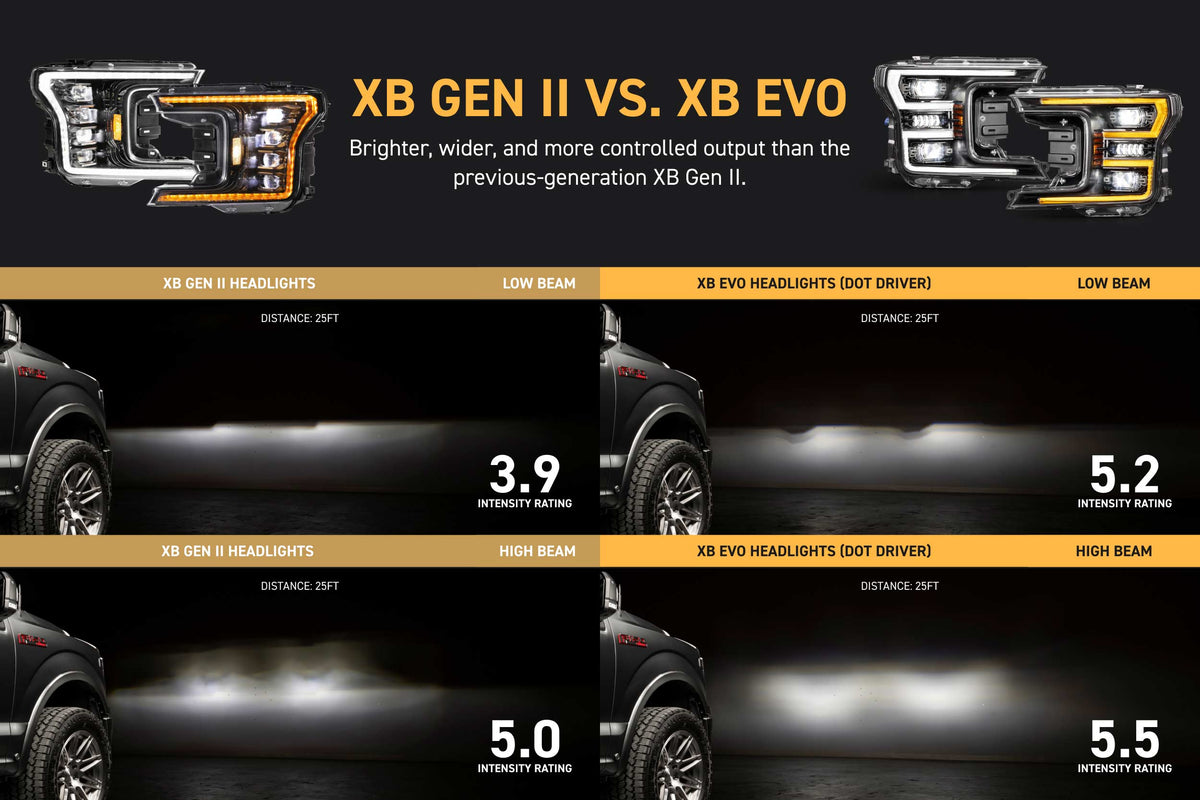

• IIHS Performance: OE-grade Nichia LEDs deliver output built to meet the toughest IIHS headlight performance standards.
• DOT Compliant: FMVSS108 compliant for on-road use with the standard drivers.

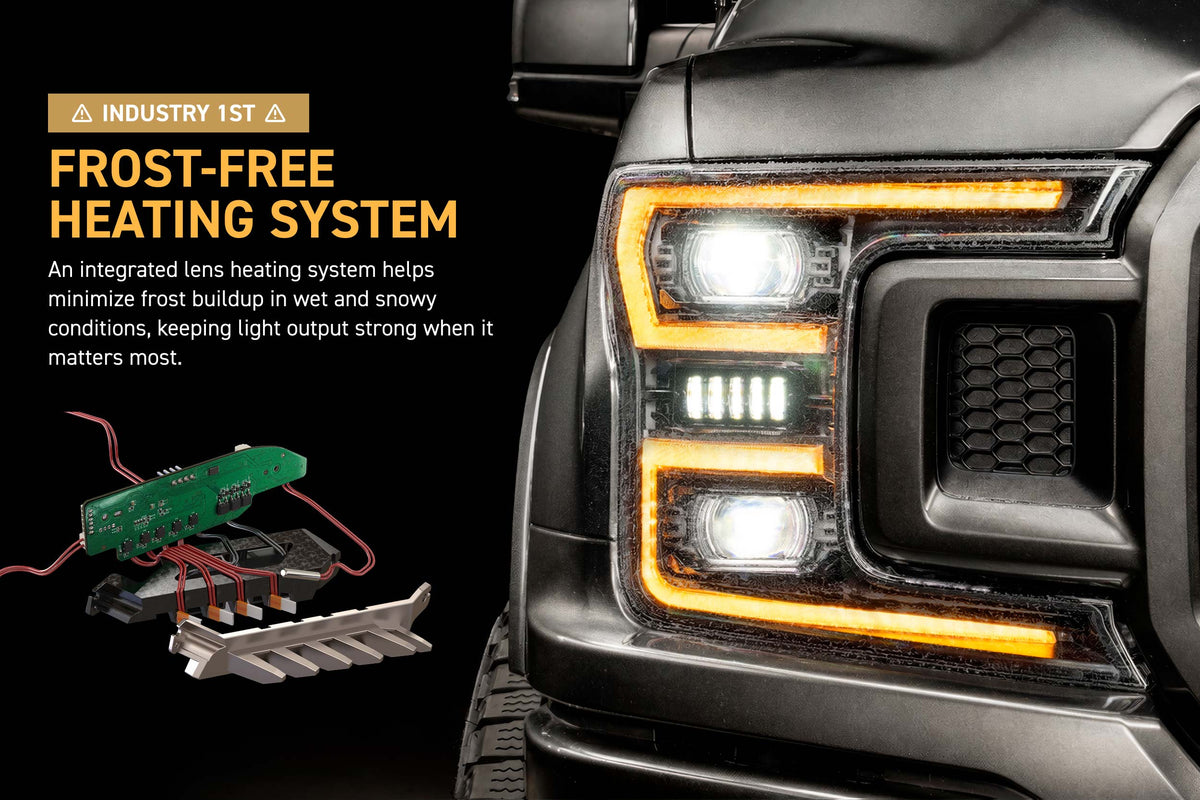

• Frost-Free System: A logic-controlled 50W ceramic lens heater with circulation fans minimizes frost buildup.

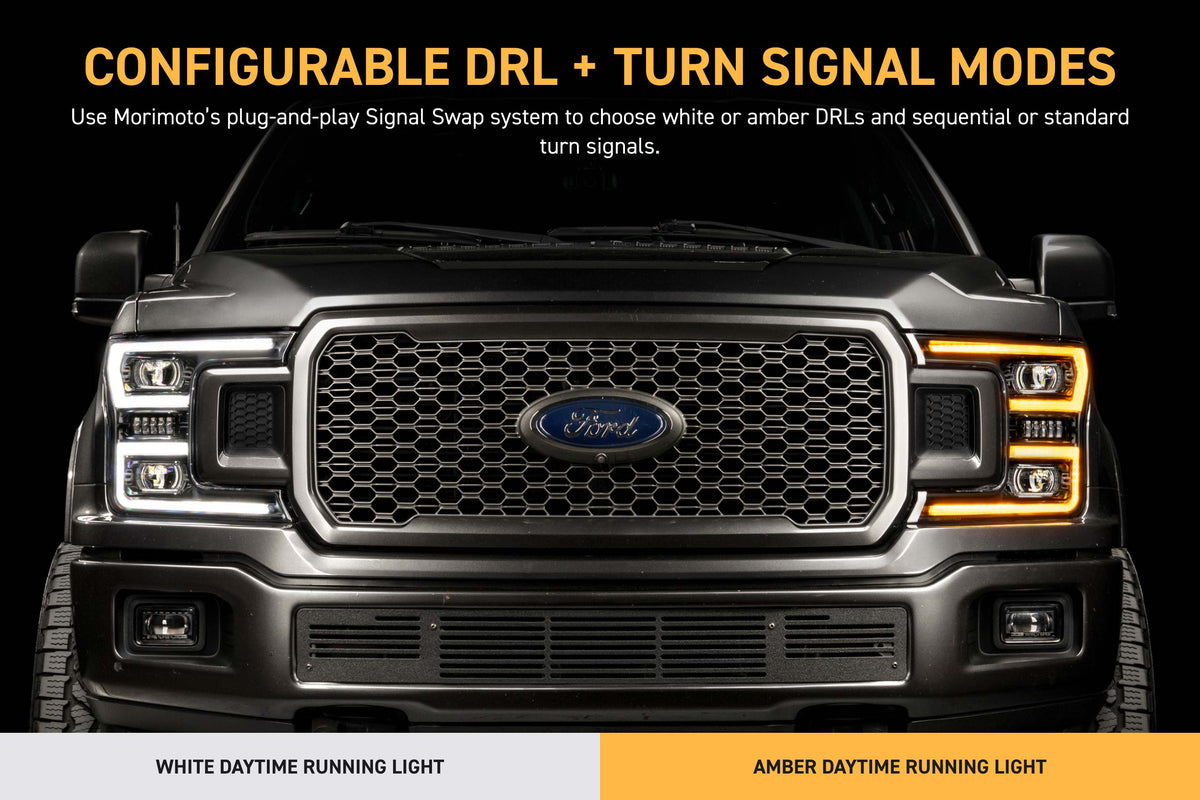

• Configurable: Mode selectors set the DRL to white or amber and the turn signal to sequential or fade-off.
• Welcome Sequence: The optics light up in a multi-stage sequence when you start the truck.

• Traffic Pattern: LHD / Right Hand Traffic Only (US/CA Standard)
• Output (Standard Drivers): DOT (FMVSS108) Compliant (LB2V and UB2)
• Output (Supercharged Drivers): Off-Road Use Only
• Main Optics: 2x Type 1 Ishida Optic Bi-LED, 1x D-Optic High Beam Assist
• Functions: Low, High, Park, Turn, DRL, Welcome, and Lens Heating
• Turn Signal Modes: Sequential or Fade Off (Configurable)
• DRL Colors: White or Amber (Configurable)
• Frost-Free System: Logic-Controlled 50w Ceramic w/ Circulation Fans
• Internal Finish: Two-Tone Piano Black and Titanium w/ Contrasting Textures
• Side Marker: Amber Side Reflex Reflector (DOT Compliant)
• Lens Details: Polycarbonate with Proprietary Anti-UV Hard Coating
• Replaces OE Part #: KL3Z13008D, HL3Z13008M, KL3Z13008B, JL3Z13008AH, HL3Z13008K, KL3Z13008C, HL3Z13008L, KL3Z13008A, JL3Z13008AG, HL3Z13008J

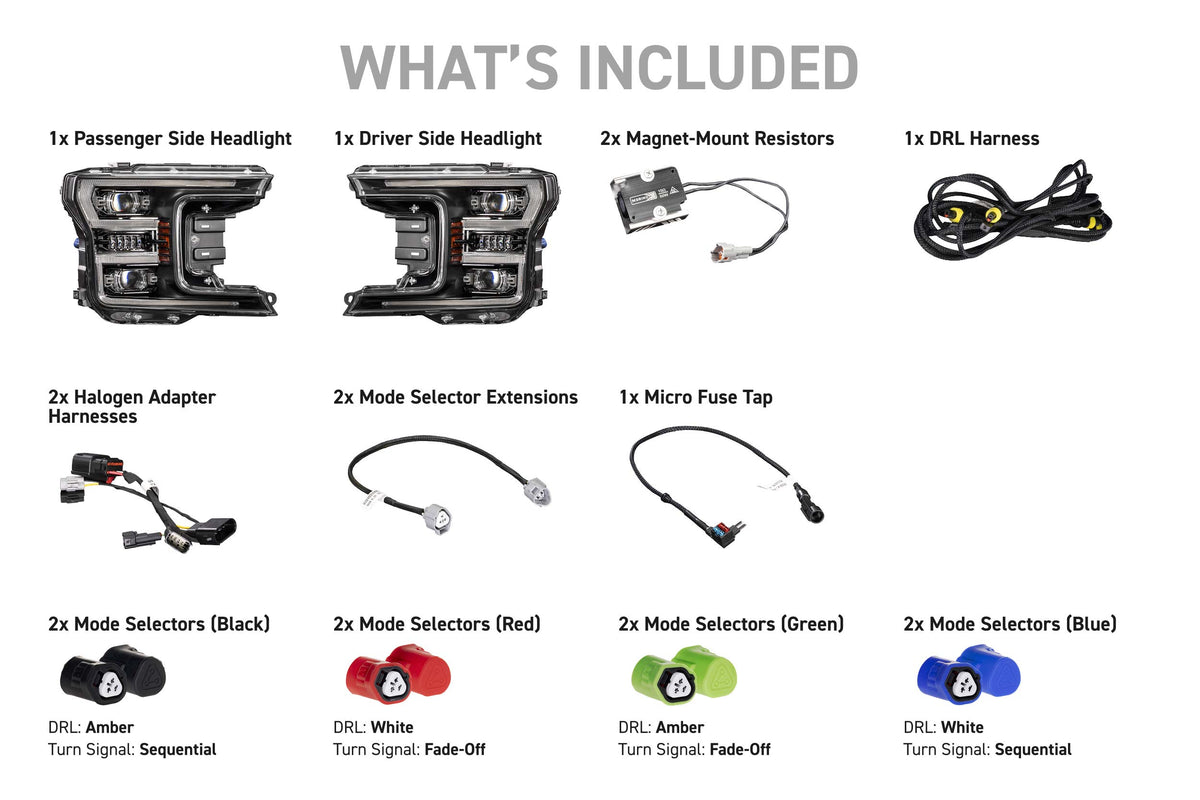

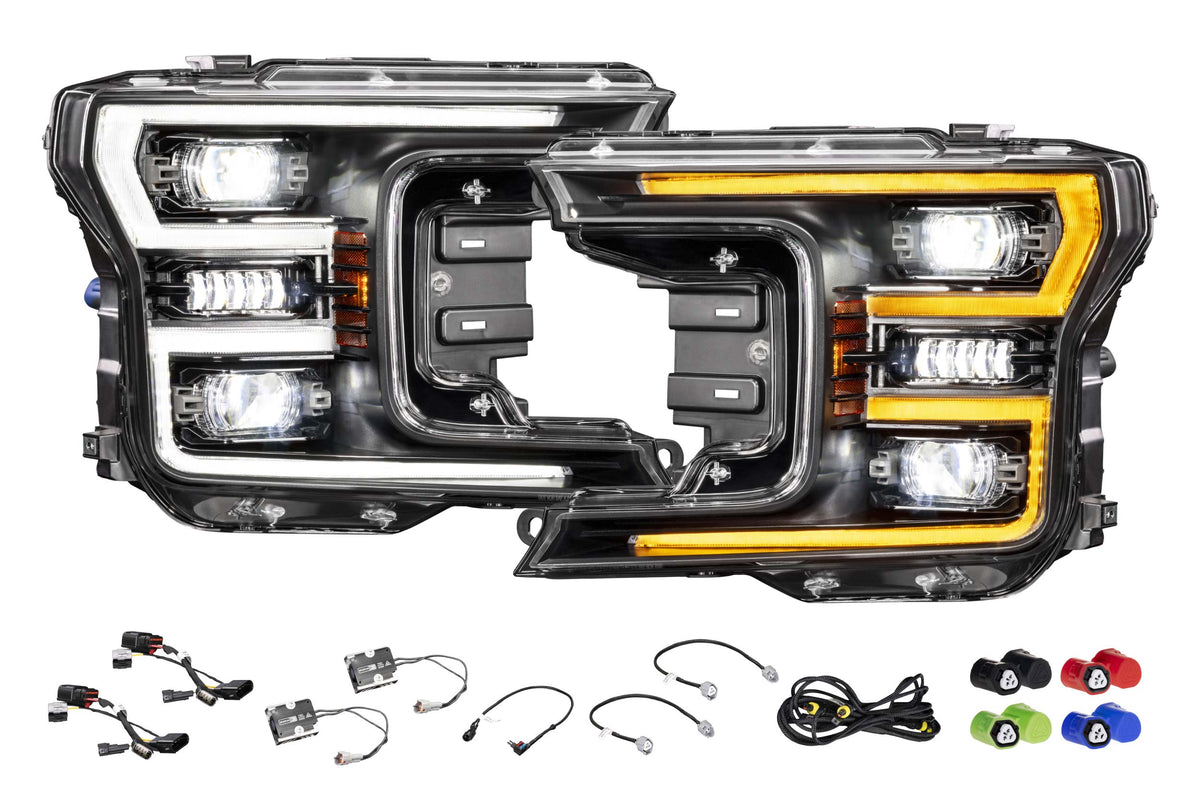

• Headlights: One Pair (1x RH / Passenger Side Headlight, 1x LH / Driver Side Headlight)
• Accessories: 2x Halogen Adapter Harnesses, 2x Magnet Mount Resistors, 1x Micro Fuse Tap, 1x DRL Harness, 2x Mode Selector Extensions, 8x (Four Pairs) Mode Selectors
• Warranty: Five (5) Years
