2018-2024 Cummins Bypass Cable (BOD18-22BypassCummins)
Purchase to earn 50 Dirty Dollars Learn More
Price Match Request

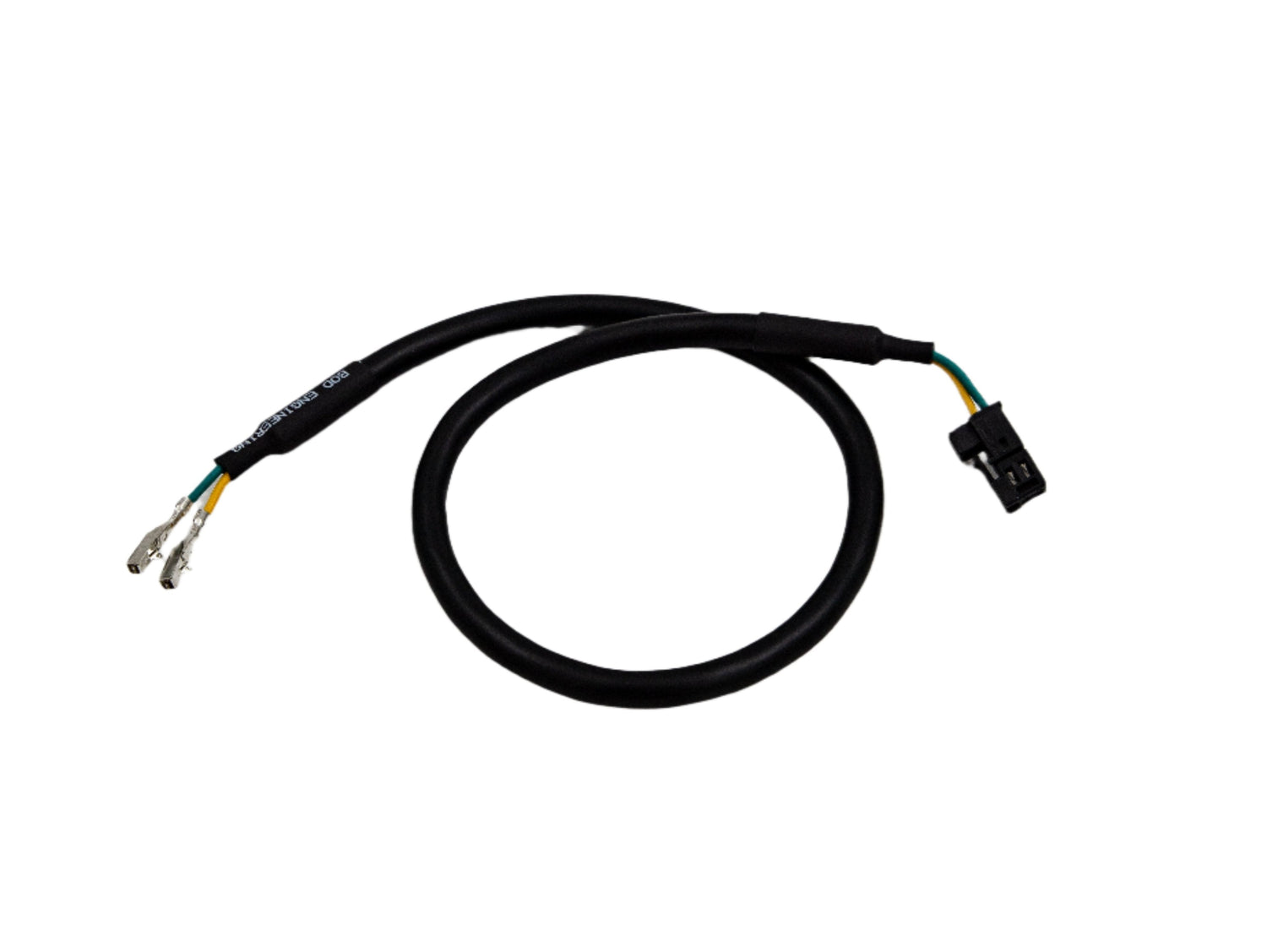

2018-2024 Cummins Bypass Cable (BOD18-22BypassCummins)
Description
Description
Fits
| Year | Make | Model | Device |
| 2018-2024 |
Dodge |
Ram w/ 6.7 Cummins | EFI Live / HP Tuners |
Using an EZ-Lynk 2.0? Click Here.
The BOD Bypass Cable for the Dodge Ram is a must-have for any 18+ Cummins. It allows you to bypass the Security Gateway Module and works in multiple ways for multiple platforms.
Whether you are using EFI Live or HP Tuners, you’ll need it to flash a Tune into your 6.7L. Once you install this in your truck, your OBD-II will still function normally and you can use CSP5 or MVP (SOTF) Tunes.
IMPORTANT NOTE: While this cable is required for all 2018+ models, 2022-2024 trucks also require an unlocked ECM swap to enable flashing.
Part Number: BOD18-22BypassCummins
Features
Features
- Required for Tuning 2018+ Cummins Trucks
- Bypasses Security Gateway Module
- Works with EFI Live AutoCal / FlashScan
- Works with HP Tuners MPVI2, MPVI3, and MPVI4.
- When used in tandem with your tuning interface, this cable allows you to flash custom tuning onto your truck.
Notes
Notes

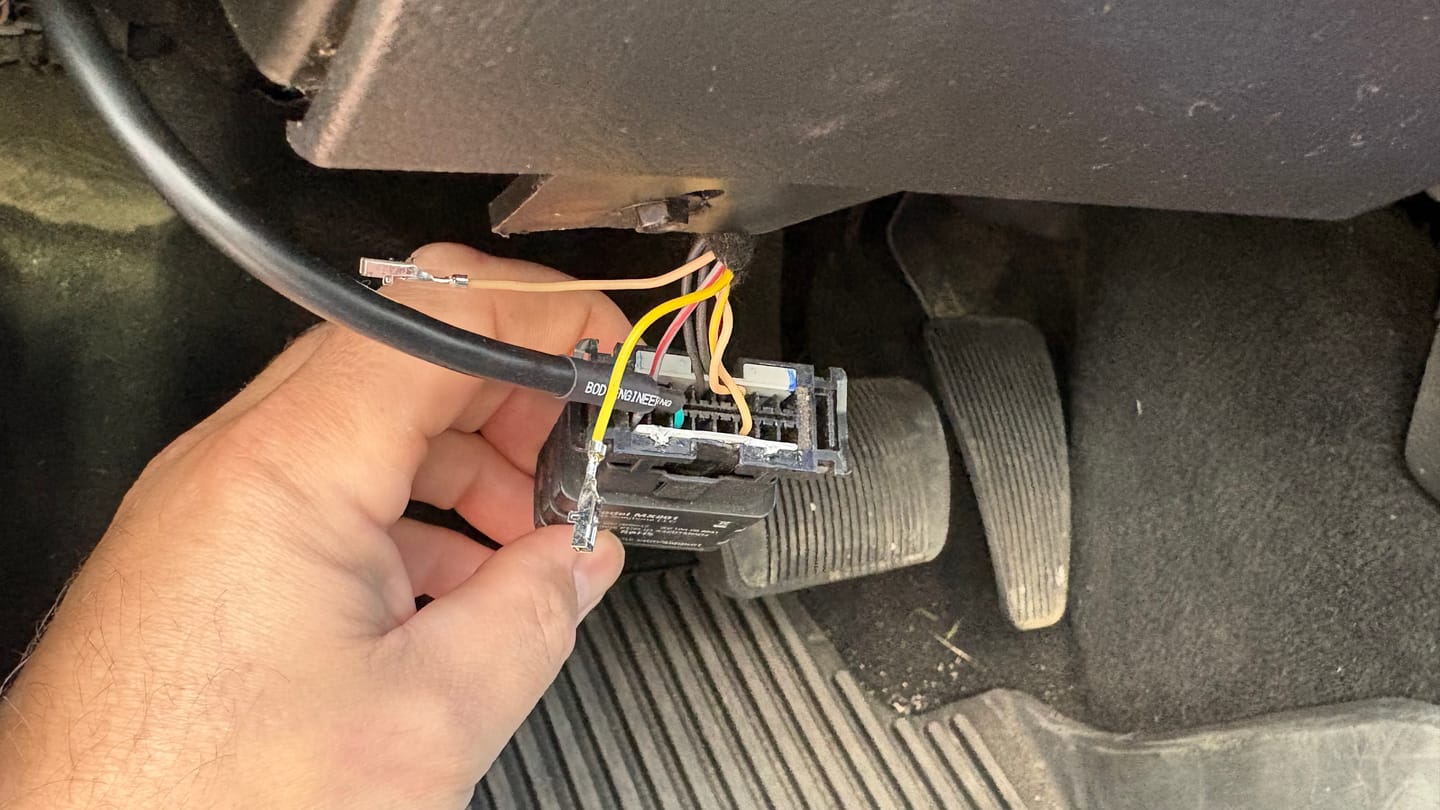

- 2018 Models: Replace yellow with yellow and green with tan
- 2019+ Models: Replace yellow with tan and green with yellow
- These connections always correspond to Pins 6 and 14 on the OBD-II connector.
Installation
Installation
Questions and Answers
Questions and Answers
Previously asked questions
We've compiled a list of questions and answers below.
Don't see your question? Ask us anything about this product.
Ask a Question-
Will this work on the 2018+ Ram 1500 models with the 5.7L Hemi for bypassing the Security Gateway Module?
No.
-
Will this allows me to use any scanner/code reader to read and clear codes?
No.
-
do i still need this if im only getting a single tune not a CSP5 tune?
Yes.
-
Does this allow me to flash a tune on a 2022 Cummins with the stock ecm
Unfortunately not. To be able to flash tunes onto the 2022 it requires an ECM swap from a 19-21 truck. -
Does this work with a mm3
This if for EFI Live only.
