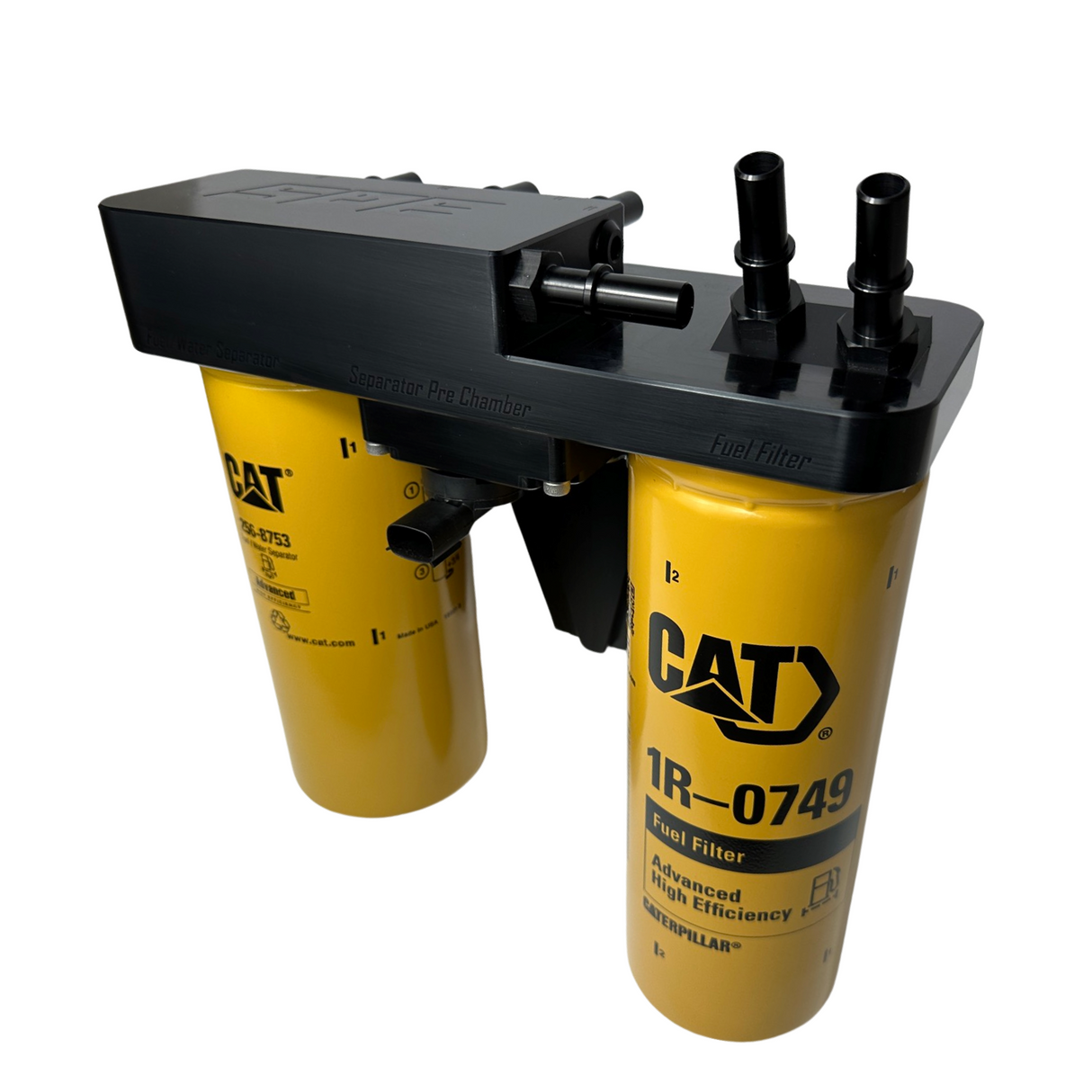

2017+ Powerstroke Fuel Filter System (SPE-S100210)

Fits

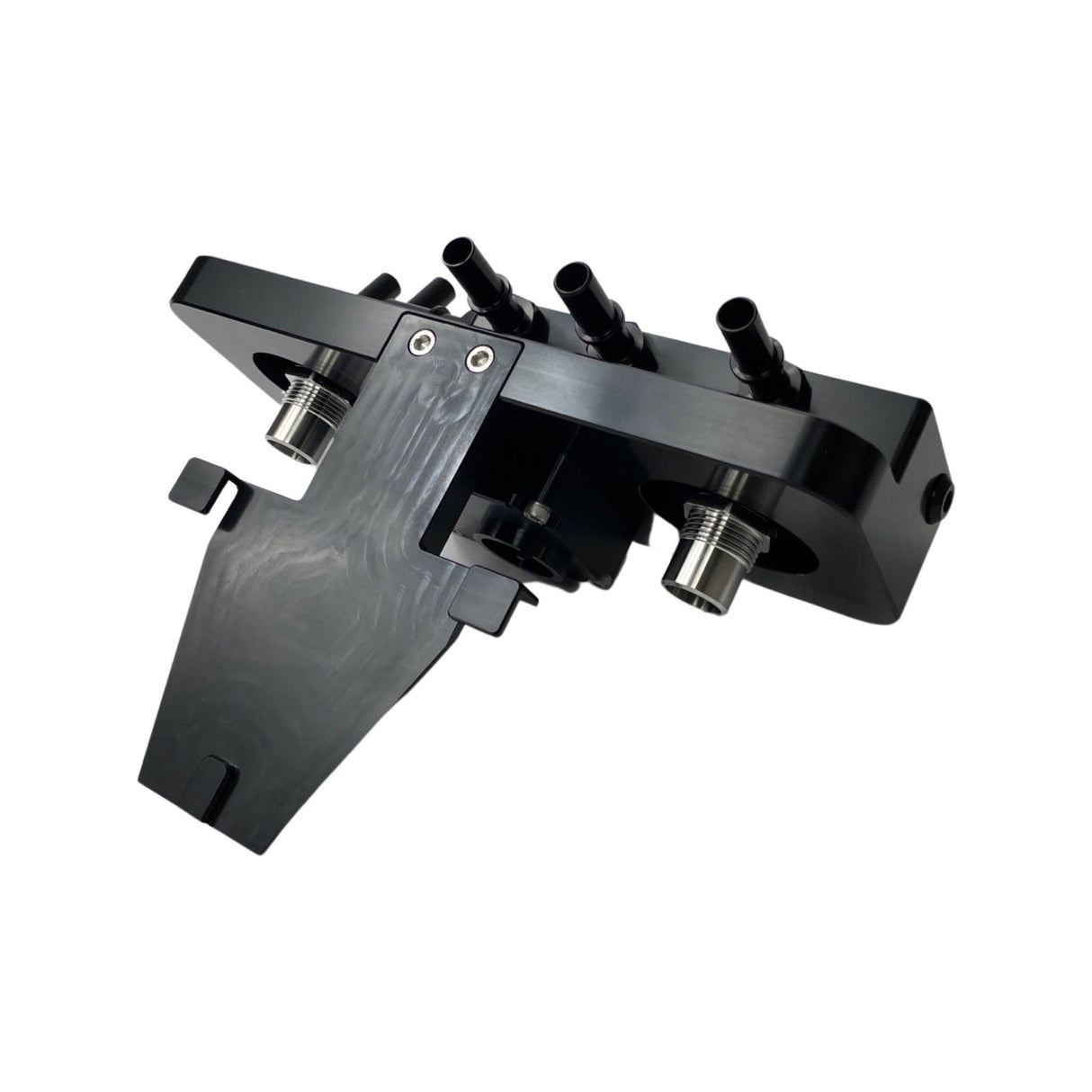

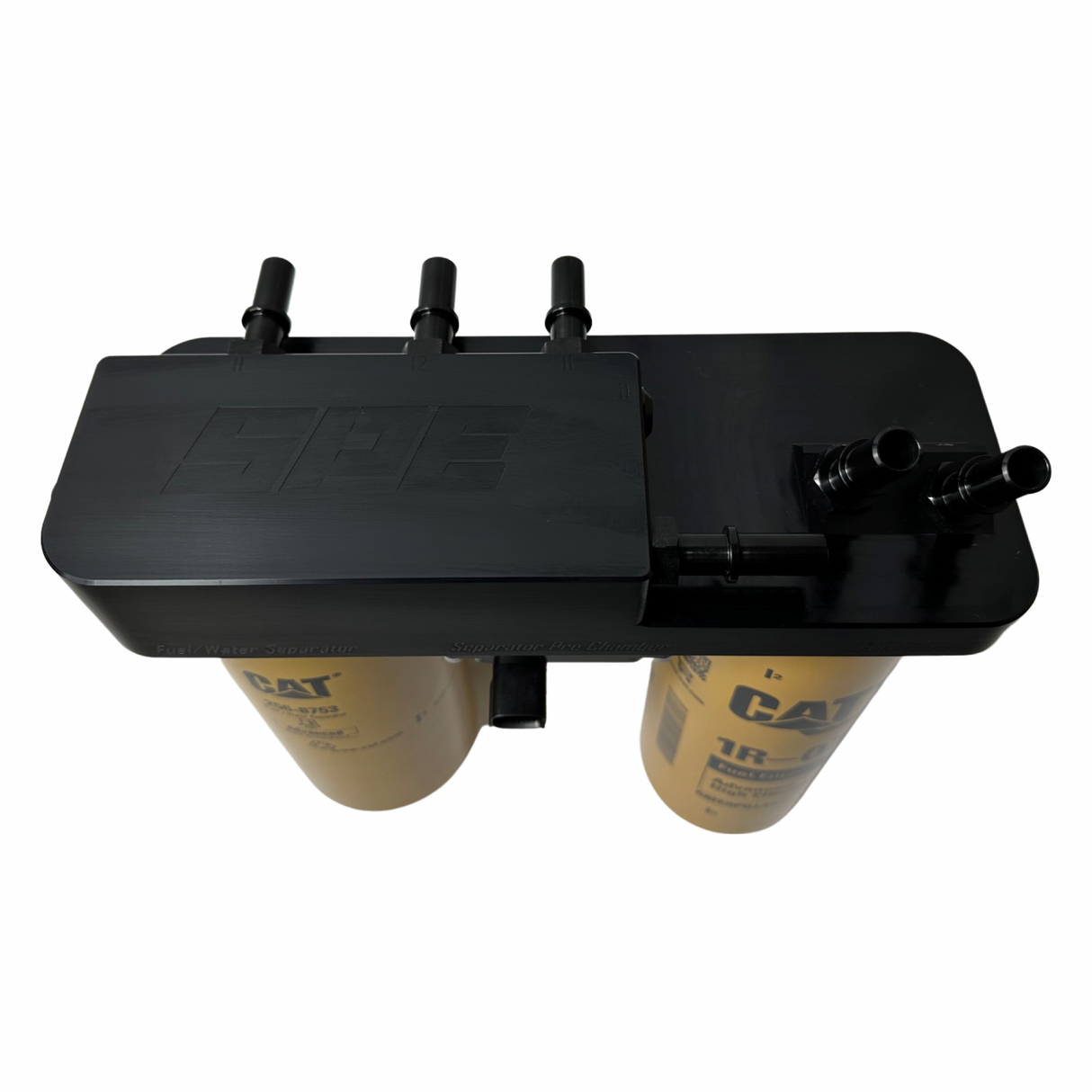

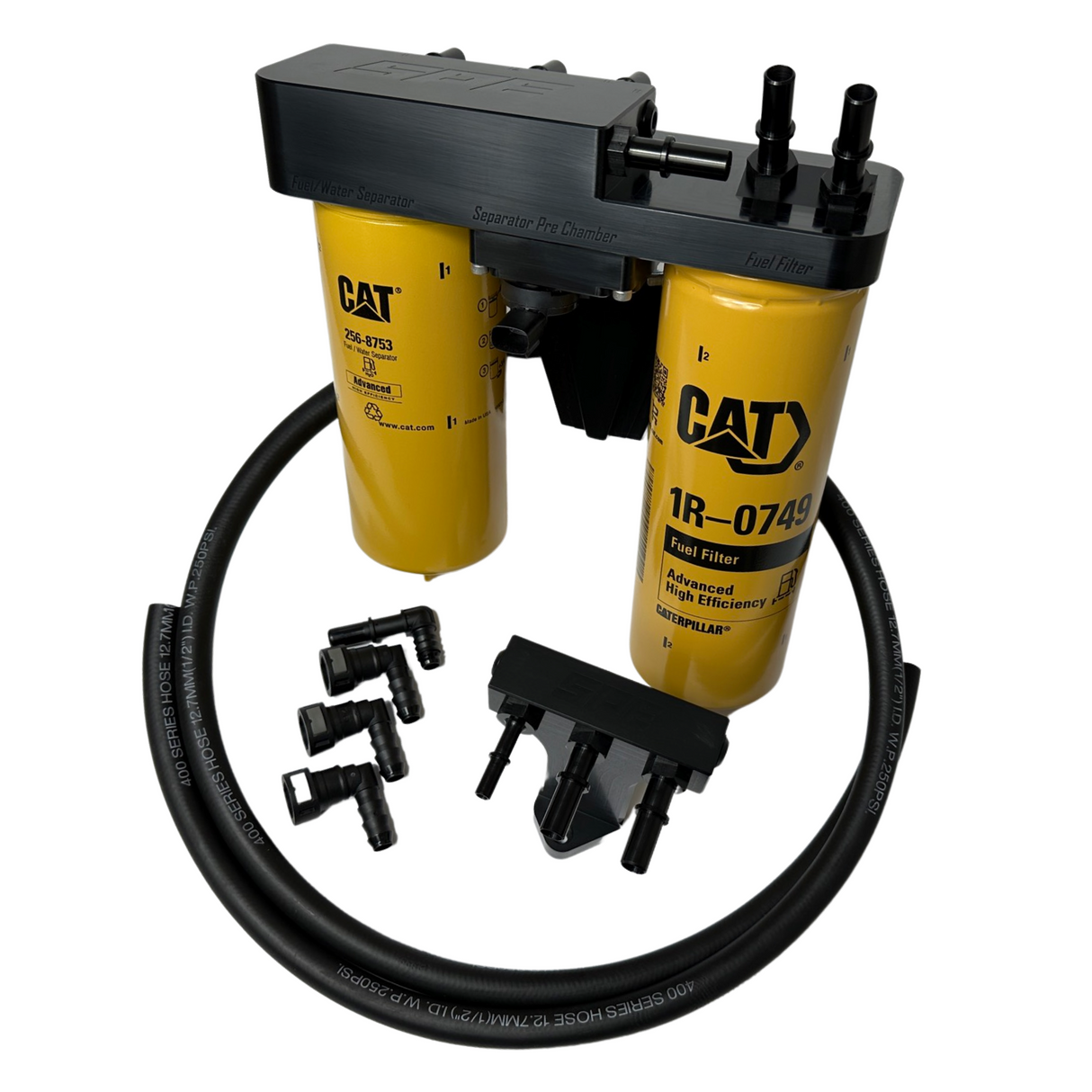

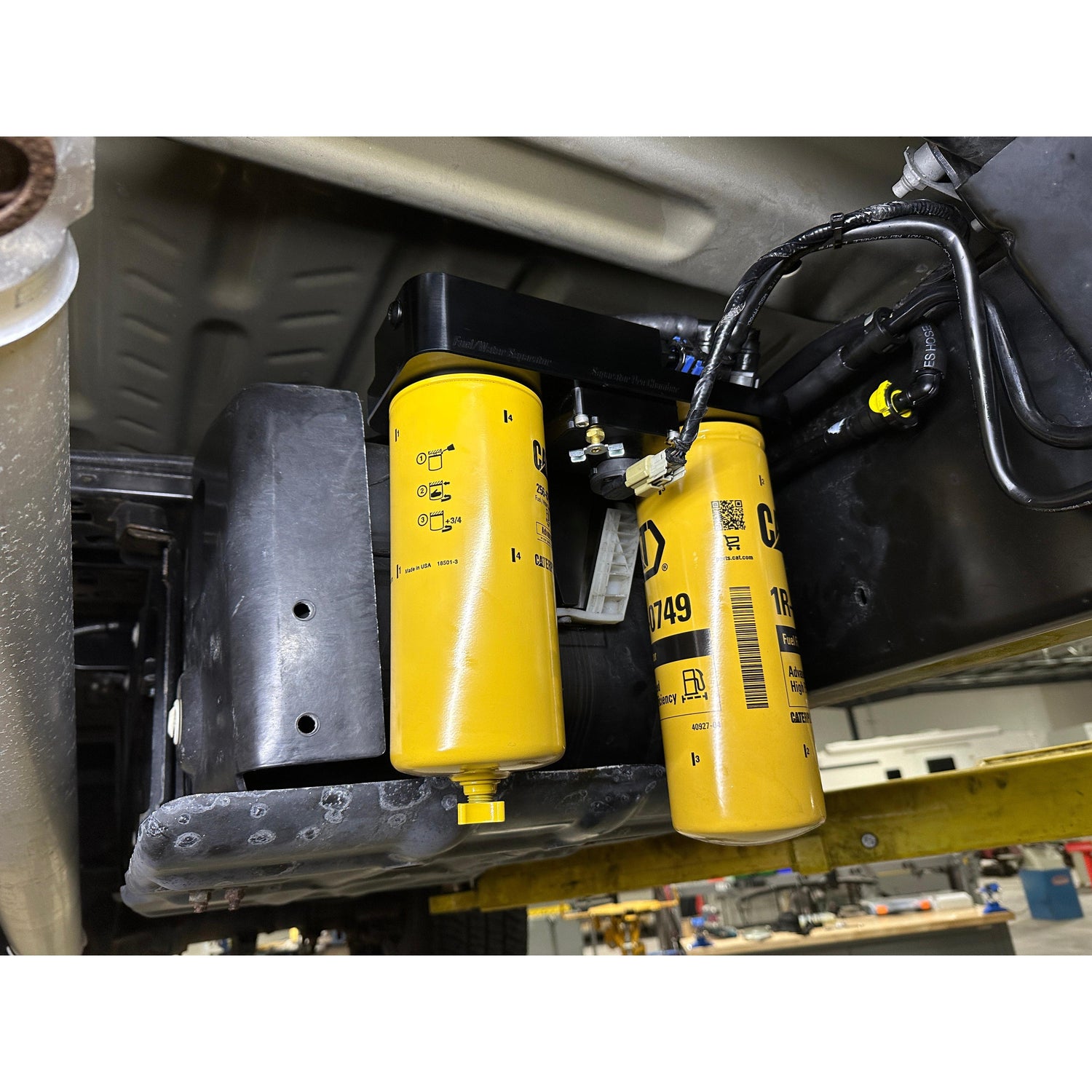

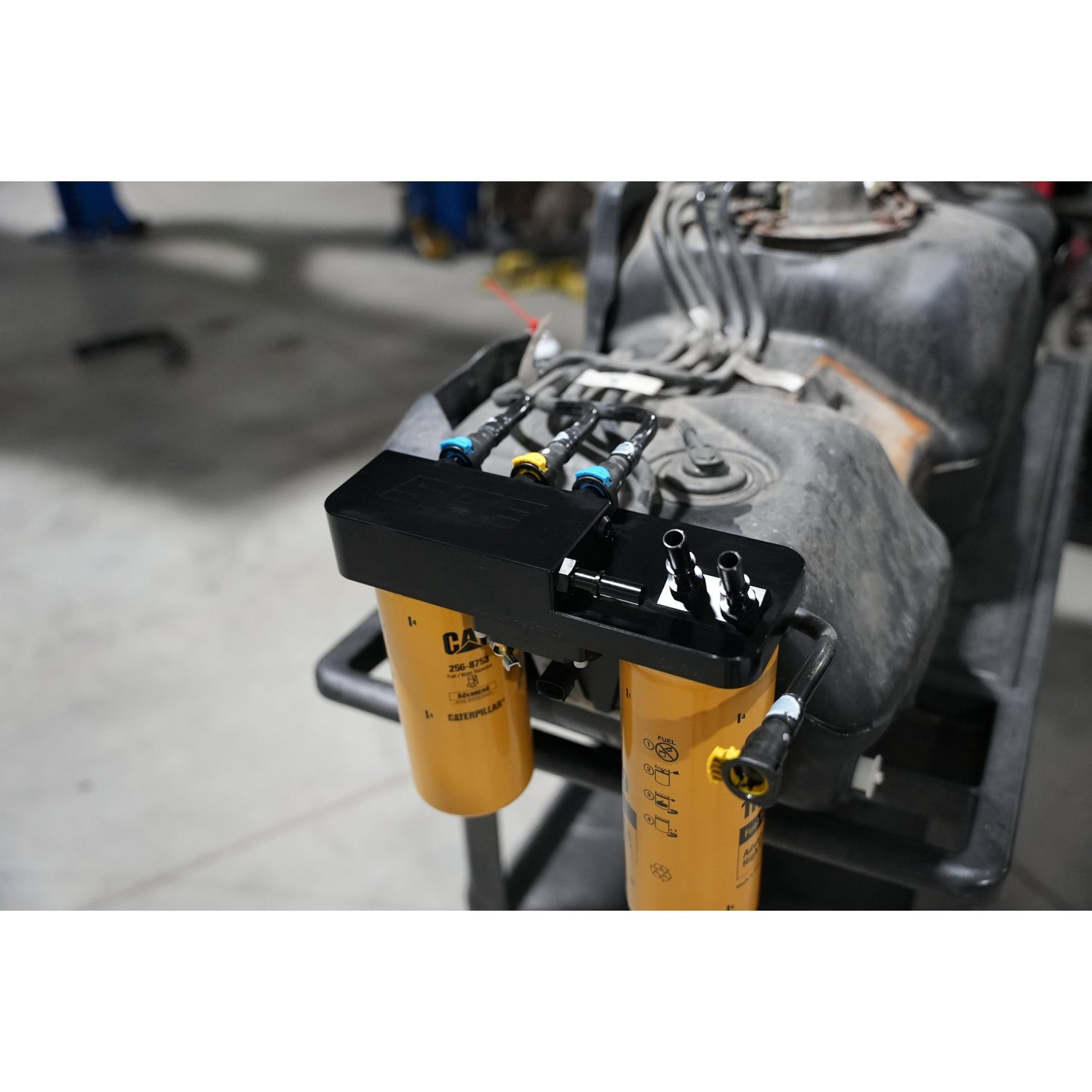

This SPE Fuel Filter System replaces both factory fuel filters and relocates both filters under the truck directly next to each other where they belong. No more fuel mess on top of the engine when changing the top filter. Now, it's underneath.

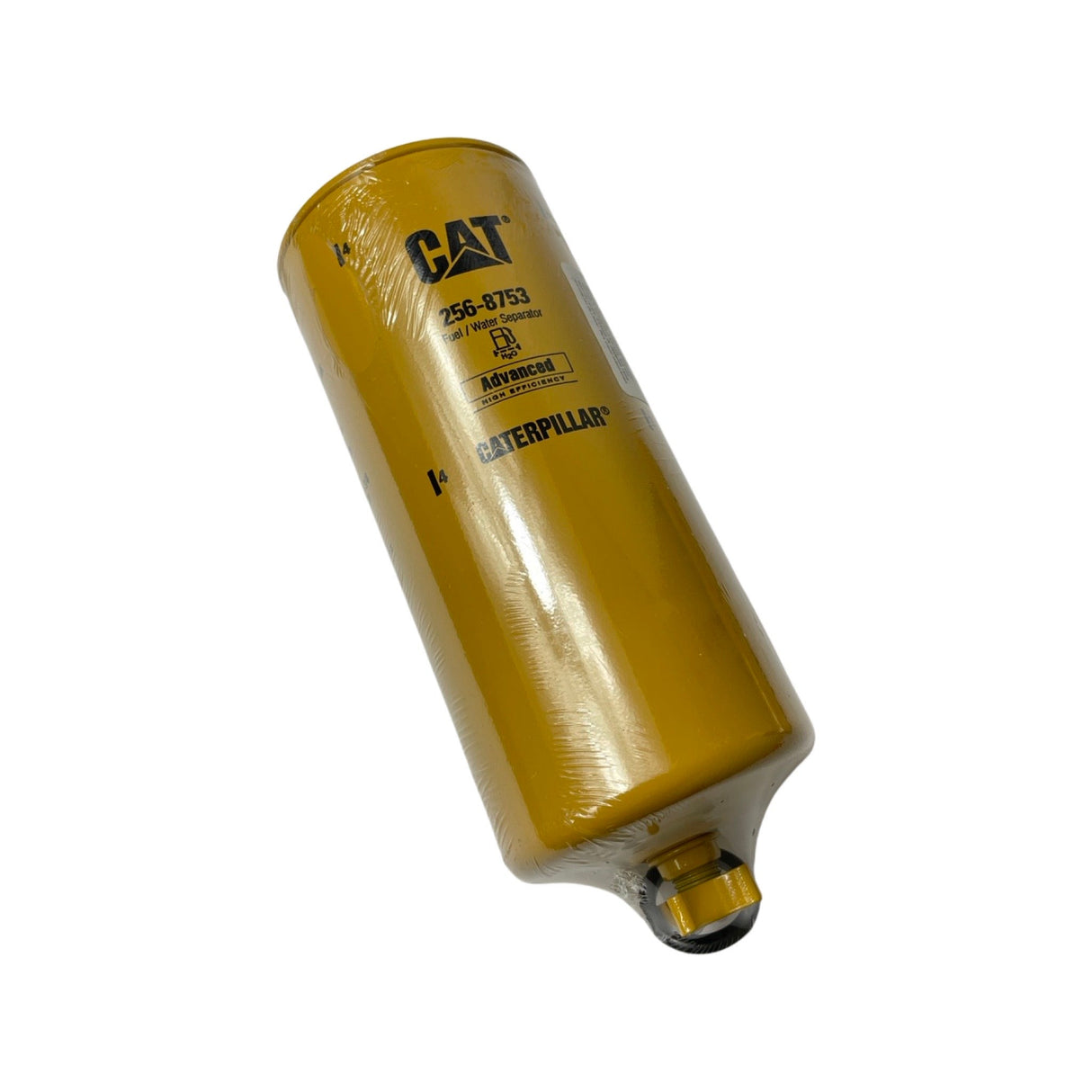

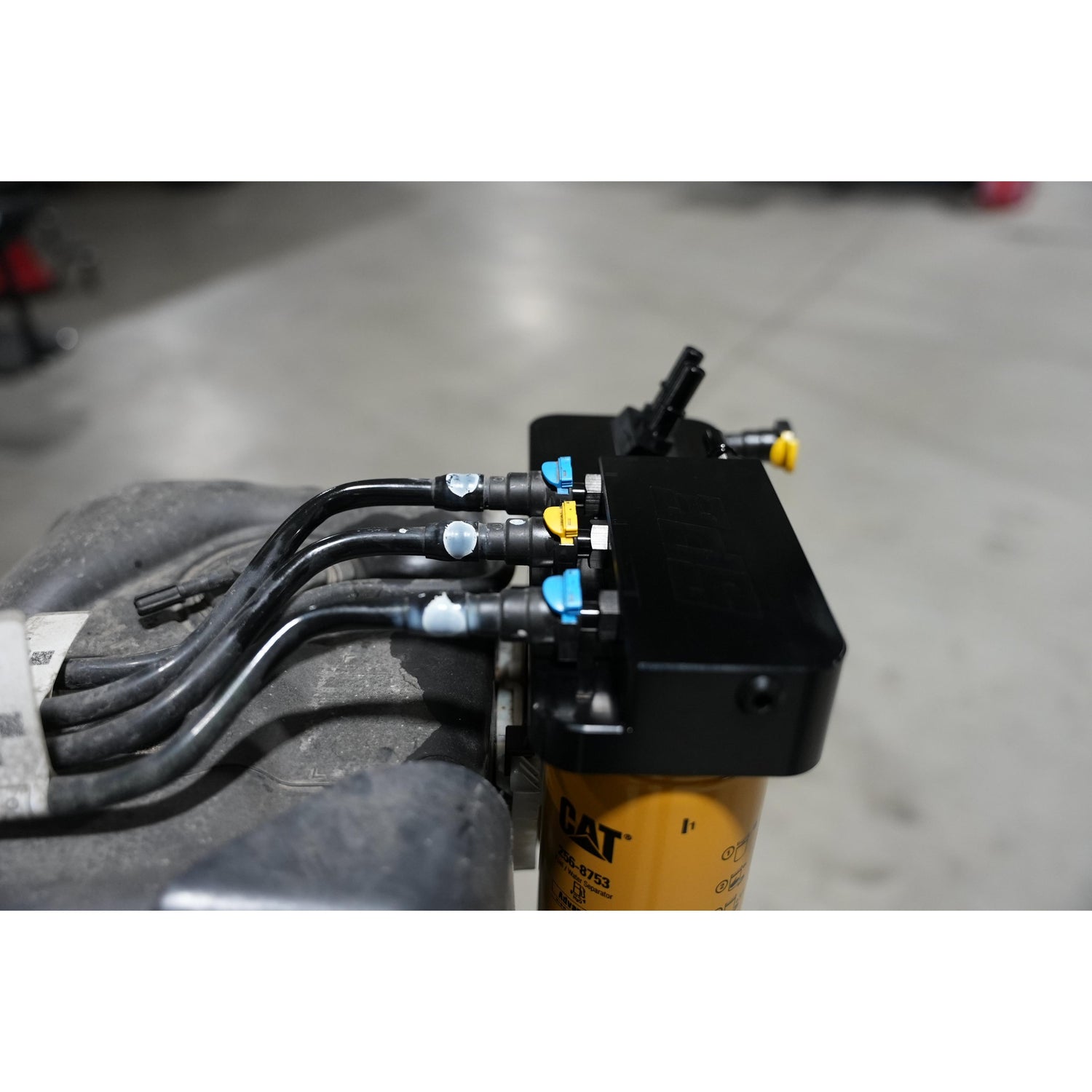

Utilizing a CAT 256-8753 for the water and fuel separator filter. This filter has the same 10-micron rating as the factory filter but out-flows the factory unit by over 150 gallons per hour while still being efficient.

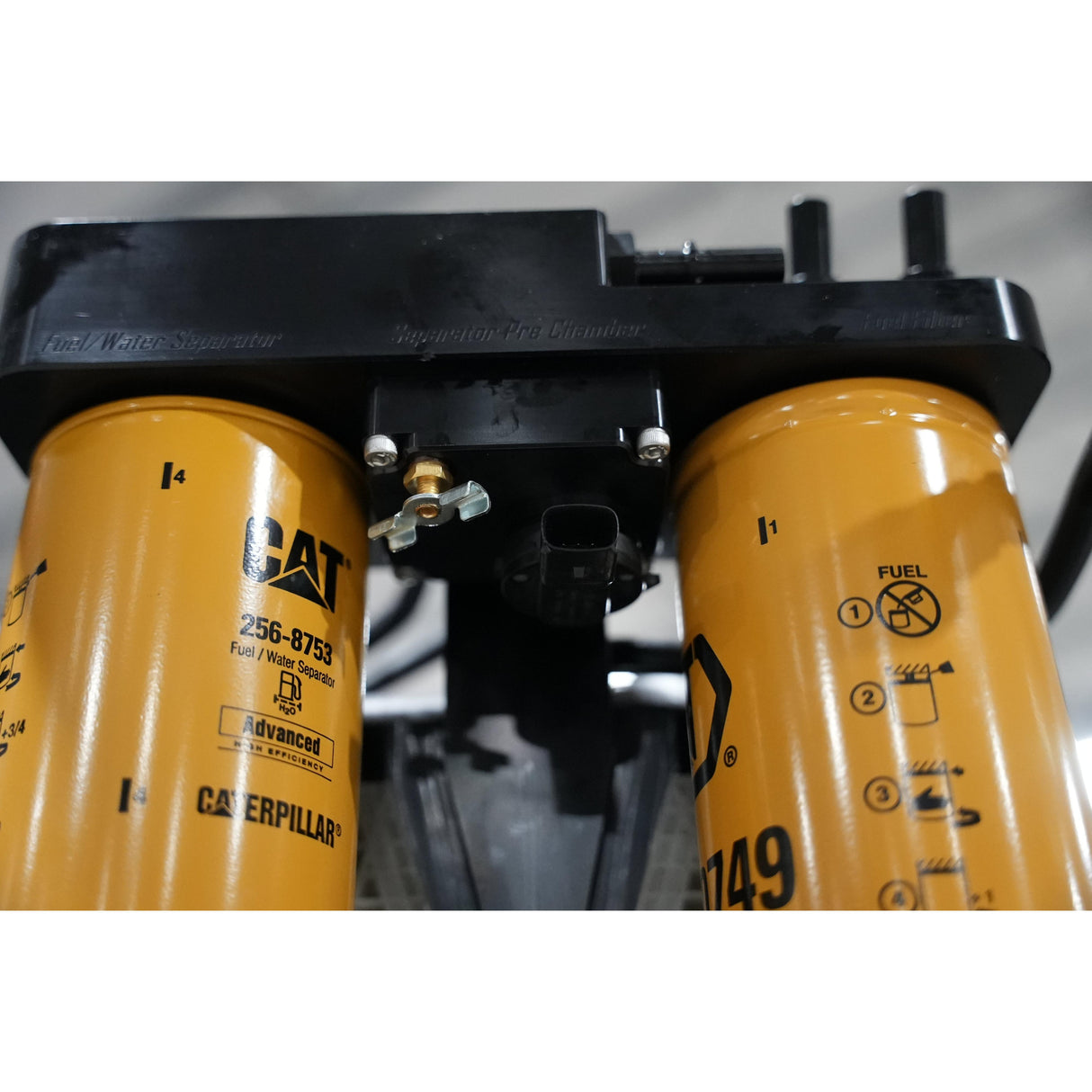

When your factory filtration system trips the water and fuel sensor light on the dash it's usually too late because it has already made its way into the water separator and possibly further. SPE has tried to remedy this by developing a pre-chamber that the factory sensor goes in prior to the water and fuel separator filter. This pre-chamber gives the system a better chance of tripping the "water in fuel" light before it even hits the main water separator filter. There's an additional drain valve on the pre-chamber, as well, for service.

Part Number: SPE-S100210

• Billet aluminum black anodized

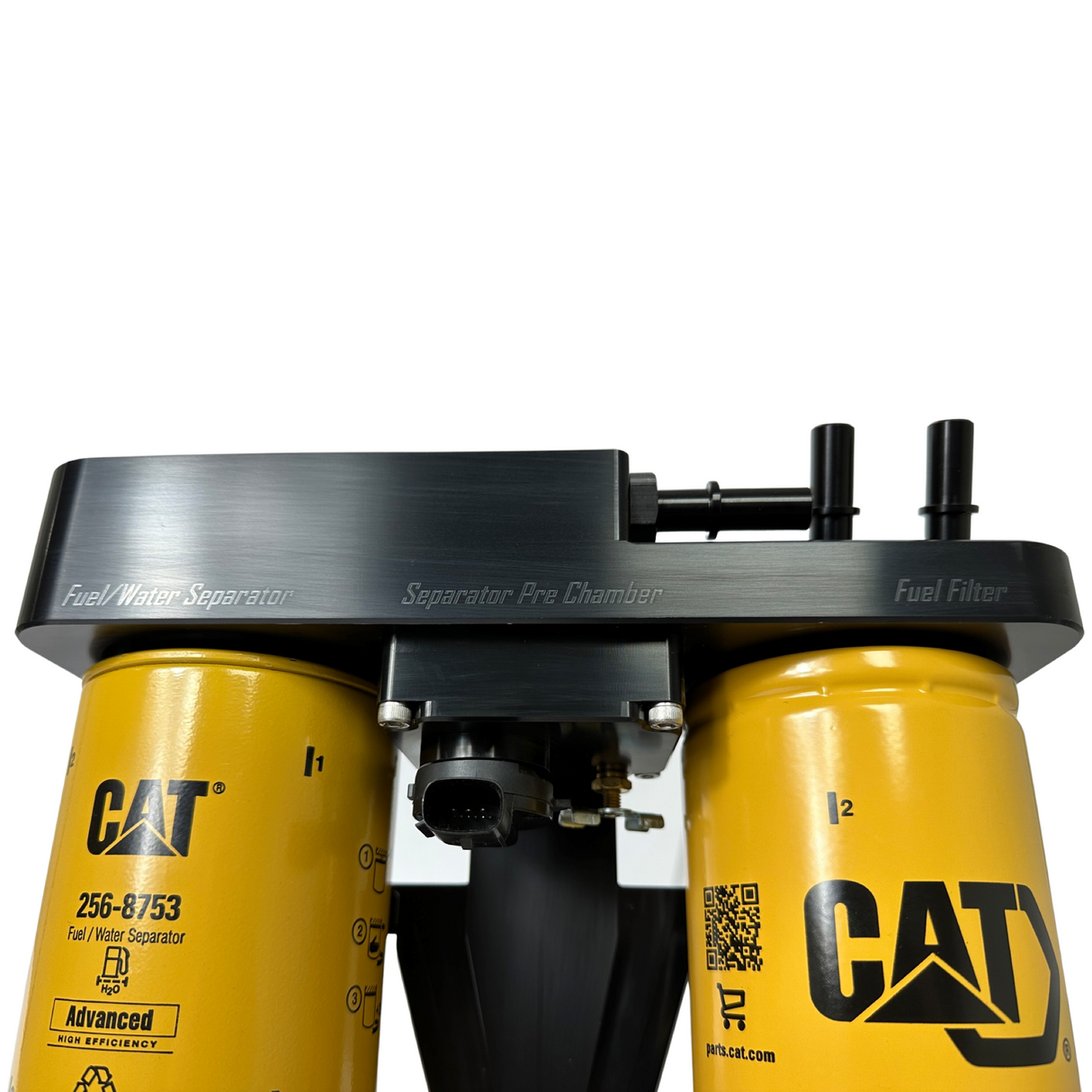

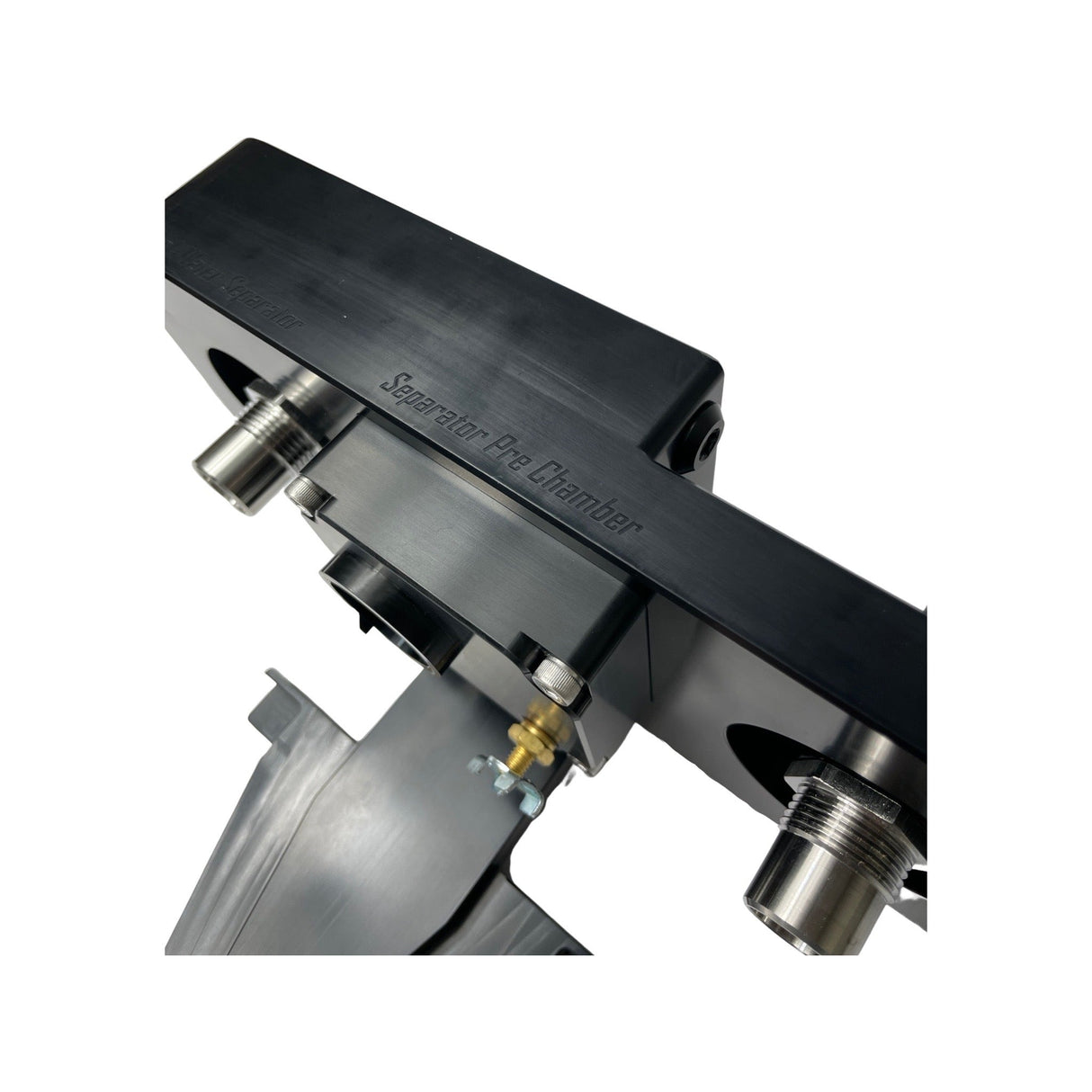

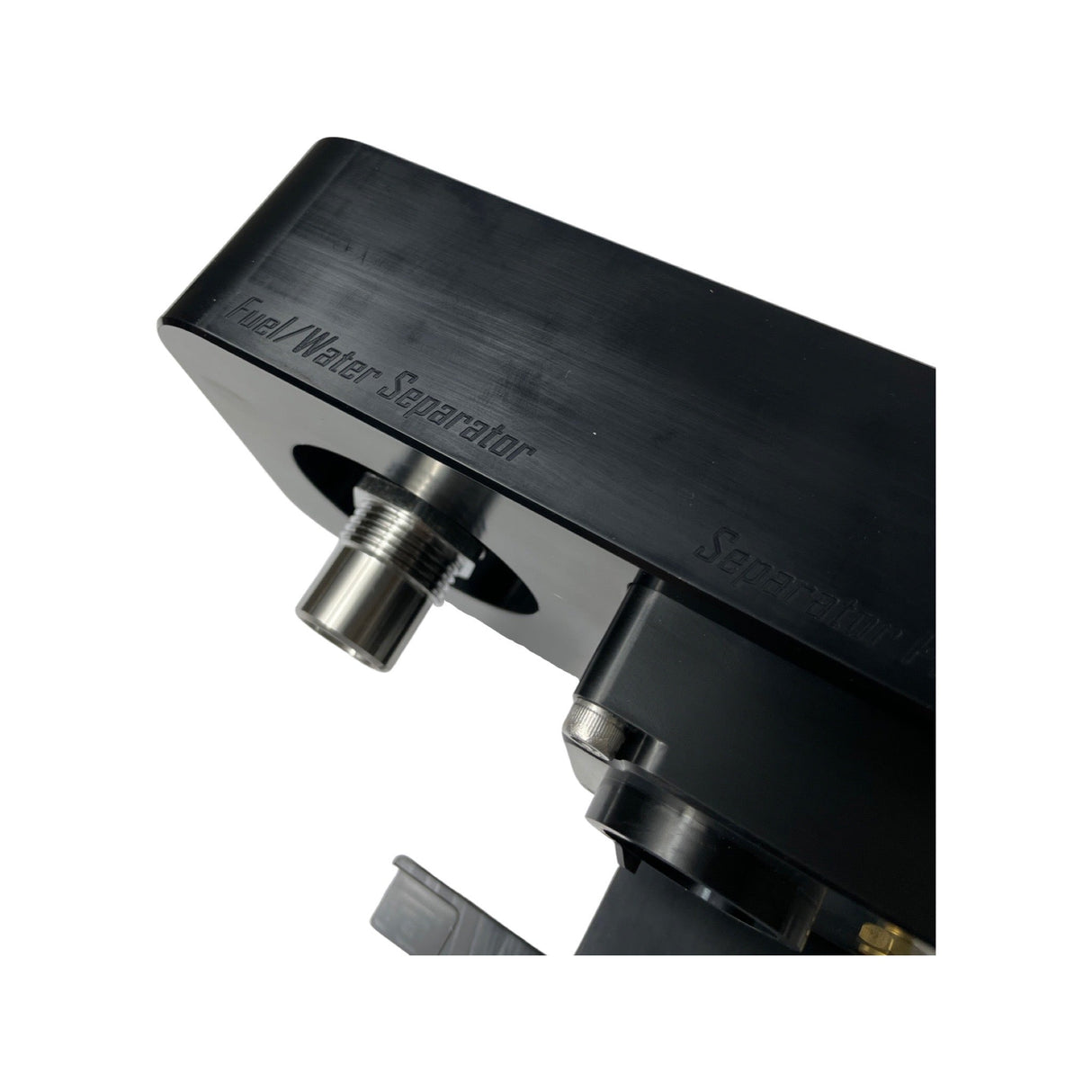

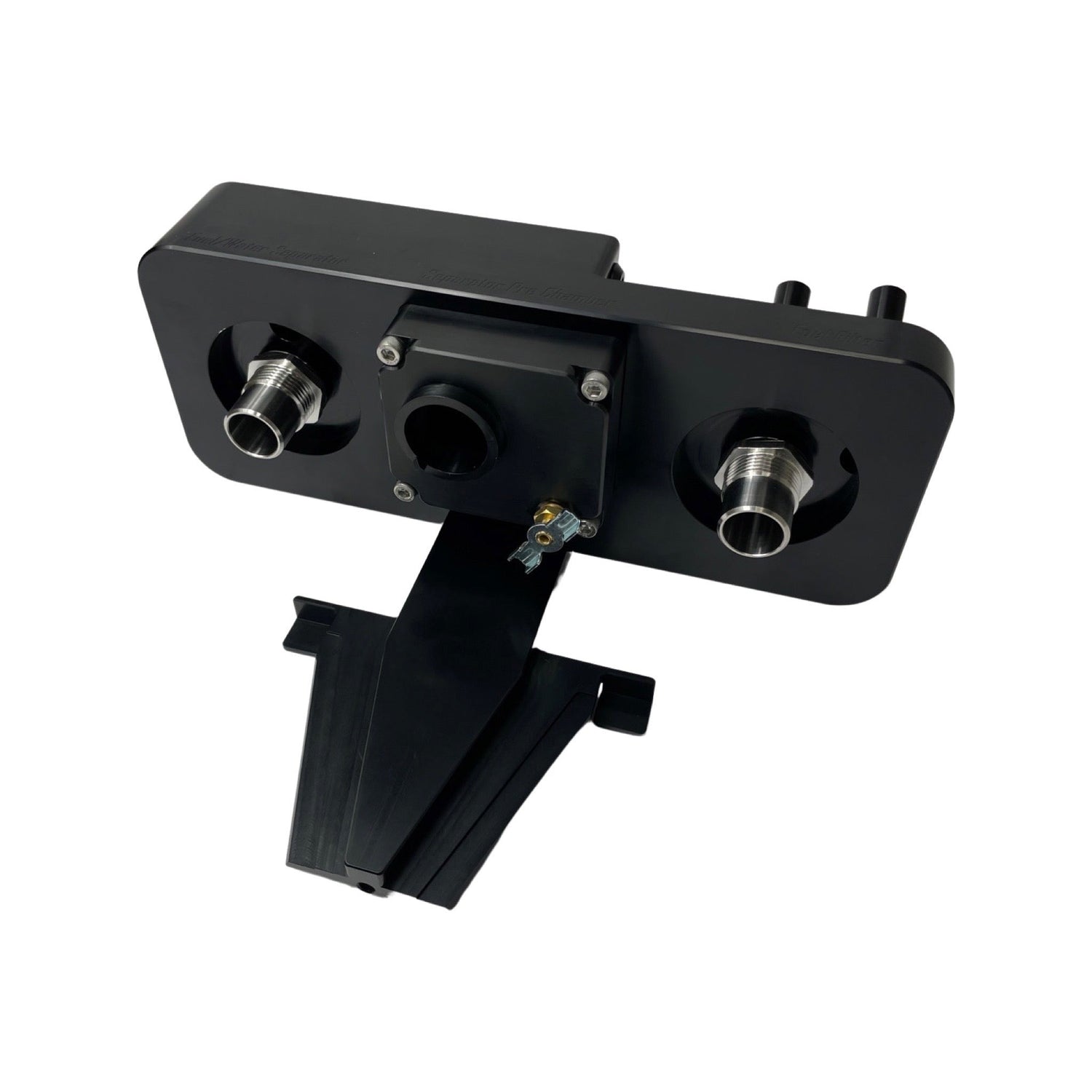

• Water separator pre-chamber
• Uses factory water-in-fuel (WIF) sensor
• Utilizes all factory connections
• Utilizes factory lower filter mount

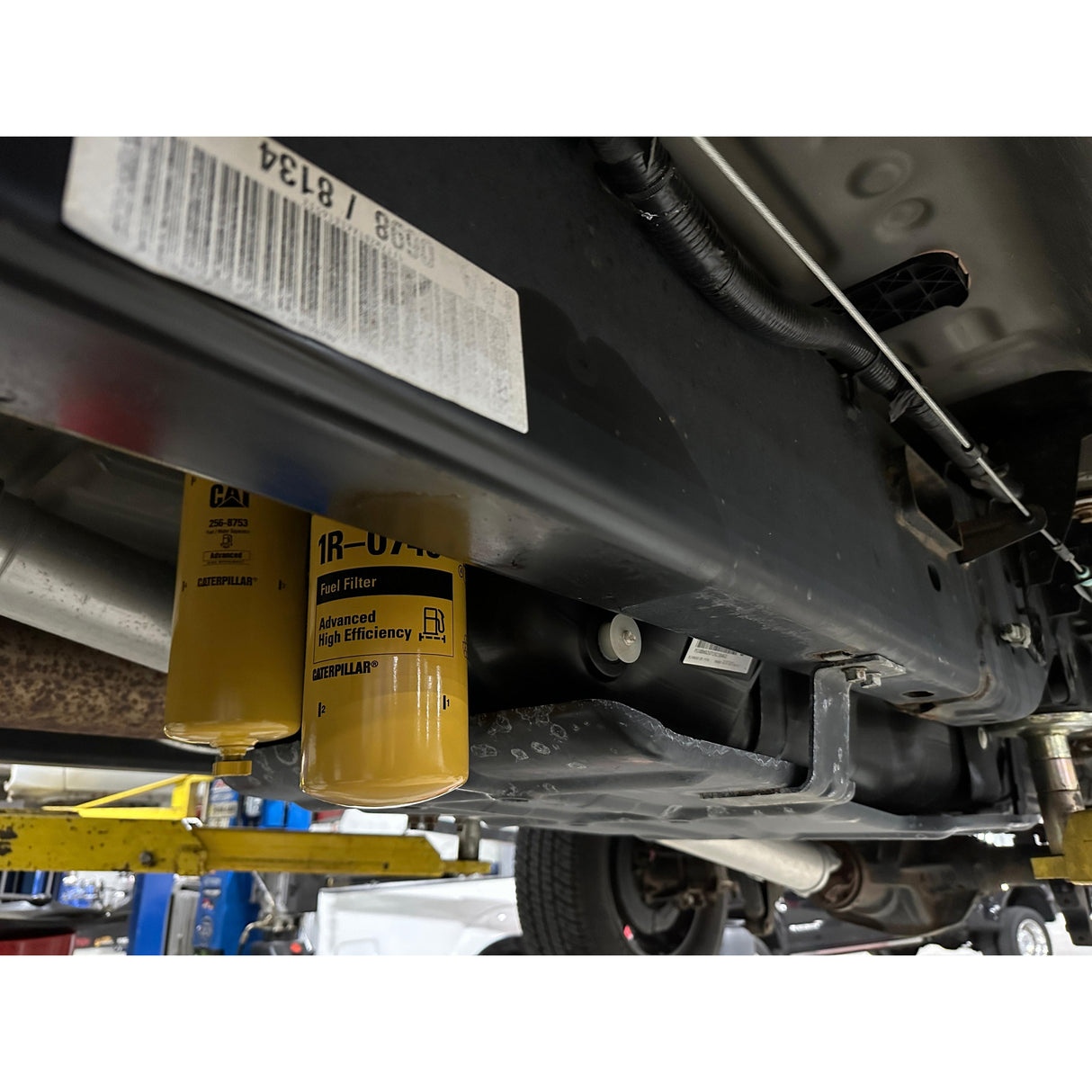

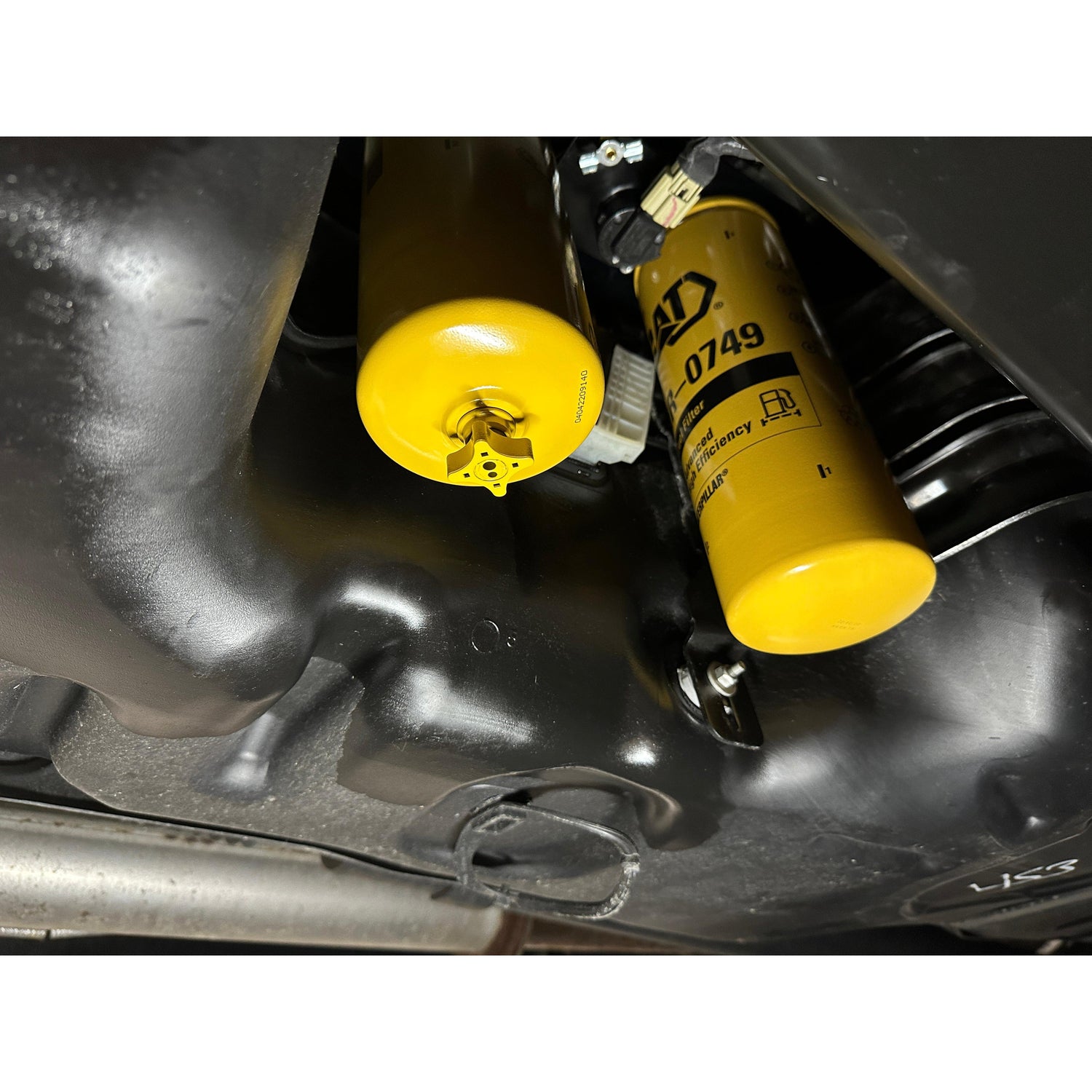

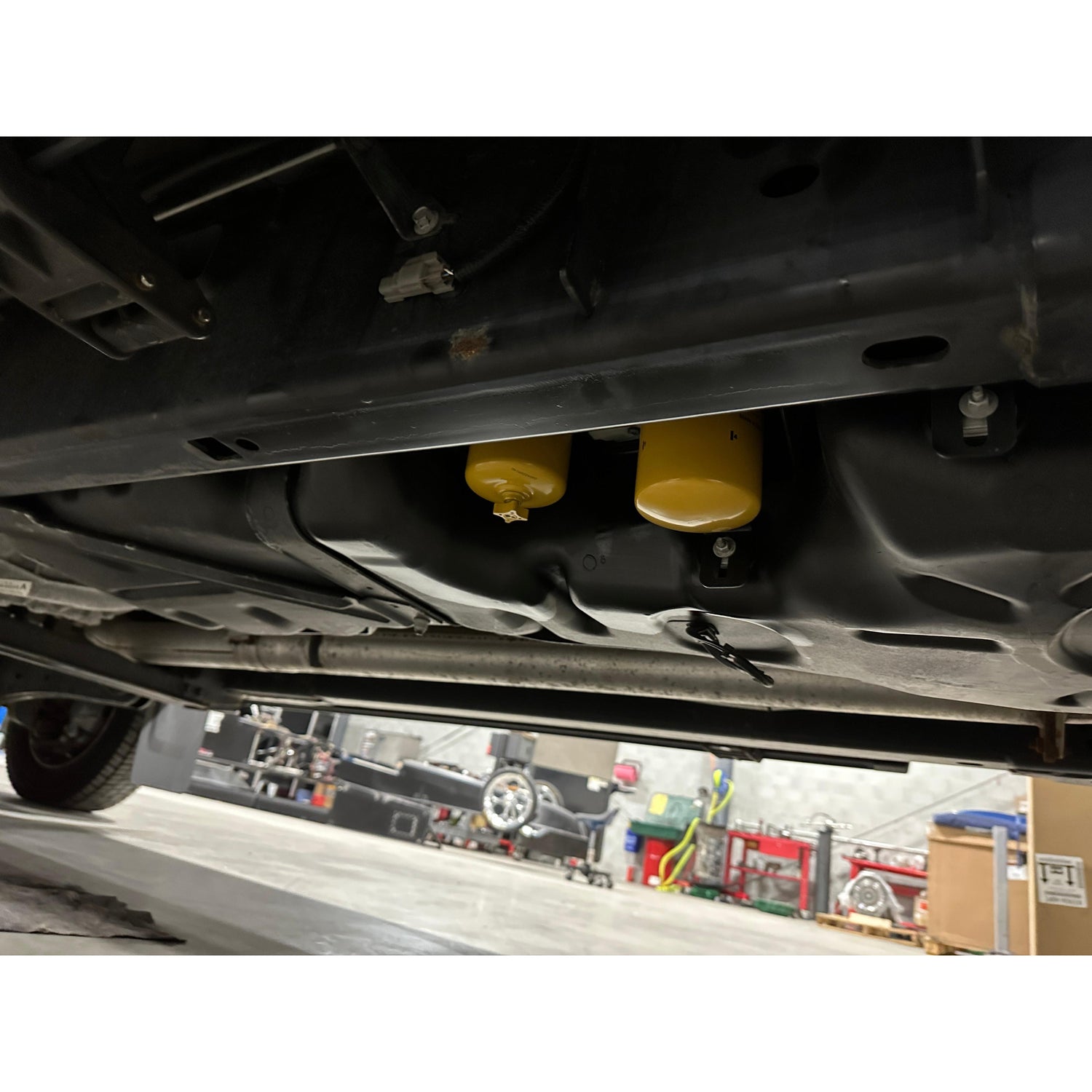

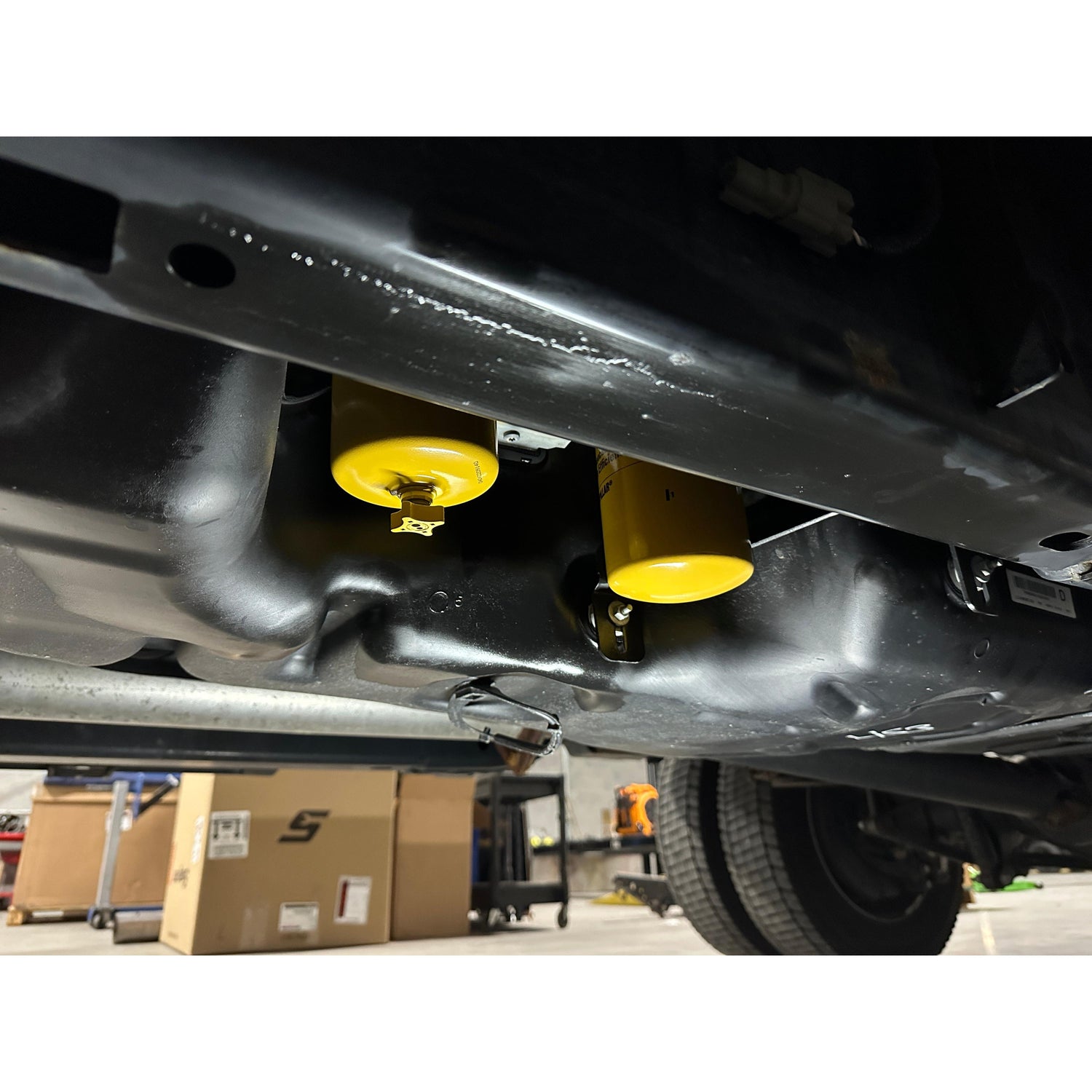

• Moves both fuel filters under the truck

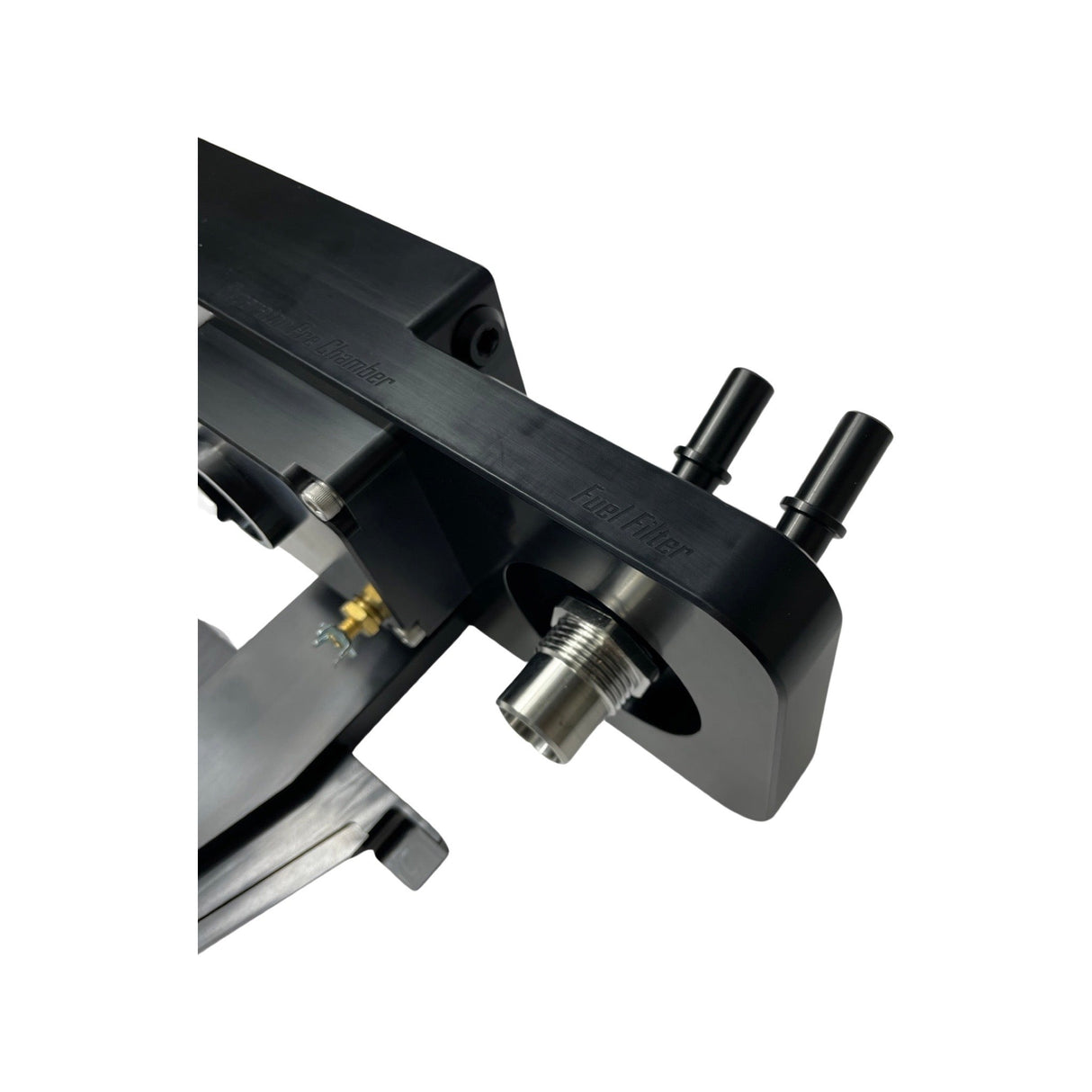

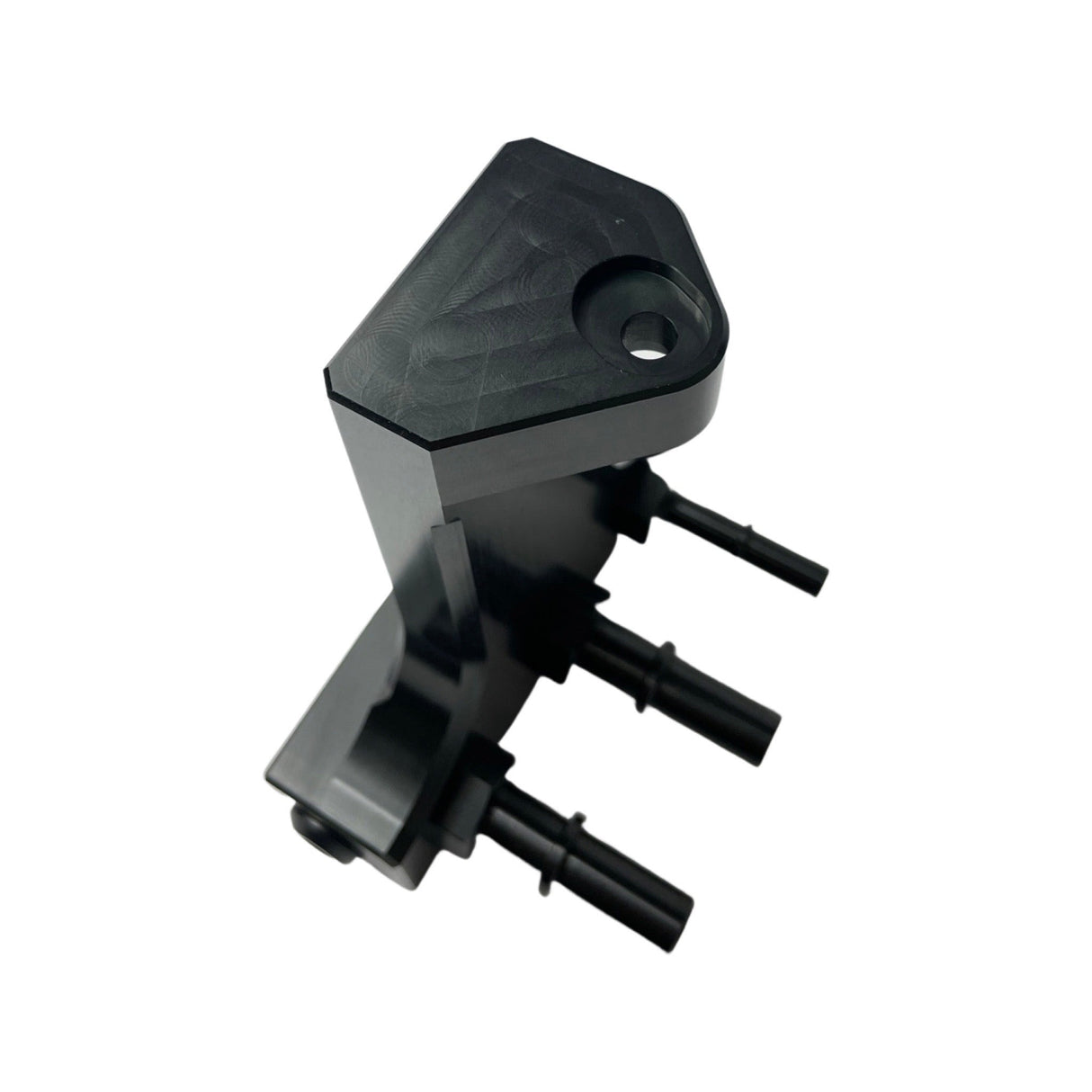

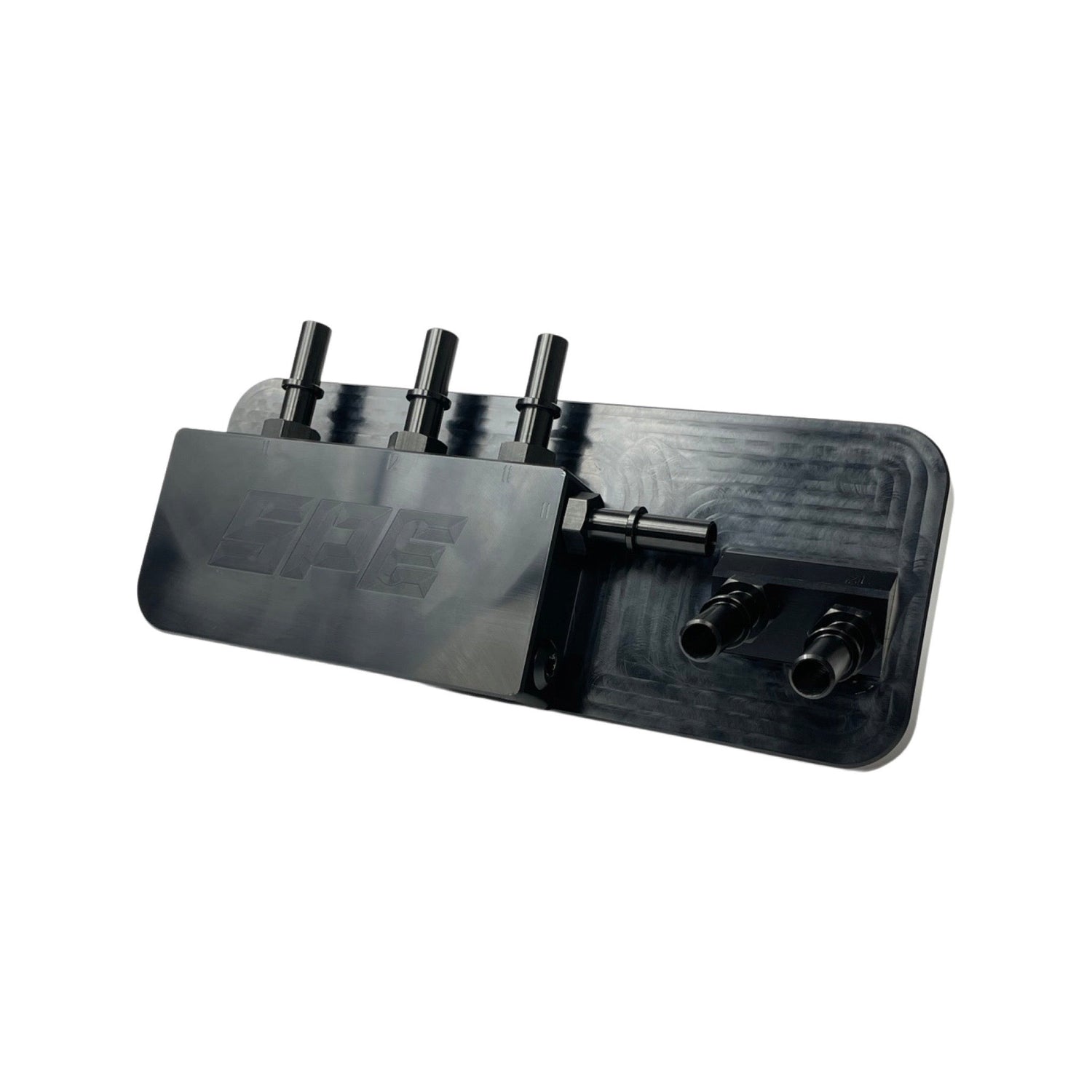

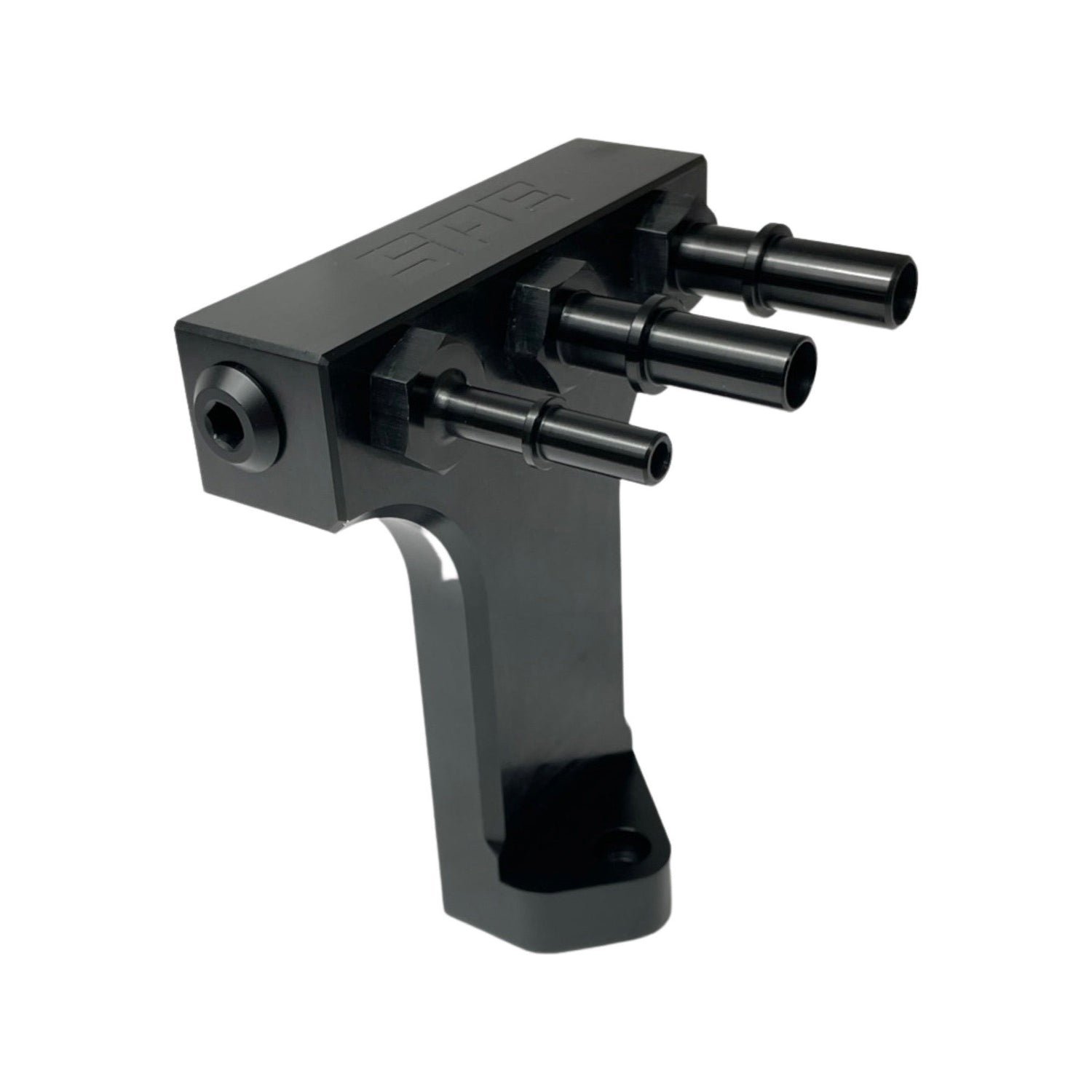

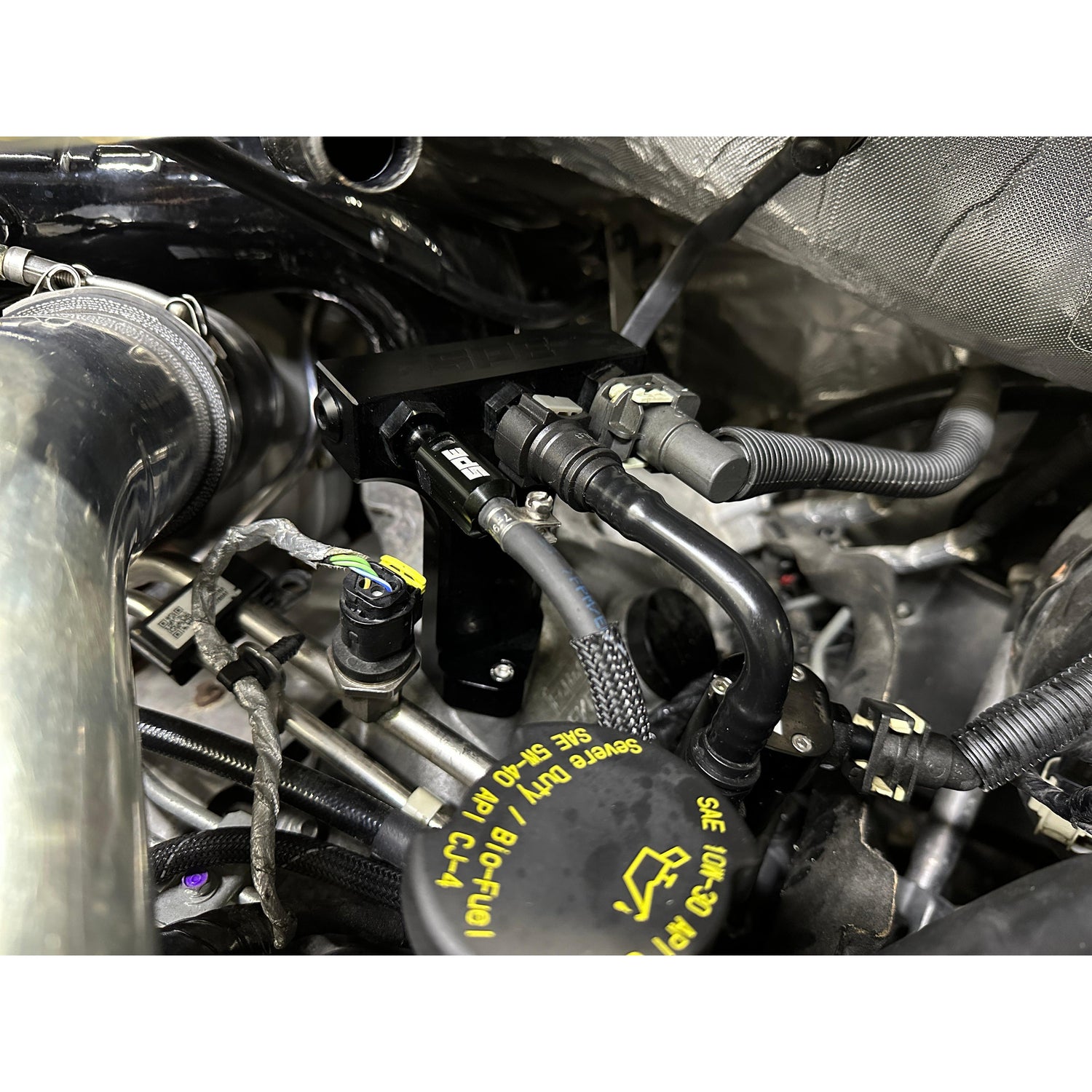

• The upper fuel filter is replaced with a manifold
• Extends service intervals
• Designed to mount in the same location as the factory water separator box

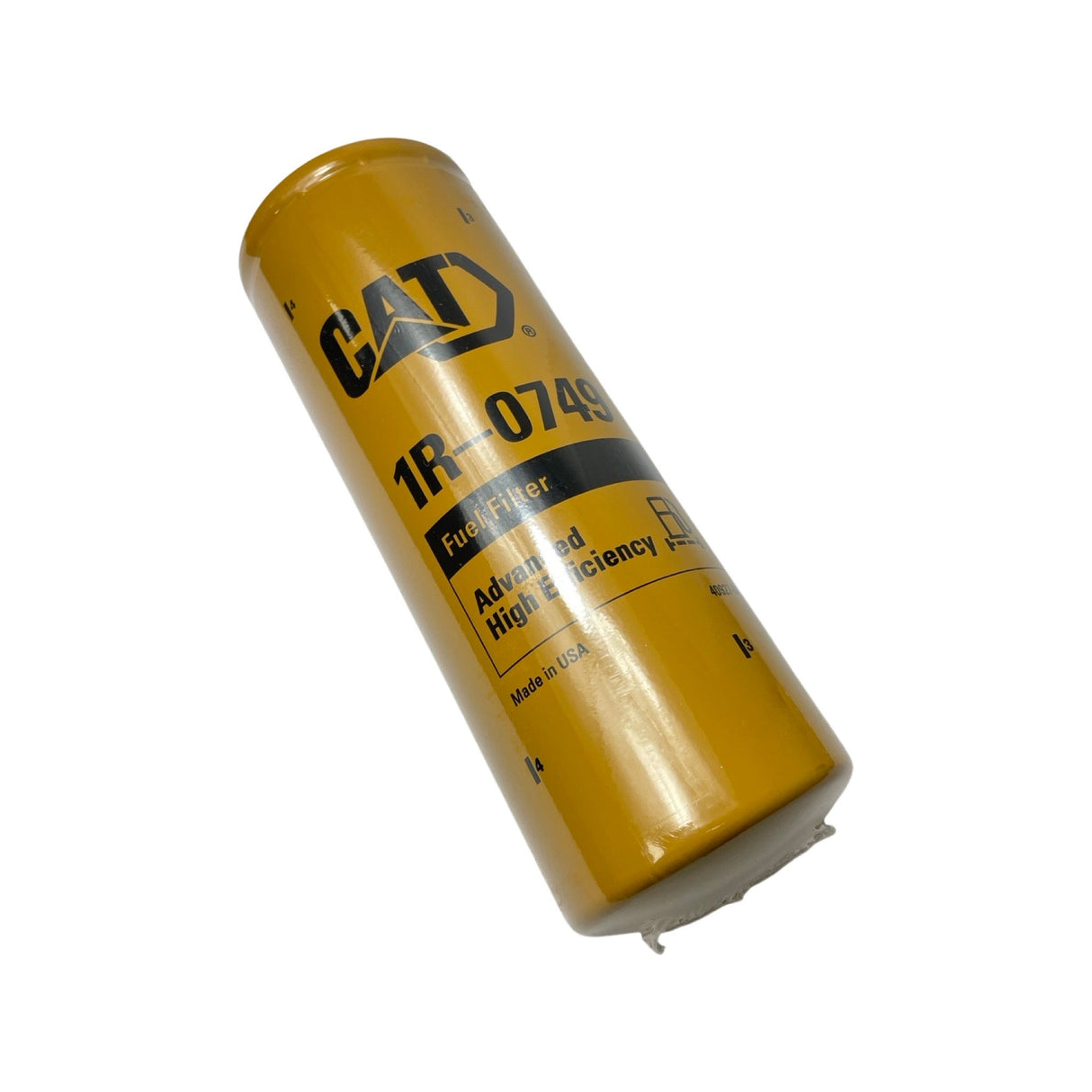

• The 1R0749 filters are 98% efficient at 2 microns.

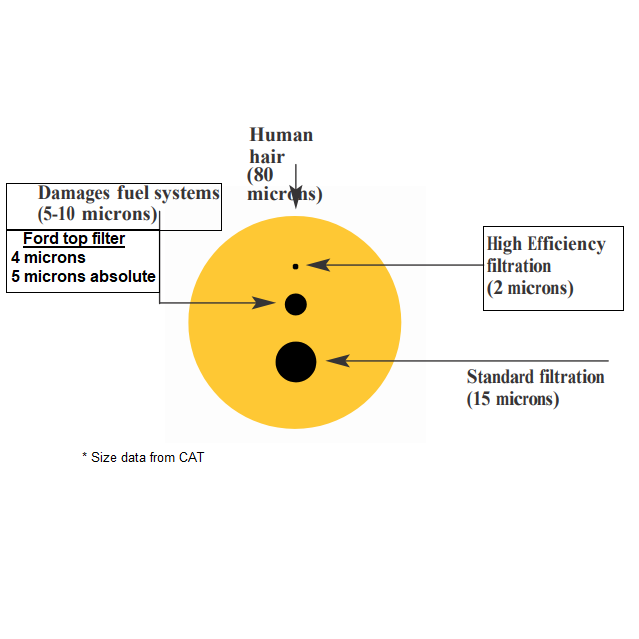

• 2-micron absolute rating, the Ford top filter is rated 4 microns and only 5 microns absolute

• Available for short and long-bed trucks.
• DOES NOT FIT EXTENDED CAB/SINGLE CAB TRUCKS/CAB AND CHASSIS TRUCKS
