2017-2025 Powerstroke Stage 3 Front Leveling Kit w/ 2.5 Factory Race Series Fox Shocks (KRFD17STAGE3FOXRS)

Fits

Transform your 2017+ Ford Super Duty with the Kryptonite Stage 3 Leveling Kit, a premium suspension system designed to provide a 2.5" lift while maintaining superior ride quality and droop travel. This comprehensive package features Fox 2.5 Factory Race Series shocks and a box-welded radius arm kit equipped with unique tire clearance pockets to accommodate up to 37" tires. To ensure permanent alignment precision, the kit uses exclusive Hexagon Caster Eccentrics that allow fixed 2° adjustments, locking your settings in place even during aggressive off-road use.

Part Number: KRFD17STAGE3FOXRS

• Provides 2.5" of front lift
• Allows for up to a 35"x12.5" Tire on a 9" wide wheel w/ 4.5" Backspacing
• Compatible with Larger wheels/tires with minor trimming
• Durable Black Finish
• Grade 10.9 Hardware
• Precision CAD Engineering
• Billet Aluminum Spacer
• Direct bolt on Install
• Made in the USA

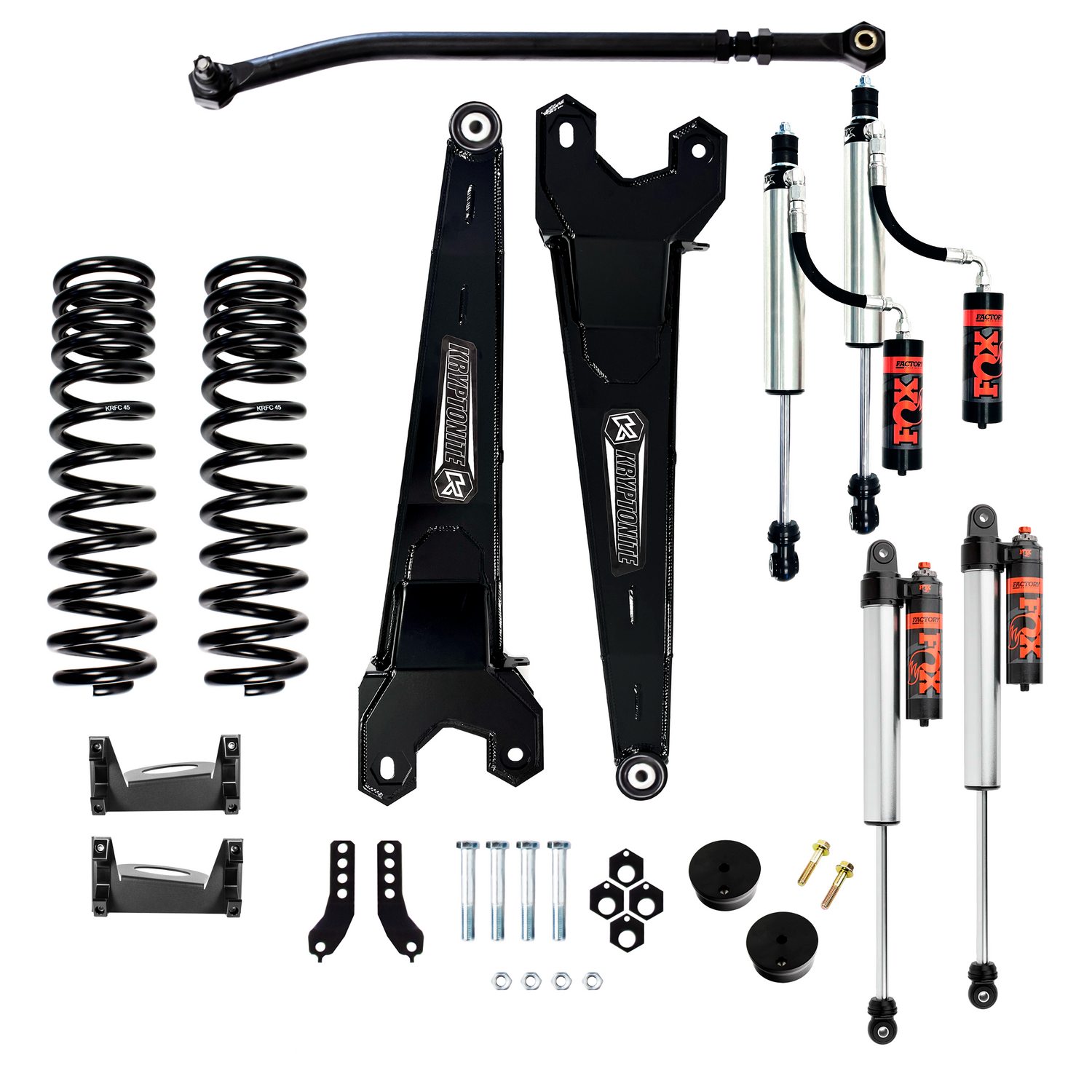

• 2 x Fox 2.5 Factory Race Series Extended Length Front Shocks
• 2 x Fox 2.5 Factory Race Series Rear Shocks
• 1 x Kryptonite Radius Arm Kit
• 1 x Bump Stop Spacer Kit
• 2 x 2.5" Leveling Coils
• 1 x Kryptonite Adjustable Track Bar (KRFTB17)

• Allows up to 35"x12.5" tires on 9" wide wheels with 4.5" backspacing with no trimming.
• Can accommodate 37"x12.5" tires on stock 20" wheels (5.5" backspacing) with minor fender and bumper clearance.
• Hexagon Caster Eccentrics support ride heights from 0" up to 6".


(Kryptonite No Fine Print Lifetime Warranty)
Kryptonite Steering & Suspension components are warrantied for life to their original purchaser. This warranty covers manufacturer defects, premature wear, or breakage. Race it, jump it, off‑road it, wreck it, lift it—we don’t care. If you can break it, we’ll replace it.

Your Kryptonite products must be purchased through an Authorized Dealer, and Warranty Registration must be completed within 90 days of purchase. Complete warranty details can be found [here].
