2017-2024 Powerstroke SC, LB Diesel Fuel Tank (7020217X)
Purchase to earn 1942 Dirty Dollars Learn More
Description
Description
Fits
| Year | Make | Model | Engine |

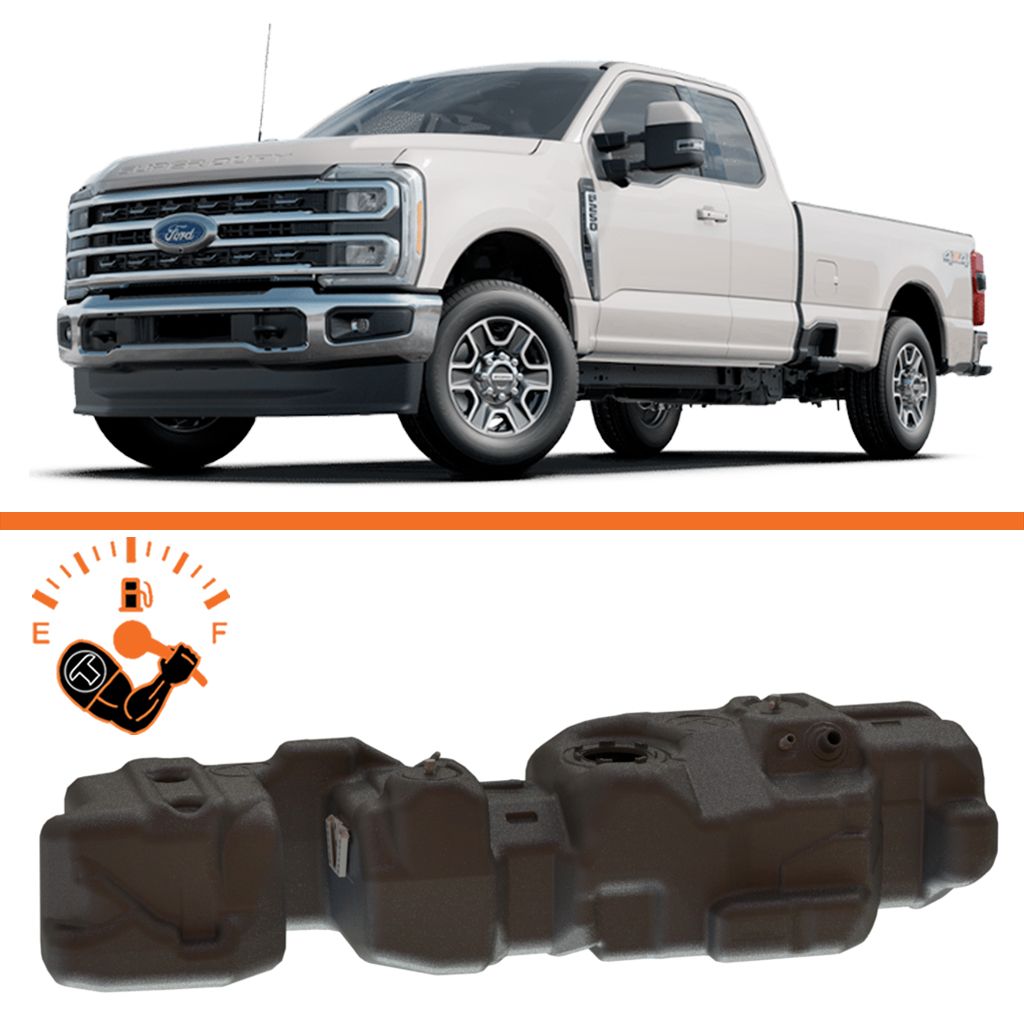

| 2017-2024 | Ford | F-250/ F-350 HD Super Cab/Long Box | 6.7L Powerstroke |
Note: This tank does NOT fit cab & chassis models. It is ONLY for use on trucks with traditional pick-up truck short beds.

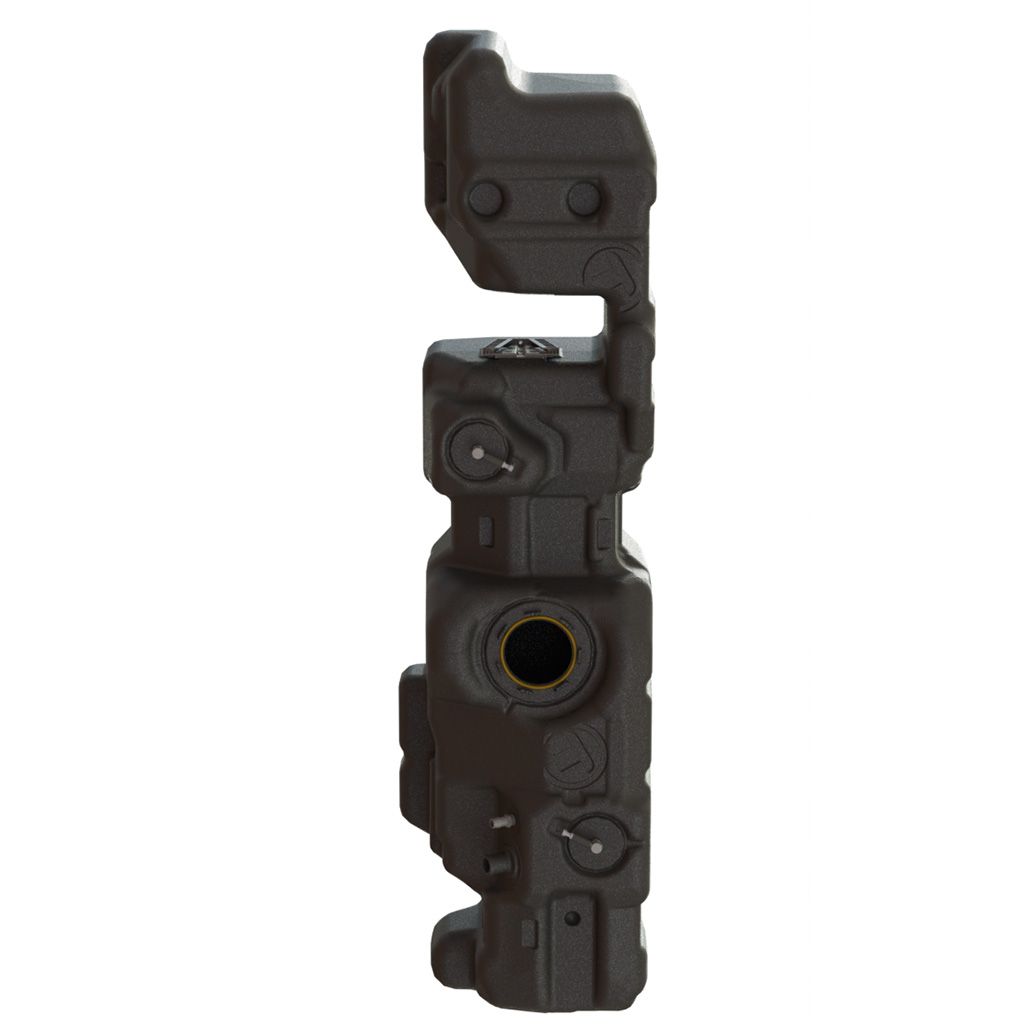

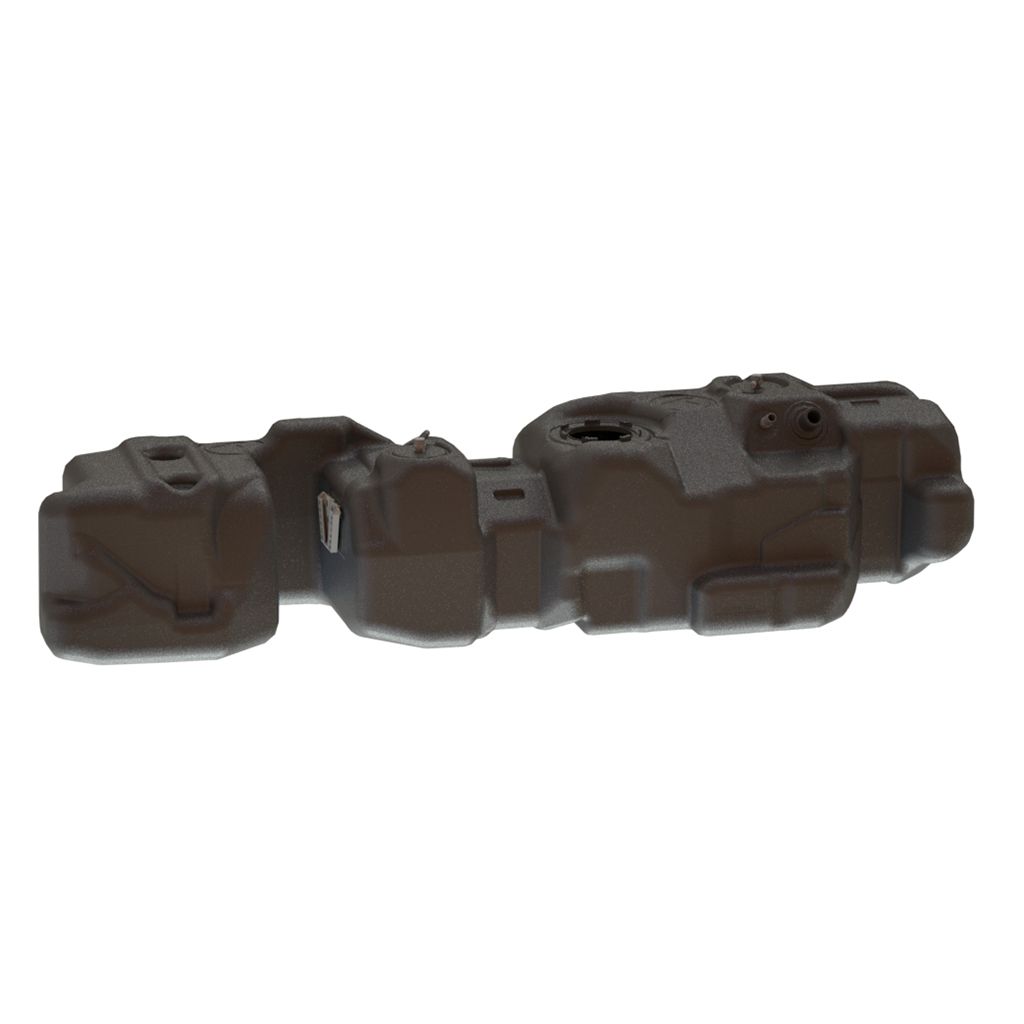

The Titan 55 Gallon mid-ship replacement fuel tank that was originally designed for the Crew Cab, Short Bed will also fit the Super/Extended Cab, Long bed with minor modifications. The necessary modifications can be seen on the instructions.
Whether you're tackling construction projects, delivering goods, or exploring new horizons, this tank ensures you have the fuel capacity you need to get the job done efficiently and effectively.
Crafted from renowned military-grade, cross-linked polymer material, this tank sets a new standard for durability and reliability. With a thickness of at least ¼", it's built to outlast all competitors, standing strong against the toughest conditions. Tougher than steel and more durable than aluminum, this tank is engineered to exceed expectations.
The tank comes with a black-coated, galvanized steel strap for mounting and front support. Its unique low-fuel trap design allows all 55 gallons to be used. Though Titan could boast a higher capacity, they prefer to market only the usable capacity to keep it real for their customers. The Titan XXL tank also has minimal hang down below the stock tank (approximately 1 ¾" below the factory skid plate).
Part Number: 7020217X
Features
Features
- Increased fuel capacity
- Military-grade, cross-linked polymer material
- Durability and reliable
- Midship replacement
- The TITAN tank is 21 gallons larger at 55 gallons. The stock tank is only 34 gallons.
Installation
Installation
Notes
Notes
- Will not interfere with powered steps, airbag systems and most other accessories.
- The mid-ship, direct replacement fuel tanks are designed to use your truck's stock/OE sending unit. However, Titan tanks are compatible with Fleece, AirDog, FASS, etc.
Additional Information
Additional Information
The Truth About Fuel Capacity
Fuel capacities shown for each and every Titan Fuel Tank are not a claim: it is fact, Titan shows the usable capacity for every tank! In fact, the tanks are larger than their usable capacity. Usable fuel capacity is the portion of the tank that can safely hold fuel and allows the fuel to be picked up by the sending unit. For example, the 7020217 tank for the 2017+ Ford Crew Cab, Short Bed trucks is marketed as a 55-gallon tank. Could it hold more? Yes! Another 5 gallons of capacity exists in the tank, but that capacity is not usable. This 5-gallon area above the filler neck is for expansion/vapor headspace to dissipate the pressure changes in the tank due to temperature and elevation changes. Titan chooses to not mislead customers and market only the usable capacity, 55 gallons.
Titan chose to only market usable capacity to set honest and reasonable expectations for customers.
Distance Till Empty and Similar Information
For Mid-Ship Replacement Tanks
Many trucks now come pre-programed with the capacity of the Original Equipment Manufacturers’ (OEM) fuel tank. Replacing the OEM tank with any extra-large capacity, direct replacement tank will result in the distance to empty information being incorrect. This information may be corrected on many trucks.
-2017+ Fords: Customers may use ForScan, a program designed for Ford trucks that allows the computer to be adjusted for the capacity of a TITAN Fuel Tank.
-2011-2016 Fords: Ford dealers can adjust the customer’s capacity using their Ford Motor Company software. These trucks are also compatible with ForScan.
-2019+ Dodge RAMs: Customers may use Alfa OBD, a program designed for RAM trucks that allows the computer to be adjusted for the capacity of a TITAN Fuel Tank.
Such solutions are entirely independent of, and not guaranteed by TITAN Fuel Tanks™.
