2017-2019 Powerstroke XRGB EVO LED Headlights (LF2-503R)

Fits:

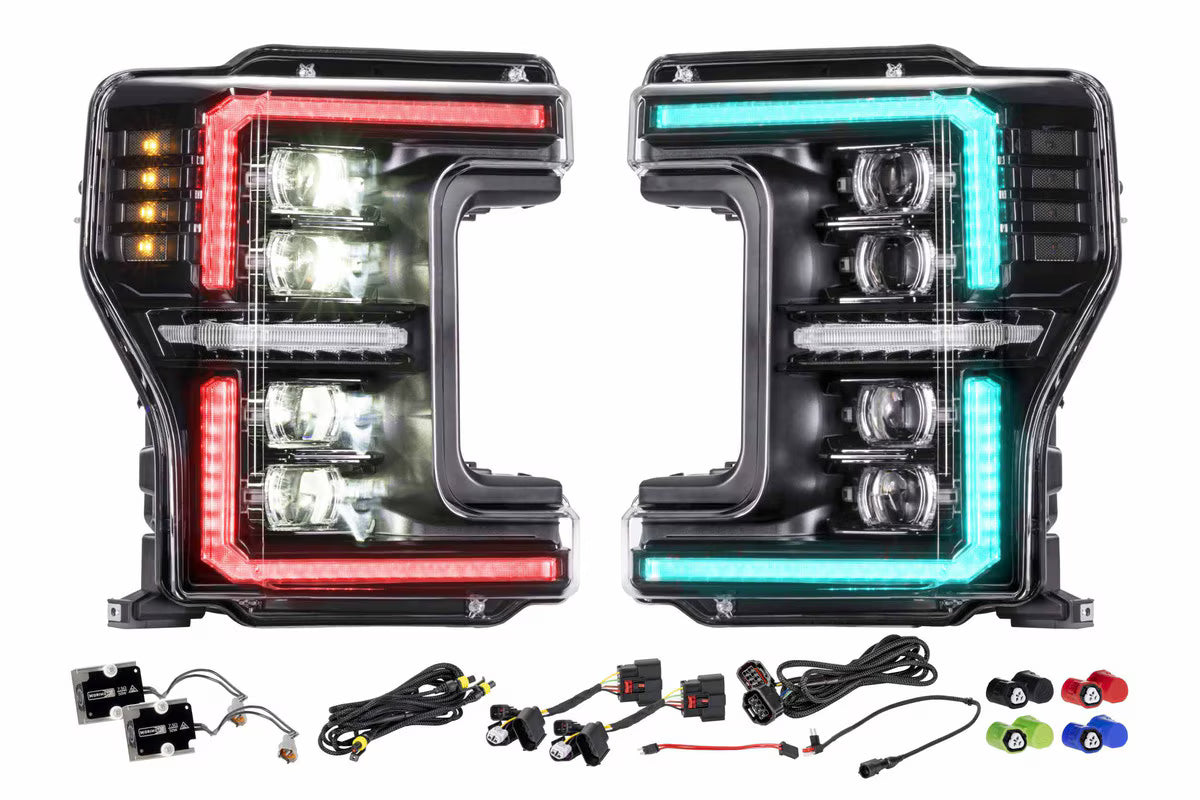

The all-new XRGB Evo headlights are a showcase of everything Morimoto is made of. Packed with features that demonstrate a true attention to detail including the latest in technology, compliance, quality, and styling, these headlights are designed for enthusiasts who are serious about all the above, even if it comes at a premium. Unique to the XRGB Evo, the daytime running light is Bluetooth app-controlled and can be set any color you can imagine. With the app turned off, the standard DRL can be configured to run full-time in either white or amber with no compromise in intensity either way

Part Number: LF2-503R

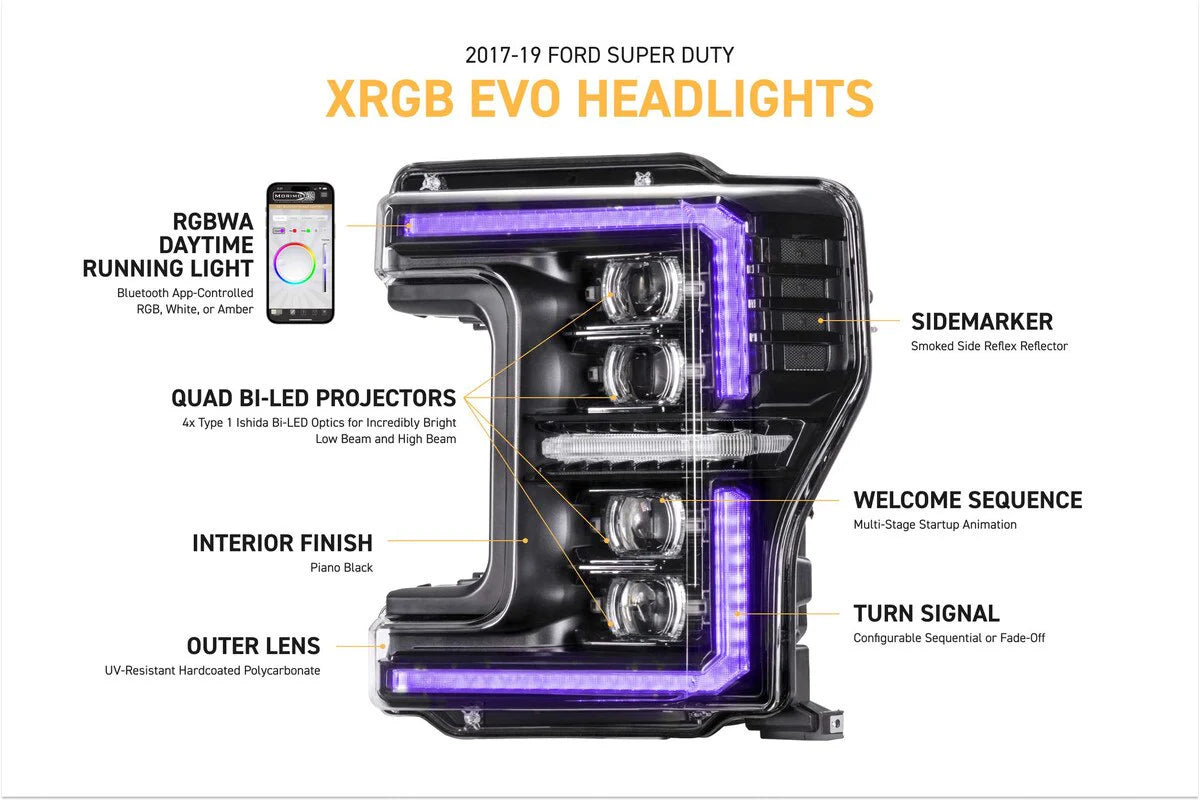

• XRGB Evo: Much more than a design refresh, these headlights showcase Morimoto's commitment to technology, compliance, quality, styling, and performance for serious enthusiasts.
• All New Optics: Enables light output that exceeds the rigorous standards of the IIHS, with exceptional intensity and distribution. Utilizing four Bi-LED projectors per headlight powered by Nichia's latest automotive LEDs, nothing will outperform the XRGB Evo.
• On and Off Road: Optional Supercharged LED drivers boost intensity by 30%, making them the brightest option for Super Duty owners who want to maximize output for off-road use.
• Signal Swap Keys: Enable users to further personalize the operation of daytime running lights and turn signals via a plug-and-play key. The XRGB Evo can be configured to run with RGB, white, or amber daytime running lights and sequential or standard turn signals.

• Traffic Pattern : LHD / Right Hand Traffic Only (US/CA Standard)
• Main Optics : 4x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA)
• Functions : Low, High, Park, Turn, DRL and Welcome Sequence
• Turn Signal Modes : Sequential or Fade Off (Configurable)
• DRL Colors : RGB, White or Amber (Configurable)
• Internal Finish : Piano Black
• Side marker : Smoked side reflex reflector
• Lens Details : Polycarbonate with proprietary anti-UV hard coating

• One Pair (1x Right Hand / Passenger Side Headlight, 1x Left Hand / Driver Side Headlight)

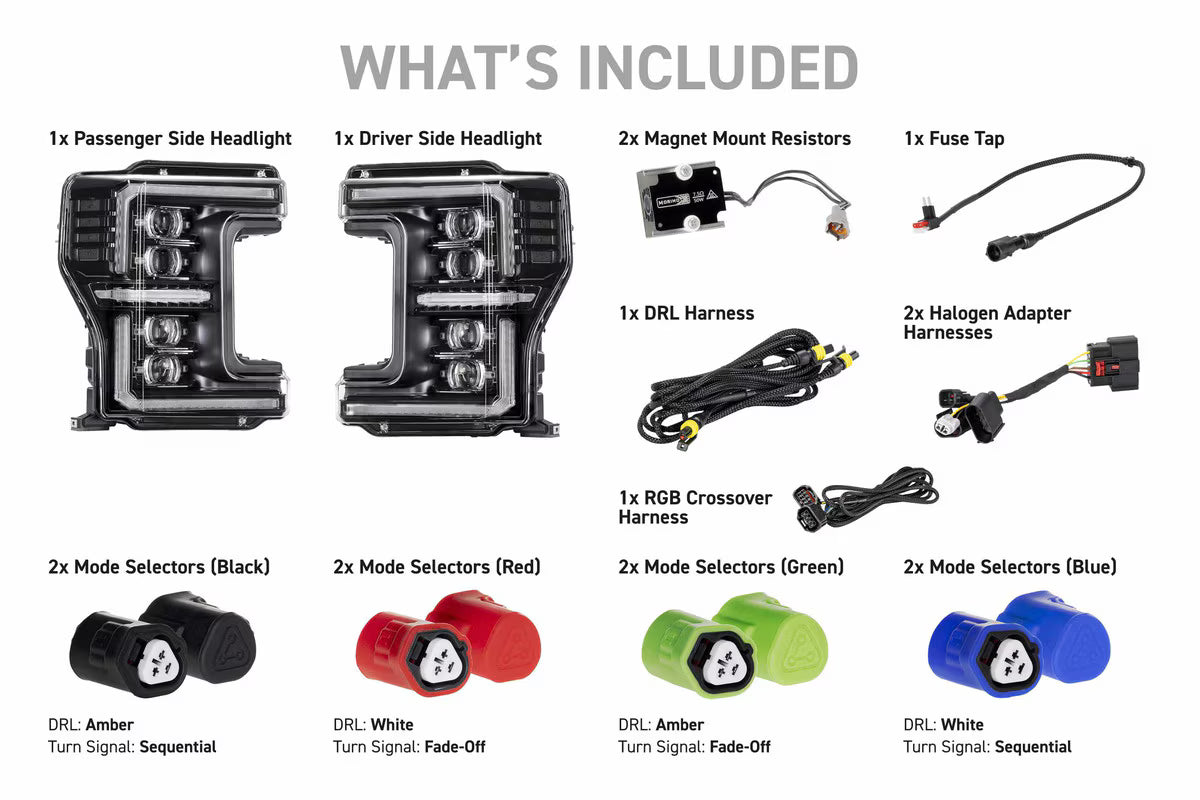

• Accessories : 2x Halogen Adapter Harnesses, 2x Magnet Mount Resistors, 1x Fuse Tap, 1x Fuse Tap Extension Harness, 1x DRL Harness, 8x (Four Pairs) Mode Selectors

• These headlights were developed for compatibility with North American vehicles. Morimoto does not guarantee compatibility on trucks outside of North America
• 2017 model year F-550 were offered in old/new styles. These lights are only compatible with the later style.
• Supercharged Drivers available HERE

OE Part Replacement:

HC3Z13008D, HC3Z13008A, HC3Z13008P, HC3Z13008N, KC3Z13008G, KC3Z13008F, KC3Z13008A, KC3Z13008B

This Morimoto product includes a Five (5) Year limited warranty
