2017-2019 L5P Compound Turbo Kit (L5P-TRB-A193)
Purchase to earn 6744 Dirty Dollars Learn More
Description
Description
PRESALE: Lock in your kit now at special presale pricing before it's gone. Units ship mid to late August.
Fits
| Year | Make | Model |
| 2017-2019 | Chevrolet/GMC | Duramax 6.6L L5P |
Compound setups on the L5P have always meant a one-off custom build. We saw a platform that didn't have a ready-to-order option, so we built one that bolts in right.

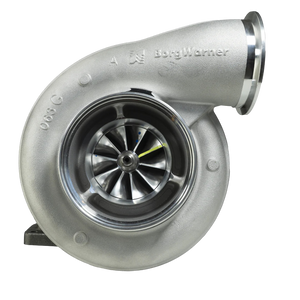

A big single turbo on the L5P is a blast, but it asks you to pick your moment: peak power up top in trade for lazy spool, climbing EGTs under load, and a narrower band to work with. This kit keeps everything that's good about the truck and stacks more on top. Instead of deleting your factory VGT, we put it to work as the high-pressure unit, keeping the quick low-RPM response and precise boost control GM built into it. A properly sized atmospheric S400-frame turbo then picks up the airflow as power climbs.
With two turbos splitting the total pressure ratio across both compressor stages, you get a wide powerband that comes on early and pulls everywhere, with lower EGTs when you're loaded up or leaning on it. It tows like it's empty and still lights the tires in third at a roll. Easy to live with, and every single pull leaves you laughing and going back for more.
Part Number: L5P-TRB-A193
Why Shop Dirty?
- Canadian-Made Performance: High-performing parts made in-house in our shop in West Kelowna and sourced from across North America with the highest quality standards.
- Born in the Shop: Our parts are engineered with real-world experience. Whether it's an OEM fix or a performance upgrade, we build what we know works. We make our parts to solve real-world problems.
- Dirty Made Quality: We aren’t just designing the kits; we are installing them every day in our own shop. We use our own products every day. From the first weld to the last bolt, we build tough gear that actually fits, handles abuse, and looks the part.
Features
Features
- TIG-welded stainless steel hot-side with CNC-cut flanges
- Compound-bent piping to reduce welds and improve durability
- Backpurged welds throughout
- Ceramic-coated hot intermediate pipe
- Retains factory downpipe routing, no cutting and no pipes sticking out your fender liner
- Compatible with OEM or aftermarket exhaust systems
- Upgraded metal heater core connectors over factory plastic
- Aluminum coolant reservoir with low coolant sensor port and sight glass provisions
- Available raw or powder-coated
- Made In Canada

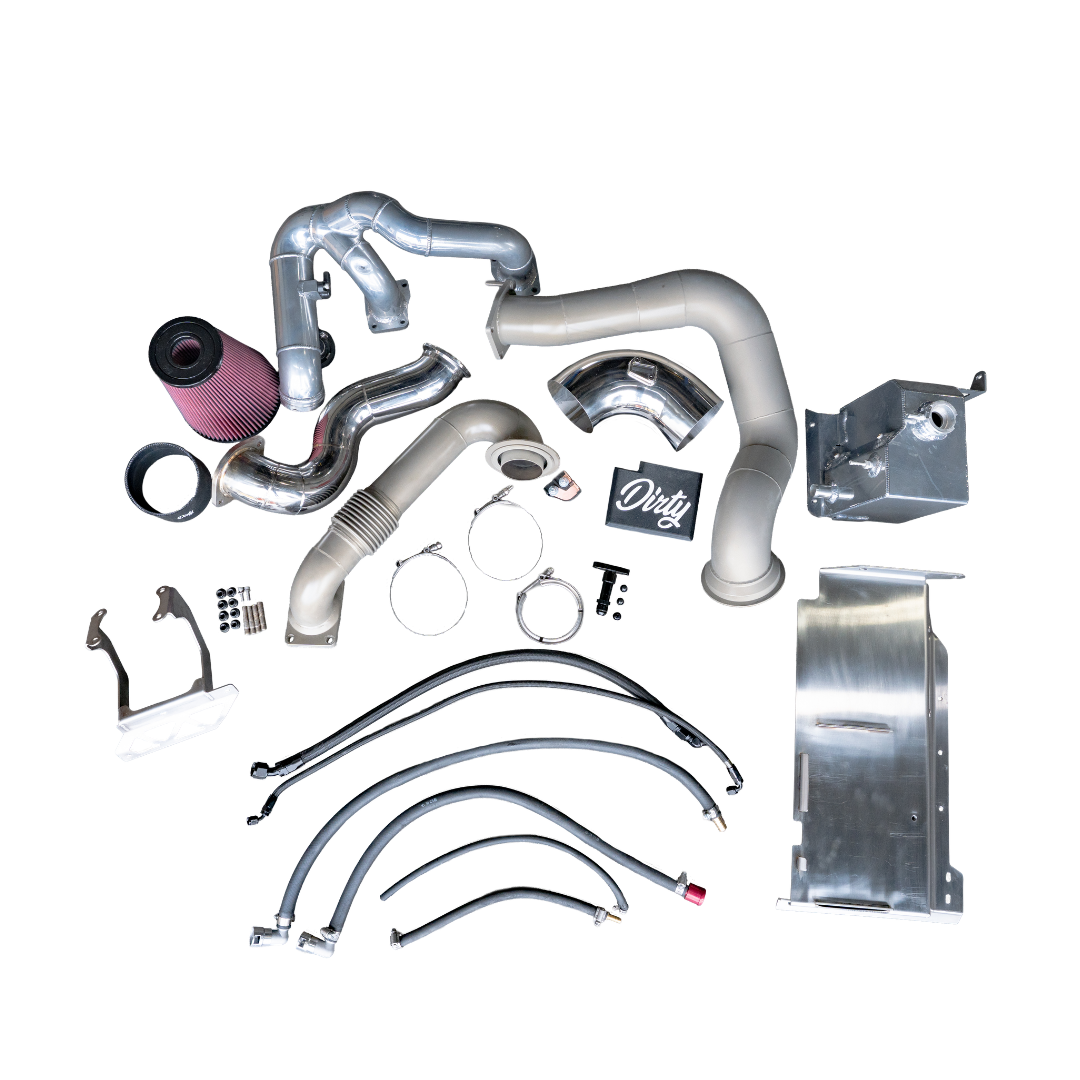

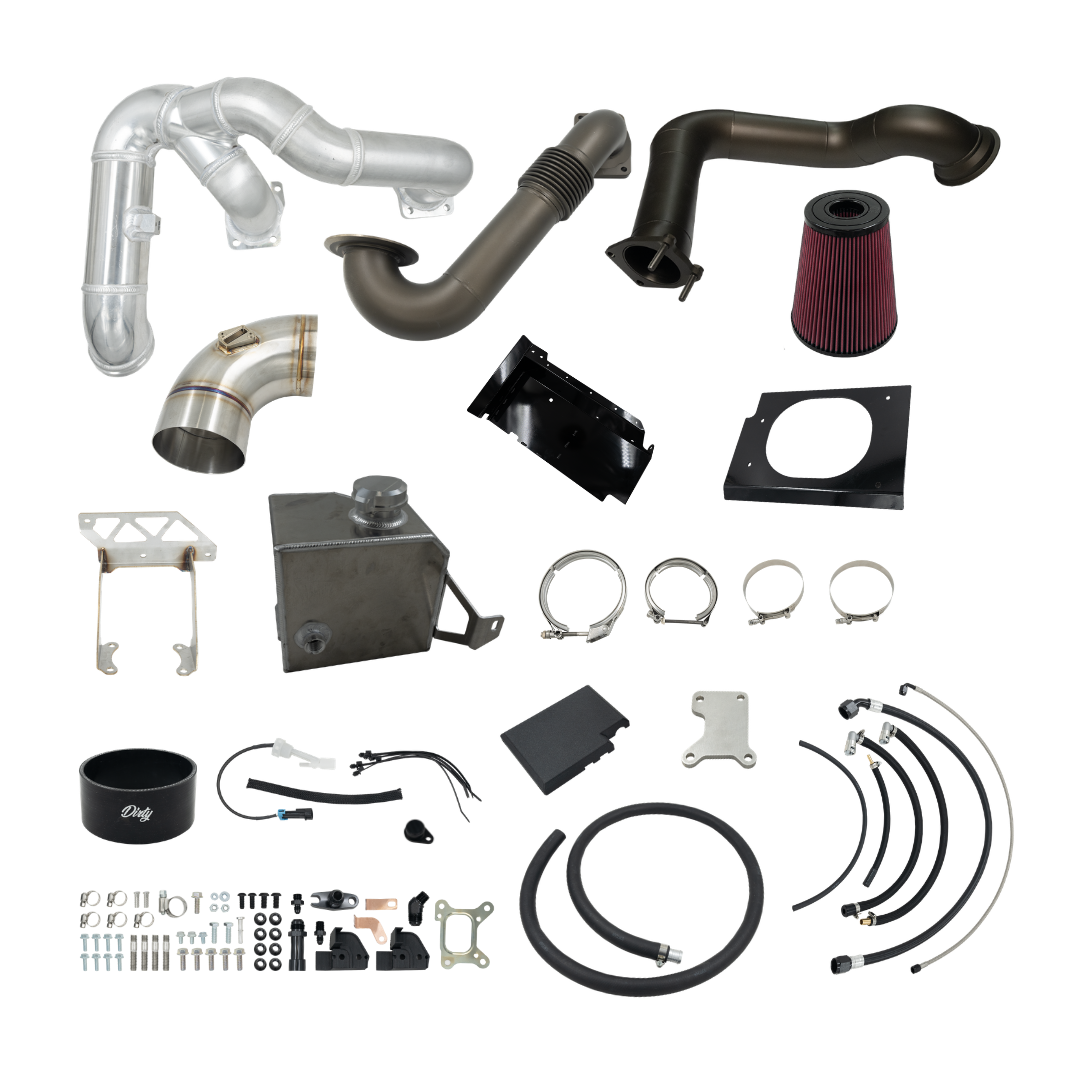

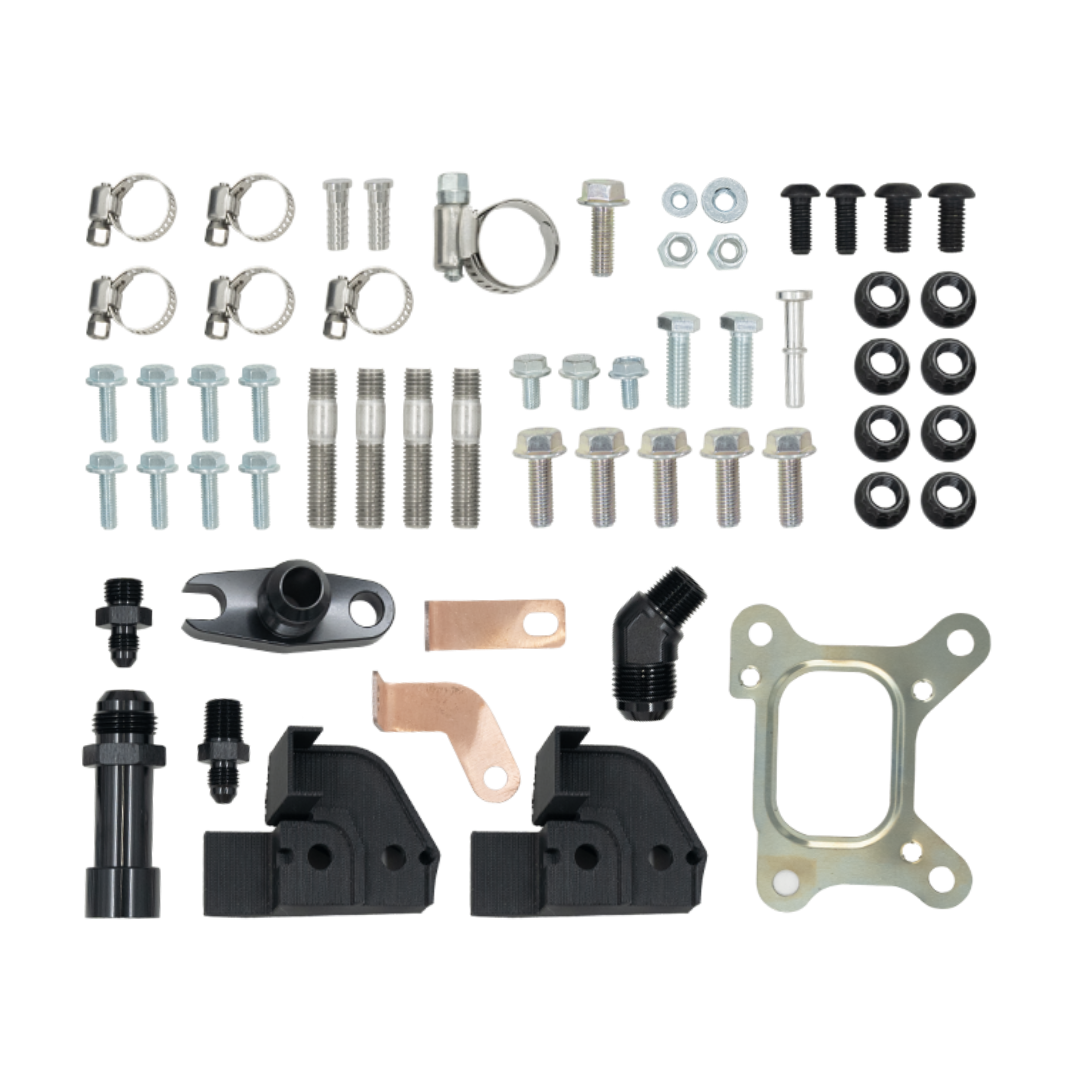

Includes
Includes
-

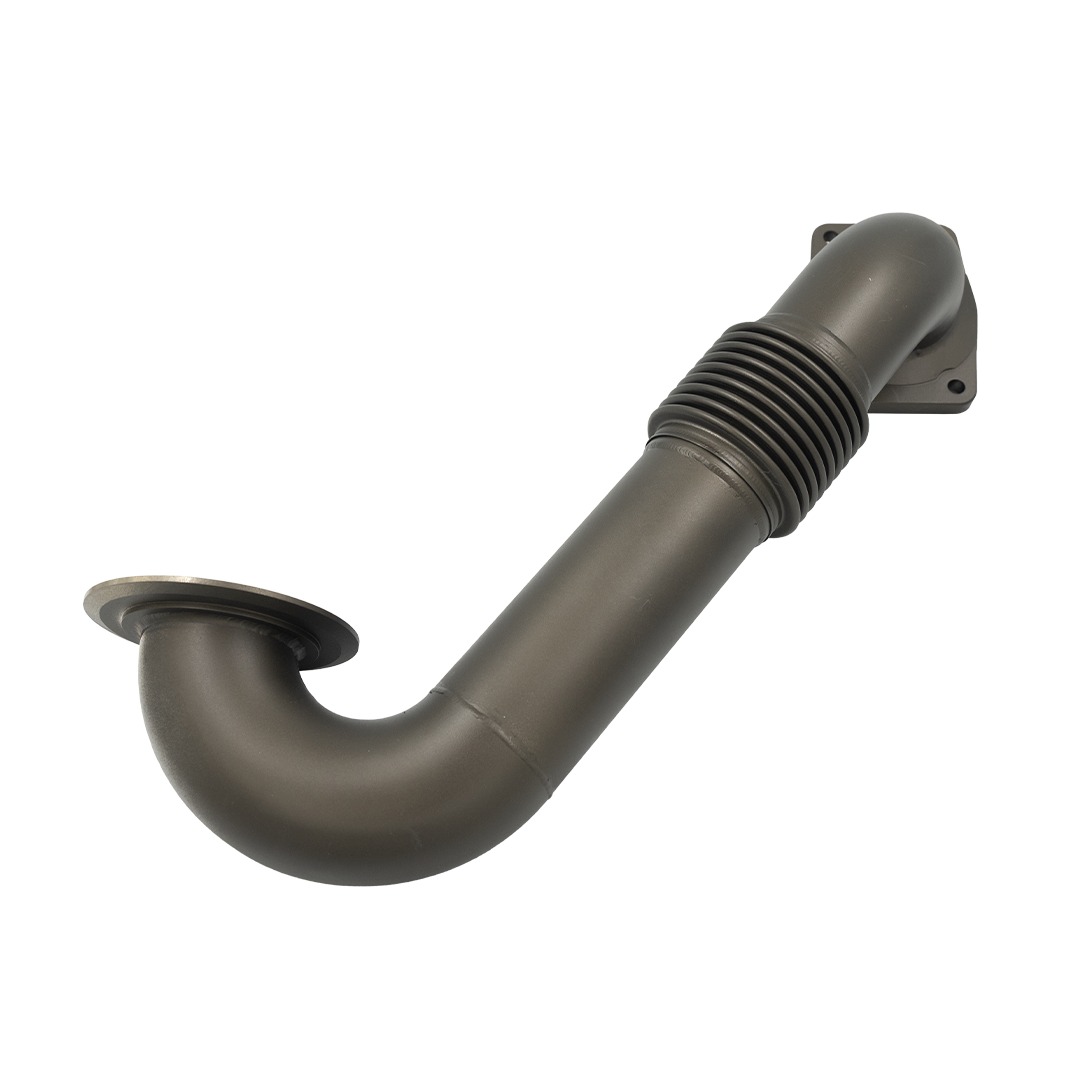

Stainless Steel, backpurged Hot Intermediate Pipe (interstage exhaust pipe), Ceramic Coated
-

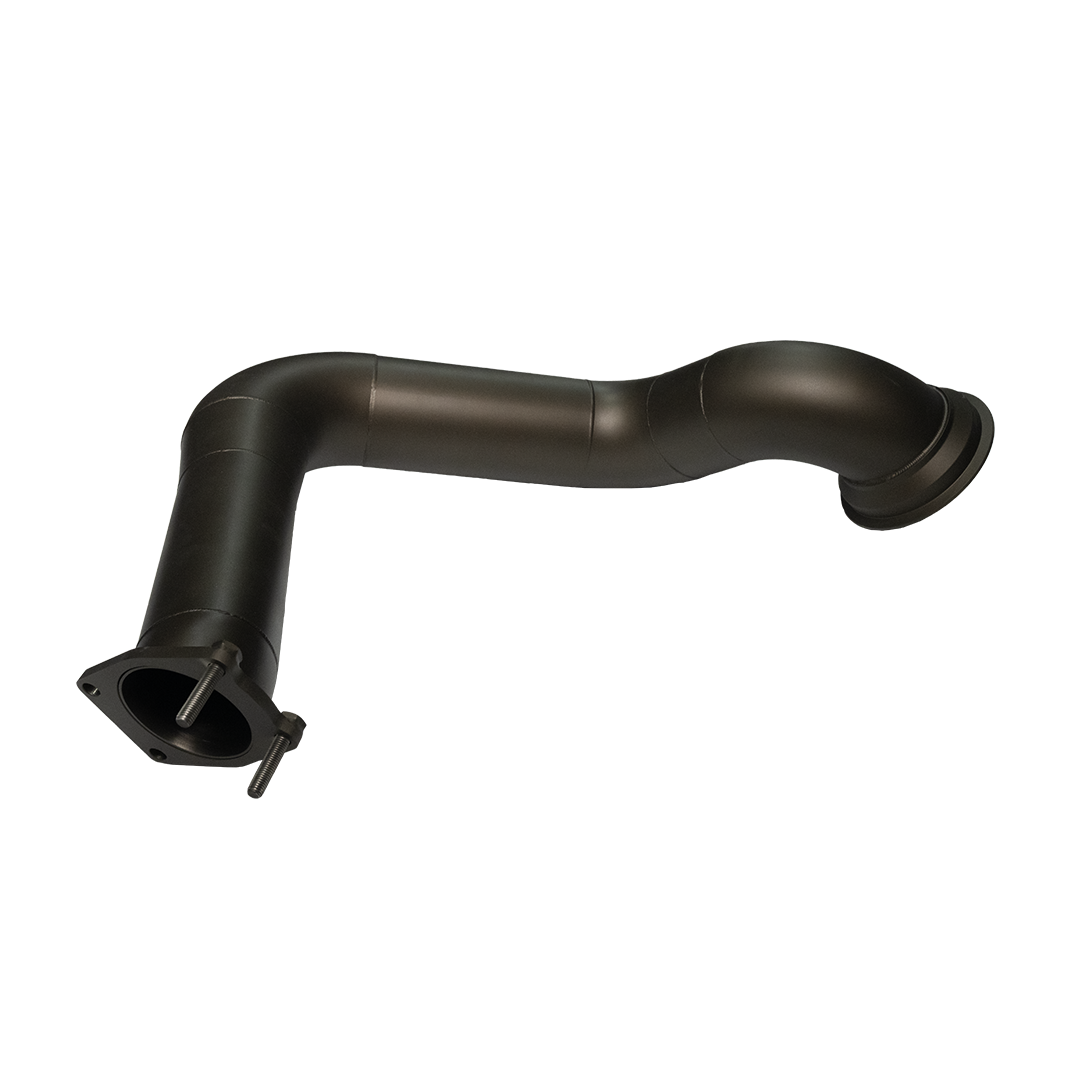

Stainless Steel, backpurged Downpipe, routes down in OEM location to OEM exhaust flange
-

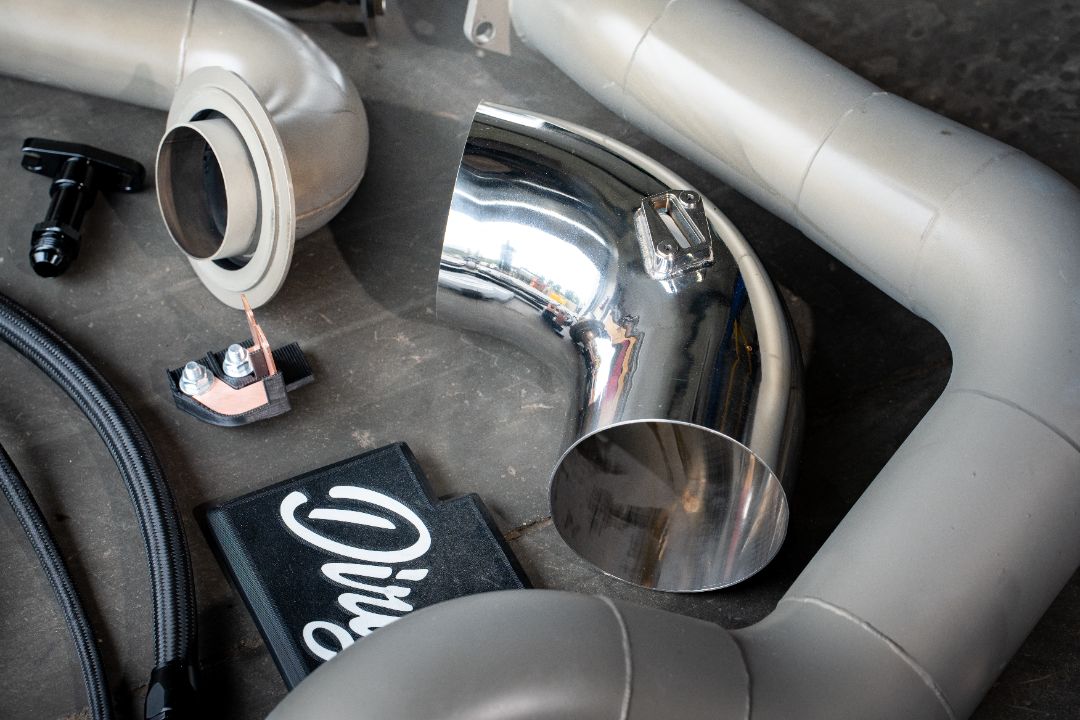

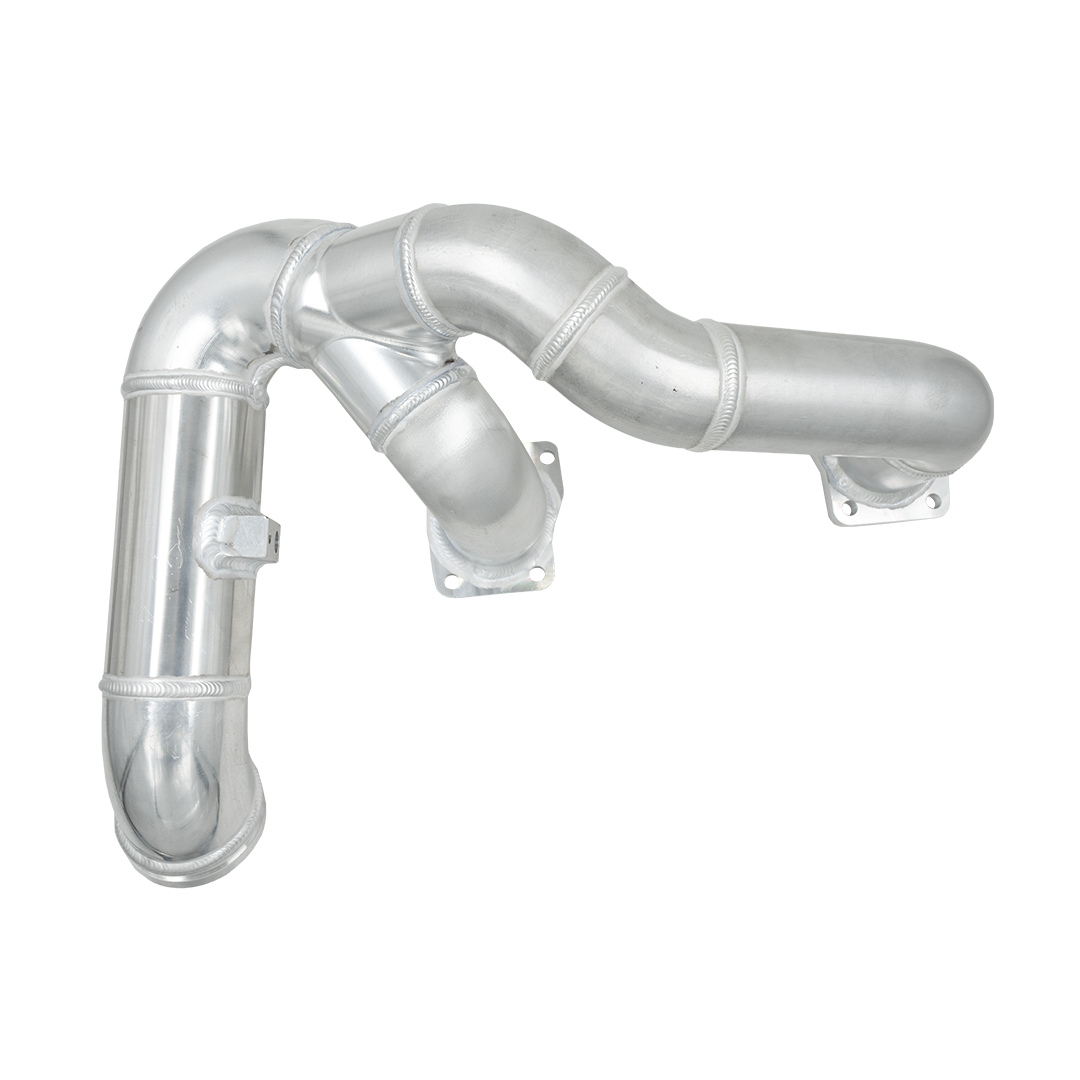

New Aluminum TIG-welded Double Rainbow (Y-Bridge), mounts to OEM or aftermarket cold side boost pipe
-
New Stainless Steel, TIG-welded backpurged Interstage Cold Intermediate Pipe (High-Low Pressure boost crossover pipe)
-

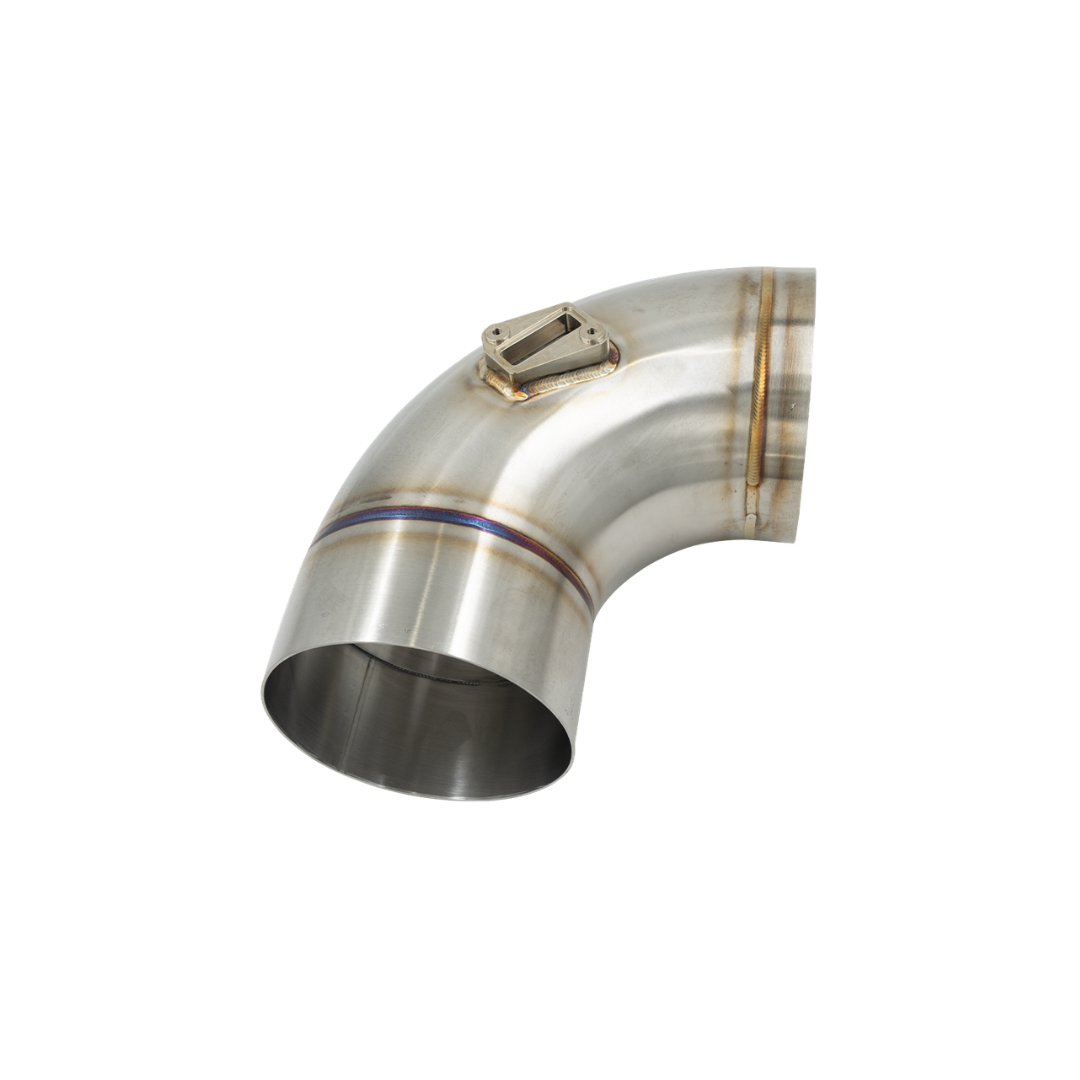

Stainless Steel backpurged Atmospheric Intake Pipe
-
New Metal Heater Core Connectors (upgrade over plastic ones)
-
Stainless Steel EGR Exhaust Block Off Plate
-
Coolant Port Blocker Plug
-

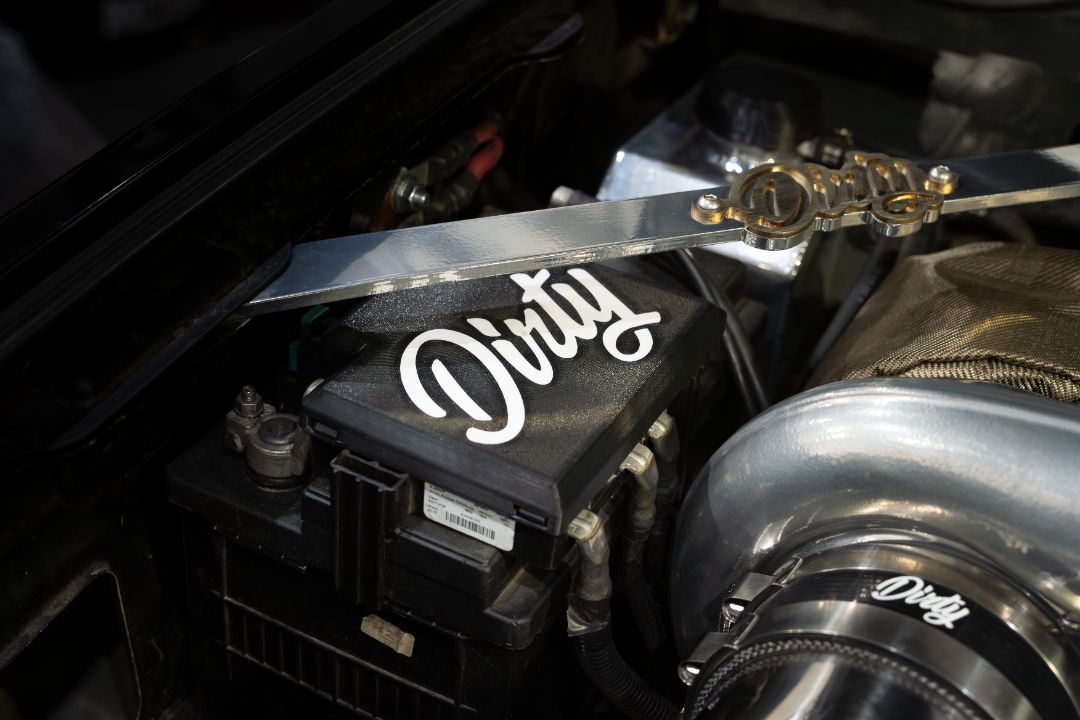

New Aluminum Battery Tray
-
Battery Terminal Reroute
-
Laser Cut and CNC Bent Copper Bus Bars
-

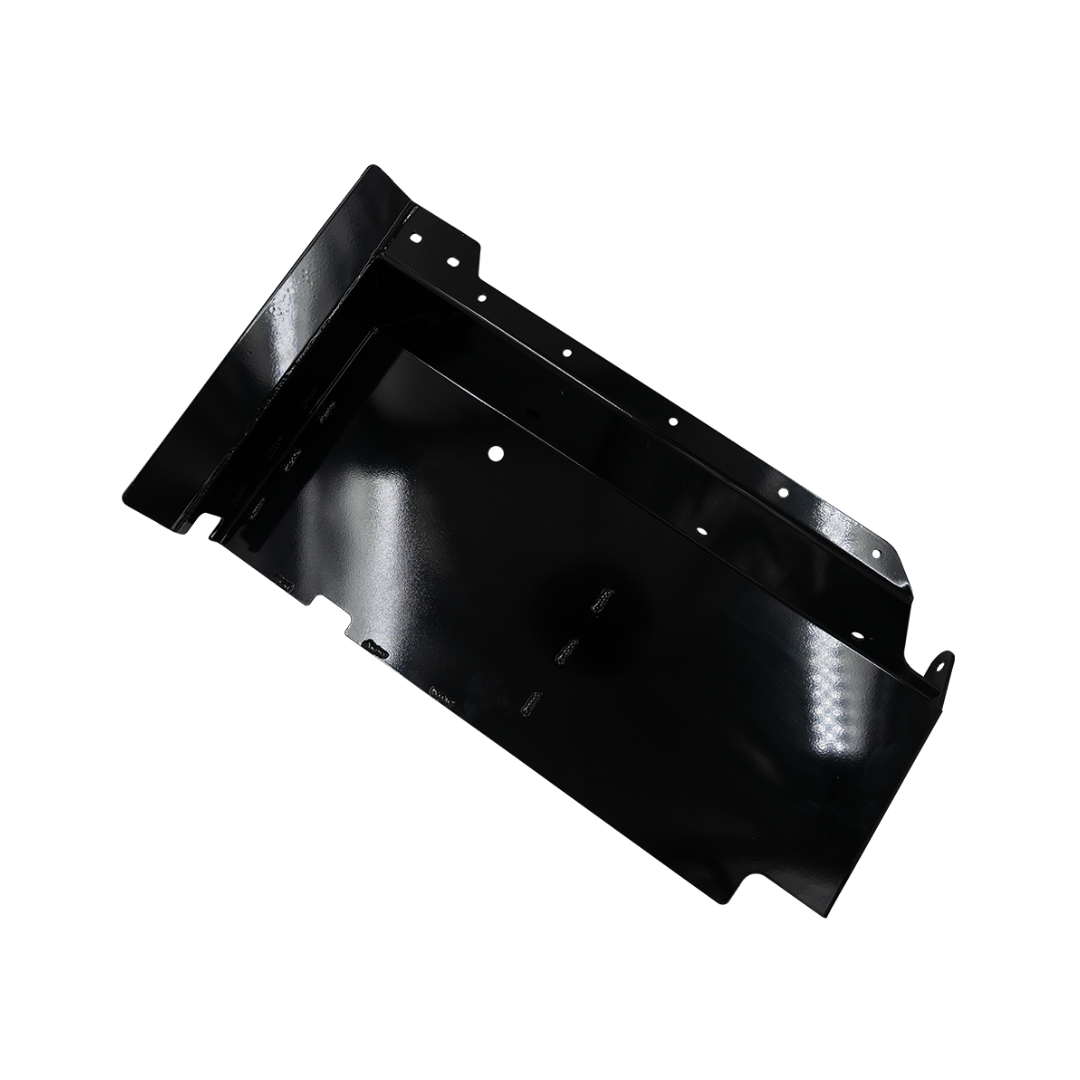

Custom Plastic Fairing
-

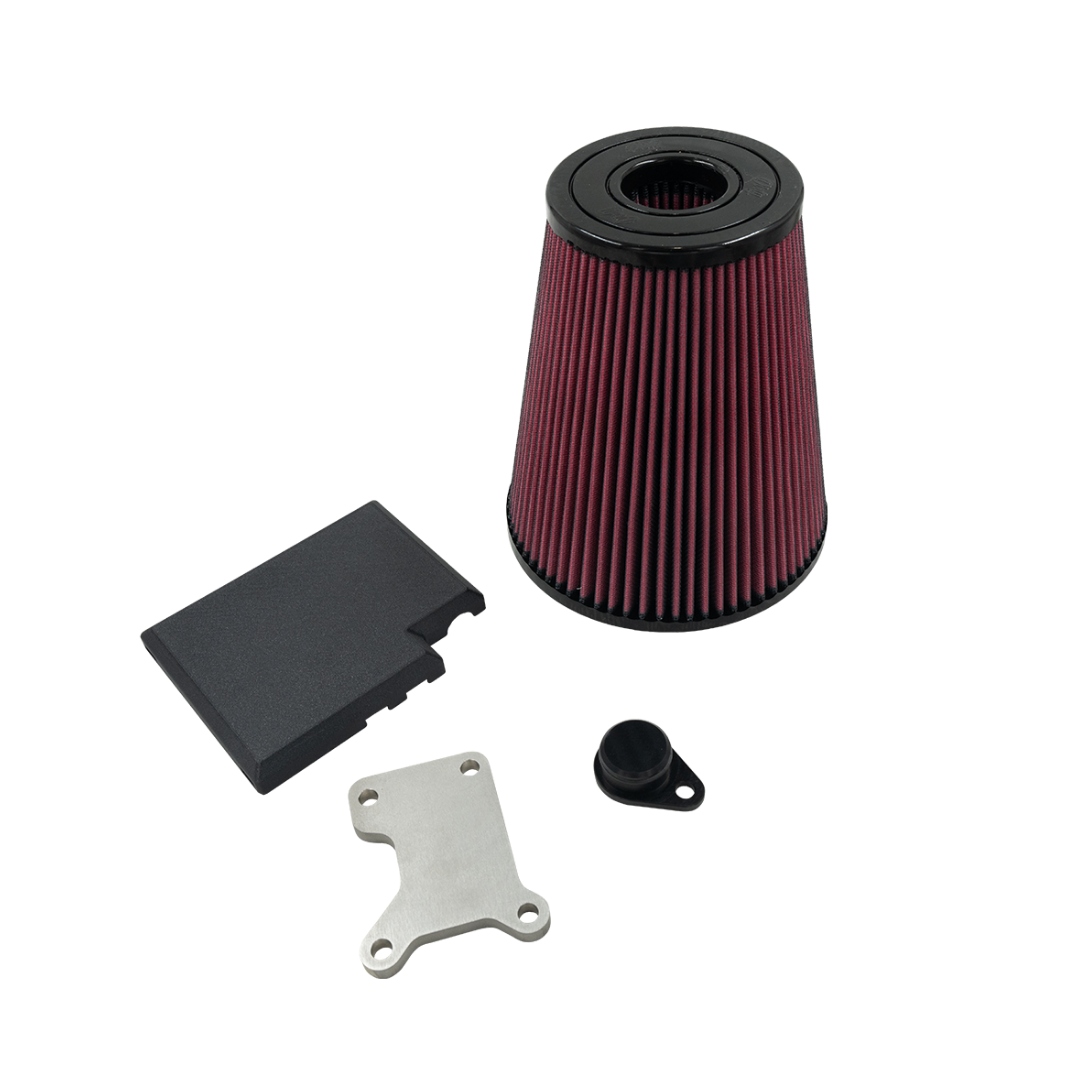

New Oiled 5" Air Filter
-

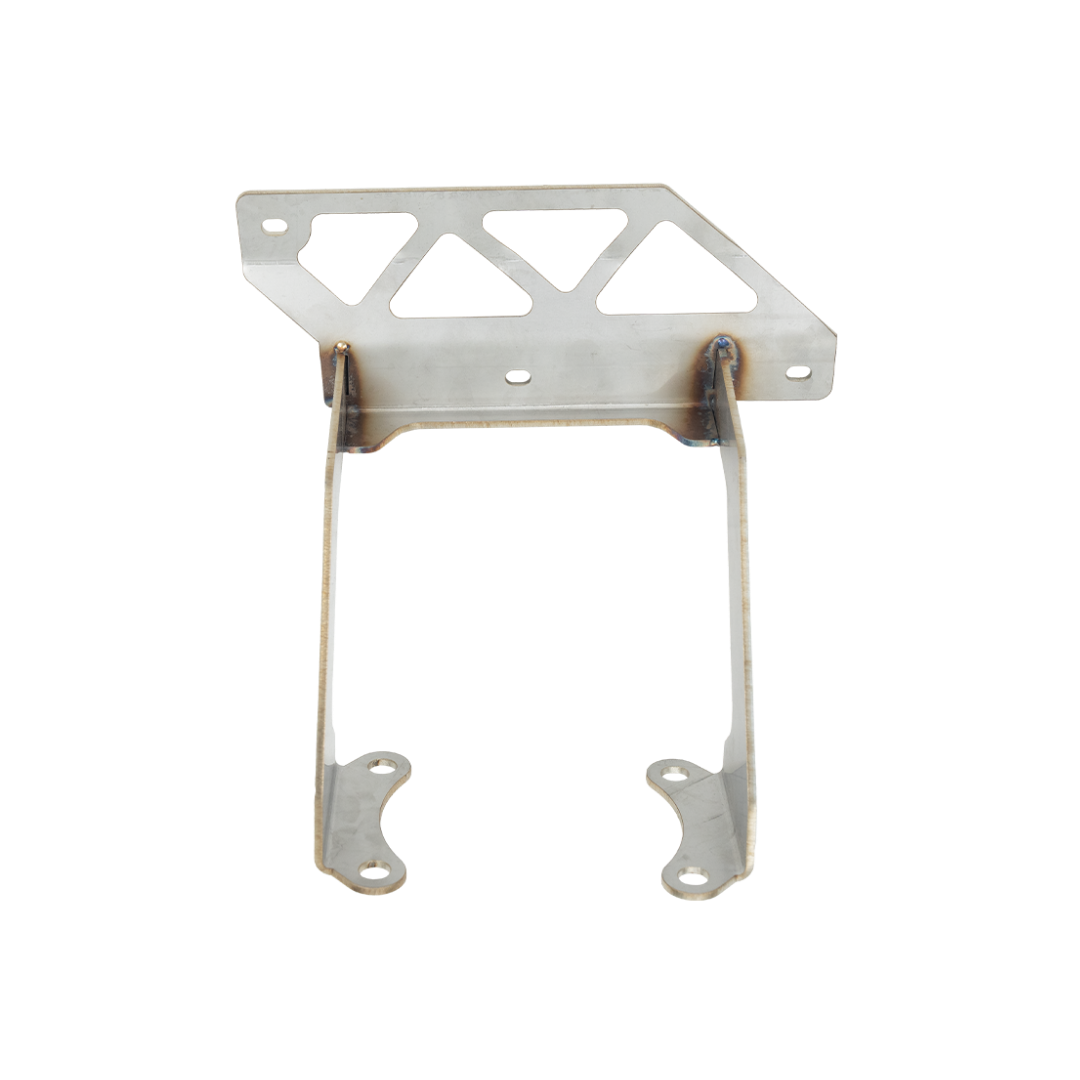

Turbo Support Bracket
-

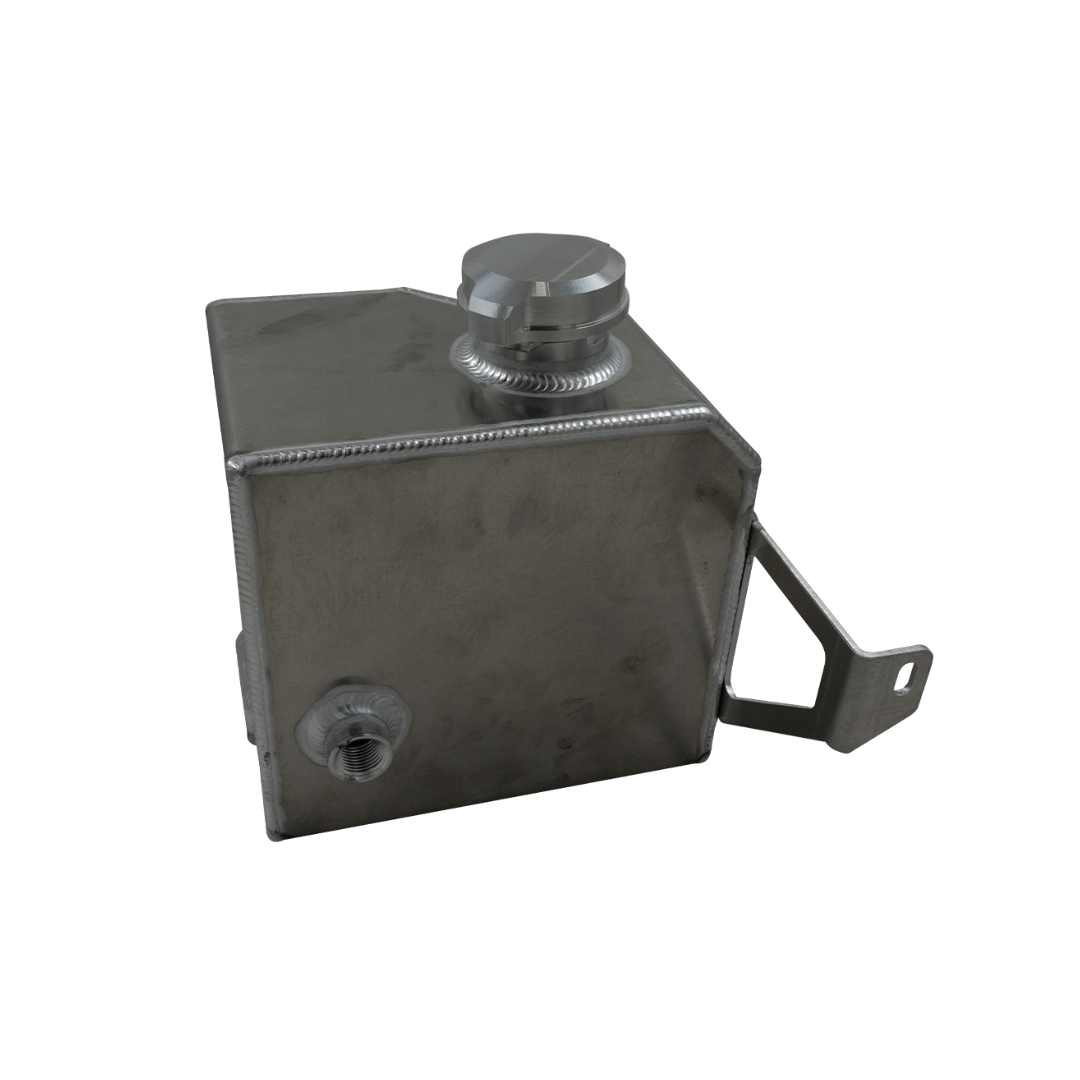

Aluminum Coolant Reservoir with OEM Low Coolant Sensor Port, 20PSI Radiator Cap, Provisions for Sight Glass
-

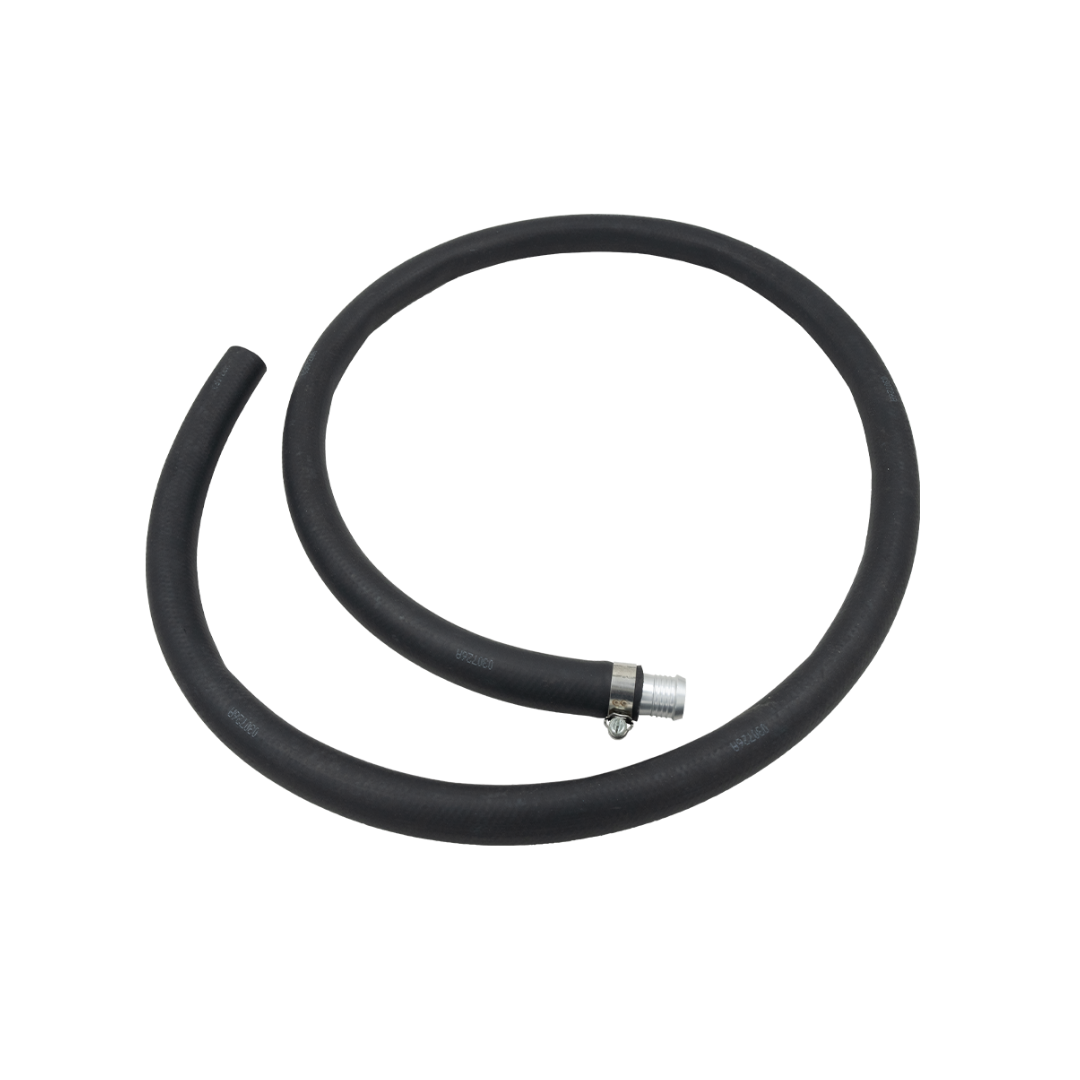

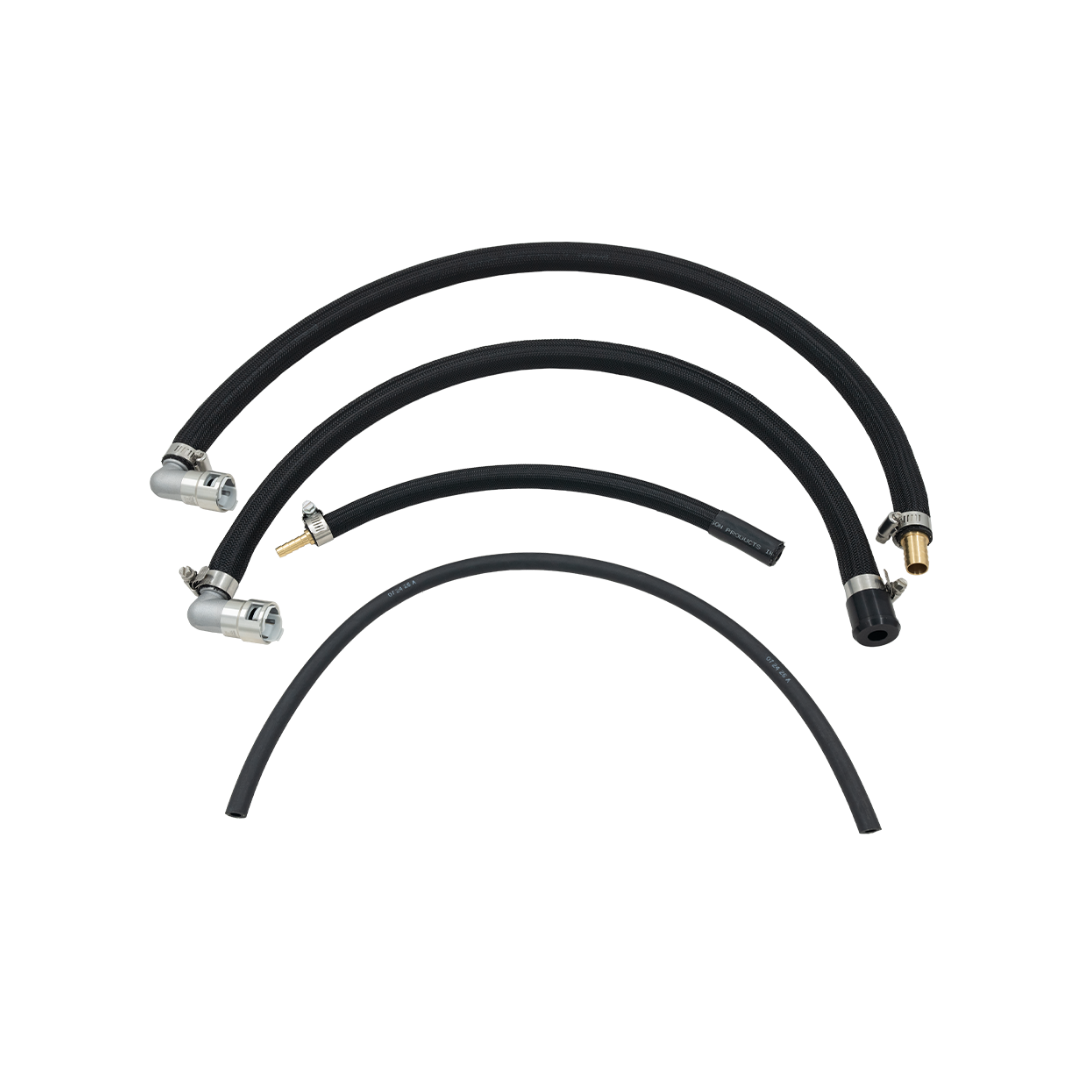

All Required Coolant Lines
-

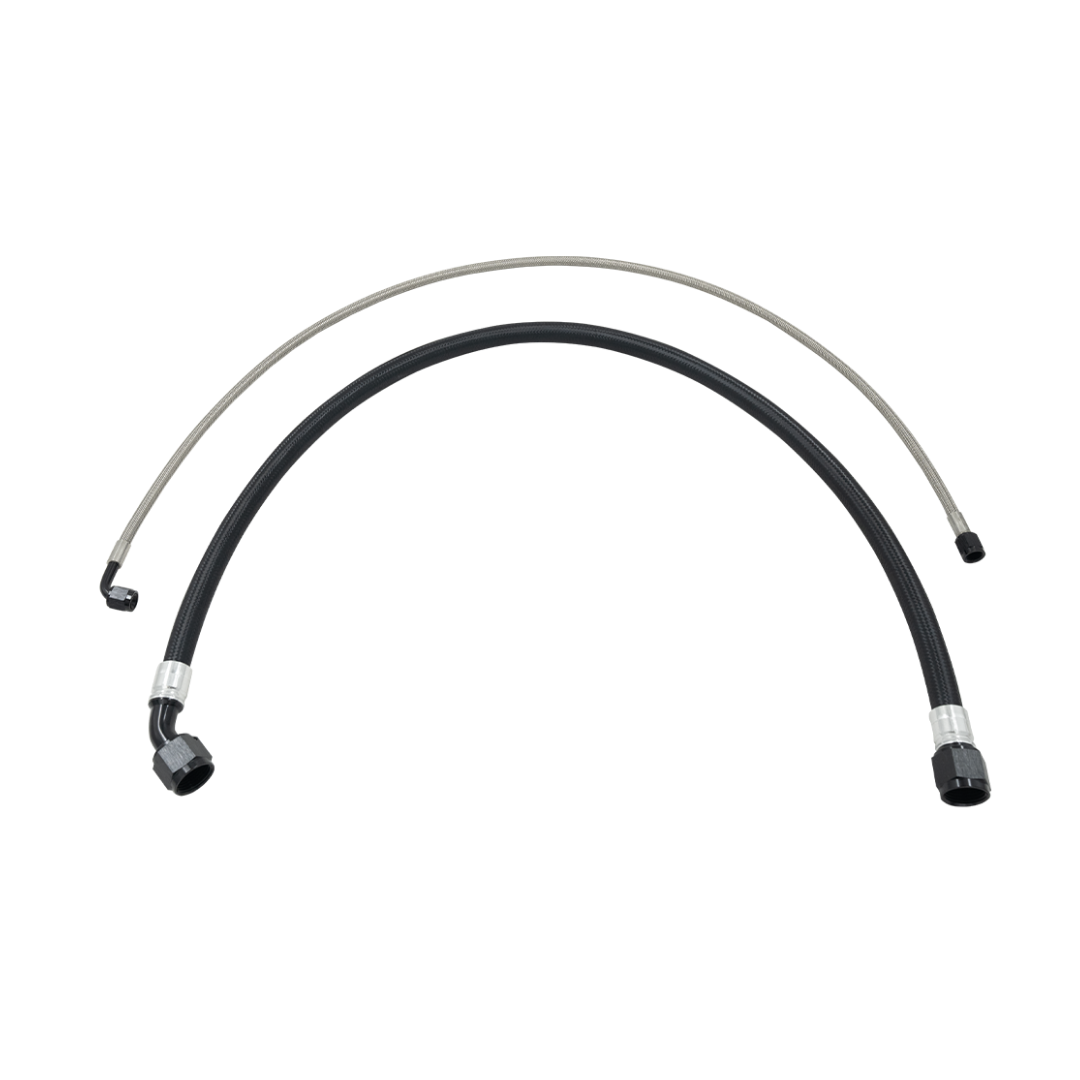

All Required Oil Lines
-
New OEM Turbo Gaskets
-
New OEM Turbo Oil Line Gaskets
-
Drill and Tap Kit for Pan Drain Fitting
-
9th Injector Plug
Design & Manufacturing
Design & Manufacturing

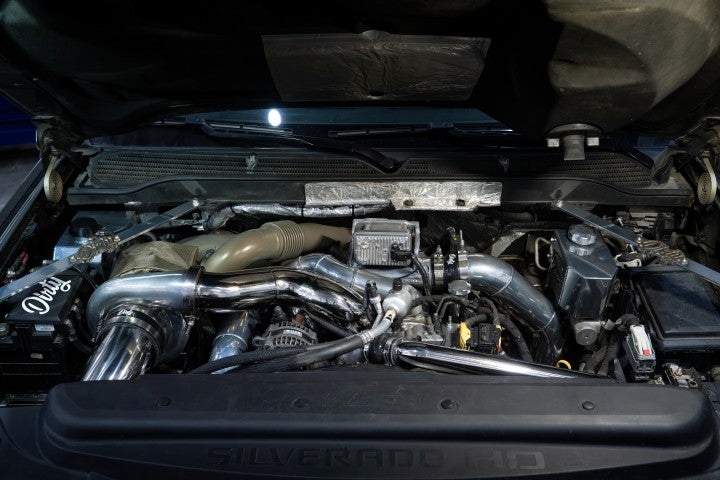

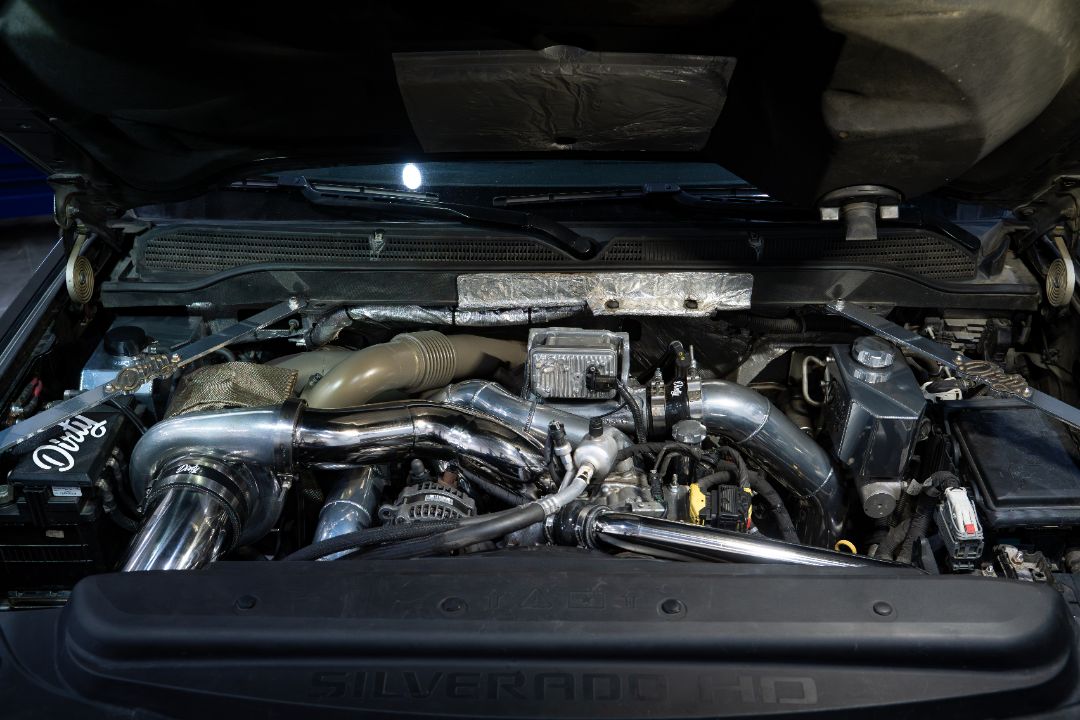

This kit was built to fit and function like it left the factory that way. We started with a full 3D scan of the L5P engine bay and the manufacturer's CAD data, then designed the whole system in CAD, refining it over five iterations and multiple prototypes to dial in turbo placement, exhaust routing, and serviceability.
The tight packaging on the L5P was the real challenge. We engineered the hot-side piping to retain factory downpipe routing, stay compatible with aftermarket exhaust, and keep exhaust components out of the wheel well. Hot-side is TIG-welded stainless with CNC-cut flanges, compound-bent where possible to cut welds and add durability.
None of it was signed off on a screen. Everything was validated on our own shop truck, where it lights the tires in third at a roll and never gets old.
