2017-2019 Powerstroke DRW F350 4" Radius Arm Coilover Lift Kit (BDS1575F)

BDS

Part Number: BDS1575F
Sale price$5,951.09 CAD

(show all inventory)
Available at alternate warehouse - contact for price
This is a special order item, please allow for additional processing time. If you would like an ETA, please reach out prior to placing your order.
Quantity:
This item may have additional freight costs. Learn more
Product images may differ from exact product.
Description

Click here to customize this Kit

Fits

Year Make Model
2017-2019 Ford F350 Super Duty DRW w/ 6.7L Powerwstroke



Built to take full advantage of the factory suspension design, these 4" radius arm systems paired with Fox 2.5 Series Remote Reservoir Coilovers correct suspension, steering, and driveline geometry with room for 37" tires. The arms bolt into the factory mounting points and reposition the front axle to correct the caster angle. Only the best quality materials & relevant parts go into BDS Kits; which means less maintenance, less time looking, and less confusion for you. Everything you need to take your new Super Duty to the next level.

Part Number: BDS1575F

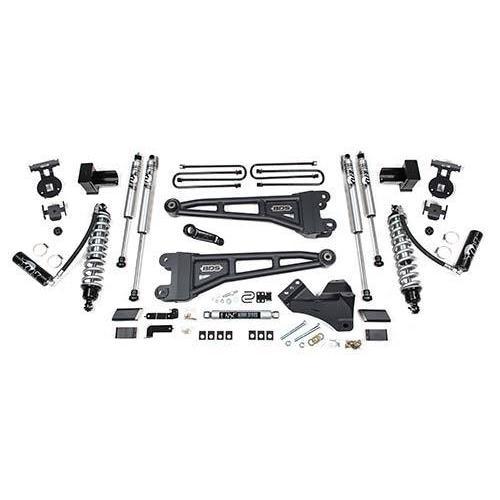

Features
  • Forged Drop Pitman Arm
  • 1/4" Trackbar Bracket for Steering Correction
  • HD 4" Radius Arms to correct frontend caster, built from 1-3/4" OD -10GA DOM tubing with support gussets
  • Specially tuned FOX 2.5 factory series remote reservoir coilovers for optimal performance
  • Factory Style 1/4" Rubber Bushings
  • Sway bar & Brake Line relocation brackets
  • NX2 series steering stabilizer with a mounting bracket
  • 5" fabricated block with an integrated bump stop wing
  • Bump stop extensions
  • Allows Fitment of 37" Tires
  • FOX 2.0 shocks

Tire & Wheel Combinations:

  • 37x12.50 w/ 17x9 and 4.5"-5"
  • 37x12.50 w/ 18x9 and 4.5"-5"
  • 37x12.50 w/ 20x9 and 4.5"-5"
Notes
  • Minor trimming may be necessary for clearance of 37x12.50 tires on certain wheel setups
  • Installation requires a torque wrench capable of 405 ft-lbs
