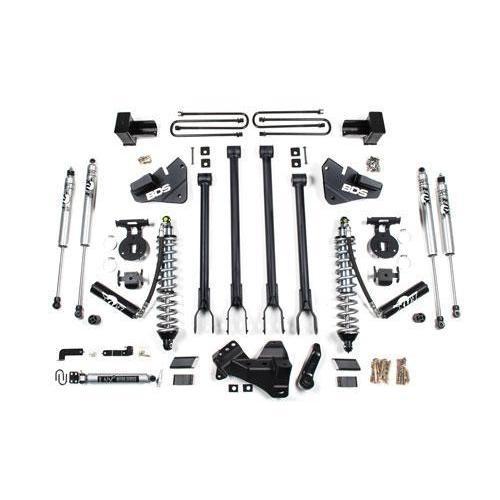

2017-2019 Powerstroke DRW F350 4" Coilover 4-Link Lift Kit - 2 Leaf (BDS1577F)
Part Number: BDS1577F
Click here to customize this Kit
|2017-2019||Ford||F350 Super Duty DRW w/ 6.7L Powerstroke|
Take your new Super Duty to the next level with the tried & true BDS 4-link conversion system paired with Fox 2.5 Series Remote Reservoir Coilovers. A big upgrade for your truck, these high-strength 4-link conversions offer improved handling, stability, strength, & caster control during wheel travel. In the rear of these 4" systems BDS offers multiple lift options for both the OE 2-leaf main spring pack & OE 3-leaf main spring pack equipped trucks. The first option is a 5" replacement block & U-bolt kit for the 3-leaf trucks. With FOX 2.0 Series shocks to compliment the front setup for all-around impressive performance.
Part Number: BDS1577F
- Fox 2.5 Remote Reservoir Coilovers
- Track Bar Relocation
- Traditional frame-mounted design to center the axle and put track bar angle in phase with drag link
- Drop Pitman Arm
- Relocates drag link by flipping tie rod position from top-down to bottom-up while also dropping the mount position
- Replacement Single Steering Stabilizer
- Includes mounting kit, a required component since the drag link is now flipped causing the factory stabilizer mount taper to face the wrong direction Front
- Sway Bar Relocation
- Frame-mounted brackets to properly reposition the sway bar
- Front Bump Stop Extensions
- Front Brake Line Drop Brackets
- Relocates lines for proper slack while minimizing the amount the lines need to be reformed
- HD Radius Arms
- Same design as used in the 11-16 model 2.5" lift systems. Repositions axle and sets caster properly for 4" of lift.
- Rear 5" block and u-bolts
- Allows for clearance of up to 37" tires
Tire & Wheel Combinations:
- 37 x 12.50 w/ 17 x 9 and 4.5" - 5"
- 37 x 12.50 w/ 18 x 9 and 4.5" - 5"
- 37 x 12.50 w/ 20 x 9 and 4.5" - 5"
- Diesel Model Only
- If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
- 37 x 12.50 tires may require minor trimming.
- Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
- If your truck is equipped with a factory rear sway bar add: 123005
- Click Here For Installation Instructions
- Difficulty: 4 (where 1 = easiest and 5 = complicated)
