Description
Fits
| Year |
Make |
Model |
| 2017-2019 |
GMC/ Chevrolet HD |
6.6L Duramax |

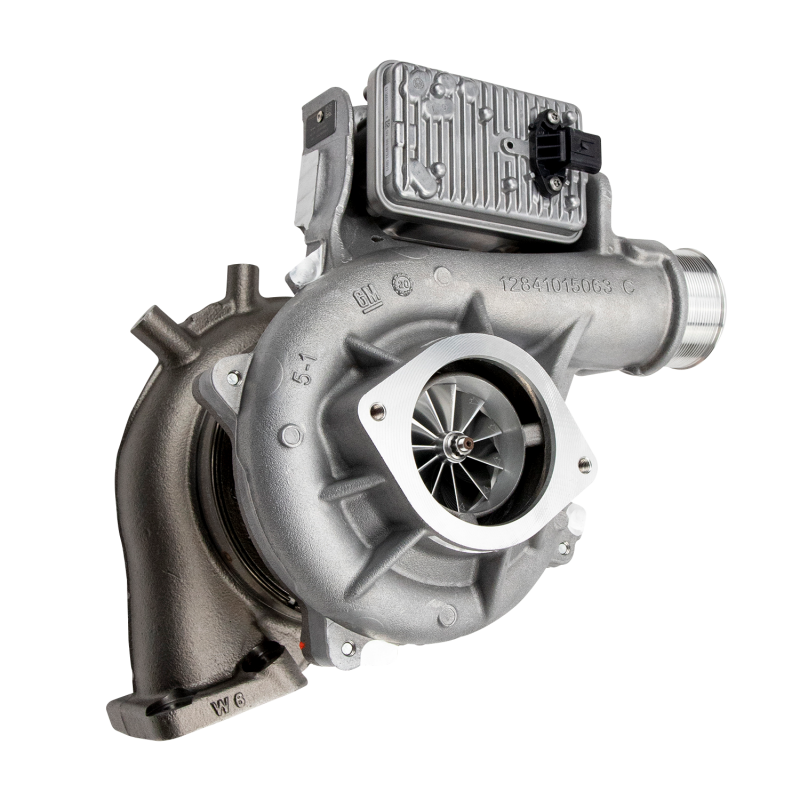

Capable of up to 700HP, this turbo is designed for maximum spool-up, & towing capabilities. The oversized billet compressor wheel and custom spec turbine wheel are matched together perfectly for a daily driven truck that's going to get used in the real world. A direct replacement, with no added piping kits needed.
Part Number: DM1JK1070203010
Features
- Fits both L5P & L5D
- Airflow to support 700HP
- Up to 650 RWHP with stock emissions equipment and basic supporting mods
- Tested in competition setups with extensive supporting mods to make 700+ RWHP
- 41 psi boost @ Sea Level
- No core charge
- Easy for any custom tuner to work with
Additional Info
Custom Billet Compressor Wheel
- 64mm 11-Blade wheel
- Provides a wide efficiency range
- Allows you to tow without the risk of surge
- Lightweight and high strength
- Provides 74 lbs/min mass airflow compared to 60lbs/min stock
- No Surge (Even when lugging)
Oversized Custom Turbine Wheel
- Low drive pressures at high load
- Efficiency improved to better control EGT
- 10-blade design produces a distinctive exhaust sound
HFV (High Flow Vane) Technology
- Custom Vane/Nozzle Ring Assembly
- Exclusive design produced in-house specific to this application
- Taller and wider vanes match larger turbine to provide superior high-load efficiency
- Retain factory exhaust brake and quicker throttle response
