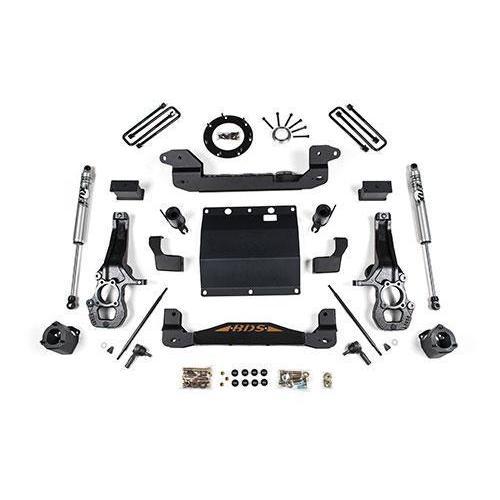

2015-2019 2.8L Duramax 5.5" BDS Lift Kit (BDS722H)


Part Number: BDS722H

Sale price$3,020.27 CAD

This item may have additional freight costs. Learn more
Product images may differ from exact product.

Click here to customize this Kit


Year Make Model Type
2015-2019 Chevy / GMC Colorado/Canyon 4WD


Improve your off-road capability in your Colorado with the BDS 5.5" Lift Kit. Take it up a notch in strength, control, and stance with the BDS 5.5" lift kit! This Performance system brings together safety and capability with uncompromising on and off-road performance. All BDS kits have everything you need to properly lift or level your truck without the hassle of searching for the proper parts.

Part Number: BDS722H

  • NX2 series gas shocks
  • HD 1/4" steel high clearance cross members
  • Ductile cast iron extended steering knuckles
  • Full-width skid plate
  • Transfer case indexing ring
  • Front bump stop extension
  • 4" rear block & U-Bolt kits
  • Sway bar links
  • HD Moog tie rod ends
  • Retains OE driving characteristics
  • Clears 33" Tires

Tire & Wheel Combinations:

  • 305/55R20 w/ 20 x 9 and 5.25"
  • 305/70R17 w/ 17x9 or 18x9 and 4.5"
  • 295/70R17 w/ 17x8 or 18x8 and 4.5"
  • Inner fender trimming required
  • Minor welding required
  • The electronically assisted power steering system is sensitive to out of round, unbalanced, and more aggressive tread pattern tires. High-speed steering wheel feedback can occur
  • Stock 17" & 18" wheels can not be reinstalled with the lift kit. Aftermarket 20" wheels with a maximum of 5.25" Backspacing are recommended - certain wheel and tire combinations will require weld on steering stops, these are included in the kit. See the end of inst. sheet for details on installation.
  • Will not fit ZR2 Models.
  • Will fit diesel models.
  • Although this is pictured with Fox Shocks, this kit will come equipped with BDS Shocks. If you would like fox shocks, please reach out.
