2014+ Cummins HD Tie Rod (8702-11)

Fits

Keep your truck on the road tracking straight and tracking well. With a solid axle setup, these trucks are susceptible to bump steer and toe change because of the radius arm design. This drag link is a direct bolt-in replacement with an immediate upgrade in steering feel and control that you'll appreciate as Cummins powers you down the road. These heavy-duty drag links are designed with heavy use in mind, which is why they test them on the Rubicon trail as a true test of a component! A single-plane tie rod end eliminates drag link flop as well.

Part Number: 8702-11

Superseded Part Number: 8702-01

• Over 40% stronger than the stock tie rod.

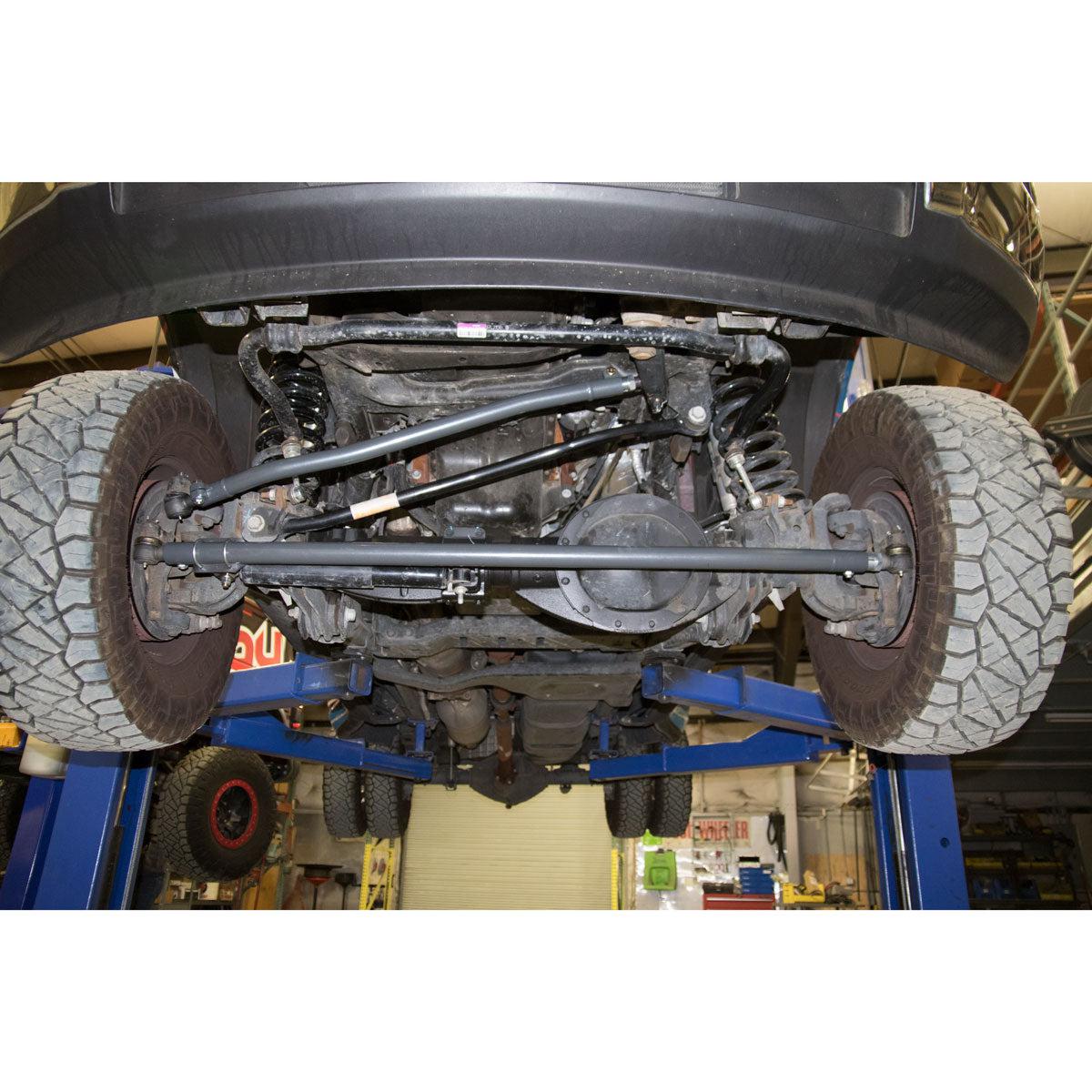

• Tie Rod bolts right into the factory mounts with no additional wheel requirements.
• No factory tie rod components need to be reused.

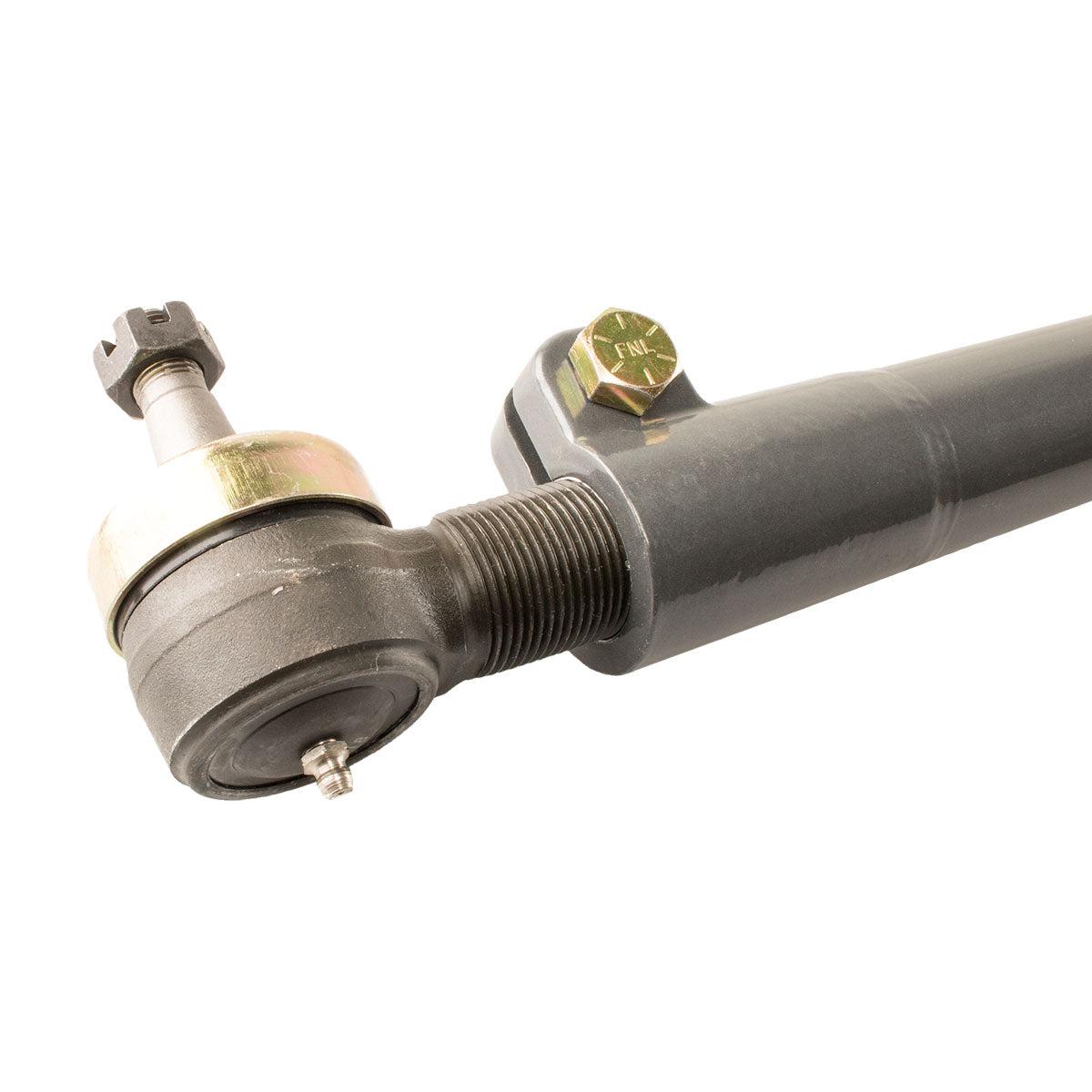

• Includes Synergy HD Metal on Metal Tie Rod Ends with oversized 1 1/4 inch shank.
• Low Misalignment tie rod end boots are used to prevent unwanted tie rod flop. Eliminates the steering dead spot commonly associated with hydro assist setups.

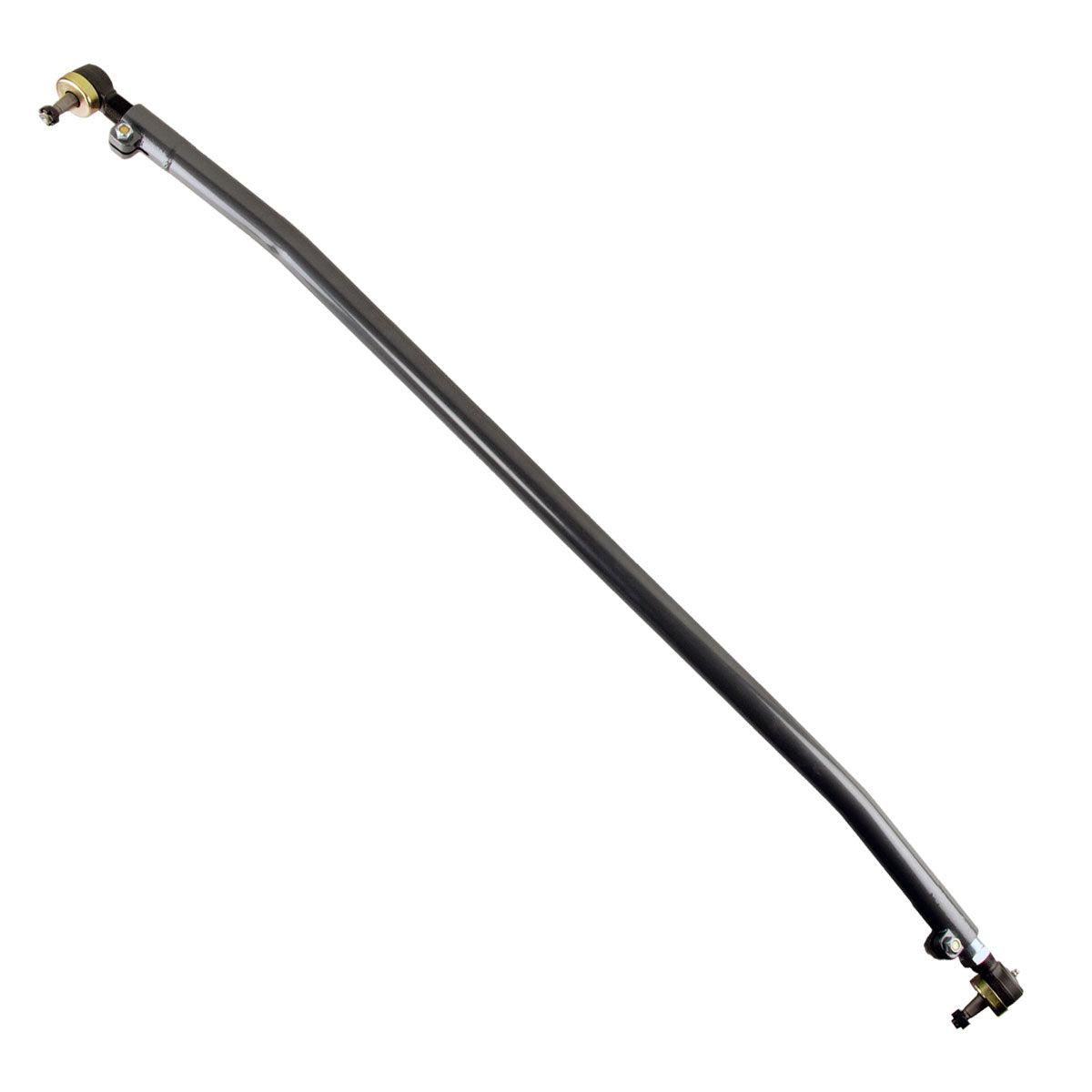

• Tie Rod is CNC formed from 1.75 inch x .188 wall seamless chromoly tubing and heat treated after forming.
• Abrasion-resistant powder coat finish for maximum durability and corrosion resistance.
• Synergy Double Adjuster Sleeve allows adjustment of tie rod length without removing it from the vehicle.

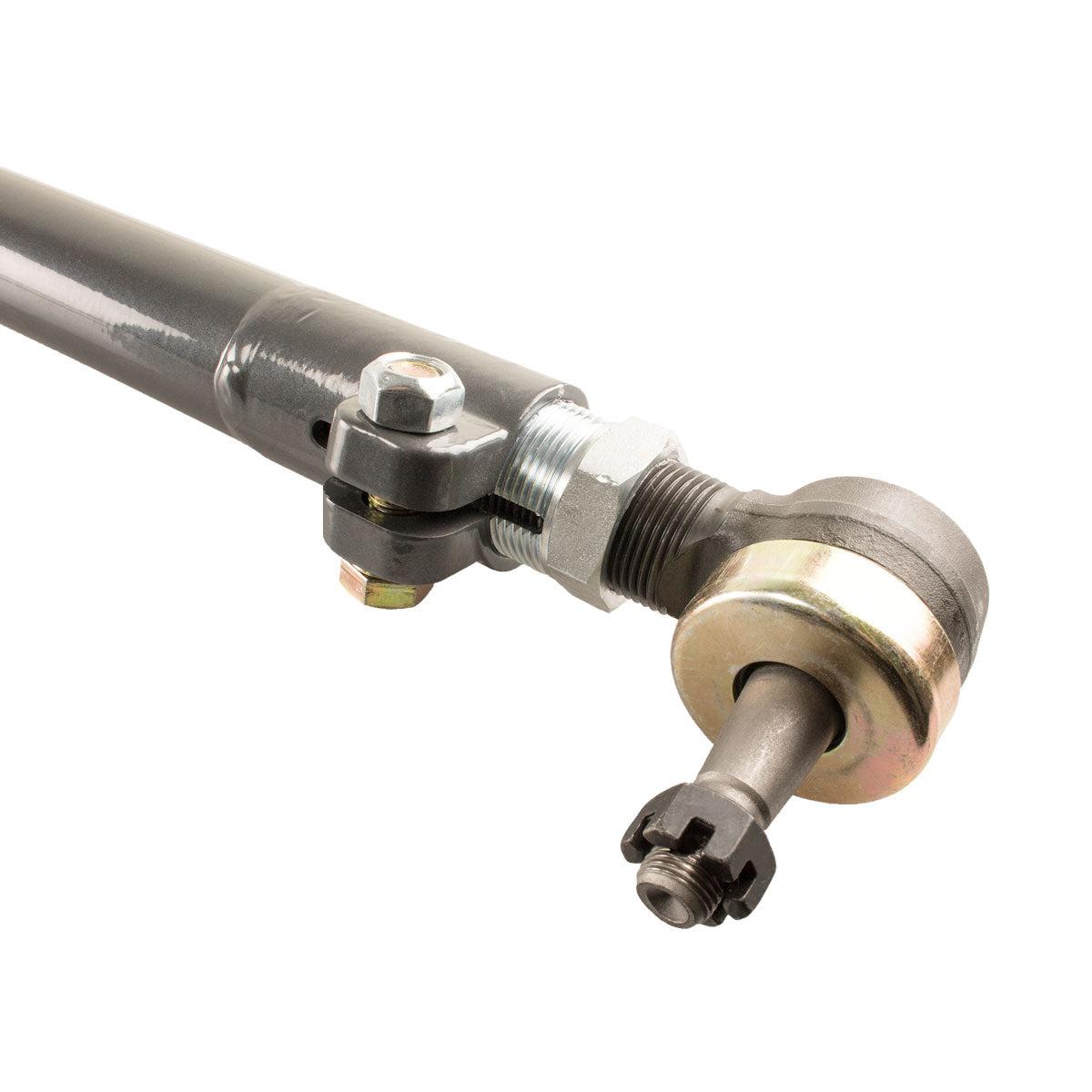

• Both ends of the bar use pinch bolts instead of jam nuts to simplify installation and adjustment.
• Tie Rod has an outer diameter (OD) of 1.75 inches and must be used with our steering stabilizer clamp.
• 100% bolt-on components assures an easy, trouble-free installation with the use of basic hand tools.
• Min collapsed length: 60.00"
• Max extended length: 62.75"

Includes:

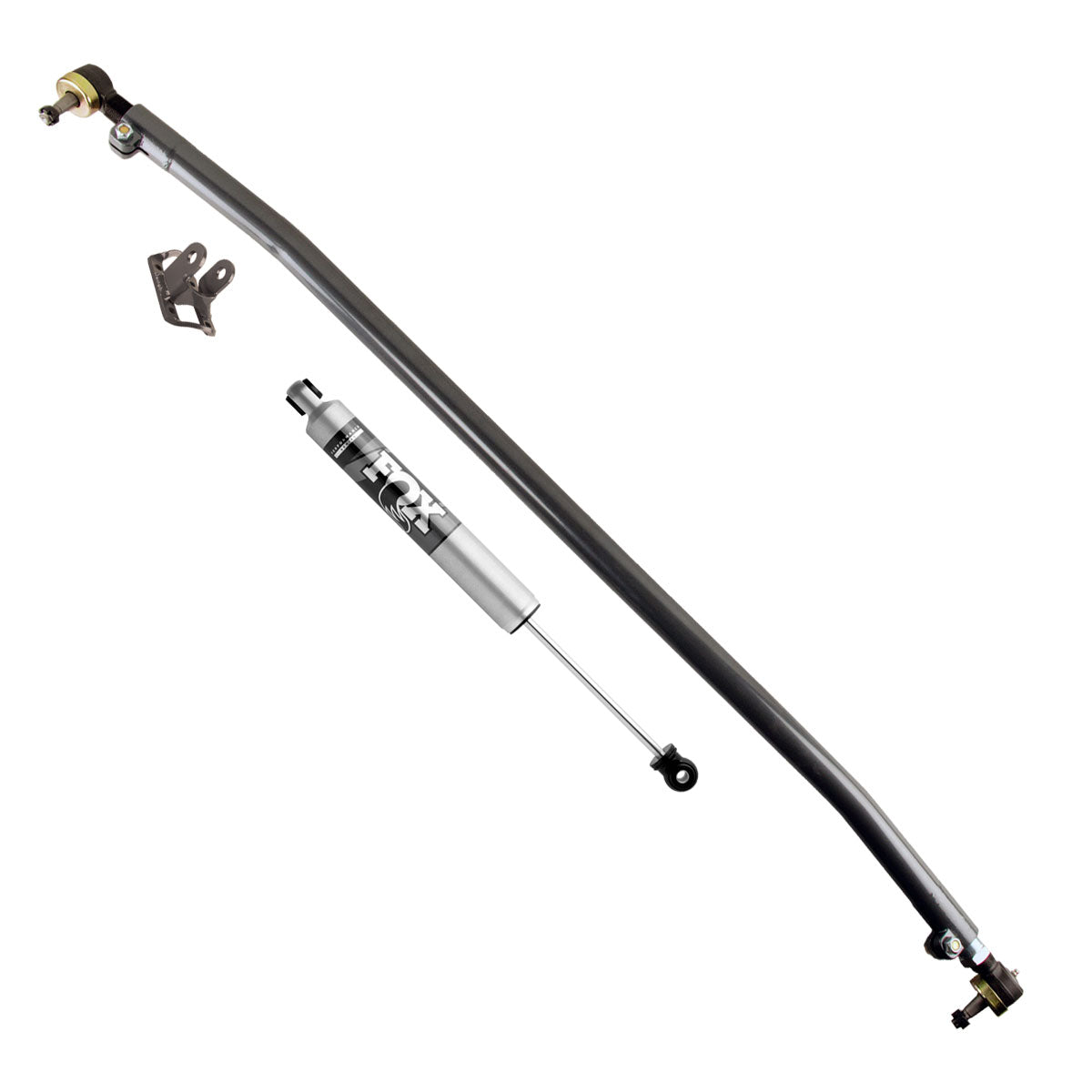

• (1) 8702-01 Ram tie rod
• (2)  Ram tie rod ends and
• (2)  Misalignment Boots
• (1) Adjuster sleeve
• (2) Pinch Bolts and hardware

• Click Here

• Steering Stabilizer Clamp 8703-01 required to retain steering stabilizer
• Synergy High-Performance Grease recommended 4119 to be used with all Tie Rod Ends
• Synergy Premium Copper Infused Anti-Seize 4118 to be used with all threaded components (TRE's and Adjuster Sleeve)
