2014-2018 Cummins 2500 6" 4-Link Lift Kit (BDS1604H)-Lift Kit-BDS-BDS1604H-Dirty Diesel Customs

2014-2018 Cummins 2500 6" 4-Link Lift Kit (BDS1604H)


Part Number: BDS1604H

Mfr Part Number:

Sale price$4,338.33 CAD

(show all inventory)
Available at alternate warehouse - contact for price
This is a special order item, please allow for additional processing time. If you would like an ETA, please reach out prior to placing your order.
This item may have additional freight costs. Learn more
Product images may differ from exact product.

Click here to customize this Kit


Year Make Model Type Lift
2014-2018 Dodge / Ram 2500 w/ 6.7L Cummins & 4x4 w/ Rear Coil Springs 6"

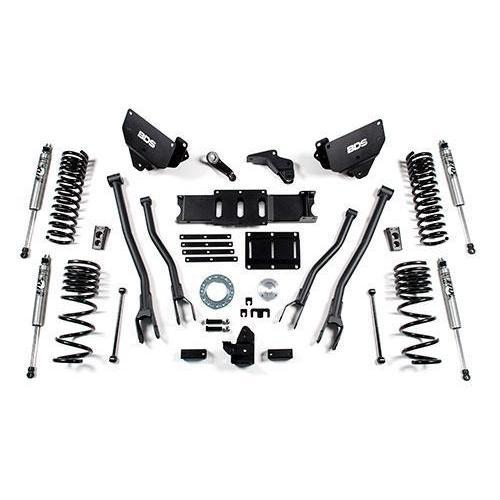

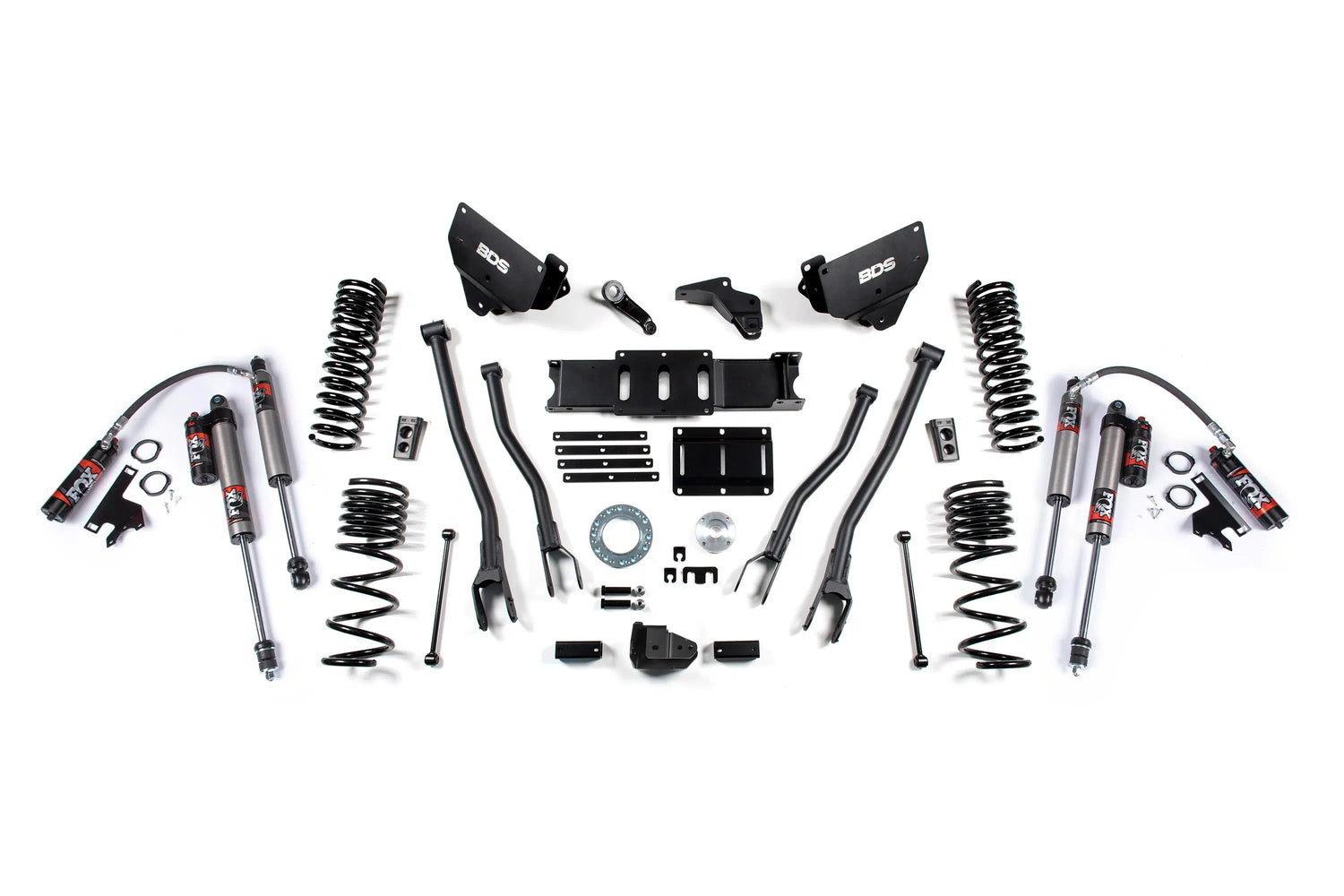

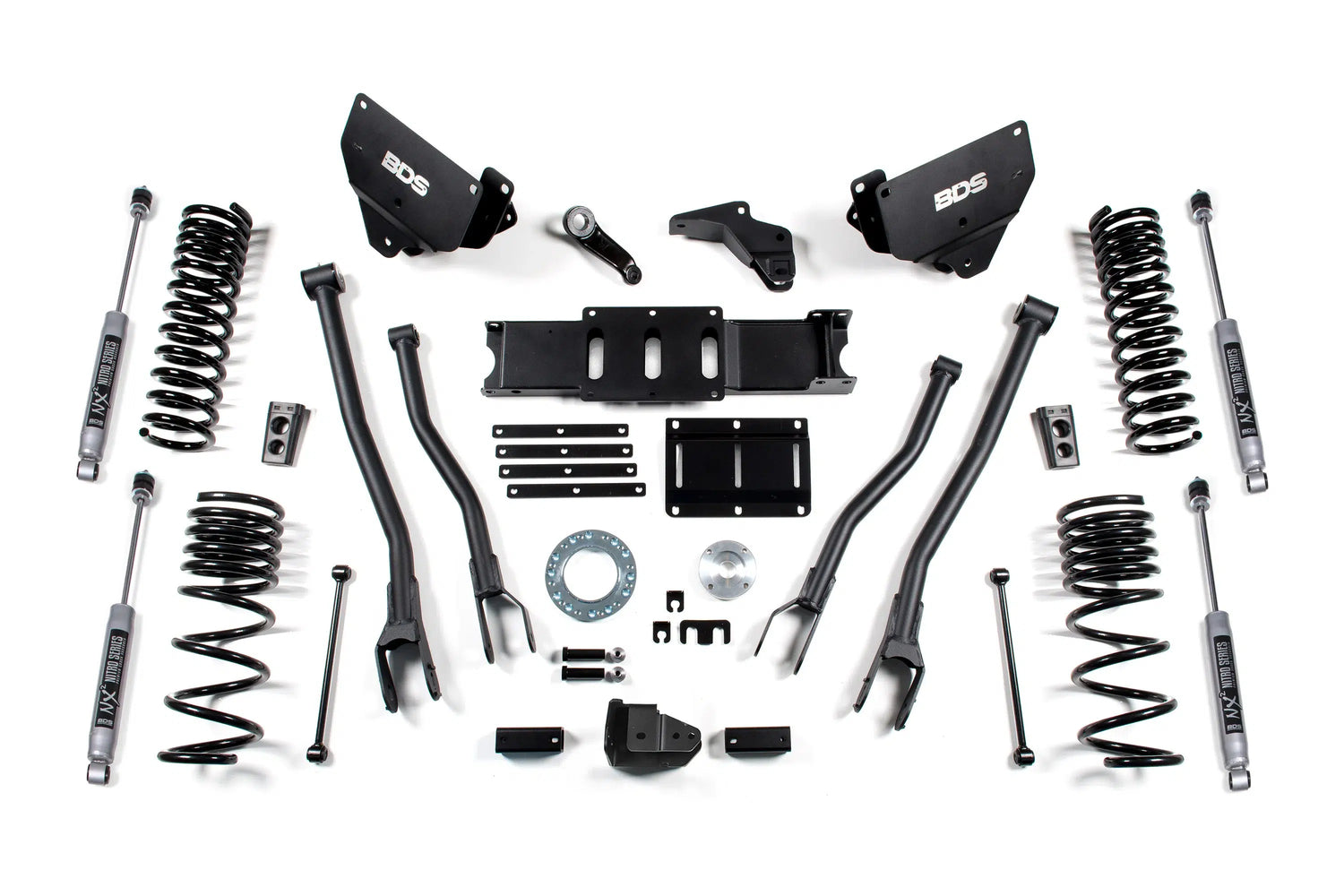

This full 4 link conversion 6" lift kit completely revamps your Cummins to handle better through it's full suspension travel and gives you greater durability to keep you on the road with increased stability, wheel travel, and improved handling across all terrains.

Part Number: BDS1604H

  • Radius arm brackets provide the strongest possible mount
  • New control arm positions at the frame creates better handling & more controlled steering feel especially in rough terrain
  • Large diameter, heavy-wall tubular control arms are formed for tire clearance
  • 4.5" progressive rate coil springs
  • Extended sway bar links
  • Axle-mounted track bar relocation bracket repositions the rear track bar & centers the axle
  • Extended sway bar links keep the rear sway bar at the optimum operating angle
  • Allows for clearance of up to 37" tires

Tire & Wheel Combinations:

  • 37x13.50 w/ 17", 18", 20"x9 and 5.625"
  • 37x12.50 w/ 17", 18", 20"x9 and 4.5"
  • Not for use with factory rear airbag suspensions
  • Fits Diesel Models Only
  • The indexing ring only fits 6 bolt transfer cases (most common). Some heavy-duty tow package vehicles could have 8-bolt transfer cases (w/heavy-duty Aisin 6 speed transmissions), order 12281
  • Although this is pictured with Fox Shocks, this kit will come equipped with BDS Shocks. If you would like fox shocks, please reach out.
  • Will not fit RAM 2500 Powerwagon models
  • Will not fit Cab and Chassis models
