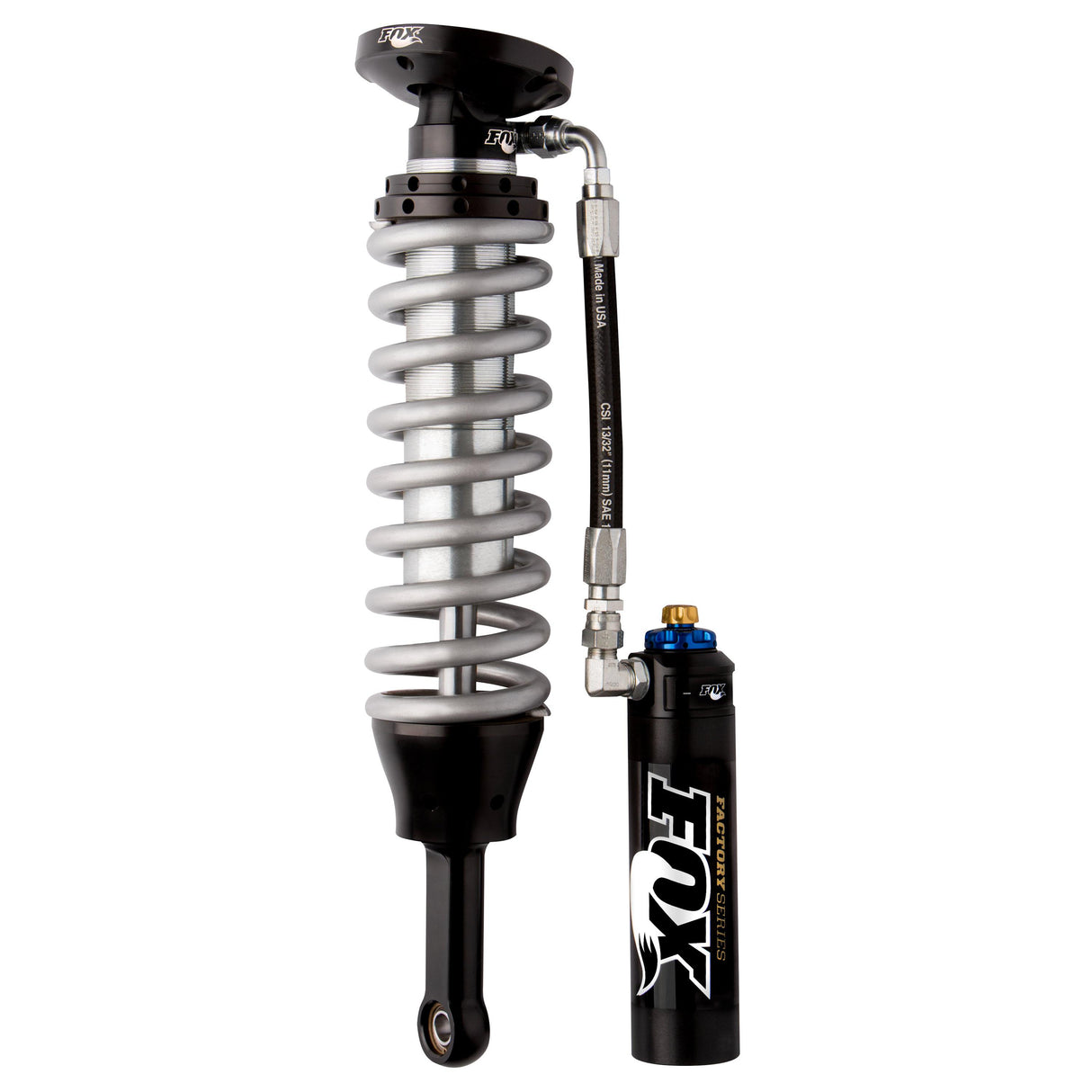

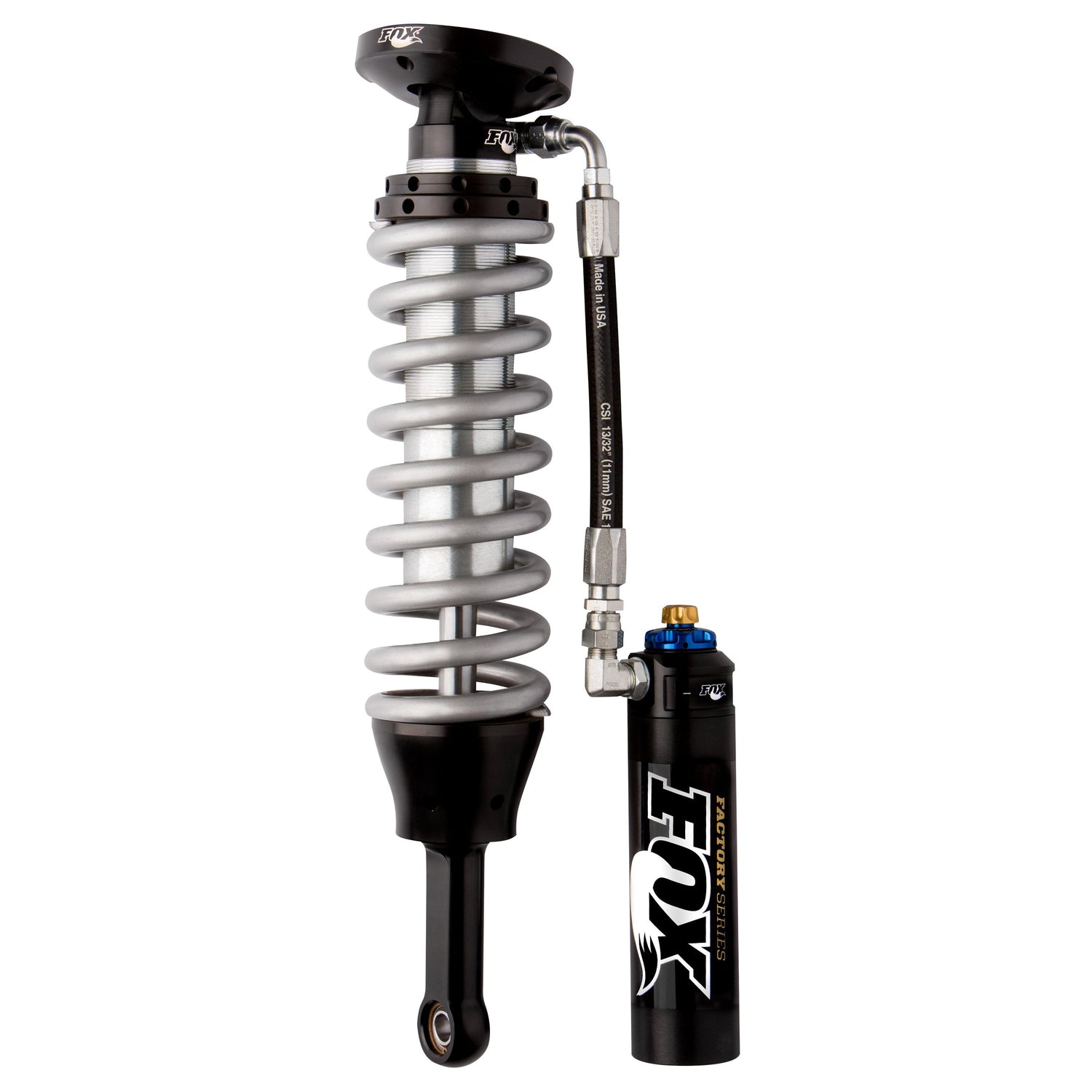

2012-2018 Ranger 2.5 Series 0-2" Lift Factory Race Front Coilover w/ DSC (883-06-093)

FOX Part Number: 883-06-093
$3,520.37 CAD

Purchase to earn 3520 Dirty Dollars Learn More

This product ships for free to most Canadian locations! Learn more

Description

Fits

Year Make Model
2012 - 2018 Ford Ranger
2012 - 2018 Ford Ranger

Note: T6 Hi Rider Models Only

These FOX Coil-over shocks provide suspension damping and suspend the weight of the vehicle. The integrated coil spring can be adjusted for preload and ride height and comes pre-set to level your vehicle right out of the box. Experience the incredible performance and precise control that Factory Series Coil-over Reservoir shocks deliver.

Part Number: 883-06-093

Features

  • Durable Zinc Plated Seamless Alloy Body
  • External Reservoir System Dissipates Heat Fast
  • Zinc-plated and double-clear coated for long lasting finish
  • 2.5" Smooth bore and honed seamless alloy Reservoir
  • Black-anodized CNC-machined 6061-T6 billet aluminum
  • 7/8" hard chrome plated steel Shafts
  • 6061-T6 hard-anodized, high flow aluminum Piston
  • Application specific Valving to maximize performance
  • Redundant sealing pack system main seal, wiper seal, scraper seal
  • PTFE-lined, heat-treated, alloy steel spherical

Specs:

  • Extended Length: 20.7"
  • Compressed Length: 15.6"
  • Top Mount: TM
  • Bottom Mount: Eylet
  • Travel: 5.1"
  • Front Lift Height: 0-2"
