2012-2014 VW Passat 2.0L TDI FlashZilla Pro Stage 1 Tune Package

This is the Stage 1 Tune Package. If you want the Stock Emissions-Off Tune Package, please click here. If you want the Stage 0.5 Tune Package, please click here. If you want the Stage 2 Tune Package, please click here. If you want the Stage 3 Tune Package, please click here.

This package includes the TuneZilla FlashZilla Pro OBD flash tool and the TuneZilla Stage 1 tune file. Already own a FlashZilla Pro, or want add-ons or a transmission tune? Order the tune file on its own and build it there.

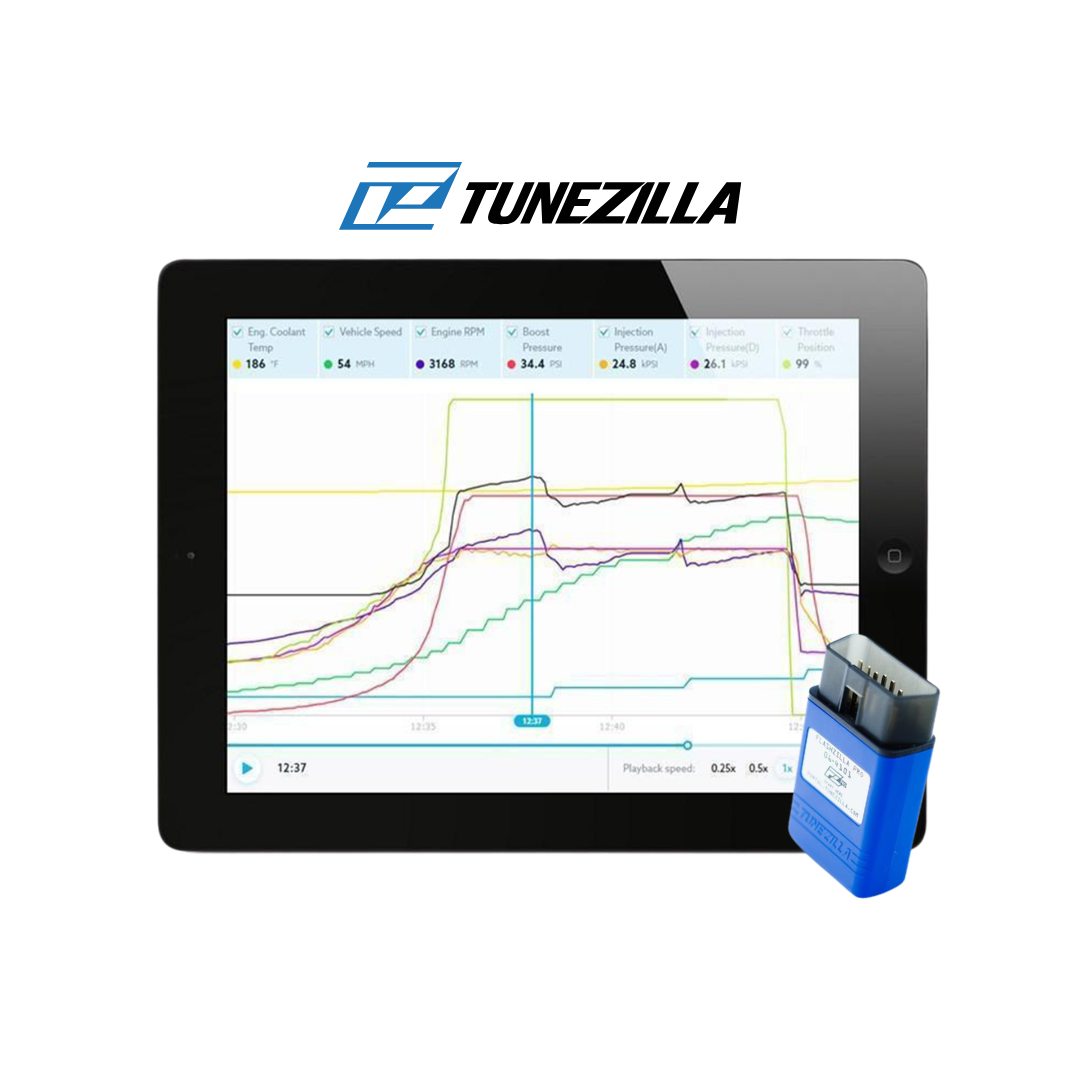

TuneZilla engine (ECU) tuning for the VW Passat 2.0L TDI CKRA, flashed at home through the OBD port with the TuneZilla FlashZilla Pro.

Part Number: CR-TDI-CKRA-001+FZPRO

Emissions-Off: included free with this tune. Select it in the TuneZilla Portal when you flash.

Computer: flashing needs a Windows 10 or 11 laptop running the TuneZilla Portal App (not included).

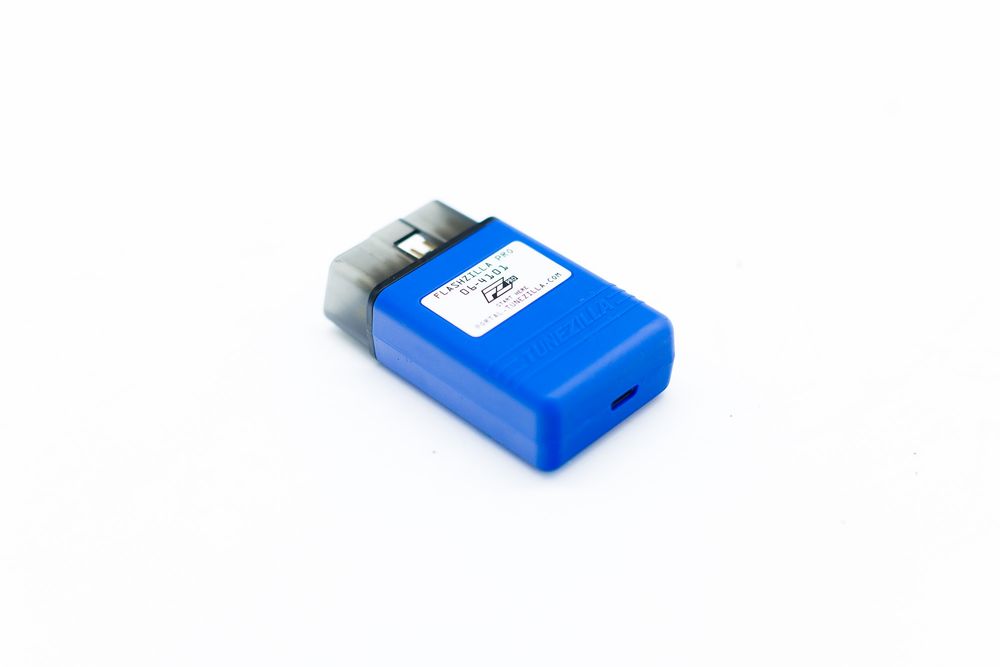

• TuneZilla FlashZilla Pro OBD Flash Tool (OBD flash tool)
• 2012-2014 VW Passat 2.0L TDI FlashZilla Stage 1 Tune File (CR-TDI-CKRA-001)

Stock baseline: 132 hp / 226 lb-ft at the wheel, Not published crank (est.)

Crank figures are TuneZilla's published estimates.

Included at no charge with this tune. Select the ones you want in the TuneZilla Portal App when you flash. Where two options cover the same part (such as the 2200 and 2700 rail pressure sensors), pick only the one you installed.

• 2200 Rail Pressure Sensor (CR-TDI-2200RPS)
• Emissions-Off (DPF, AdBlue, EGR, ASV & Swirl Flap) (CR-TDI-2L-MISC)
• Deep Idle (TDI-Deep-Idle)
• Left Foot Brake (LFBF-EDC17-2.0-3.0-TDI)

For off-road and competition use only. Not legal for use on public roads or highways. Check your province or state regulations before installing.

Already own a TuneZilla tune and want to add something later? Use the FlashZilla Tune Revision page.

No hardware upgrades are required for the Stage 1 tune. However, tune add-ons to accommodate hardware changes can be purchased. It is important to note that we do not remove factory readiness monitors or force readiness for any factory installed components. If you are installing aftermarket hardware that is for off-road use only, please double check with your state requirements prior to flashing.

• Flashed at home through the OBD port with the TuneZilla FlashZilla Pro and a Windows 10 or 11 laptop running the TuneZilla Portal App.
• Connect the FlashZilla Pro with a USB-A to USB-C cable. USB-C to USB-C cables are not compatible.
• Your tune is linked to your VIN and syncs to the TuneZilla Portal App, usually right away. Read and save your factory ECU file before flashing.
• Clear all fault codes and warning messages before flashing.
• TuneZilla recommends a battery charger for every flash. Turn the ignition on with the engine off, follow the prompts and do not interrupt the flash.

03L906012 2157, 03L906012 7444, 03L906012BM 4824, 03L906012BN 4804, 03L906012BN 5558, 03L906012BP 7445, 03L906012DD 6072, 03L906012DD 8400, 03L906012DE 6073, 03L906012DE 8401, 03L997009H 9981, 03L997009J 9978, 03L997009J 9981, 03L997009J 9982

Stage 1 is the next step up from Stage 0.5, offering increased horsepower and torque for drivers looking for even stronger performance. Designed to work seamlessly with the required TCU tune, it takes full advantage of the available torque to deliver stronger acceleration, quicker throttle response, and smooth, consistent power throughout the rev range. Whether you're merging onto the highway, passing traffic, or simply enjoying a spirited drive, the added performance is noticeable without compromising everyday comfort.

Stage 1 supports a wide range of optional tune add-ons to match your vehicle and driving preferences, and includes access to future tune revisions / updates. Every calibration is thoroughly tested and developed with long-term reliability in mind.

Flash With Ease
