2011-2026 Powerstroke Low Temp High Flow Thermostat (SPE-S100119)

Name: 2011-2026 Powerstroke Low Temp High Flow Thermostat (SPE-S100119)
Brand: SPE Motorsport
SKU: SPE-S100119
Price: 100.73 CAD
Availability: InStock

(5)

SPE Motorsport Part Number: SPE-S100119

$100.73 CAD

Purchase to earn 100 Dirty Dollars Learn More

Free shipping over $200 to most Canadian locations! Learn more

Truck Fitment

Description

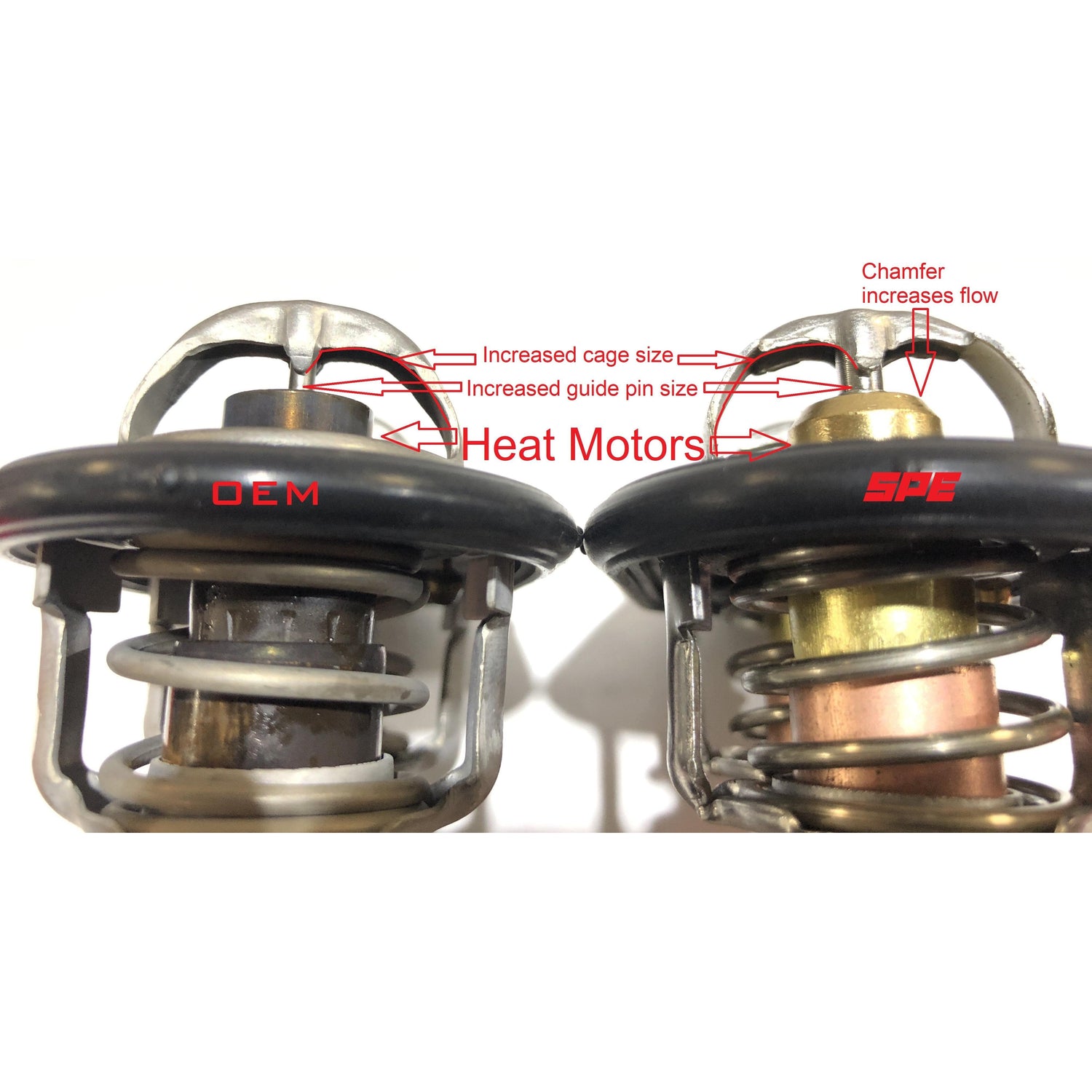

Making your truck cool is all in the details and now there’s finally a simple engineered solution for those high fluid temps on your 6.7L Powerstroke that works! If you observe abnormally high fluid temps for your oil, coolant, or transmission you might want to consider getting an upgraded thermostat. This SPE high-flow thermostat opens at 175/180°F vs. OEM opening at 194/201°F.

Part Number: SPE-S100119

Superseded Part Number: SPE-SLTHFT

Features

15-minute installation
Opens at 175/180°F— a 19-21 degree difference
Up to 30° F temp drops
Lowers coolant temp
Lowers oil temp
Lowers transmission temp on 17-19 models

ENGINE OIL TEMPERATURES UNDER DIFFERENT DRIVING CONDITIONS

	NORMAL	MODERATE	SEVERE
OEM Thermostat Temp 194-201°F	200-210 °F	220-235 °F	240-260 °F
SPE Thermostat Temp 175-180°F	180-188 °F	190-210 °F	215-235 °F

This chart is based on averages over a range of data. Results may vary.

Notes

2017-2019 Powerstrokes use the primary cooling system to cool the transmission unlike the 2011-2016 which uses the secondary cooling system.

Questions and Answers

Don't see your question? Ask us anything about this product.

Hey I was just wondering if this would affect how the heater works in the cold weather. Considering it doesn’t allow the truck to get as high in temp.

Yes, it will likely affect your heater performance, though the severity depends on just how cold your winters get.

Vehicle Fitment - Part No: SPE-S100119

Loading Fitments...

Customer Reviews

Overall rating: 3.8 / 5 from 5 reviews.

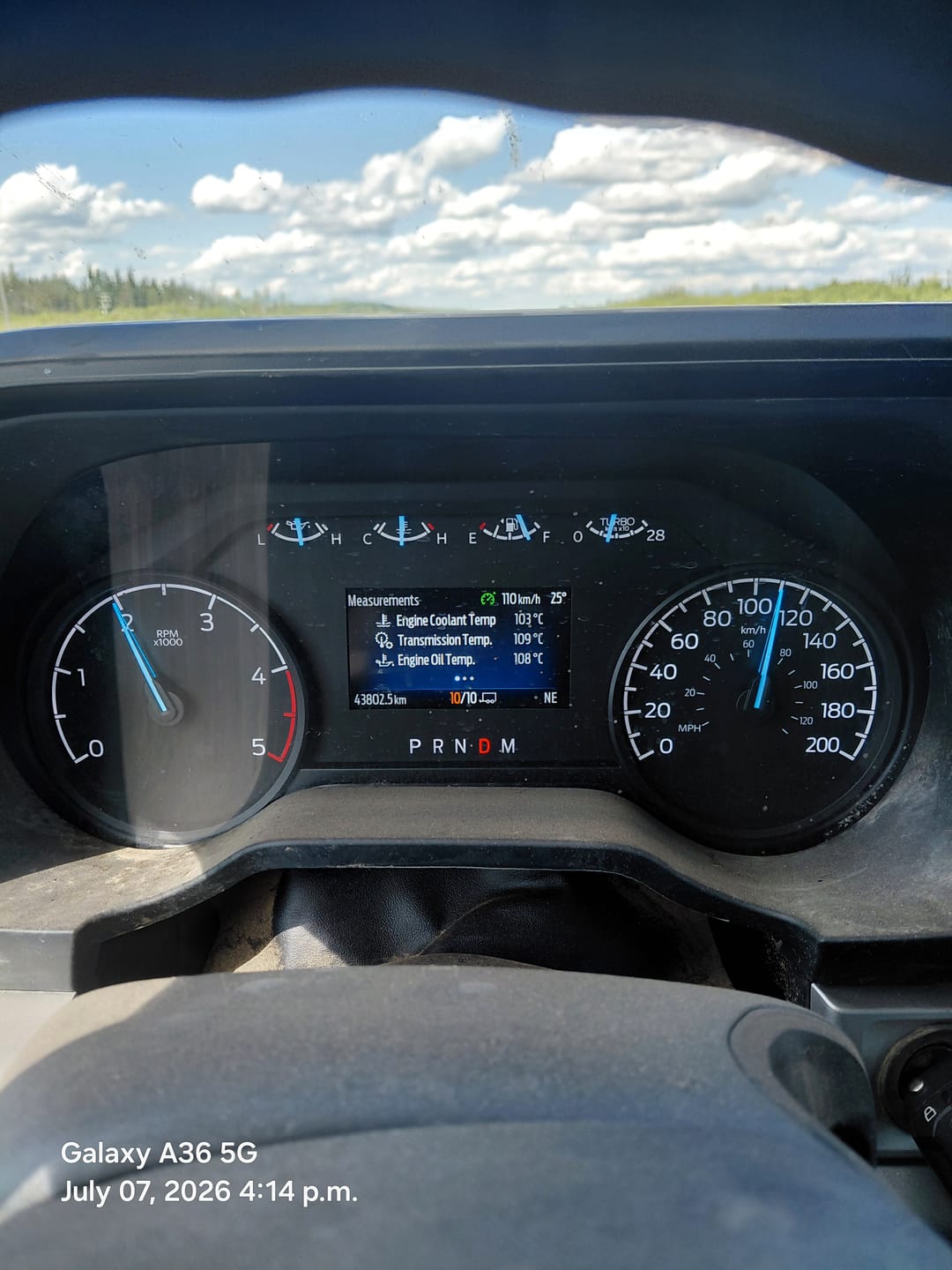

Customer photo review of 2011-2026 Powerstroke Low Temp High Flow Thermostat (SPE-S100119)

Installed on F550 Service Truck. Faster cool down, when vehicle stopped but unable to maintain coolant temperature or transmission temp at highway speeds around 110km/hr once trans temp reaches and exceeds101degrees celcius. Have to keep vehicle speed around 107km/hr. Vehicle has stock+ size tires and gvw is maxed

Conrad J. 3/5 Verified July 7, 2026

2011-2026 Powerstroke Low Temp High Flow Thermostat (SPE-S100119)

Quick shipping, product quality seems better than oem and definatley keeps the 6.7 ford running cooler.

Joey K. 5/5 Verified March 27, 2026

2011-2024 Powerstroke Low Temp High Flow Thermostat (SPE-S100119)

SPE thermostat install was straight forward and temperatures are now 8 degrees lower than previous OEM equipment. It was just above freezing for this observation ,so this summer towing will be the true test.

Glenn B. 5/5 Verified March 9, 2026

2011-2024 Powerstroke Low Temp High Flow Thermostat (SPE-S100119)

Easy install

Shane P. 5/5 Verified September 14, 2026

2011-2026 Powerstroke Low Temp High Flow Thermostat (SPE-S100119)

This thermostat lasted a few months untill it stuck open. The truck was down for a few days and I had to buy an oem ford stat to replace it to get the truck up running. I also had to pay the labour to replace the stat again. I dont recommend this product. Warranty takes a few weeks but they did send me a new one.

Joey K. 1/5 Verified August 11, 2026

2011-2026 Powerstroke Low Temp High Flow Thermostat (SPE-S100119)
