2011-2022 Powerstroke Cold Side Pipe (SPE-S100100)

Fits

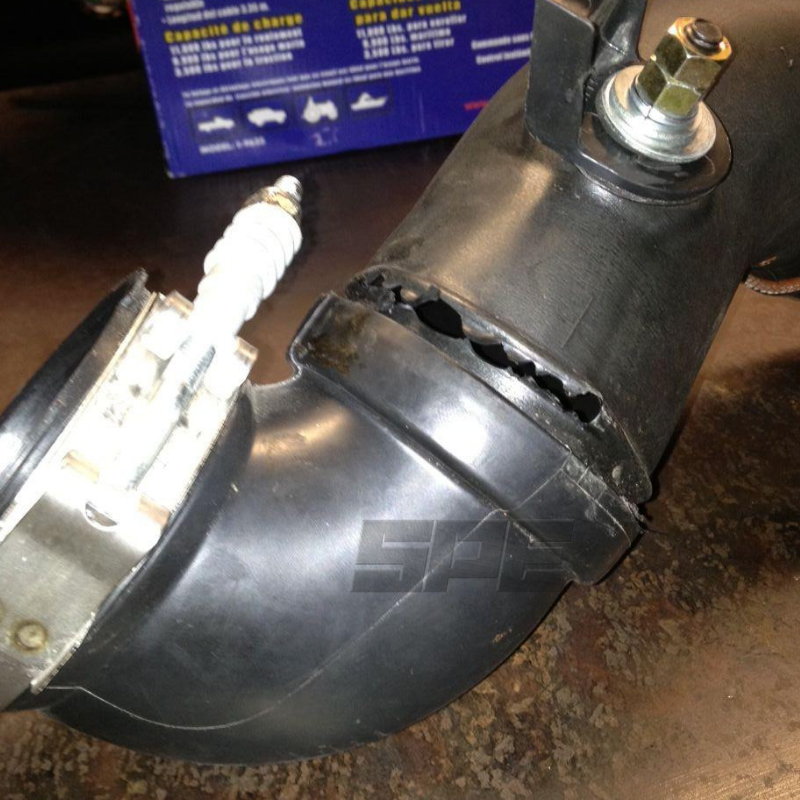

It's no secret that OEM boots tend to explode or burst under high boost and heat, SPE's solution; is a billet anodized aluminum throttle adapter with 3 reference ports and a 5-ply silicone hose coupler. The throttle body adapter retains the factory air intake valve thus allowing you to retain your truck's factory emissions components and making for an effortless install and effectively increasing reliability, durability, and performance.

Part Number: SPE-S100100

Superseded Part Number: SPE-CSP1116

• Simple instructions that even an amateur can follow
• Includes a billet anodized throttle body adapter and flexible 5-ply silicone coupler boot.
• Integrated Reference Ports give you the ability to read boost references or use them for injectables with no drilling required
• Designed to work with factory & tuned vehicles

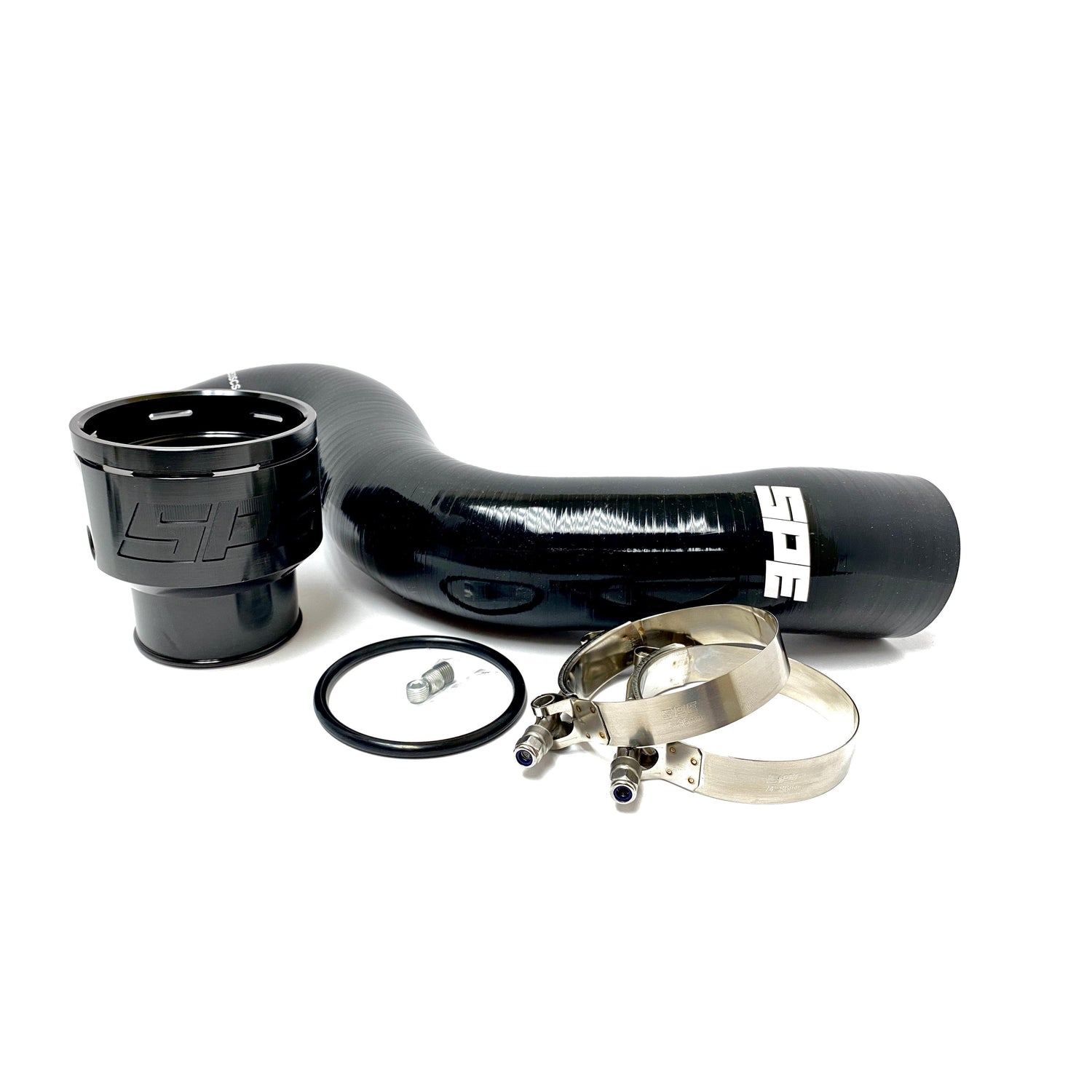

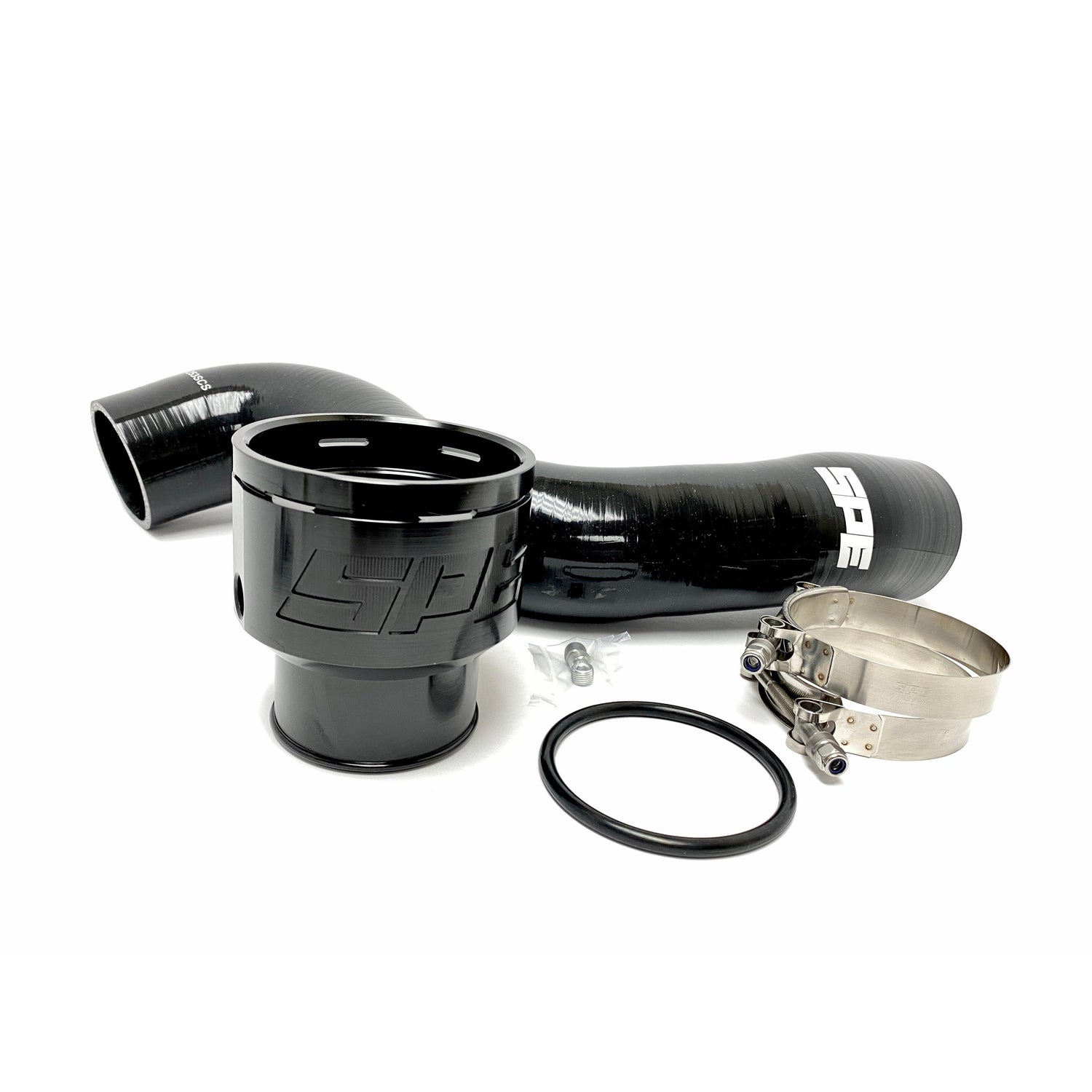

Includes:

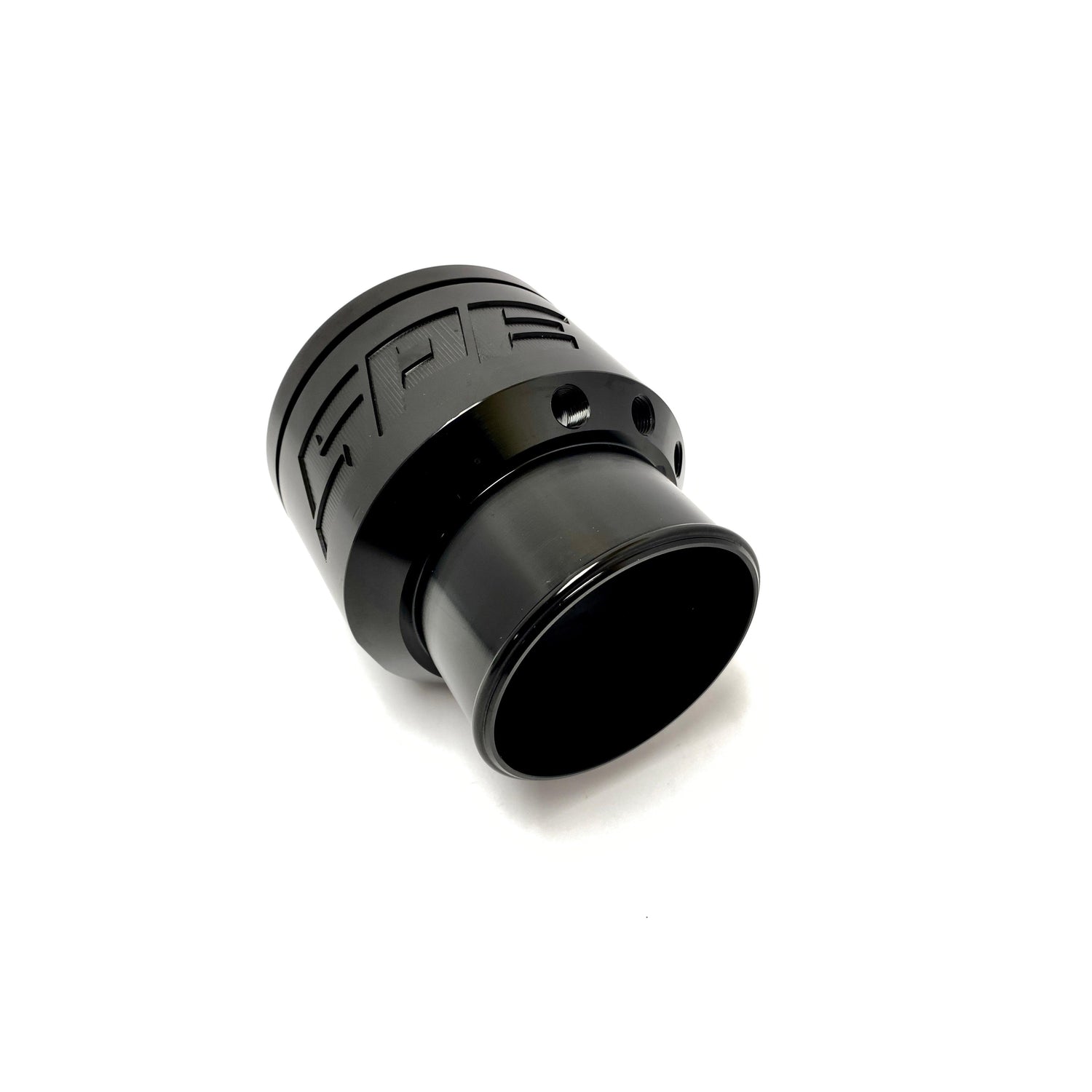

• SPE designed billet aluminum throttle body adapter

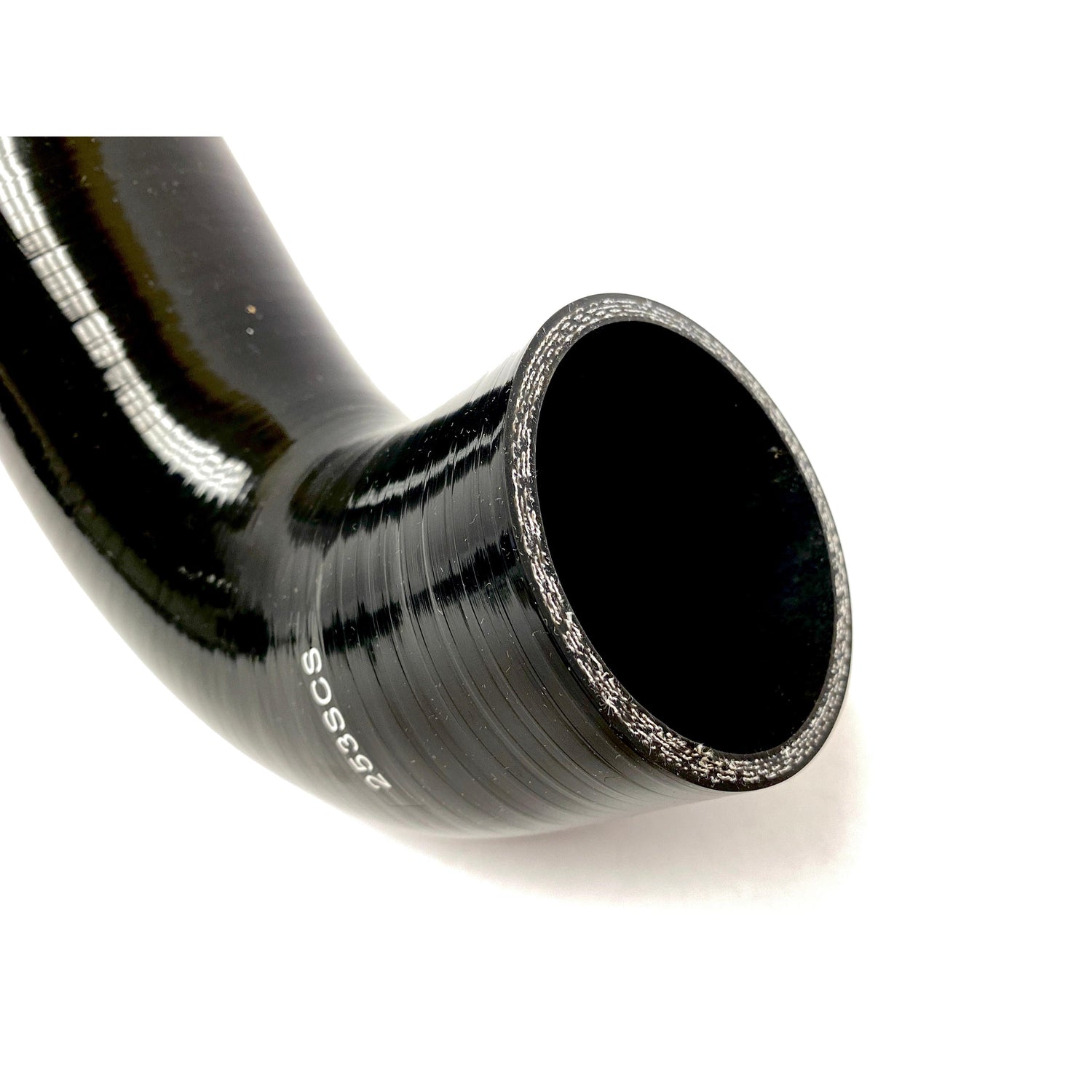

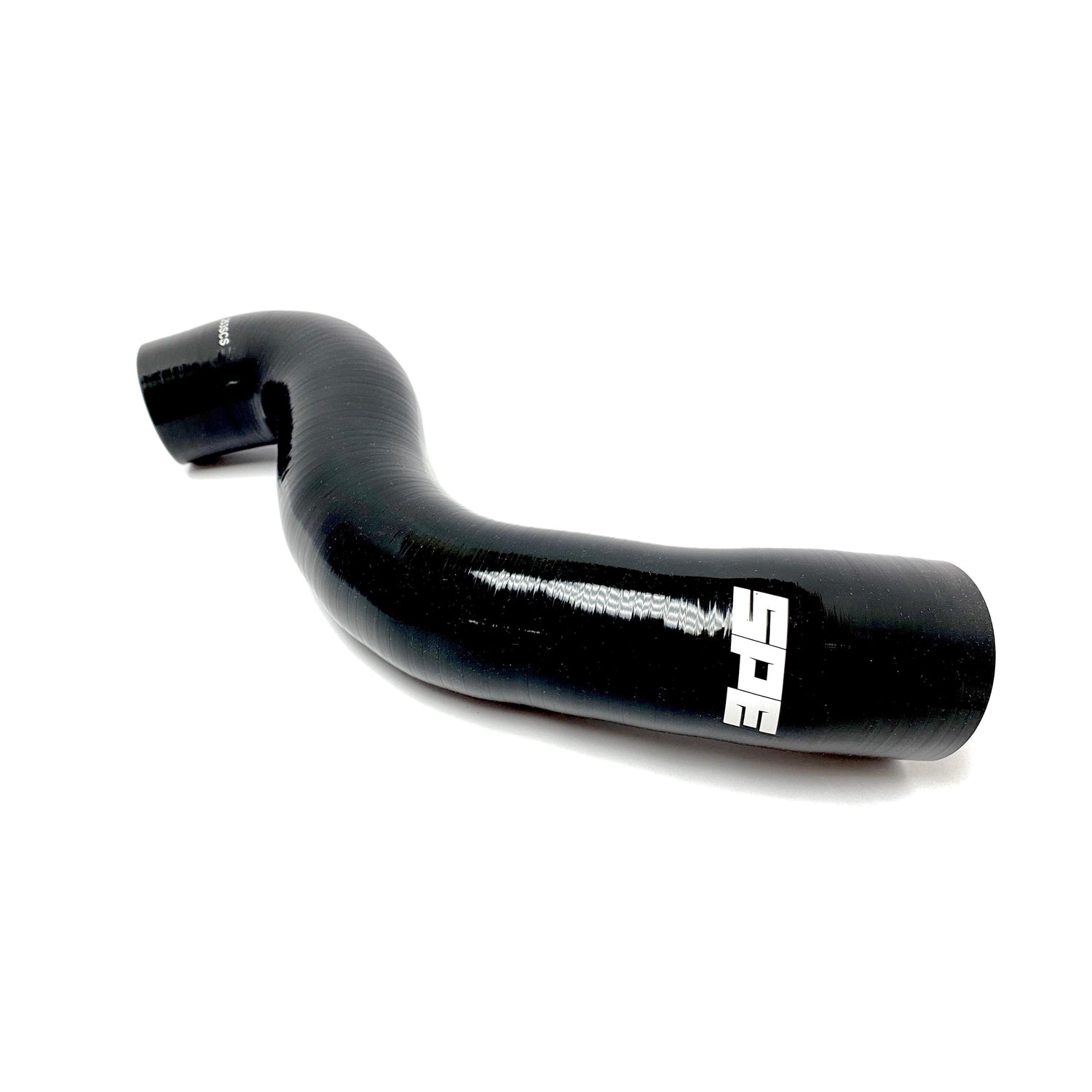

• Silicone hose coupler
• O-Ring

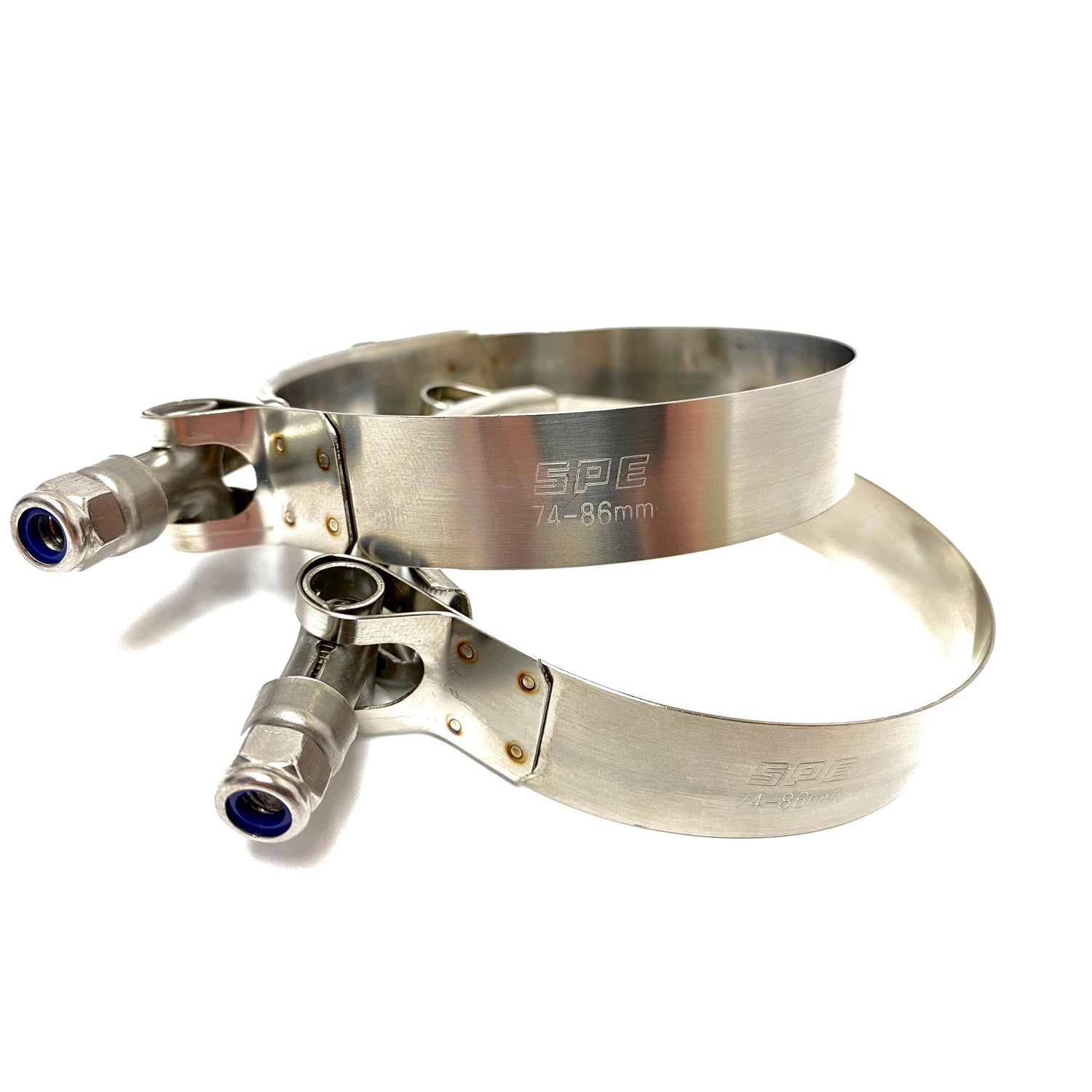

• T-Bolt Clamps (2)
• NPT Plugs (3)
• Installation Instructions

NEXT LEVEL DESIGN

SPE has taken the 6.7L Powerstroke cold side pipe to the next level. SPE based the design on the FACTORY 2017+ 6.7 cold side intercooler pipe. This is to give the customer more options and a better quality product over the factory unit. The main change is material selection. The throttle body is now billet aluminum instead of the factory composite, a 5-ply silicone-based hose rather than the factory rubber and an increase in diameter going up to 3” from the factory 2.5” (on the 17+ models).

SPE has also found a need for injectable and reference ports, adding these allows the customer to install water/methanol injection nozzles, boost reference (for example a gauge), or nitrous all while not having to drill anything on the truck. The port angles are also the optimal angle for injectables.

• If you're using an aftermarket intercooler, measure your intercooler outlet. MOST are 3". If that is the case and you have a 17-22 Powerstroke you'll need to choose the 11-16 kit to have the correct size hose.
