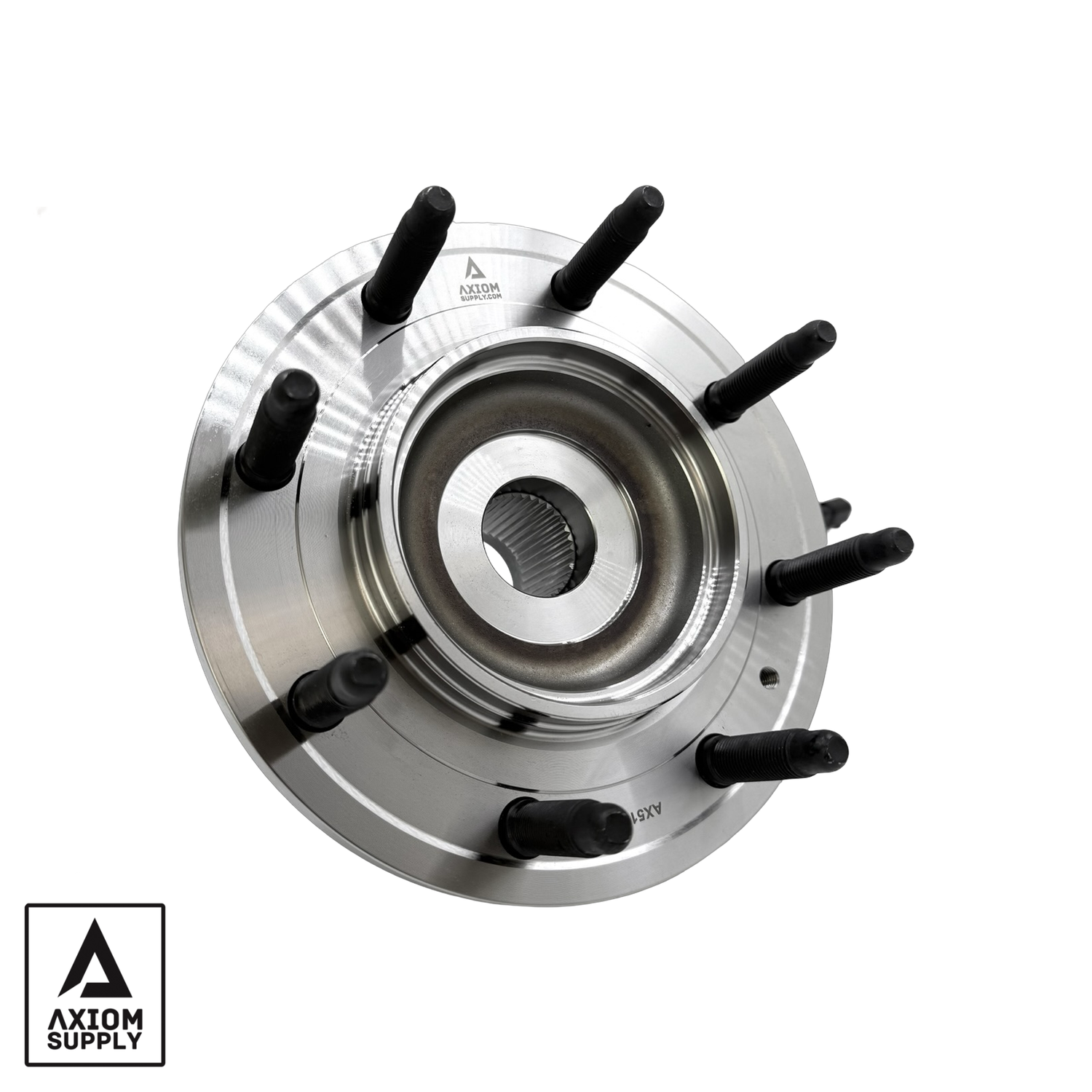

2011-2019 Duramax HD Wheel Bearing Assembly (AX515145)

The Axiom Supply wheel bearing assembly is a complete bolt-in hub unit built for heavy-duty 2011-2019 Duramax HD trucks. A proprietary bearing and hub structure reduces hub-face deflection under load for tighter steering, improved braking stability, and added durability when towing, running oversized tires, or a lifted setup. Each unit fits both left and right spindles and installs in roughly two hours with no modifications.

• Precision tapered roller bearings packed with high-performance grease for smooth, maintenance-free operation
• Grade 10.9 cold-formed, zinc-plated studs for high tensile strength and corrosion resistance
• Durable ABS sensor built to hold an accurate signal in heat, mud, and moisture
• Versatile rolled inner spindle compatible with both 2WD and 4WD systems
• Configuration: 8x180 M14-1.50 lug studs

(1) Wheel bearing & hub assembly with integrated ABS wire

• Axle nut: 177 lb-ft
• Spindle bolts: 133 lb-ft
• Caliper bracket bolts: 221 lb-ft

Timken SP620303, AC Delco 84199397 / 84964448, SKF BR930824, Moog 515145, Mevotech MB50308 / G50308, GSP 106145, FAG 102237, Axiom AX515145

Axiom No-Nonsense Lifetime Warranty: Axiom steering and suspension components are warrantied for life to the original purchaser against any manufacturer defects, premature wear, or breakage. Race it, jump it, off-road it, lift it—if you can break it, we will replace it. Axiom products must be purchased from an authorized dealer.
