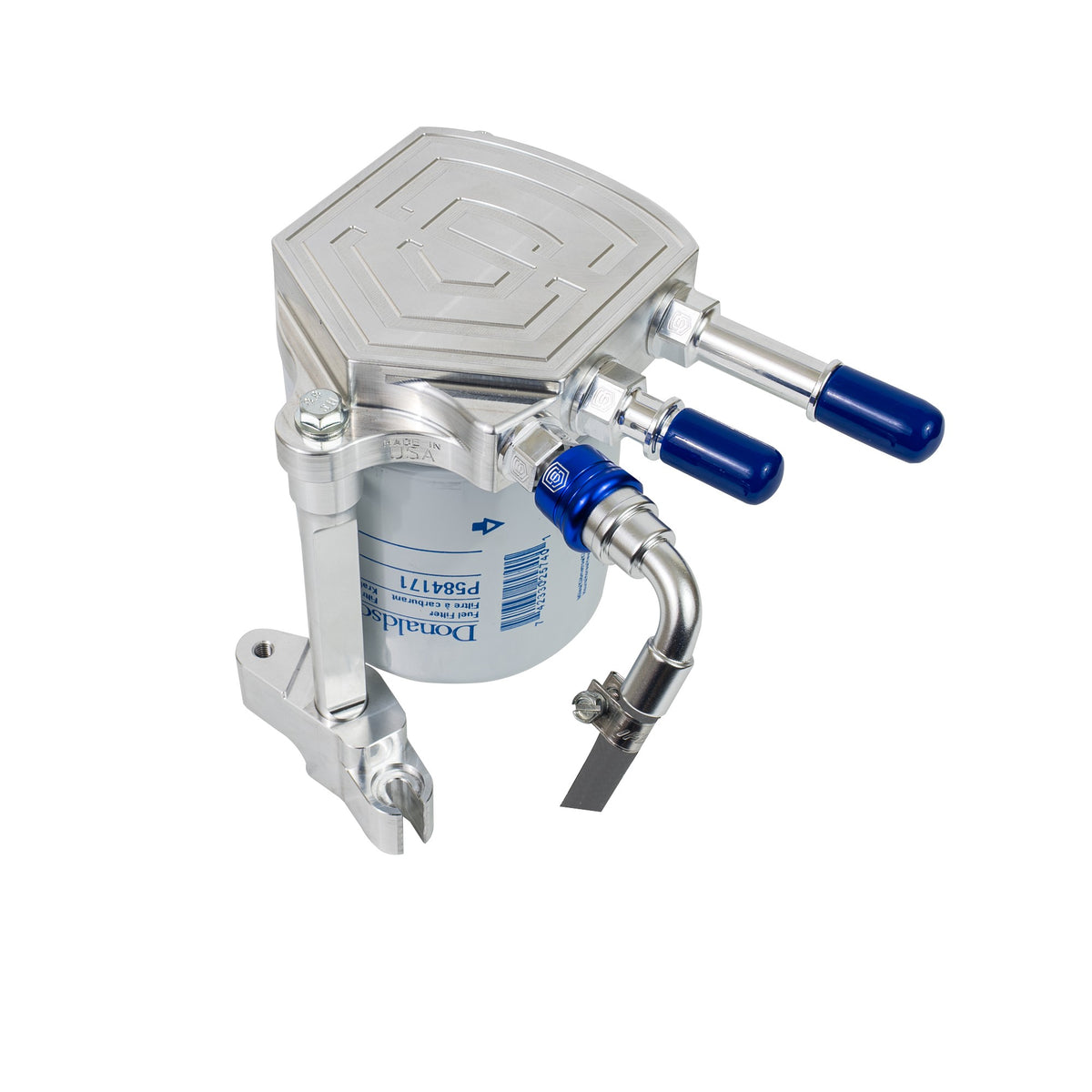

2011-2016 Powerstroke Fuel Leak Prevention Kit (6.7F11-LPK)

The S&S Diesel Motorsport Fuel Leak Prevention Kit replaces the crack prone plastic engine mounted fuel filter housing on your 6.7L Power Stroke with a precision machined billet aluminum housing. Ford's filtration is not the problem, the plastic's durability is, so S&S fixed the housing without compromising the filter. Rather than reuse the factory filter cup, the kit uses a two post mount that accepts a larger Donaldson spin on filter, holding the factory 4 micron absolute rating at 99% efficiency while nearly doubling dirt holding capacity. The brittle plastic injector return fitting is the other common leak point on these trucks, so an aluminum Fuel Leak Prevention Fitting comes standard with every kit.

Part Number: 6.7F11-LPK

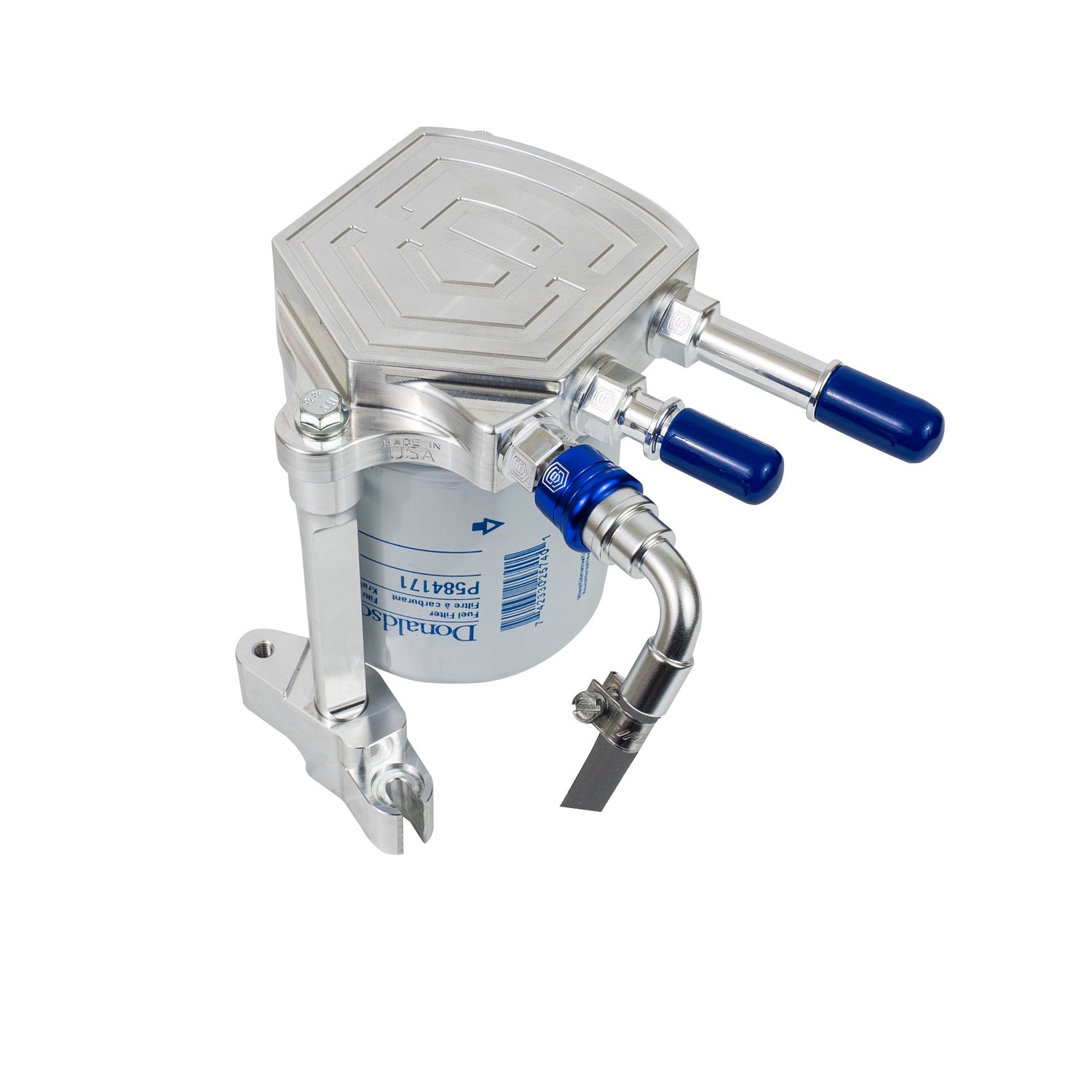

• Billet aluminum engine mounted fuel filter housing

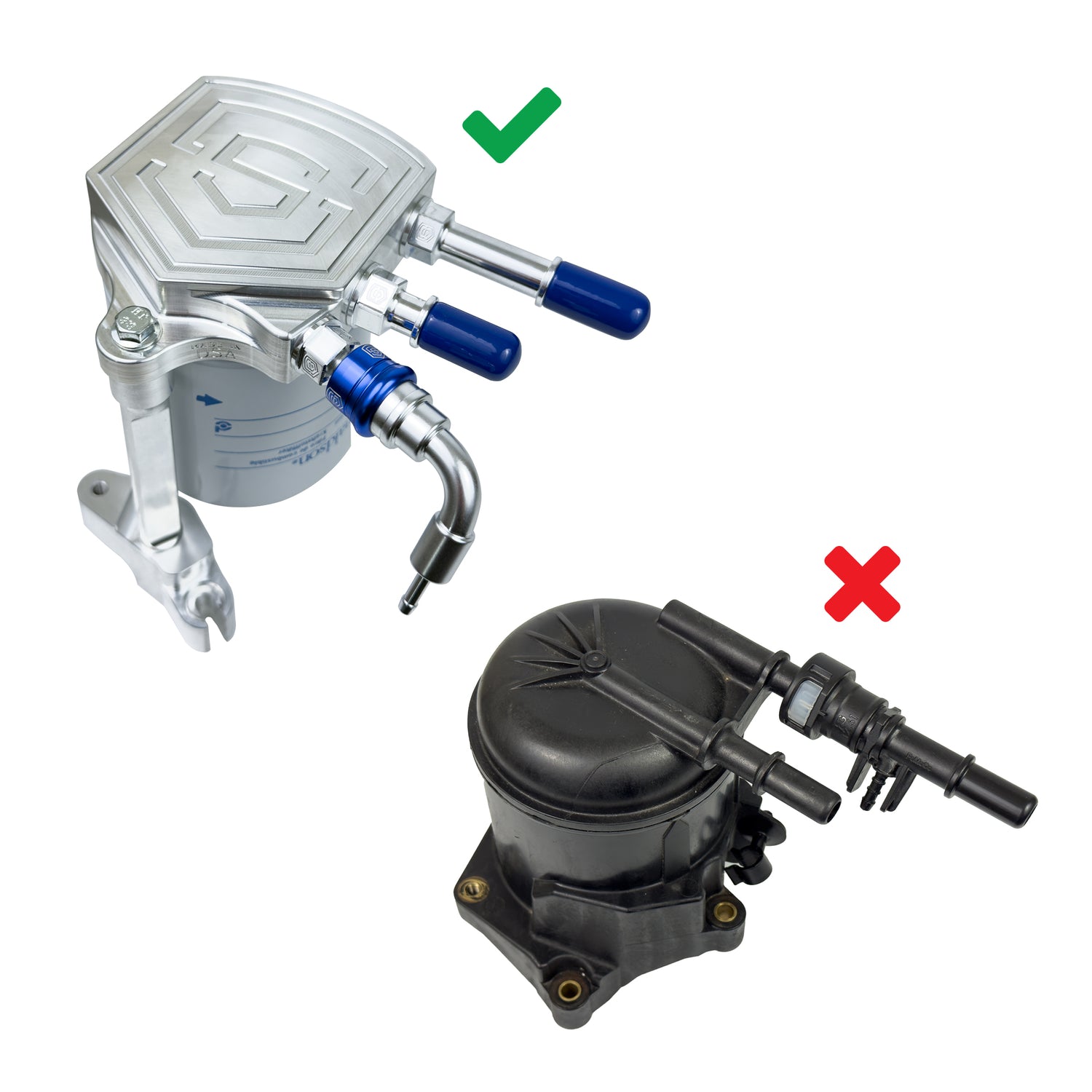

• Replaces the crack prone plastic OEM filter housing
• Two post mount accepts a larger filter than the OEM cup
• Donaldson spin on fuel filter, 4 micron absolute at 99% efficiency
• Exceeds OEM dirt holding capacity, 23 grams versus 12 grams stock
• Aluminum Fuel Leak Prevention Fitting replaces the brittle plastic OEM injector return fitting
• Pairs with the S&S Disaster Prevention Kit, the DCR Pump Conversion, or a completely stock fuel system
• Made in the USA

• Billet aluminum engine mounted fuel filter housing
• Donaldson spin on fuel filter (P584171)
• Aluminum Fuel Leak Prevention Fitting for the injector return

• Does not include a chassis mounted fuel filter. Choose the Fuel Leak Prevention Kit Plus if you want both filters refreshed in one kit.
• Replacement filters are sold as the 2011-2016 LPK Replacement Fuel Filter Kit (6.7F11-LPK-FK).
