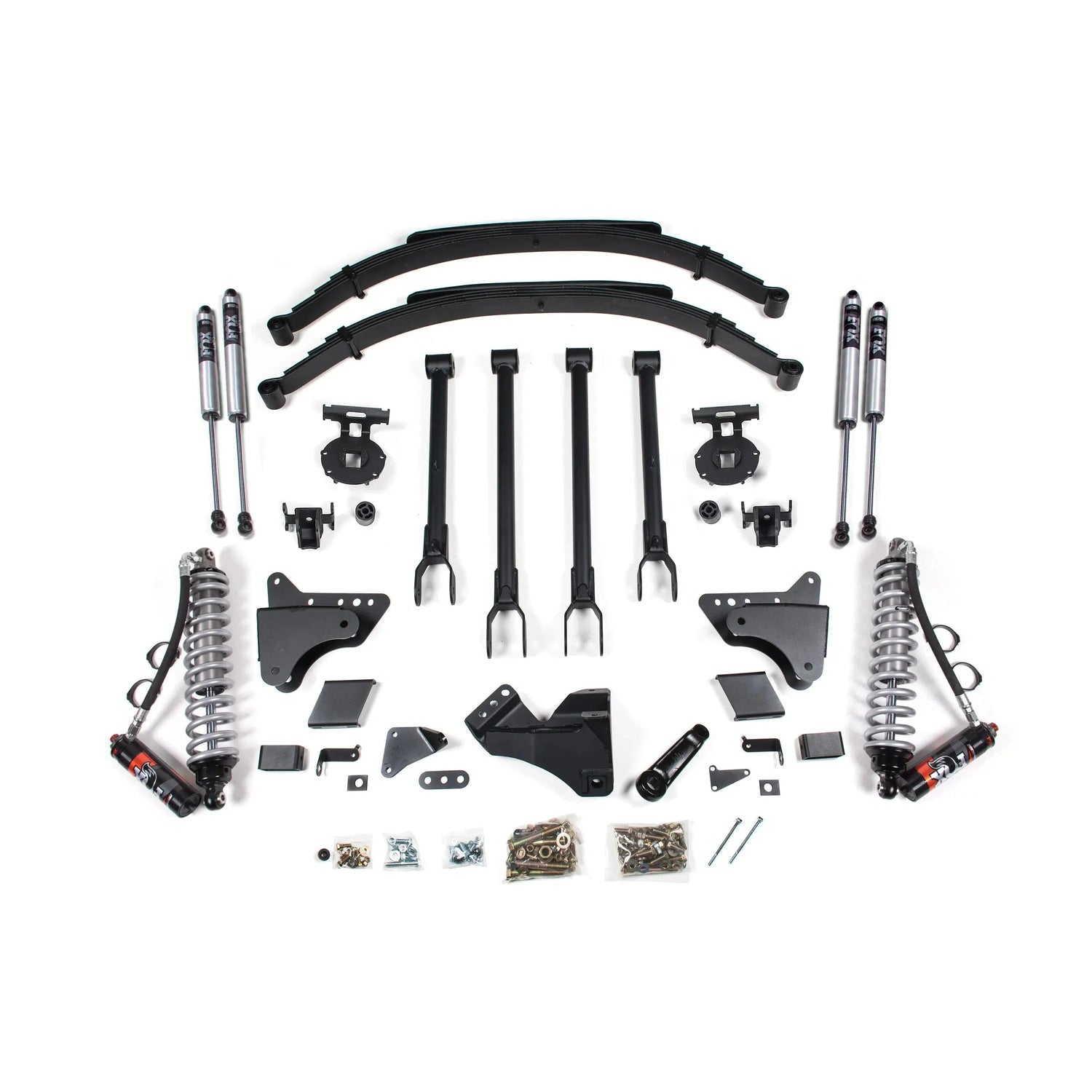

2011-2016 Powerstroke 8" 4-Link Lift Kit Coilover Conversion (BDS1500FPE)

BDS Part Number: BDS1500FPE
$10,483.83 CAD

Notices
This item may have additional freight costs. Learn more
Product images may differ from exact product.

Purchase to earn 10483 Dirty Dollars Learn More

Description

Fits

Year Make Model
2020-2022 Ford F-Series 6.7L Powerstroke



Click here to Customize this Kit

Crank your Powerstrokes suspension and handling up to 11 with the BDS 8" 4-Link lift kit and coilover conversion, this kit has everything you need to safely and properly lift your truck effectively improving your stance and off-road capabilities without compromising ride quality. And with Fox 2.5 Elite Series coilovers; your truck can handle any abuse you throw at it, on, or off-road.

Part Number: BDS1500FPE

Features

  • FOX 2.5 Coil-Over mounts in factory coil bucket location
  • Adds additional secondary FOX 2.0 shock for max performance
  • Eibach coil springs ride smooth through the roughest terrain
  • Heavy duty 4-Link control arms offer improved handling, stability, strength and caster control during wheel travel
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Glideride leaf springs to provide full lift height and increased capacity with a built in overload spring
  • FOX shocks are fully serviceable and resistant to corrosion and harsh environments.

Tire Fitment:

  • 38 x 15.5 with 17 x 9 and 4.5 in. Backspace
  • 38 x 15.5 with 18 x 9 and 4.5 in. Backspace
  • 38 x 15.5 with 20 x 10 and 4.5 in. Backspace

Notes

  • Exhaust modification may be required to clear the front driveshaft (gas only)
  • Front bumper spacer kit may be required to run 38"x15.50" tires
  • Although extremely rare, front driveline vibration may occur
  • If equipped with 2-piece rear driveshaft, a driveshaft alignment kit (#123406) will be required
  • Front driveshaft u-joints may max out at full droop. If so, a new front shaft will be required.
  • If equipped with a rear sway bar, #123009 is required.
  • U-bolts will not work on dually.
  • Front auxiliary shocks can be omitted from kit - the system can be used with C/O installed alone
