2011-2016 Powerstroke 4" 4-Link Coilover Lift Kit (BDS590F)-Lift Kit-BDS-BDS590F-Dirty Diesel Customs

2011-2016 Powerstroke 4" 4-Link Coilover Lift Kit (BDS590F)

BDS

Part Number: BDS590F

Mfr Part Number:

Sale price$6,781.62 CAD

(show all inventory)
Available at alternate warehouse - contact for price
This is a special order item, please allow for additional processing time. If you would like an ETA, please reach out prior to placing your order.
Quantity:
This item may have additional freight costs. Learn more
Product images may differ from exact product.
Description

Click here to customize this Kit

Fits

Year Make Model Type
2011-2016 Ford F250/F350 Super Duty 4WD Diesel



This is one of the greatest lift kits available for your Powerstroke, by converting the front of your truck to a 4-Link suspension setup along with Fox 2.0 Coilovers it means you'll have one of the greatest systems available. This system uses a pair of precision-tuned Fox 2.5 factory series remote reservoir Coilovers for superior dampening capabilities and fade-free performance.

Part Number: BDS590F

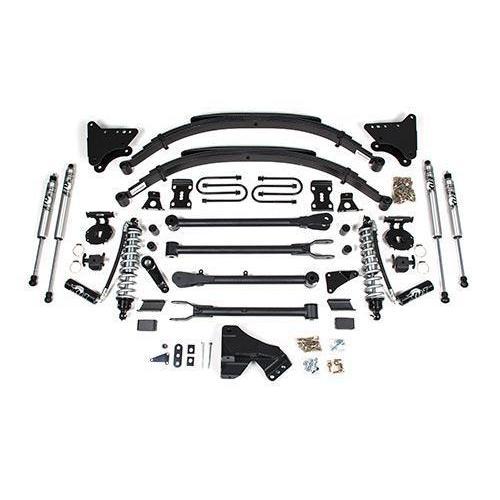

Features
  • Brake Line Relocation Brackets
  • Front Bump Stop Extensions
  • Sway Bar Drops
  • Forged Drop Pitman Arm
  • Track Bar Relocation Bracket
  • 5" Rear Block kit
  • Tubular control arms built from 2" OD x .250" wall tubing with large greaseable bushings
  • HD 1/4" thick steel frame-mounted 4-link brackets
  • 4" 4-Link Conversion
  • Fox 2.0 Series Shocks
  • Fox 2.5 Series Coilovers
  • Clears 35's

Tire & Wheel Combinations:

  • 35" x 12.50" w/ 17 x 9 and 4.5"
  • 35" x 12.50" w/ 18 x 9 and 4.5"
  • 35" x 12.50" w/ 20 x 9 and 4.5"
Notes
  • Removal of factory block required. Rear add a leaf is required for models equipped with factory 3-7/8" block for the level to tail high stance. Single add-a-leaf kit # 113218 recommended for more level stance - Dual add-a-leaf kit # 113209 recommended for tail high stance. (Add-A-Leafs do not apply to rear leaf spring equipped systems).
  • If equipped with a 2-piece driveshaft, a driveshaft alignment kit (#123402) may be required.
  • Although extremely rare, front and/or rear driveline vibration may occur.
  • If equipped with a rear sway bar, #123009 is required.
  • U-bolts will not work on dually.
Installation
