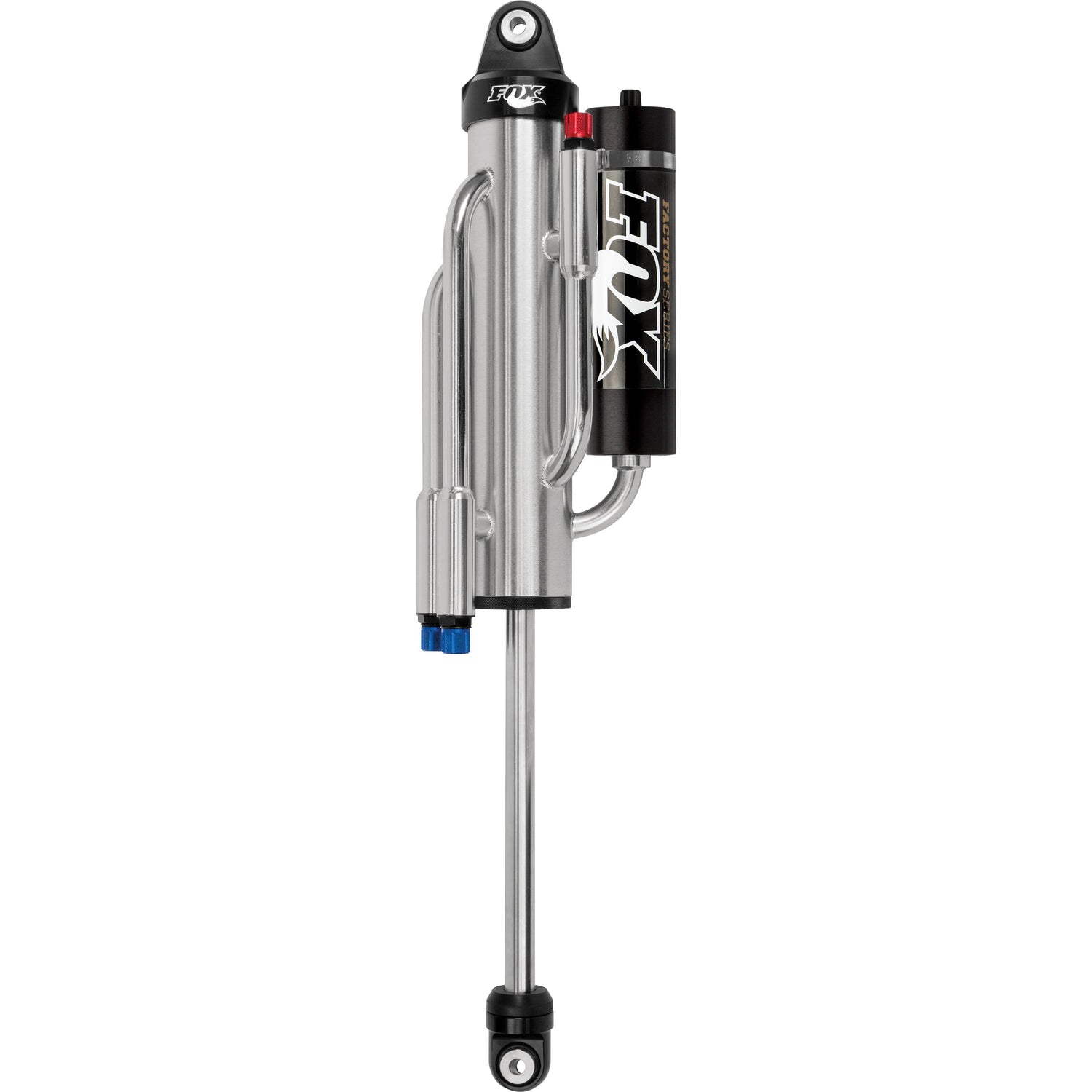

2010-2014 Raptor 3.0 Race Series 0-1" Lift External Bypass Rear Coilover (883-09-047)

Fits

These Factory Race Series 3.0 External Bypass, position-sensitive shocks maximize the entire wheel Travel, increase oil capacity, and add 60% more damping area over the stock FOX SVT shocks.

The Factory Series 3.0 Bypass shocks were developed with three independently owner-tunable bypass zones for complete ride control regardless of terrain conditions. They allow for a plush predictable ride over normal off-road driving conditions and can ramp up damping force for extreme use.

HD steel-bodied shocks are loaded with anodized billet aluminum components and race-bred internal valves and are designed to bolt right onto your factory mounts.

Part Number: 883-09-047

• Performance Tuned For Vehicle Specific Application
• Durable Zinc Plated Seamless Alloy Body,
• Quick Adjust Bypass Knobs For Easy Adjustments
• External Reservoir System Dissipates Heat Fast
• Zinc-plated for long lasting finish
• 2.5" Smooth bore and honed seamless alloy Reservoir
• Black-anodized CNC-machined 6061-T6 billet aluminum
• 7/8" 17-4 H900 stainless steel hard-chrome plated
• 6061-T6 hard-anodized, high flow aluminum Piston
• Application specific Valving to maximize performance
• Redundant sealing pack system main seal, wiper seal, scraper seal High-temperature Viton Seals
• PTFE-lined, heat-treated, alloy steel spherical bearings

Specs:

• Extended Length: 29.35"
• Compressed Length: 17.93"
• Top Mount: Eyelet
• Bottom Mount: Eyelet
• Travel: 11.42"
• Rear Lift Height: 0-1"
