2009-2025 Ram 1500 Alpha HD Pro S Air Suspension Kit (HP10337-J-S)

Fits

Note: Will NOT fit TRX or RHO models or vehicles /Will NOT fit vehicles with factory air suspension

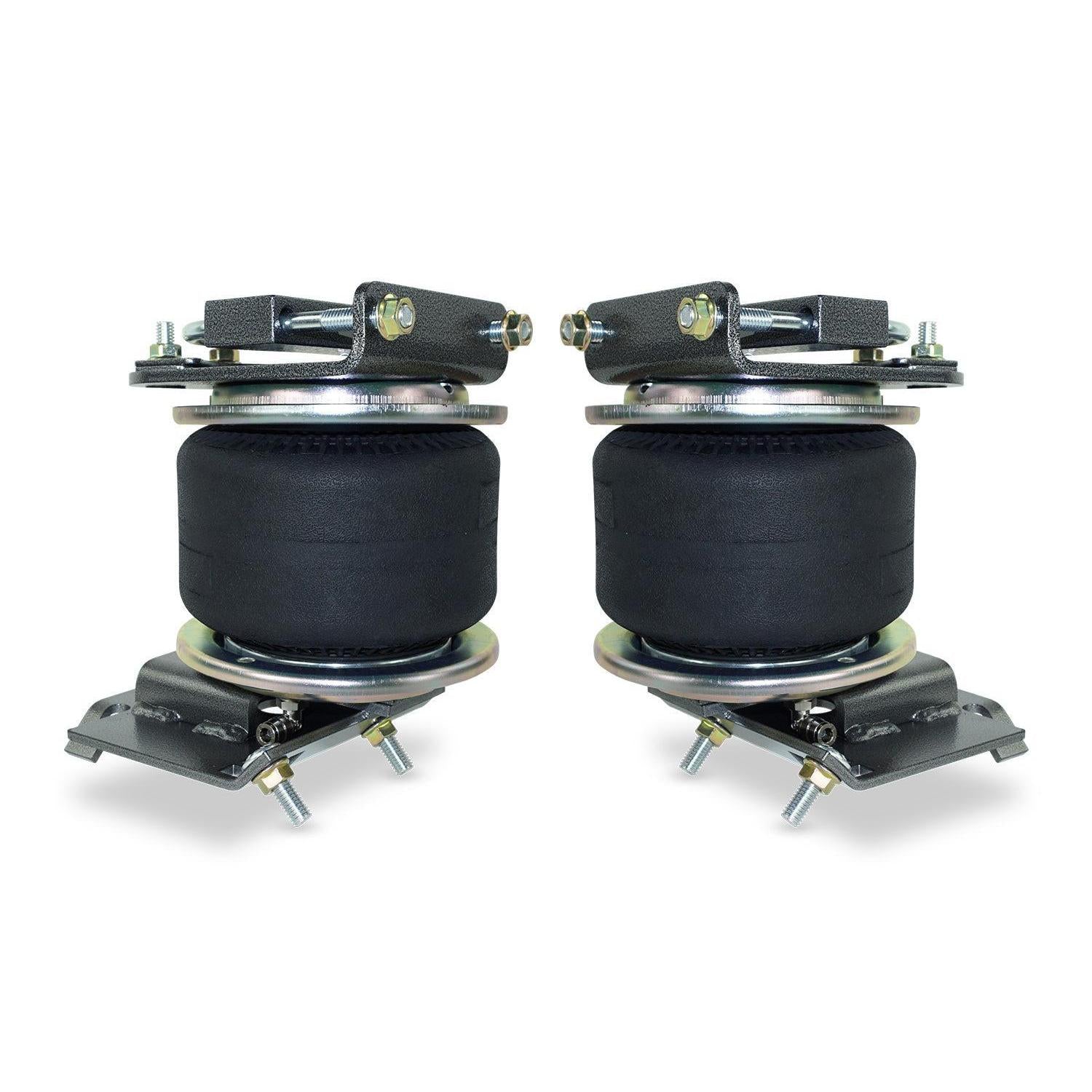

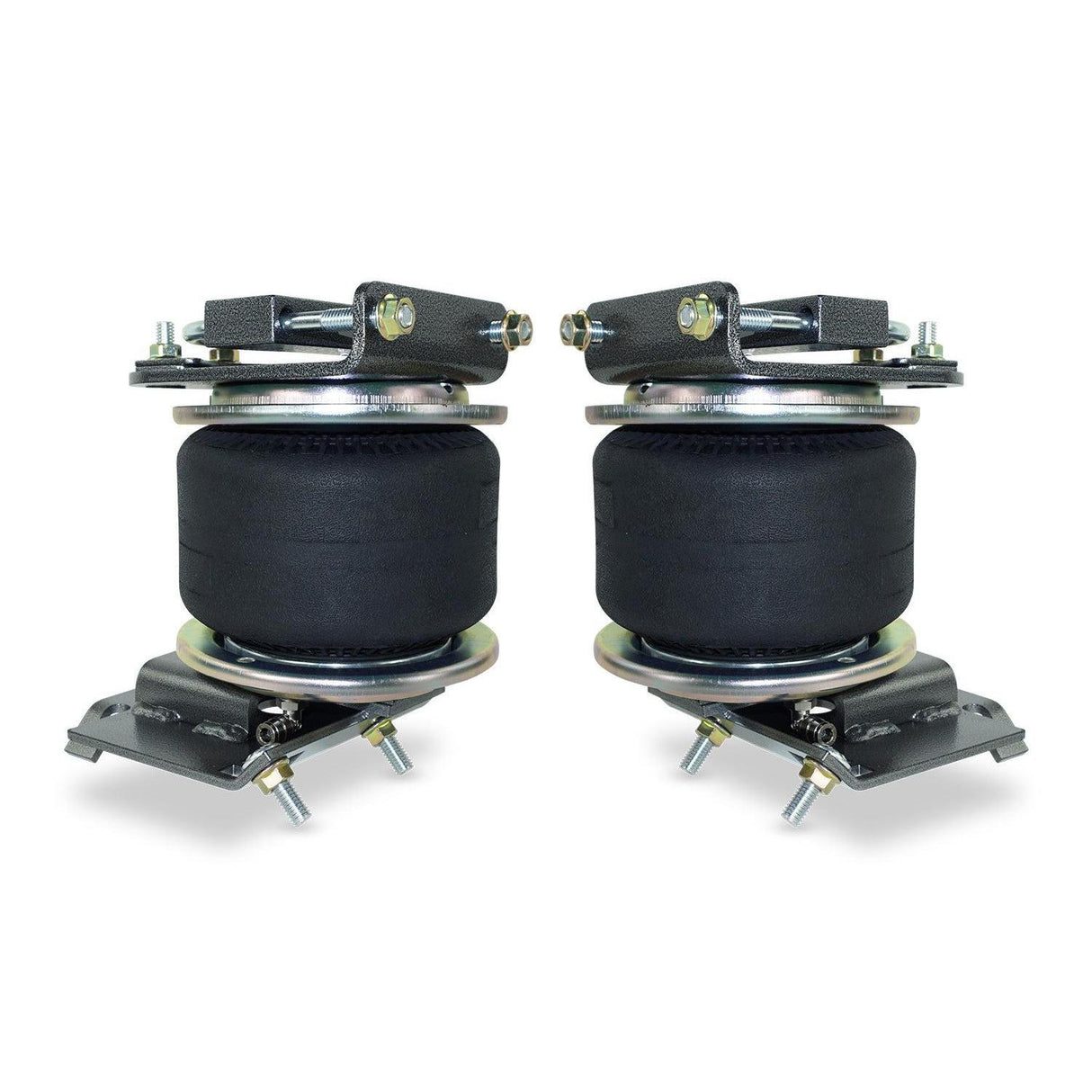

The ALPHA HD PRO S air suspension kit for 2009-2025 Ram 1500 trucks eliminates sag, sway, and bottoming out. It includes stainless steel hardware, corrosion-resistant end caps, 20 support wires, and a polyurethane internal bumper to protect against damage. This kit offers durable support and the option to run without air when not towing, enhancing ride comfort and reliability.

Part Number: HP10337-J-S

• 5,000 lbs of load leveling capacity
• 2-hour install time
• Lifetime warranty
• Can be run at 0 psi

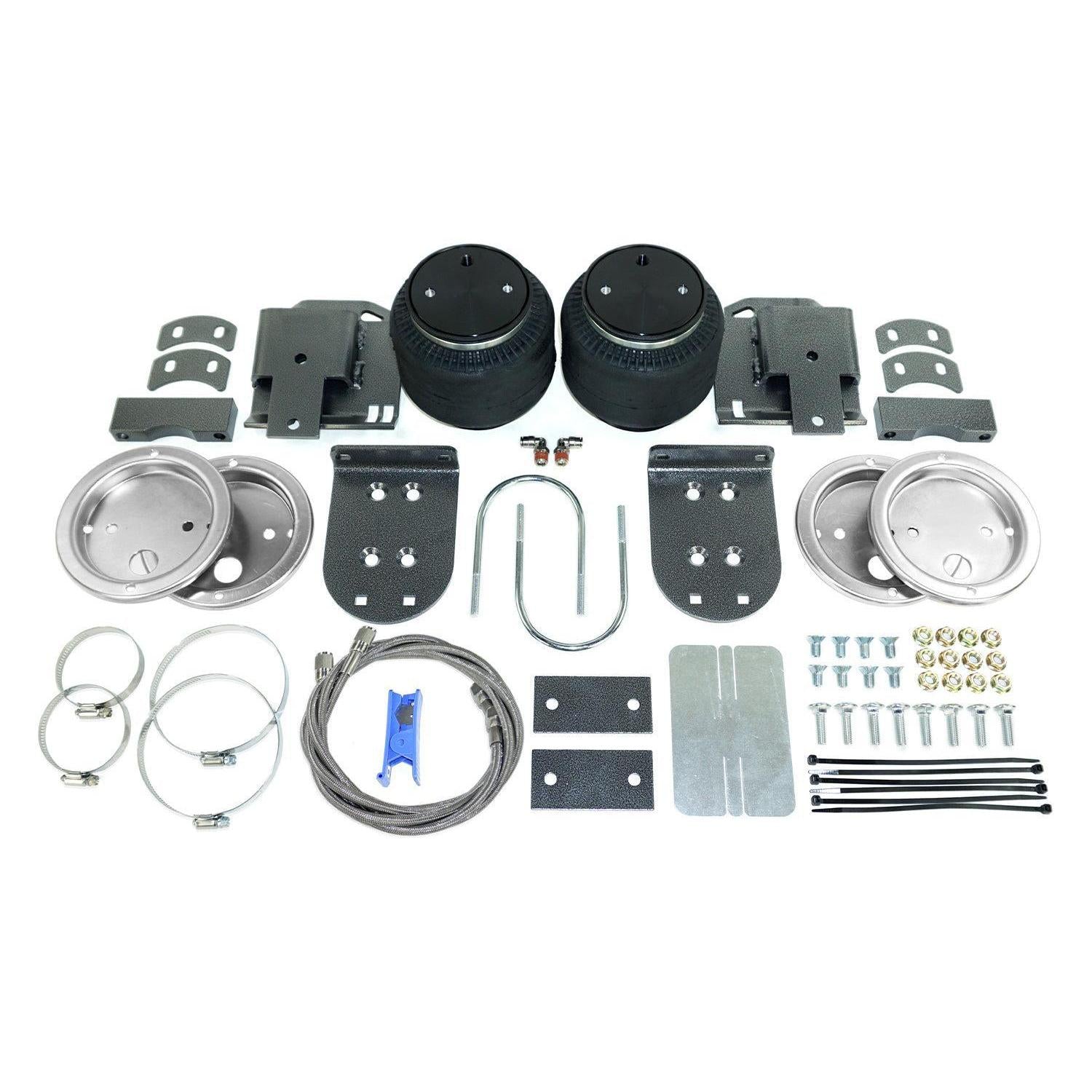

Includes:

• 6ft Braided Stainless Steel Air Lines
• Stainless Steel Air Spring Fittings
• Stainless Steel Air Spring Mounting Hardware
• Stainless Steel Schrader Valves
• Stainless Steel Roll Plates
• Two Air Springs
• Everything required for install

• 2-Hours
• Stainless Steel Hardware
• Click Here
• Application Guide

• Never exceed manufacturer's recommended Gross Vehicle Weight Rating.

Why Pacbrake added a bump stop to their bags?

Peace of mind. Customers want a bump stop to prevent bottoming out from loss of air bag pressure, an extremely rare event that could damage the air bags or potentially the frame of the truck. Think of it as an "insurance policy" against bottoming out.

An additional benefit is that you can run these air bags at 0 psi when unloaded for superior ride comfort.

Are bump stops necessary?

No! For those that require max travel in their air bags, to raise and lower their rear end to pickup trailers or boats, or for those that take their trucks off-roading, air bags without bump stops are recommended. Consider the HP10337 ALPHA HD air bag.

Parts Only

• Click Here
