2009-2017 Ford 6R80 HD Deep Cast Transmission Pan ( 328051100)
Description
Description
Fits
| Year | Make | Transmission |
| 2009-2017 | Ford |
6R80 Transmission |

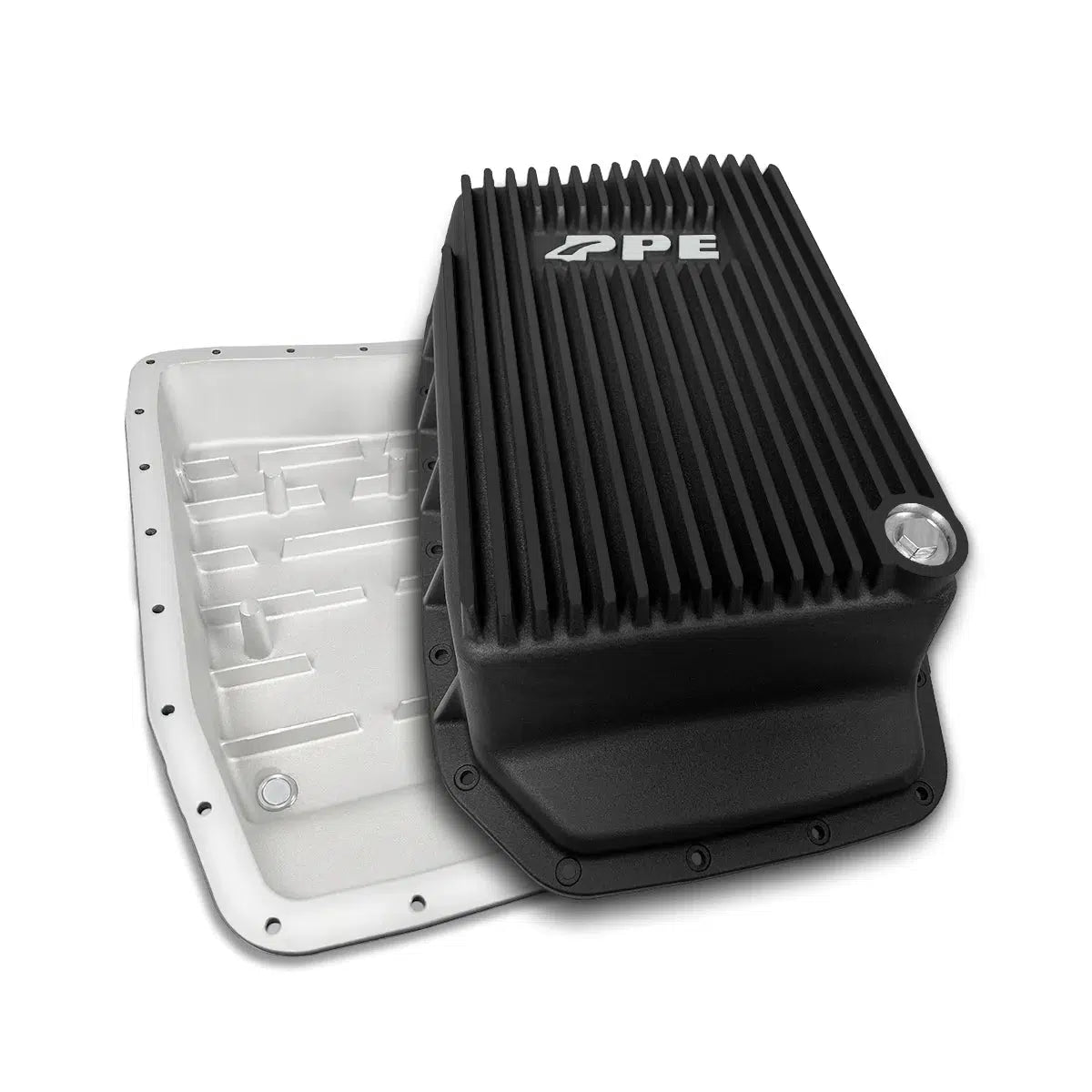

Holding an extra 4.25 quarts of fluid, is cast from high-quality A356.0-T6 aluminum alloy for strength and optimum heat dissipation, & a flat bottom design for complete fluid drain; this deep transmission pan features cast external fins & internal baffles that increase surface area while reducing fluid temp. While the gussets provide strength and support; for an overall robust transmission pan.
Part Number: 328051100
Features
Features
- Deep design increases fluid capacity by 4.25 quarts
- .75" external fins improve heat dissipation, lower transmission fluid temperature, and increase strength
- .75’’ internal baffles increase heat dissipation and reduce fluid sloshing
- Internal posts support trans filter at stock location
- One-inch Neodymium magnet equipped with 304 stainless steel drain plug with Viton O-ring
- 1/8" NPT port for optional fluid temperature monitoring sensor
- Compatible with OEM gasket and filter
Questions and Answers
Questions and Answers
Previously asked questions
We've compiled a list of questions and answers below.
Don't see your question? Ask us anything about this product.
Ask a Question-
Will this fit a 2017 f 150 with a 5.0 V8 and 6r80 transmission?
Unfortunately the PPE 328051100 will likely not fit your specific truck. While that pan is designed for the 6R80 transmission, there is a known clearance issue specifically with the 2015–2017 F-150 with the 5.0L engine.
-
Will this oil pan fit a 2011 ford expedition with the 6R80 transmission
Yes.
