2009-2014 VW/Audi 2.0L TDI FlashZilla Tune File

TuneZilla
$718.56 CAD
Power Level

The Details

* Asterisks indicate a required selection.

VIN # *

Vehicle Identification Number

Transmission Type

Is your Truck Stock, Modified, or Upgraded?

Please list all modifications on your truck

Build Your Kit

Build your Stock Emissions-Off tune: add any add-ons you want, then the FlashZilla Pro if you need one.

Dynamic Idle

Optional

Speed up engine-warm up with a 1,100 RPM (or another RPM of your choice) idle. The idle will return to stock state (approximately 830RPM) by 70C (158F) coolant temperature. Results may vary. Example Idle RPM vs. coolant temperature progress chart below: Most factory ECUs actually already has Dynamic Idle, especially at higher elevation or very cold temperatures. We typically do not set a higher idle RPM etc. than the maximum that's set by the factory. An engine that gets warmer sooner means that you get interior heat sooner (more comfort during cold weather) and reach optimal efficiency (fuel economy) sooner. If you want a permanently raised idle (e.g. 950-1000 RPM) to reduce vibrations, especially with a stiffer aftermarket engine mount, then we also can do that.

Glow Plug Extension

Optional

Increases glow plug strength and duration if it's cold enough. Improves cold starting performance (reduced chance of startup smoke and reduced engine stumbling).

Launch Control (Manual Only)

Optional

Launch control for manual transmission only. This limits the RPM to typically 2,500 while the vehicle is not moving. Do not select this tune if the vehicle has a DSG transmission - launch control can be obtained in a DSG tune instead.

Hardcut Rev Limiter

Optional

This tune option is for people who want an aggressive Rev Limiter either in neutral or at the top of the rev range in Drive or Sport for DSG's and any gear for manuals while driving. It is mechanically hard on the vehicle and can be set to any custom RPM you prefer - We do not recommend exceeding 4600RPM - *We do not offer refunds for this tuning feature!*

Manual Transmission Conversion

Optional

Reflash your transmission using factory software after swapping to a manual transmission. ECU will need to be recoded separately using VCDS to complete the process, make note of the current transmission coding before you flash the ECU.

High Pressure Fuel Pump Upgrade

Optional

Pick the calibration that matches your fuel pump upgrade. Only one can be used. Only required if you swap to a CP3 fuel pump . This requires custom tuning work for best results. We will not add this to other brand tunes. For use when using the upgraded CP4 metering valve from Darkside Developments

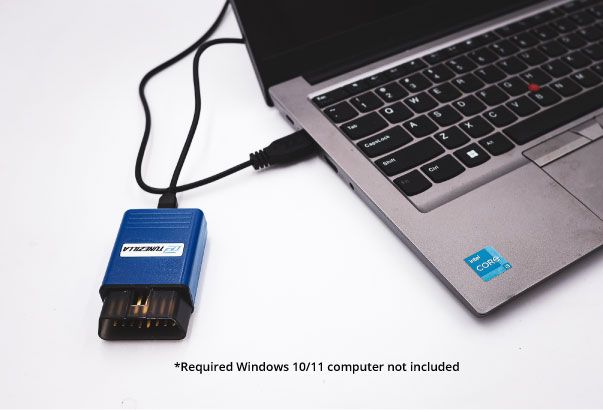

FlashZilla Pro

Optional

Every TuneZilla tune is flashed with the FlashZilla Pro and a Windows 10/11 laptop. Skip this if you already own one.

Subtotal

Purchase to earn 718  Dirty Dollars Learn More

This product ships for free to most Canadian locations! Learn more

Truck Fitment

Description

For off-road and competition use only. Not legal for use on public roads or highways. Check your province or state regulations before installing.

TuneZilla tune files for the 2009-2014 VW/Audi 2.0L TDI, flashed at home through the OBD port with the TuneZilla FlashZilla Pro. Pick your power level: Stock Emissions-Off, or Stage 0.5, Stage 1, Stage 2, Stage 2.5, Stage 3, Stage 3.5, Stage 4.

Emissions-Off is included free with every Stage tune (select it in the TuneZilla Portal when you flash). Stock Emissions-Off is the same price as the entry Stage tune; choose it if you want factory power.

Tune Options

Stock baseline: 132 hp / 226 lb-ft at the wheel, 140 hp / 236 lb-ft crank (est.)

Tune Part # Wheel HP / TQ Crank HP / TQ (est.) Gain (crank) Requires
Stage 0.5 CR-TDI-G-140-000.5 152 hp / 242 lb-ft 161 hp / 252 lb-ft +21 hp / +16 lb-ft None listed
Stage 1 CR-TDI-G-140-001 158 hp / 280 lb-ft 167 hp / 292 lb-ft +27 hp / +56 lb-ft DSG Tune
Stage 2 CR-TDI-G-140-002 165 hp / 290 lb-ft 175 hp / 308 lb-ft +35 hp / +72 lb-ft DSG Tune
Stage 2.5 CR-TDI-G-140-025 169 hp / 314 lb-ft 179 hp / 326 lb-ft +39 hp / +90 lb-ft DSG Tune, 2200 bar Rail Pressure Sensor Upgrade
Stage 3 CR-TDI-G-140-003 191 hp / 335 lb-ft 231 hp / 407 lb-ft +91 hp / +171 lb-ft DSG Tune, CR170 Turbo, 4 bar MAP Sensor (PN: 0281 006 059)
Stage 3.5 CR-TDI-G-140-003.5 208 hp / 355 lb-ft 250 hp / 430 lb-ft +110 hp / +194 lb-ft DSG Tune, CR170 Turbo, 4 bar MAP Sensor (PN: 0281 006 059), 2200bar Rail Pressure Sensor (PN: 04L906054/04L906054F was used in testing)
Stage 4 CR-TDI-G-140-004 Not published Not published Not published DSG Tune, 4 bar MAP Sensor, Downpipe Upgrade, Clutch Upgrade, 2200 or 2700bar Rail Pressure Sensor

Crank figures are TuneZilla's published estimates.
