2009-2014 VW/Audi 2.0L TDI FlashZilla Stage 3 Tune File

TuneZilla
$934.56 CAD
Power Level

The Details

* Asterisks indicate a required selection.

VIN # *

Vehicle Identification Number

Transmission Type

Is your Truck Stock, Modified, or Upgraded?

Please list all modifications on your truck

Build Your Kit

Build your Stage 3 tune: pick any add-ons, then the FlashZilla Pro if you need one. Add-on prices on this page apply when ordered with this tune.

Dynamic Idle

Optional

Speed up engine-warm up with a 1,100 RPM (or another RPM of your choice) idle. The idle will return to stock state (approximately 830RPM) by 70C (158F) coolant temperature. Results may vary. Example Idle RPM vs. coolant temperature progress chart below: Most factory ECUs actually already has Dynamic Idle, especially at higher elevation or very cold temperatures. We typically do not set a higher idle RPM etc. than the maximum that's set by the factory. An engine that gets warmer sooner means that you get interior heat sooner (more comfort during cold weather) and reach optimal efficiency (fuel economy) sooner. If you want a permanently raised idle (e.g. 950-1000 RPM) to reduce vibrations, especially with a stiffer aftermarket engine mount, then we also can do that.

Glow Plug Extension

Optional

Increases glow plug strength and duration if it's cold enough. Improves cold starting performance (reduced chance of startup smoke and reduced engine stumbling).

Launch Control (Manual Only)

Optional

Launch control for manual transmission only. This limits the RPM to typically 2,500 while the vehicle is not moving. Do not select this tune if the vehicle has a DSG transmission - launch control can be obtained in a DSG tune instead.

Hardcut Rev Limiter

Optional

This tune option is for people who want an aggressive Rev Limiter either in neutral or at the top of the rev range in Drive or Sport for DSG's and any gear for manuals while driving. It is mechanically hard on the vehicle and can be set to any custom RPM you prefer - We do not recommend exceeding 4600RPM - *We do not offer refunds for this tuning feature!*

Manual Transmission Conversion

Optional

Reflash your transmission using factory software after swapping to a manual transmission. ECU will need to be recoded separately using VCDS to complete the process, make note of the current transmission coding before you flash the ECU.

High Pressure Fuel Pump Upgrade

Optional

Pick the calibration that matches your fuel pump upgrade. Only one can be used. Only required if you swap to a CP3 fuel pump . This requires custom tuning work for best results. We will not add this to other brand tunes. For use when using the upgraded CP4 metering valve from Darkside Developments

Dynamic EGR

Optional

Dynamic EGR allows the function of EGR to be retained to help the vehicle get up to operating temp. Once operating temp is reached, EGR is switched off to prolong the life of the EGR system. This feature is for Off-Road Use Only. EGR components must be functional. Incompatible with Emissions-Off.

Transmission Tune

Optional

DSG automatic cars: TuneZilla requires a DSG tune with Stage 1 and up. Skip this if your car is a manual. The DSG tune covers Stage 3 and lower; TuneZilla has no DSG tune for Stage 4 on these cars.

FlashZilla Pro

Optional

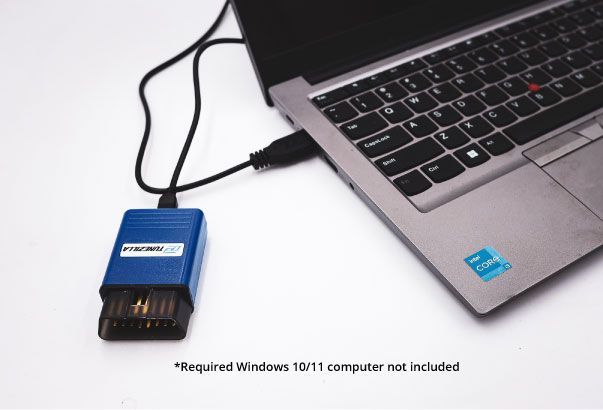

Every TuneZilla tune is flashed with the FlashZilla Pro and a Windows 10/11 laptop. Skip this if you already own one.

Subtotal

Purchase to earn 934  Dirty Dollars Learn More

This product ships for free to most Canadian locations! Learn more

Truck Fitment

Description

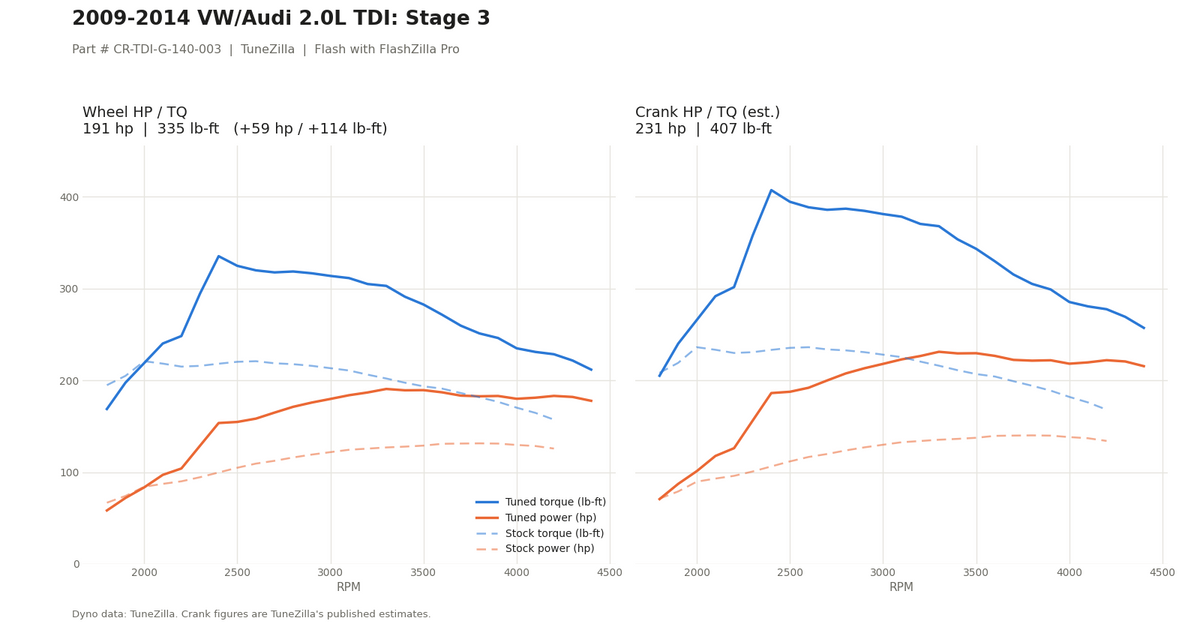

TuneZilla engine (ECU) tuning for the VW/Audi 2.0L TDI EA189, flashed at home through the OBD port with the TuneZilla FlashZilla Pro. Pick your power level above. The dyno graph for this power level is in the photo gallery. Add the FlashZilla Pro below if you do not already own one.

Part Number: CR-TDI-G-140-003

Emissions-Off: included free with this tune. Select it in the TuneZilla Portal when you flash.

Tune Options

Stock baseline: 132 hp / 226 lb-ft at the wheel, 140 hp / 236 lb-ft crank (est.)

Tune Part # Wheel HP / TQ Crank HP / TQ (est.) Gain (crank) Requires
Stage 0.5 CR-TDI-G-140-000.5 152 hp / 242 lb-ft 161 hp / 252 lb-ft +21 hp / +16 lb-ft None listed
Stage 1 CR-TDI-G-140-001 158 hp / 280 lb-ft 167 hp / 292 lb-ft +27 hp / +56 lb-ft DSG Tune
Stage 2 CR-TDI-G-140-002 165 hp / 290 lb-ft 175 hp / 308 lb-ft +35 hp / +72 lb-ft DSG Tune
Stage 2.5 CR-TDI-G-140-025 169 hp / 314 lb-ft 179 hp / 326 lb-ft +39 hp / +90 lb-ft DSG Tune, 2200 bar Rail Pressure Sensor Upgrade
Stage 3 CR-TDI-G-140-003 191 hp / 335 lb-ft 231 hp / 407 lb-ft +91 hp / +171 lb-ft DSG Tune, CR170 Turbo, 4 bar MAP Sensor (PN: 0281 006 059)
Stage 3.5 CR-TDI-G-140-003.5 208 hp / 355 lb-ft 250 hp / 430 lb-ft +110 hp / +194 lb-ft DSG Tune, CR170 Turbo, 4 bar MAP Sensor (PN: 0281 006 059), 2200bar Rail Pressure Sensor (PN: 04L906054/04L906054F was used in testing)
Stage 4 CR-TDI-G-140-004 Not published Not published Not published DSG Tune, 4 bar MAP Sensor, Downpipe Upgrade, Clutch Upgrade, 2200 or 2700bar Rail Pressure Sensor

Crank figures are TuneZilla's published estimates.

Transmission Tuning

Available Add-Ons

Free Add-Ons

Included at no charge with this tune. Select the ones you want in the TuneZilla Portal App when you flash. Where two options cover the same part (such as the 2200 and 2700 rail pressure sensors), pick only the one you installed.

  • 2200 Rail Pressure Sensor (CR-TDI-2200RPS)
  • 2700 Bar Rail Pressure Sensor (CR-TDI-2700RPS)
  • Emissions-Off (DPF, AdBlue, EGR, ASV & Swirl Flap) (CR-TDI-2L-MISC)
  • Deep Idle (TDI-Deep-Idle) - Volkswagen Beetle 2011-2014; Volkswagen Golf 2009-2014; Volkswagen Jetta 2009-2014; Volkswagen Jetta SportWagen 2009-2014 only
  • Engine Swap Emissions-Off (CR-TDI-SWAP)
  • Left Foot Brake (LFBF-EDC17-2.0-3.0-TDI)

For off-road and competition use only. Not legal for use on public roads or highways. Check your province or state regulations before installing.

Already own a TuneZilla tune and want to add something later? Use the FlashZilla Tune Revision page.

Requirements

Upgrade

Requirement

DSG Tune

Required

CR170 Turbo

Required

4 bar MAP Sensor (PN: 0281 006 059)

Required

Downpipe Upgrade

Recommended

Clutch Upgrade

Recommended

Notes

It is important to note that we do not remove factory readiness monitors or force readiness for any factory-installed components. If you are installing aftermarket hardware that is for off-road use only, please double-check with your state requirements prior to flashing.

Installation
  • Flashed at home through the OBD port with the TuneZilla FlashZilla Pro and a Windows 10 or 11 laptop running the TuneZilla Portal App.
  • Connect the FlashZilla Pro with a USB-A to USB-C cable. USB-C to USB-C cables are not compatible.
  • Your tune is linked to your VIN and syncs to the TuneZilla Portal App, usually right away. Read and save your factory ECU file before flashing.
  • Clear all fault codes and warning messages before flashing.
  • TuneZilla recommends a battery charger for every flash. Turn the ignition on with the engine off, follow the prompts and do not interrupt the flash.

Supported ECU Hardware Numbers

03L906012DD 6072, 03L906012DE 6073, 03L906012DE 8401, 03L906018AB 9979, 03L906018AT 9783, 03L906018AT 9977, 03L906018AT 9978, 03L906018AT 9979, 03L906018AT 9980, 03L906018AT 9981, 03L906018BG 9978, 03L906018FF 9977, 03L906018GH 9977, 03L906018GJ 6074, 03L906018PC 4011, 03L906018PR 9979, 03L906018RF 9977, 03L906018RG 9978, 03L906018TC 7784, 03L906019AP 4601, 03L906019AP 8172, 03L906019CL 7966, 03L906019CL 9971, 03L906019CM 7967, 03L906019CM 9971, 03L906019CT 7971, 03L906019CT 9971, 03L906019DA 9144, 03L906019DA 9971, 03L906019DB 7970, 03L906019DB 9047, 03L906019DB 9971, 03L906019EE 1181, 03L906019EE 8177, 03L906019EF 1182, 03L906019EG 1590, 03L906019EH 1591, 03L906019EH 3523, 03L906019EH 8179, 03L906019EJ 8176, 03L906019HB 4817, 03L906019HB 8169, 03L906019HC 4816, 03L906019HC 8170, 03L906019HD 4605, 03L906019HD 4818, 03L906019HD 8175, 03L906019HE 4606, 03L906019HE 4819, 03L906019HE 8174, 03L906019HG 2261, 03L906019HG 3522, 03L906019HG 8178, 03L906019HH 3524, 03L906019HH 8180, 03L906019HN 8173, 03L906019JN 9977, 03L906019JS 7549, 03L906019JS 8183, 03L906019JT 7550, 03L906019JT 8184, 03L906019KA 8185, 03L906019KB 8186, 03L906019KC 7554, 03L906019KC 8181, 03L906019KD 5680, 03L906019KD 8182, 03L906022CC 9970, 03L906022HT 6160, 03L906022KB 9971, 03L906022PB 8216, 03L906022PB 9045, 03L906022PB 9971, 03L906022PC 4029, 03L906022PD 4107, 03L906022SQ 7968, 03L906022SQ 9971, 03L997009H 9981, 03L997009J 9978, 03L997009J 9981, 03L997009J 9982, 03L997016J 9980, 03L997016N 8680, 03L997016N 9970, 03L997016P 5110, 03L997016P 8681, 03L997016P 9970, 03L997030 9983, 03L997030A 9980, 03L997030A 9983, 03L997030B 9983, 03L997030C 9983, 03L997030D 9983, 03L997030E 9983, 03L997030F 9983, 03L997030G 9983, 03L997030H 9983, 03L997030J 9983, 03L997030K 9983, 03L997030L 9983, 03L997030M 9983, 03L997030N 9983, 03L997030P 9983, 03L997030Q 9983, 03L997030R 9980, 03L997030R 9983

Manufacturer Description

Stage 3 ECU Tune for 2.0 TDI CJAA/CBEA

Explore What Your 2.0 TDI is Capable of.

Explore the full potential of your 2.0 TDI CJAA/CBEA diesel engine. WIth supporting hardware upgrades, you can experience the untapped power potential that VW engineers didn't want you to know about. Designed to maximize power output. Stage 3 tuning requires a turbo upgrade and MAP sensor upgrade. Manual transmissions will need a clutch upgrade, and DSG owners will need a TCU tune.

It is recommended to upgrade the downpipe for the Stage 3 tune. If you are removing or modifying your DPF, you will need to select the necessary tune "add-on" with your tune.

Enhanced Performance:

  • Spooly Boi: With a CR170 Turbo upgrade, the Stage 3 tune offers a significant boost in horsepower and torque over the factory configuration.

  • Refined Engine Response: Experience a smoother, more responsive throttle, and enjoy enhanced driving dynamics tailored for performance enthusiasts.

  • Fuel Economy: Alongside power, this tune optimizes fuel consumption, ensuring that increased performance doesn’t come at the cost of efficiency. In most cases, users report an increase in fuel efficiency but individual results may vary based on several factors outside of our control, such as driving habits, climate, and vehicle condition.

Customizable Experience with Tune Add-Ons:

  • Tailored to Your Upgrades: Whether you've made modifications or plan to, our optional Tune Add-Ons ensure your ECU tune aligns perfectly with your vehicle's configuration, maximizing performance and reliability.

  • Choose from a variety of add-ons such as Launch Control, Dynamic EGR, Dynamic Idle, and various Hardware upgrades, including Engine Swap tuning support.

Safety and Reliability:

  • Engine Health First: While boosting performance, the Stage 3 ECU Tune prioritizes the health and longevity of your engine, ensuring that the increased output does not compromise the vehicle's reliability.

  • Tested and Proven: With over 10,000 downloads from Instatune, this tune is proven to deliver consistent and reliable performance. Once purchased, users have access to all future tune revisions and updates.

Flash With Ease
