2009-2012 VW/Audi Touareg & Q7 3.0L TDI FlashZilla Tune File

TuneZilla
$718.56 CAD
Power Level

The Details

* Asterisks indicate a required selection.

VIN # *

Vehicle Identification Number

Transmission Type

Is your Truck Stock, Modified, or Upgraded?

Please list all modifications on your truck

Build Your Kit

Build your Stock Emissions-Off tune: add any add-ons you want, then the FlashZilla Pro if you need one.

Cold Climate Idle

Optional

Cold Climate Idle raises the idle RPM (between 1150-1200RPM) on engine start up to reach operating temperature (approx 70C/158F) quicker in cold climates. This feature works when vehicle is in Park and on initial engine start. If vehicle is moved out of Park, the feature will turn off.

Glow Plug Extension

Optional

Increases glow plug strength and duration if it's cold enough. Improves cold starting performance (reduced chance of startup smoke and reduced engine stumbling).

Hardcut Rev Limiter

Optional

This tune option is for people who want an aggressive Rev Limiter either in neutral or at the top of the rev range in Drive or Sport for DSG's and any gear for manuals while driving. It is mechanically hard on the vehicle and can be set to any custom RPM you prefer - We do not recommend exceeding 4600RPM - *We do not offer refunds for this tuning feature!*

High Pressure Fuel Pump Upgrade

Optional

Pick the calibration that matches your fuel pump upgrade. Only one can be used. Only required if you swap to a CP3 fuel pump . This requires datalogs from the end user for best results. We will not add this to other brand tunes. This add-on can be added to any Stage tune.

FlashZilla Pro

Optional

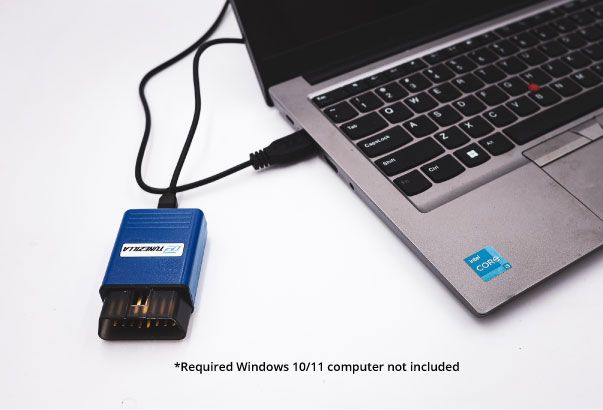

Every TuneZilla tune is flashed with the FlashZilla Pro and a Windows 10/11 laptop. Skip this if you already own one.

Subtotal

Purchase to earn 718  Dirty Dollars Learn More

This product ships for free to most Canadian locations! Learn more

Truck Fitment

Description

For off-road and competition use only. Not legal for use on public roads or highways. Check your province or state regulations before installing.

TuneZilla tune files for the 2009-2012 VW/Audi Touareg & Q7 3.0L TDI, flashed at home through the OBD port with the TuneZilla FlashZilla Pro. Pick your power level: Stock Emissions-Off, or Stage 1, Stage 2, Stage 3 - 2260 Turbo, Stage 3 - 2566 Turbo, Stage 3 - 2872 Turbo.

Emissions-Off is included free with every Stage tune (select it in the TuneZilla Portal when you flash). Stock Emissions-Off is the same price as the entry Stage tune; choose it if you want factory power.

Tune Options

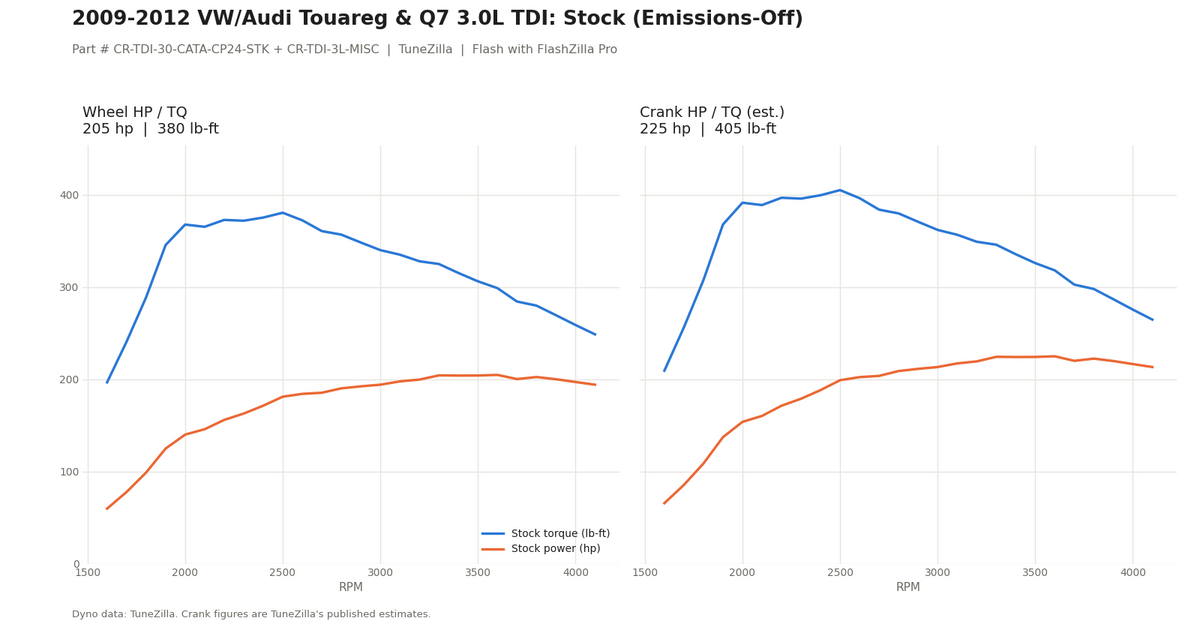

Stock baseline: 204 hp / 380 lb-ft at the wheel, 225 hp / 405 lb-ft crank (est.)

Tune Part # Wheel HP / TQ Crank HP / TQ (est.) Gain (crank) Requires

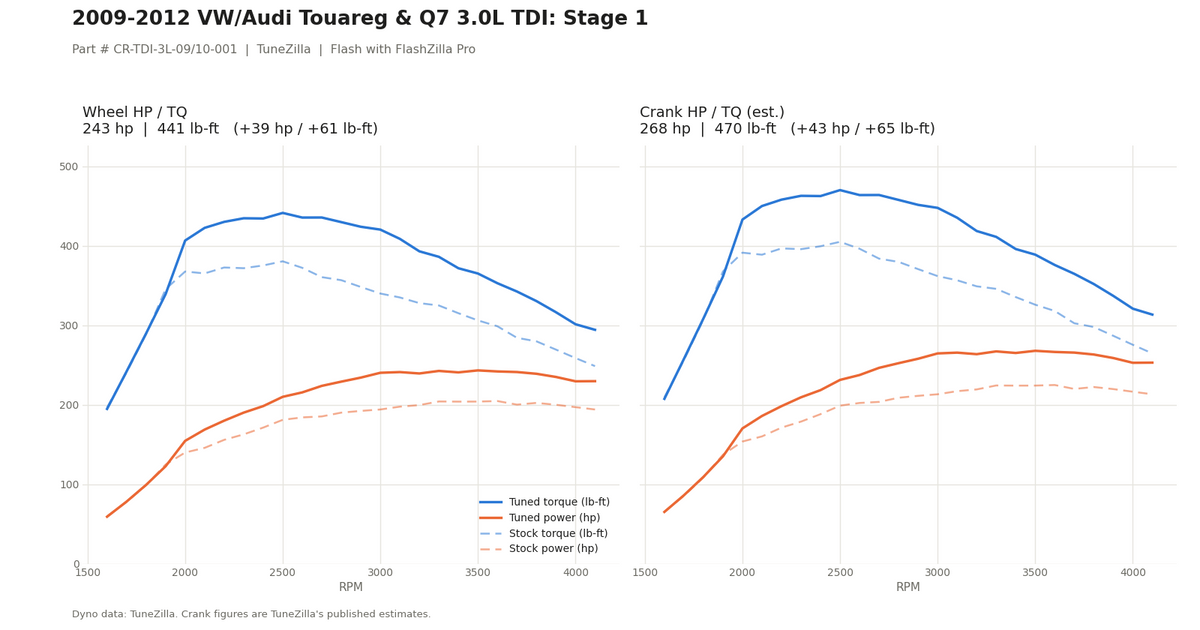

Stage 1 CR-TDI-3L-09/10-001 243 hp / 441 lb-ft 268 hp / 470 lb-ft +43 hp / +65 lb-ft None listed
Stage 2 CR-TDI-3L- 09/10-002 255 hp / 454 lb-ft 281 hp / 484 lb-ft +56 hp / +79 lb-ft None listed
Stage 3 - 2260 Turbo - Garrett 2260VK turbo CR-TDI-3L-09CATA/10-003-2260 283 hp / 498 lb-ft 312 hp / 531 lb-ft +87 hp / +126 lb-ft Garrett 2260VK ( Part Number: #776470-5003W)
Stage 3 - 2566 Turbo - Darkside Developments 2566VK Turbo CR-TDI-3L-09CATA/10-003-2566 313 hp / 514 lb-ft 345 hp / 549 lb-ft +120 hp / +144 lb-ft Darkside 2566VK (Part Number: #DSD1229.1)
Stage 3 - 2872 Turbo - Darkside GTD2872VRK CR-TDI-3L-09CATA/10-003-2872 325 hp / 516 lb-ft 382 hp / 606 lb-ft +157 hp / +201 lb-ft Darkside GTD2872VRK

Crank figures are TuneZilla's published estimates.
