2009-2012 VW/Audi Touareg & Q7 3.0L TDI FlashZilla Stock Emissions-Off Tune File

TuneZilla
$718.56 CAD
Power Level

The Details

* Asterisks indicate a required selection.

VIN # *

Vehicle Identification Number

Transmission Type

Is your Truck Stock, Modified, or Upgraded?

Please list all modifications on your truck

Build Your Kit

Build your Stock Emissions-Off tune: add any add-ons you want, then the FlashZilla Pro if you need one.

Cold Climate Idle

Optional

Cold Climate Idle raises the idle RPM (between 1150-1200RPM) on engine start up to reach operating temperature (approx 70C/158F) quicker in cold climates. This feature works when vehicle is in Park and on initial engine start. If vehicle is moved out of Park, the feature will turn off.

Glow Plug Extension

Optional

Increases glow plug strength and duration if it's cold enough. Improves cold starting performance (reduced chance of startup smoke and reduced engine stumbling).

Hardcut Rev Limiter

Optional

This tune option is for people who want an aggressive Rev Limiter either in neutral or at the top of the rev range in Drive or Sport for DSG's and any gear for manuals while driving. It is mechanically hard on the vehicle and can be set to any custom RPM you prefer - We do not recommend exceeding 4600RPM - *We do not offer refunds for this tuning feature!*

High Pressure Fuel Pump Upgrade

Optional

Pick the calibration that matches your fuel pump upgrade. Only one can be used. Only required if you swap to a CP3 fuel pump . This requires datalogs from the end user for best results. We will not add this to other brand tunes. This add-on can be added to any Stage tune.

FlashZilla Pro

Optional

Every TuneZilla tune is flashed with the FlashZilla Pro and a Windows 10/11 laptop. Skip this if you already own one.

Subtotal

Purchase to earn 718  Dirty Dollars Learn More

This product ships for free to most Canadian locations! Learn more

Truck Fitment

Description

For off-road and competition use only. Not legal for use on public roads or highways. Check your province or state regulations before installing.

TuneZilla stock calibration for the 2009-2012 VW/Audi Touareg & Q7 3.0L TDI. It keeps factory power, includes the TuneZilla emissions-off calibration (DPF, AdBlue, EGR and swirl flap), and carries any add-ons you choose below, flashed at home through the OBD port with the TuneZilla FlashZilla Pro.

Want more power? See the Stage 1 Tune File, which costs the same and also includes Emissions-Off at no charge.

Part Number: CR-TDI-30-CATA-CP24-STK + CR-TDI-3L-MISC

Includes: TuneZilla stock calibration with the emissions-off calibration (DPF, AdBlue, EGR and swirl flap).

Tune Options

Stock: 204 hp / 380 lb-ft at the wheel, 225 hp / 405 lb-ft crank (TuneZilla estimate). The stock dyno graph is in the photo gallery.

Free Add-Ons

Included at no charge with this tune. Select the ones you want in the TuneZilla Portal App when you flash.

  • Deep Idle (TDI-Deep-Idle)
  • Left Foot Brake (LFBF-EDC17-2.0-3.0-TDI)

Already own a TuneZilla tune and want to add something later? Use the FlashZilla Tune Revision page.

Notes

TuneZilla does not remove factory readiness monitors or force readiness for factory-installed components.

Installation

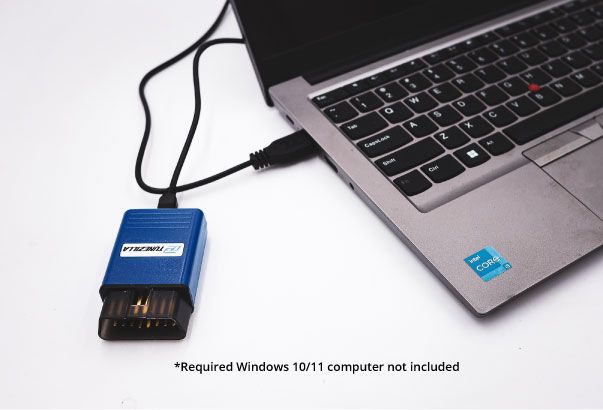

  • Flashed at home through the OBD port with the TuneZilla FlashZilla Pro and a Windows 10 or 11 laptop running the TuneZilla Portal App.
  • Connect the FlashZilla Pro with a USB-A to USB-C cable. USB-C to USB-C cables are not compatible.
  • Your tune is linked to your VIN and syncs to the TuneZilla Portal App, usually right away. Read and save your factory ECU file before flashing.
  • Clear all fault codes and warning messages before flashing.
  • TuneZilla recommends a battery charger for every flash. Turn the ignition on with the engine off, follow the prompts and do not interrupt the flash.

Radiator fan: the radiator fan can run during flashing and drain the battery. TuneZilla recommends a battery charger or unplugging the two radiator fan control unit fuses while flashing.

Supported ECU Hardware Numbers

03L997030A 9983, 03L997030F 9983, 03L997030N 9983, 4L0910401Q 0100, 4L0997401H 0010, 4L1910401G 0100, 4L1910401G 0140, 4L2910401 0005, 4L2910401 0009, 7L0907401K 0110, 7L0907401N 0050, 7L0907401N 0060, 7L0907401T 0060, 7L0907401T 0090, 7L0907401T 0100, 7L0907401T 0140, 7L0997401 0010, 7P0907401J 0008, 7P0907401K 0004, 7P5907401H 0004

Questions and Answers

Don't see your question? Ask us anything about this product.

Vehicle Fitment - Part No: CR-TDI-30-CATA-CP24-STK+CR-TDI-3L-MISC

Product Fitment Notes
