2009-2012 VW/Audi Touareg & Q7 3.0L TDI FlashZilla Stage 3 2260 Turbo Tune File

TuneZilla
$1,006.56 CAD
Power Level

The Details

* Asterisks indicate a required selection.

VIN # *

Vehicle Identification Number

Transmission Type

Is your Truck Stock, Modified, or Upgraded?

Please list all modifications on your truck

Build Your Kit

Build your Stage 3 - 2260 Turbo tune: pick any add-ons, then the FlashZilla Pro if you need one. Add-on prices on this page apply when ordered with this tune.

Cold Climate Idle

Optional

Cold Climate Idle raises the idle RPM (between 1150-1200RPM) on engine start up to reach operating temperature (approx 70C/158F) quicker in cold climates. This feature works when vehicle is in Park and on initial engine start. If vehicle is moved out of Park, the feature will turn off.

Glow Plug Extension

Optional

Increases glow plug strength and duration if it's cold enough. Improves cold starting performance (reduced chance of startup smoke and reduced engine stumbling).

Hardcut Rev Limiter

Optional

This tune option is for people who want an aggressive Rev Limiter either in neutral or at the top of the rev range in Drive or Sport for DSG's and any gear for manuals while driving. It is mechanically hard on the vehicle and can be set to any custom RPM you prefer - We do not recommend exceeding 4600RPM - *We do not offer refunds for this tuning feature!*

High Pressure Fuel Pump Upgrade

Optional

Pick the calibration that matches your fuel pump upgrade. Only one can be used. Only required if you swap to a CP3 fuel pump . This requires datalogs from the end user for best results. We will not add this to other brand tunes. This add-on can be added to any Stage tune.

Dynamic EGR

Optional

Dynamic EGR keeps EGR operating stock like until the engine reaches "warmed up" temperature, usually about 60deg C. Then it closes so there is no EGR flow. All EGR hardware must be functional to use this feature. This feature is ideal for customers who want the advantages of the EGR system while prolonging component life. Incompatible with Emissions-Off.

Transmission Tune

Required

Required with Stage 3 (TuneZilla). Aisin 8-speed transmission tune for 2011-2012 Touareg and Q7: choose Stage 1, or Custom (fine tuned over several revisions; VCDS recommended). 2009-2010 vehicles have no FlashZilla Pro transmission file: contact us before ordering Stage 3.

FlashZilla Pro

Optional

Every TuneZilla tune is flashed with the FlashZilla Pro and a Windows 10/11 laptop. Skip this if you already own one.

Subtotal

Purchase to earn 1006  Dirty Dollars Learn More

This product ships for free to most Canadian locations! Learn more

Truck Fitment

Description

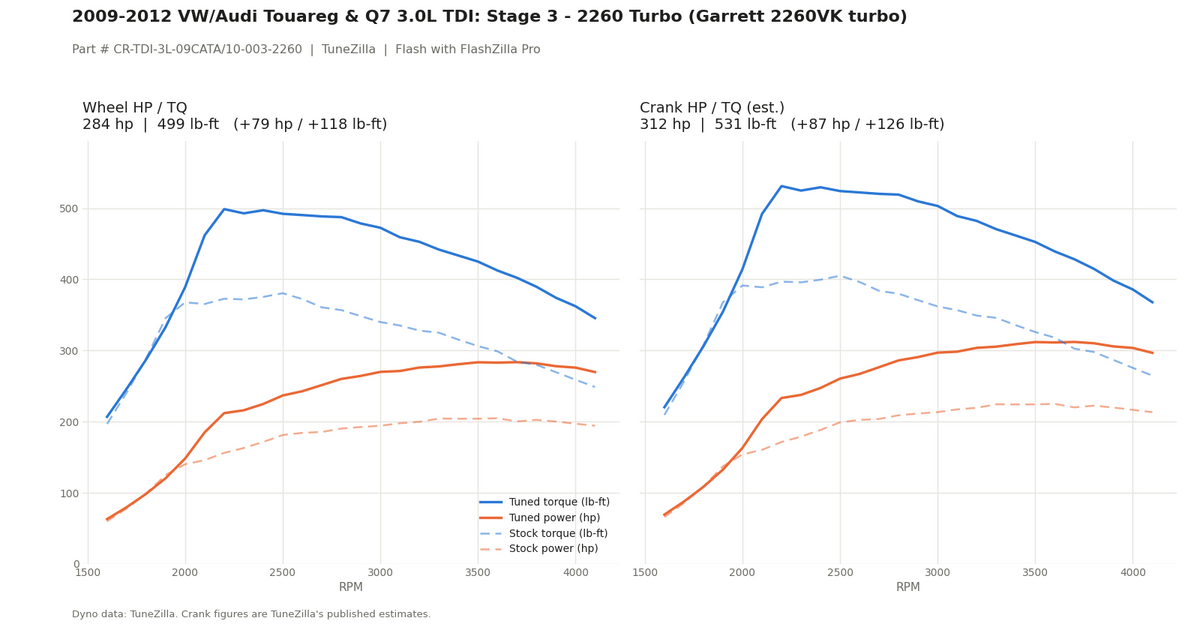

TuneZilla engine (ECU) tuning for the VW/Audi Touareg & Q7 3.0L V6 TDI, flashed at home through the OBD port with the TuneZilla FlashZilla Pro. Pick your power level above. The dyno graph for this power level is in the photo gallery. Add the FlashZilla Pro below if you do not already own one.

Part Number: CR-TDI-3L-09CATA/10-003-2260

Emissions-Off: included free with this tune. Select it in the TuneZilla Portal when you flash.

2009-2010 vehicles: TuneZilla requires the transmission tune with Stage 3, and the FlashZilla Pro Aisin transmission file fits 2011-2012 only. Contact us before ordering Stage 3 for a 2009-2010 vehicle.

Tune Options

Stock baseline: 204 hp / 380 lb-ft at the wheel, 225 hp / 405 lb-ft crank (est.)

Tune Part # Wheel HP / TQ Crank HP / TQ (est.) Gain (crank) Requires
Stage 1 CR-TDI-3L-09/10-001 243 hp / 441 lb-ft 268 hp / 470 lb-ft +43 hp / +65 lb-ft None listed
Stage 2 CR-TDI-3L- 09/10-002 255 hp / 454 lb-ft 281 hp / 484 lb-ft +56 hp / +79 lb-ft None listed
Stage 3 - 2260 Turbo - Garrett 2260VK turbo CR-TDI-3L-09CATA/10-003-2260 283 hp / 498 lb-ft 312 hp / 531 lb-ft +87 hp / +126 lb-ft Garrett 2260VK ( Part Number: #776470-5003W)
Stage 3 - 2566 Turbo - Darkside Developments 2566VK Turbo CR-TDI-3L-09CATA/10-003-2566 313 hp / 514 lb-ft 345 hp / 549 lb-ft +120 hp / +144 lb-ft Darkside 2566VK (Part Number: #DSD1229.1)
Stage 3 - 2872 Turbo - Darkside GTD2872VRK CR-TDI-3L-09CATA/10-003-2872 325 hp / 516 lb-ft 382 hp / 606 lb-ft +157 hp / +201 lb-ft Darkside GTD2872VRK

Crank figures are TuneZilla's published estimates.

Transmission Tuning

Available Add-Ons

Free Add-Ons

Included at no charge with this tune. Select the ones you want in the TuneZilla Portal App when you flash. Where two options cover the same part (such as the 2200 and 2700 rail pressure sensors), pick only the one you installed.

  • Emissions-Off (DPF, AdBlue, EGR & Swirl Flap) (CR-TDI-3L-MISC)
  • Deep Idle (TDI-Deep-Idle)
  • Left Foot Brake (LFBF-EDC17-2.0-3.0-TDI)

For off-road and competition use only. Not legal for use on public roads or highways. Check your province or state regulations before installing.

Already own a TuneZilla tune and want to add something later? Use the FlashZilla Tune Revision page.

Requirements

Supported Stage 3 Hardware Upgrades

Turbo Upgrades

Additional Upgrades

Garrett 2260VK ( Part Number: #776470-5003W)

  • TCU Tune | Required

  • 4 Bar MAP Sensor Upgrade | Required

  • 3.0 BiTurbo TDI MAF Upgrade | Recommended

Installation

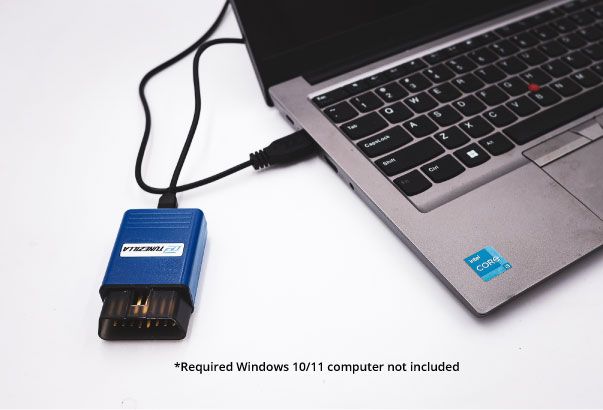

  • Flashed at home through the OBD port with the TuneZilla FlashZilla Pro and a Windows 10 or 11 laptop running the TuneZilla Portal App.
  • Connect the FlashZilla Pro with a USB-A to USB-C cable. USB-C to USB-C cables are not compatible.
  • Your tune is linked to your VIN and syncs to the TuneZilla Portal App, usually right away. Read and save your factory ECU file before flashing.
  • Clear all fault codes and warning messages before flashing.
  • TuneZilla recommends a battery charger for every flash. Turn the ignition on with the engine off, follow the prompts and do not interrupt the flash.

Radiator fan: the radiator fan can run during flashing and drain the battery. TuneZilla recommends a battery charger or unplugging the two radiator fan control unit fuses while flashing.

Supported ECU Hardware Numbers

03L997030A 9983, 03L997030F 9983, 03L997030N 9983, 4L0910401Q 0100, 4L0997401H 0010, 4L1910401G 0100, 4L1910401G 0140, 4L2910401 0005, 4L2910401 0009, 7L0907401K 0110, 7L0907401N 0050, 7L0907401N 0060, 7L0907401T 0060, 7L0907401T 0090, 7L0907401T 0100, 7L0907401T 0140, 7L0997401 0010, 7P0907401J 0008, 7P0907401K 0004, 7P5907401H 0004

Manufacturer Description

Stage 3 tuning offers customers off-the-shelf tuning solutions for various hardware combinations. TuneZilla has partnered with Malone Tuning to develop tried and tested hardware upgrade combinations to deliver reliable tune files for the 3.0 TDI CATA engine. If you are simply looking to do a simple turbo upgrade to replace a worn turbo, or want to maximize your power potential, we have a tune file for you.
Our tune files require very little hardware upgrades and have been tested to produce the most power without unnecessary upgrades.

Garrett 2260VK

Our Stage 3 tune for the Garrett 2260VK turbo upgrade increases peak torque substantially while utilizing most of the factory fuelling system. The only required hardware upgrades are a 4 bar MAP sensor and the larger 3.0 BiTurbo TDI MAF sensor. The MAF upgrade will aid in smoke control as well as a more linear fuel delivery at higher boost levels.
