Description
Fits
| Year |
Make |
Model |
Engine |
| 2008-2010 |
Ford
|
F-Series |
6.4L Powerstroke |
Power: Up to 630HP
Recommended Injectors: Stock
This KC Stage 1 Turbocharger is an entry-level Low-Pressure Turbo for the 6.4L Super Duty. This is meant for tow rigs, stock(ish) trucks, and guys who never plan on upgrading to larger injectors. It is also the ONLY turbo on the market that has a 4" Larger inlet with a ported anti-surge cover, and a larger 360 thrust bearing. Although it may only be an entry-level towing turbo meant for stock injectors, this charger will still outperform most of the other options available on the market (unless you go with a drastically larger turbo).
If you want more than 650HP then check out the KC Fusion Stage 2 Low Pressure Turbo for your 2008-2010 6.4L Powerstroke.
Part Number: 302069
Features
- 71mm Billet Compressor wheel
- Stock size
- Larger 4" inlet
- Ported anti-surge compressor cover
- Larger upgraded 360 thrust bearing on the market
- Drop-in turbo (no modification except air filter)
- REQUIRES 4" inlet air filter
- DOES NOT REQUIRE upgrades to the high-pressure turbo
- NO CORE REQUIRED
Warranty
Notes

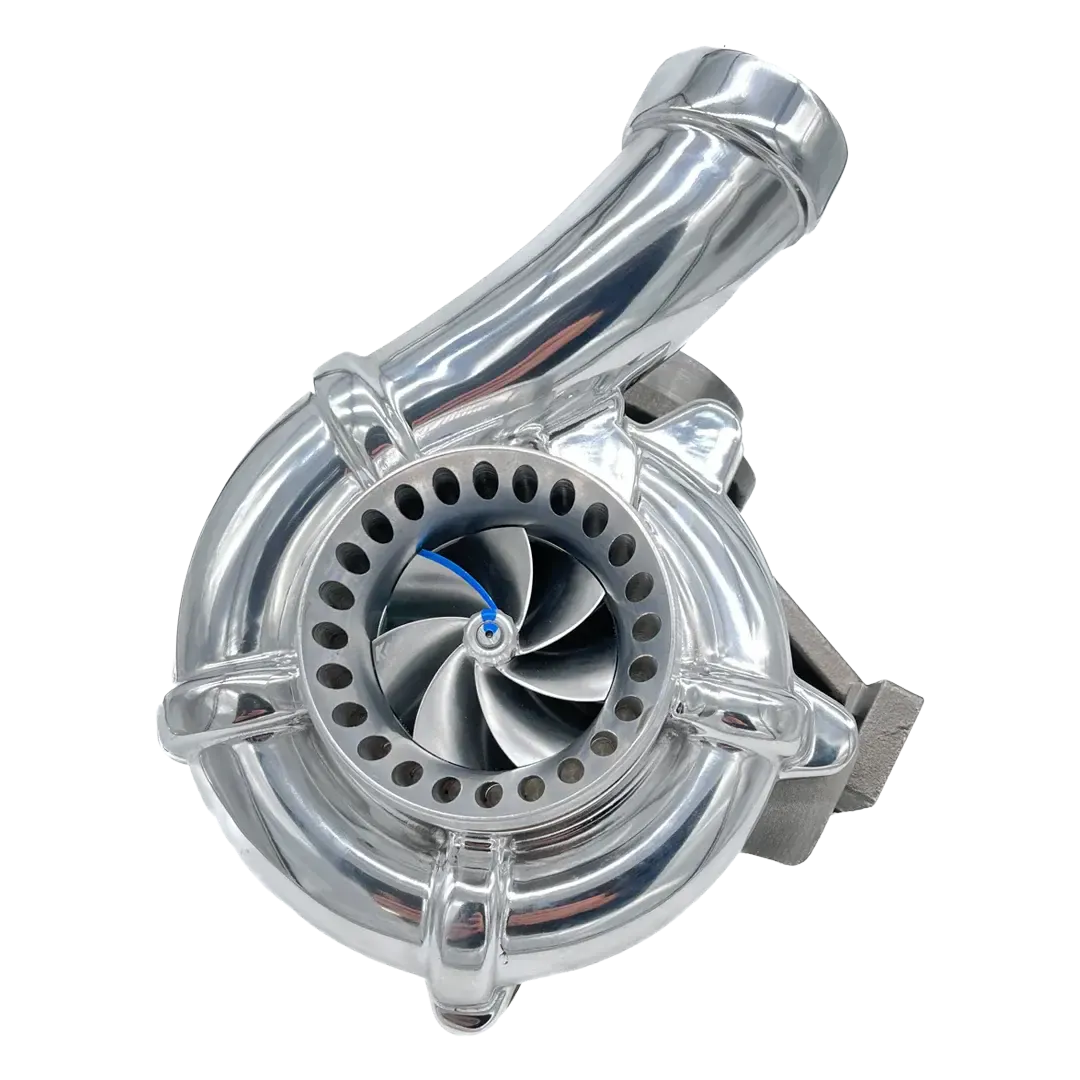

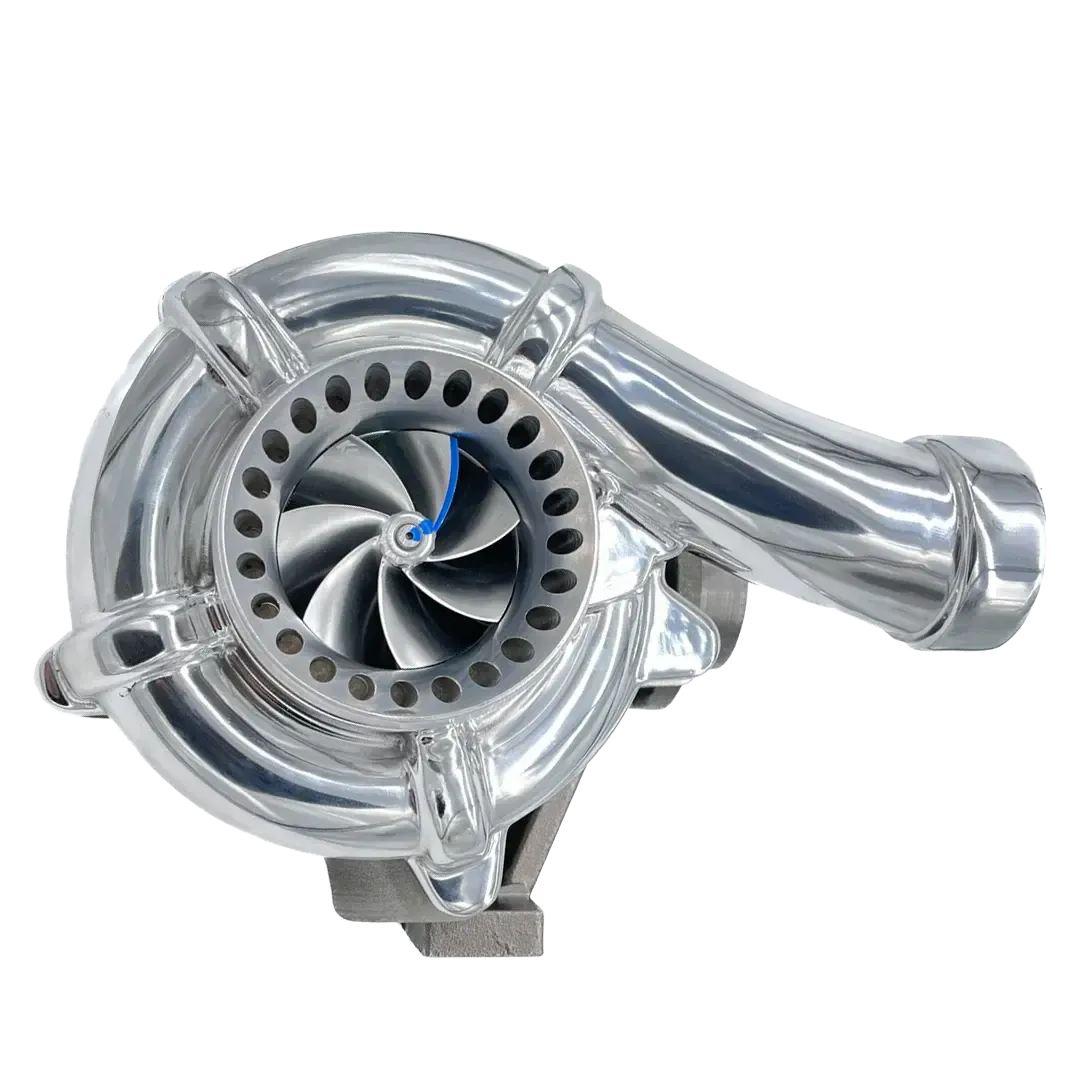

- The picture shown is the polished version, which is an additional charge
- REQUIRES upgraded 4" intake to fit over upgraded 4" inlet
Graph Breakdown
- Stock injectors: GRAPH 1
- KC 71mm S1 turbo 2200us - 638hp 1306tq RED LINES
- Competitor 73mm 2200us - 621hp 1253tq YELLOW LINE
